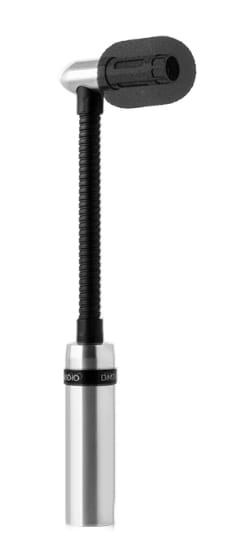

EARTHWORKS / DM20 Gen 2

Cardioid gooseneck microphone for toms and snare drums, with 20 Hz–20 kHz response; includes RM2 rim mount, microphone bag and windscreen.

■ new active electronics
Second-generation Earthworks microphones draw just 6 mA of phantom current, improving operation with devices including transformer-based preamps and splitters.
Additional protection reduces risks from accidental hot plugging. Connecting with phantom power on can create damaging transients under some conditions; switch phantom power off before changing connections even when workflows or session recalls make this inconvenient.
Second-generation Earthworks microphones feature enhanced protection for power conditions beyond those typically encountered with major touring consoles and stage boxes.

■ new rim-mount system
RM2 securely attaches DM20 Gen 2 to snare or tom rims, providing a low-profile, tour-ready solution without a microphone stand.
Designed for DM20 Gen 2, RM2 is optimized for its gooseneck and clip and offers broad compatibility with metal drum hoops and suspension mounts.

■ sound
DM20 Gen 2 combines a fast, clean impulse response with broad, flat frequency response to reproduce the natural drum sound at a higher level.

■ precise polar-pattern control
DM20's supercardioid pattern is designed for over 25 dB rejection at 140 degrees and an average of over 16 dB at 180 degrees.
The 1/3-octave polar charts show consistent performance across frequencies, combining focused frontal pickup with strong rear rejection.

【 features 】
・ designed for toms and snare drums
・ also ideal for TV production, worship and studio recording
・ gooseneck allows precise positioning
・ Improved rear rejection over DM20 Gen 1, ideal for snare
・ High SPL handling accommodates hard-hitting drummers
・ Response focused on the natural frequency range of the drum shell gives you greater freedom to make musical choices rather than compensate for the environment.
・ high gain before feedback
・ Tight cardioid polar pattern
・ excellent off-axis rejection
・ Included RM2 rim mount attaches securely to most drums
・ Balanced, lively and natural sound
・ frequency response:20Hz–20kHz
・ designed, tuned and assembled in the USA

【 product specifications 】
■ Frequency Response: 20Hz-20KHz
・Polar pattern: Cardioid
Sensitivity: -51 dBV/Pa (2.8 mV/Pa)
■ Maximum input level: 157dB SPL
minimum impedance:1kOhm
noise:20 dBSPL (A-Weighted)
power requirements:48V, 6mA
dimensions:203.2 mm x 21.84 mm
color:Stainless Steel
■Weight: 0.18kg
gooseneck dimensions:88.9mm x 9.53mm
included accessories:RM2 Rim Mount, Microphone Bag, Foam Windscreen
