YAMAHA / MODX8+ amplifier set

This is the successor model to YAMAHA's MODX, which has improved basic performance and expressiveness to suit changing scenes. 4-piece set includes pedal switch, keyboard stand, speaker, and connection cable.

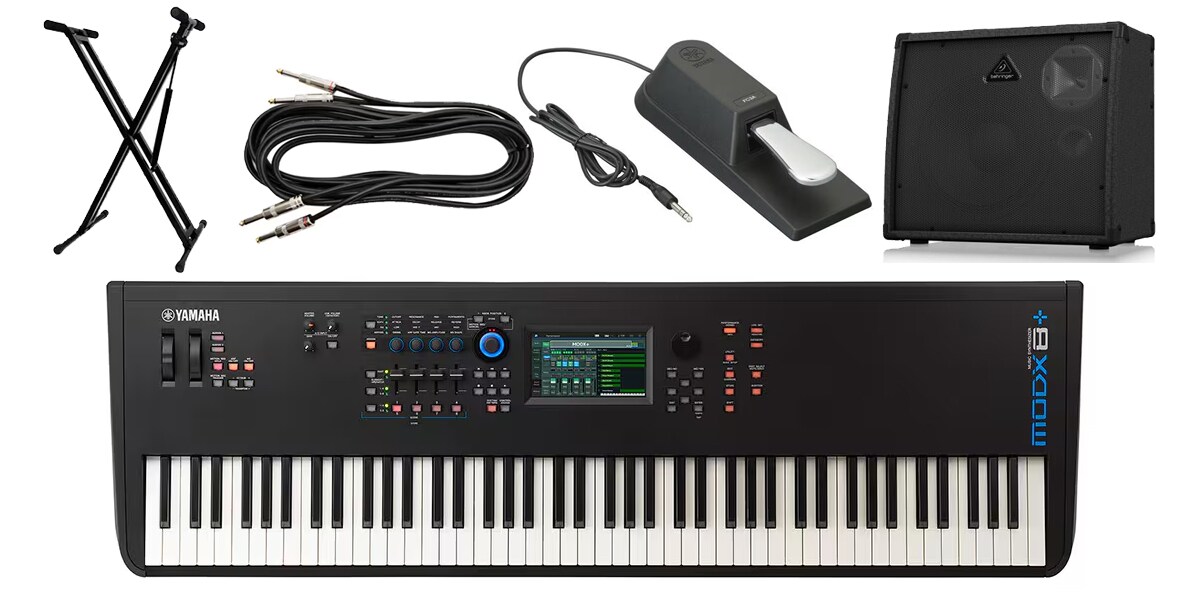

■Set contents:
・Body
・Pedal (FC3A)
・Stand (KST30X)
・Keyboard amplifier (K450FX)

Approximately four years have passed since the release of the first generation MODX (October 2018), and MODX has repeatedly updated its OS (v1.1 → v2.0 → v2.5) in response to the changing needs of the scene.
This new product, MODX+, inherits all of those updates while enhancing sound source performance to further improve expressiveness.
In addition, we have expanded the user memory area to accommodate the addition of large-capacity sound libraries that are increasing in size day by day.
This is the successor model of MODX, which has improved basic performance and expressive power to suit changing scenes.
There are three major points: the overwhelming ""sound"" that breathes life into the song. Advanced ""control"" that enables artists to pursue their own unique and dynamic expressions.
Light and compact ""mobility"" that supports active music activities.
MODX+ has overwhelming expressive power for modern keyboardists who play in a variety of situations such as stage performance, live streaming, and music production.
It is a music synthesizer that gives you the mobility to carry it anywhere.

■Keyboard
MODX6+: 61-key semi-weighted keyboard (with initial touch)
MODX7+: 76-key semi-weighted keyboard (with initial touch)
MODX8+: 88-key GHS keyboard (with initial touch)

■Sound source section
・Sound source method:
Motion Control Synthesis Engine
AMW2: 8 elements / FM-X: 8 operators, 88 algorithms
・Maximum polyphony:
AWM2: 128 sounds (both stereo/mono waveform), FM-X: 128 sounds
・Number of multitimbres:
Built-in sound source 16 parts, audio input part (A/D*1, USB*1)
*1 Stereo part
・Waveform memory・
Preset: 5.67GB equivalent (16bit linear conversion), User: 1.75GB
・Number of performances: 2,227
・Filter: 18 types
·effect:
Reverb x 12 types, variation x 88 types,
Insertion (A, B) x 88 types *2, Master effect x 26 types
*2 A/D part insertion is 83 types

Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)

■Sequencer section
・Sequencer capacity
Approximately 130,000 sounds (1 pattern or 1 song)
・Store area
Approximately 520,000 sounds (pattern), approximately 520,000 sounds (song)
・Note resolution: Quarter note/480
・Tempo (BPM): 5-300
·pattern
Number of patterns: 128 patterns
Tracks: 16 sequencer tracks
Recording method:
Real-time replacement, real-time overdub
·song
Number of songs: 128 songs
Tracks: 16 sequencer tracks, tempo track, scene track
Recording method:
Real-time replacement, real-time overdub,
real time punch
·reproduction:
MODX original format, SMF format 0,1
・Arpeggiator
Part: Up to 8 parts can be turned on at the same time
Preset: 10,239 types
User: 256 types
・Motion sequencer:
lane:
Maximum 8+1 systems (8 systems for Part + 1 system for Super Knob)

■Others
・Number of live sets:
Presets: 256+, Users: 2,048
・Main controls:
Master volume, A/D input gain knob, USB volume,
pitch bend wheel, modulation wheel,
Control slider x 4, knob x 4, super knob, data dial
display
7 inch wide VGA TFT color LCD (with touch panel)
・Connection terminal:
[USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT [L/MONO]/[R] (standard phone jack), [PHONES] (stereo standard phone jack), A/D INPUT [L/MONO]/[R] (standard phone jack)
・USB audio interface
Sampling frequency: 44.1kHz
Input/output channels:
Input: 4 channels (stereo 2 channels)
Output: 10 channels (stereo 5 channels)
・Power consumption: 16W (when using power adapter PA-150B)
・Dimensions/mass
MODX6+: 937(W) × 331(D) × 134(H) mm, 6.6kg
MODX7+: 1,144(W) × 331(D) × 134(H) mm, 7.4kg
MODX8+: 1,333(W) × 404(D) × 160(H) mm, 13.8kg
·accessories
Power adapter (PA-150B or equivalent recommended by Yamaha), warranty card,
Instruction manual, CUBASE AI DOWNLOAD INFORMATION (About CUBASE AI download)
