ROLAND / FANTOM-6EX amplifier set

ROLAND's flagship synthesizer ""FANTOM"" series has been updated with the latest technology. 4-piece set includes pedal switch, keyboard stand, speaker, and connection cable.

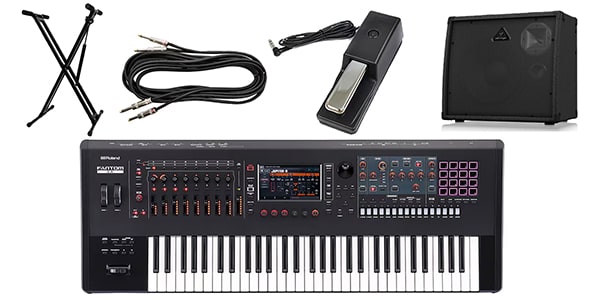

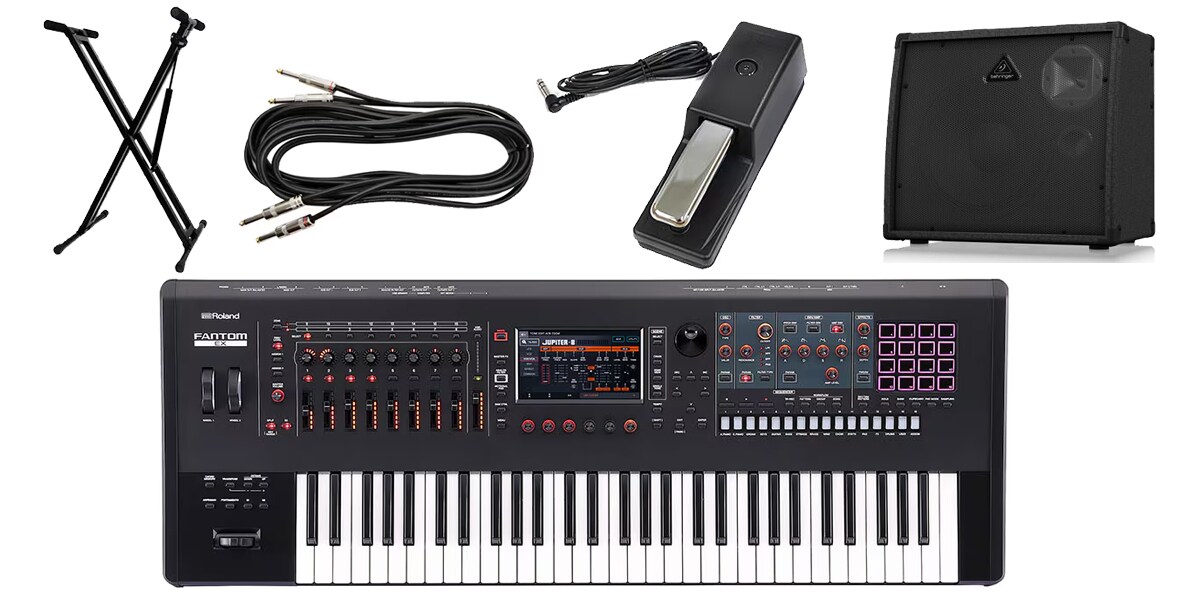

■Set contents:
・Body
・Pedal (DP-10)
・Stand (KST30X)
・Keyboard amplifier (K900FX)

specification
●Keyboard
FANTOM-6EX: 61 keys (semi-weighted keyboard, aftertouch compatible)
FANTOM-7EX: 76 keys (semi-weighted keyboard, aftertouch compatible)
FANTOM-8EX: 88 keys (PHA-50 hybrid structure (wood x resin center frame), with escapement, ivory-like/ebony-like, aftertouch compatible)
■Sound source section
●Tone
ZEN-Core
V-Piano Technology (ZONE1 only)
ACB (ZONE1 only)
VTW Organ (ZONE2 only)
SuperNATURAL Acoustic
SuperNATURAL Acoustic Piano
SuperNATURAL Electric Piano
Various model sound sources
* ZEN-Core tones and model tones can be imported and exported.
●Expansion
EXZ series
EXSN series
EXM series
ACB series
*Expansion is a rewritable internal sound source memory. You can download data from Roland Cloud and write it to the main unit's memory using a USB flash drive.
●Number of parts
16 zones (Internal + External)
●Number of scenes
128 scenes x 4 banks
*Import/export possible
●Number of tones
Over 3,500 tones
90+ drum kits
●Tone Remain
16 zones
*Excluding V-Piano tone, ACB tone, and VTW tone
●Favorite
Rating　4 stages (0 to 3)
●Tone search/scene search
Rating, character
●Effect
Multi-effects: 16 systems, 93 types
Part EQ: 16 systems
COMP for drum part: 6 systems
Insert effects: 2 systems, 90 types (serial and parallel connection selectable)
TFX: 1 system, 90 types
Input/MFX: 2 systems (in parallel), 90 types
Chorus: 9 types
Reverb: 7 types
Master EQ
master compressor
Input reverb: 7 types
Input equalizer: 2 systems (when parallel)
●Analog filter
stereo
TYPE: LPF1 / LPF2 / LPF3 / HPF / BPF / Bypass
Drive
Amp
●Vocoder
Number of bands: 13, 20, 32
Type: monaural, stereo
Preset settings: 10
User settings: 20
●Scene chain
Chain: 1 set 16 scenes x 32 pages (512 scenes)
Set: 100
Markers: 62 types per set (0-9, A-Z, a-z)
■Sequencer
Number of MIDI tracks: 16
Group: 16
Pattern: 8 (per track)
Pattern length: 64 bars
Recording method: real-time recording, step recording,
TR-REC
Editing method: Piano roll edit (touch editing and automation supported), Microscope song: 1 (per scene)
Save format: Original, SMF export/import supported
*You can record PAD sampler trigger information.
■Sampler
●Keyboard sampler section (multi-sample compatible)
Format: 16/24 bit linear, 44.1kHz/48KHz, WAV/AIFF
Number of samples: 8,000 pieces
Number of multi-samples: 128
Maximum sampling time: 2 minutes 44 seconds (per sample)
*Can save up to approximately 2GB in total (shared space with expansion data)
*The keyboard sampler section can be imported and exported as ZEN-Core tones.
● PAD sampler section
Format: 16/24 bit linear, 44.1kHz/48KHz, WAV/AIFF import supported
Polyphony: 8 notes
Number of samples: 16 pads x 4 banks
Maximum sampling time: 60 minutes (equivalent to approximately 660MB)
*Can save up to approximately 2GB in total (including imported WAV files)
* Some operations are required to use PAD samples as sound source waves.
●Built-in storage area (for files)
Size: 2GB
■Others
●Rhythm pattern
●Arpeggio
●Code memory
● Motional Pad
● PAD MODE
Sample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play, Group Play
● AIRA LINK
*When connected to MX-1
*When connected to MX-1
●CV/Gate control
2 × CV/Gate or 3 × CV/1 × Gate
●Controller
Pitch bend/modulation lever *1
S1/S2 button
Control knob x 8
Slider x 8
USB AUDIO slider
Wheel x 2 *1
FUNCTION knob x 6
Sound modify knob x 11 * 1
4x4 pad
*1: Supports 1024 step operations.
Sound modification knobs only support Cutoff, Resonance, Attack, Decay, Sustain, Release, Amp, and FX Depth.
●Display
7 inch graphic color LCD (WVGA 800 x 480dots)
Touch screen with wallpaper function
●Connection terminal
PHONES jack (stereo standard type)
MAIN OUTPUT terminals (L/MONO, R) (TS standard type)
MAIN OUTPUT terminals (L, R) (XLR type)
SUB OUT1 terminals (L, R) (TS standard type)
SUB OUT2 terminals (L, R) (TS standard type)
ANALOG FILTER OUT (1, 2) (TS standard type)
MIC/LINE INPUT terminals (1, 2) (XLR/TRS standard combo type)
CV OUT terminals (1, 2), GATE terminals (1, 2)
FOOT PEDAL terminal (HOLD, CTRL1, CTRL2, CTRL3) 1024 levels
support
MIDI terminals (IN, OUT1, OUT2/THRU) Supports high resolution velocity output
USB MEMORY terminal (USB A)
USB COMPUTER terminal (audio/MIDI compatible) (USB B)
EXTERNAL DEVICE terminals (1, 2, 3) (USB A): Compatible with A-49, A-PRO Series
*Connection of Generic MIDI devices is not guaranteed to work.
●Audio interface
Maximum 24bit/96KHz
Recording: 16 stereo channels
Playback: 3 stereo channels
●External memory
USB memory (sold separately)
●Power supply
AC100V (50/60Hz)
●Power consumption
50W
●External dimensions
FANTOM-6EX: 1,084 (width) x 403 (depth) x 106 (height) mm
FANTOM-7EX: 1,296 (width) x 403 (depth) x 106 (height) mm
FANTOM-8EX: 1,432 (width) x 439 (depth) x 153 (height) mm
●Mass
FANTOM-6EX: 15.3kg
FANTOM-7EX: 17.7kg
FANTOM-8EX: 27.7kg
●Accessories
operating instructions
power cord
Warranty
●Sold separately
Keyboard stand:
FANTOM-6EX: KS-10Z, KS-12
FANTOM-7EX: KS-10Z, KS-12
FANTOM-8EX: KS-G8B, KS-10Z, KS-12
Pedal switch: DP series, RPU-3
Expression pedal: EV-5
USB memory (*)
*Please use a commercially available USB memory. However, we cannot guarantee the operation of all commercially available USB flash drives.
