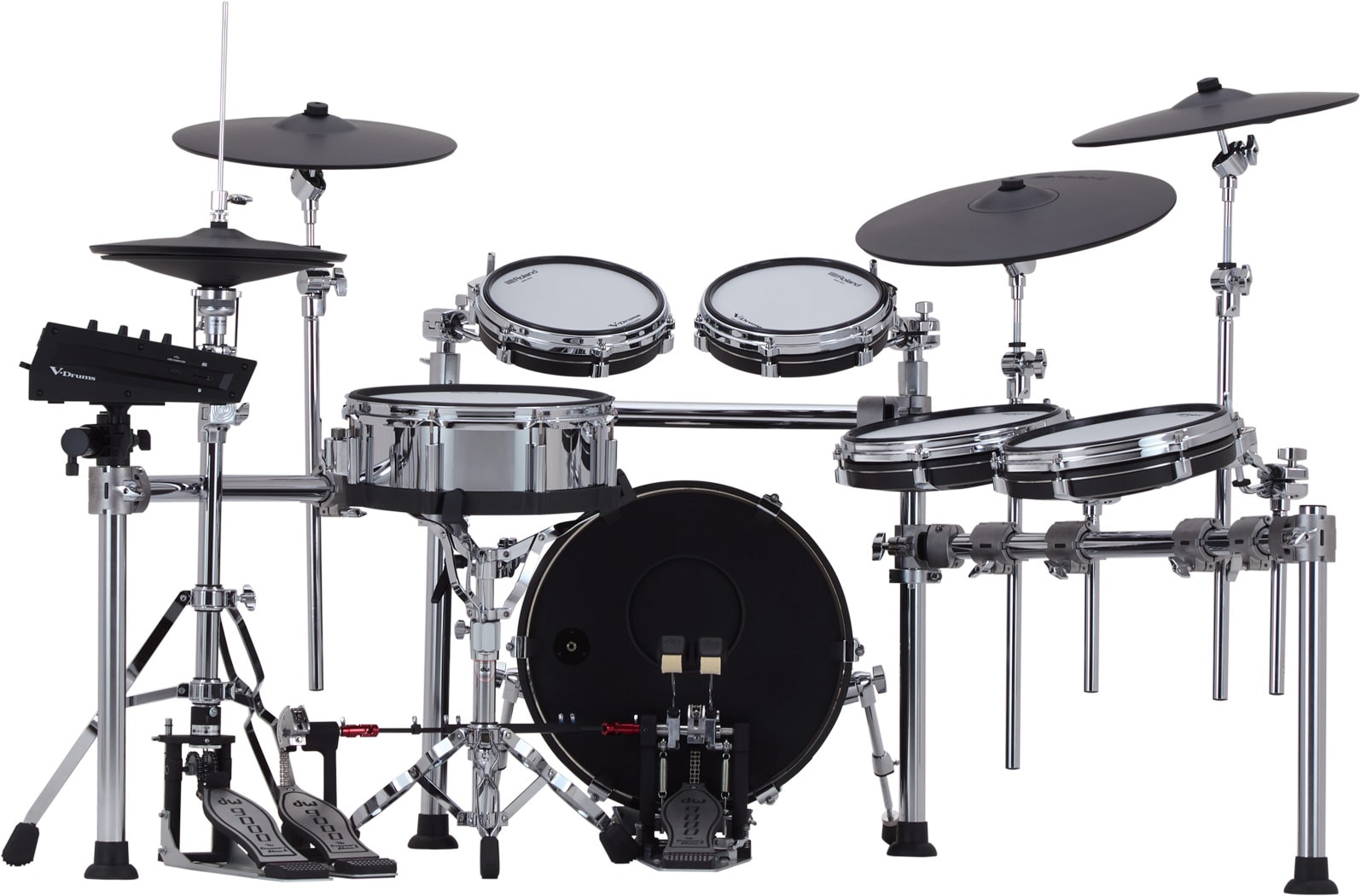

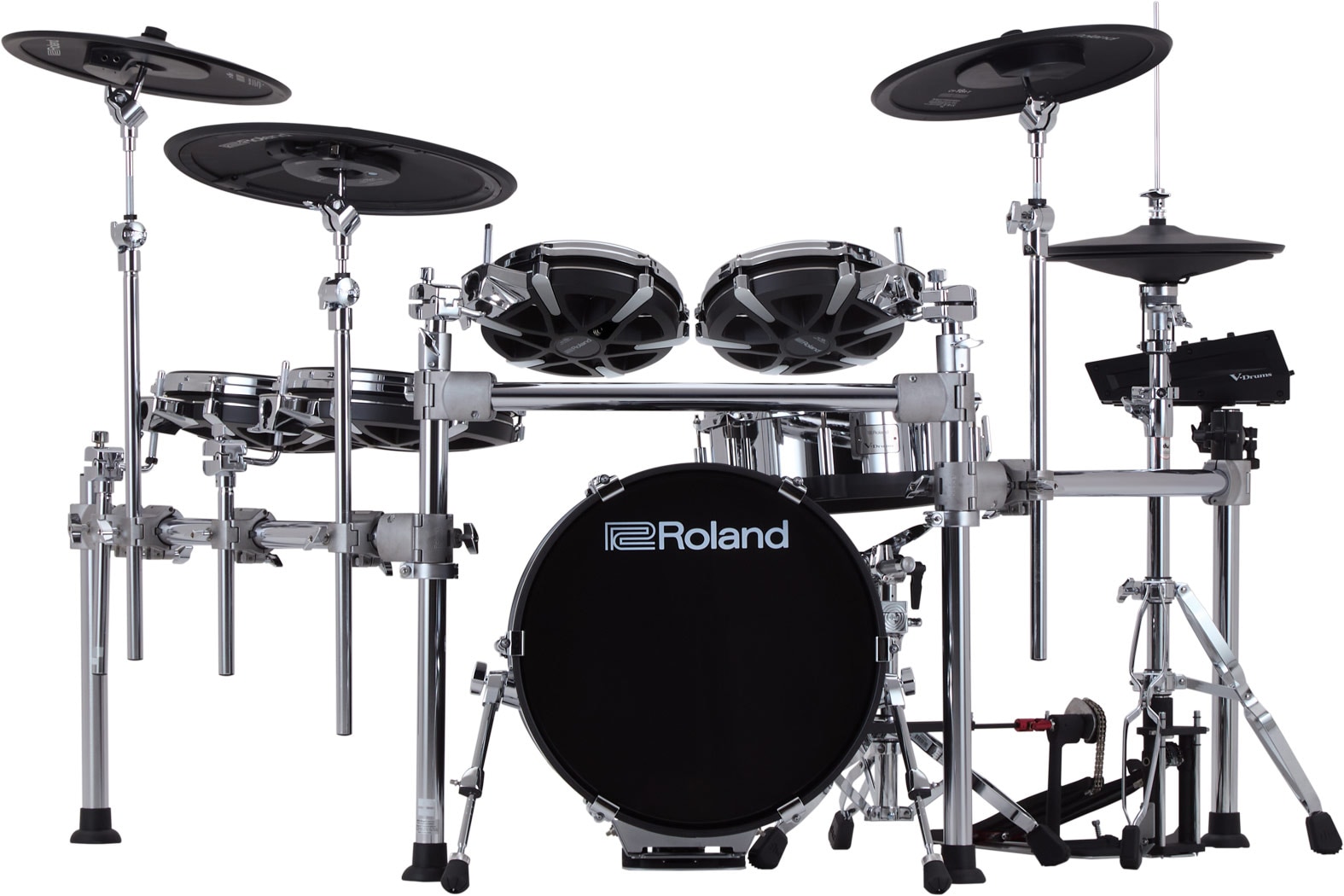

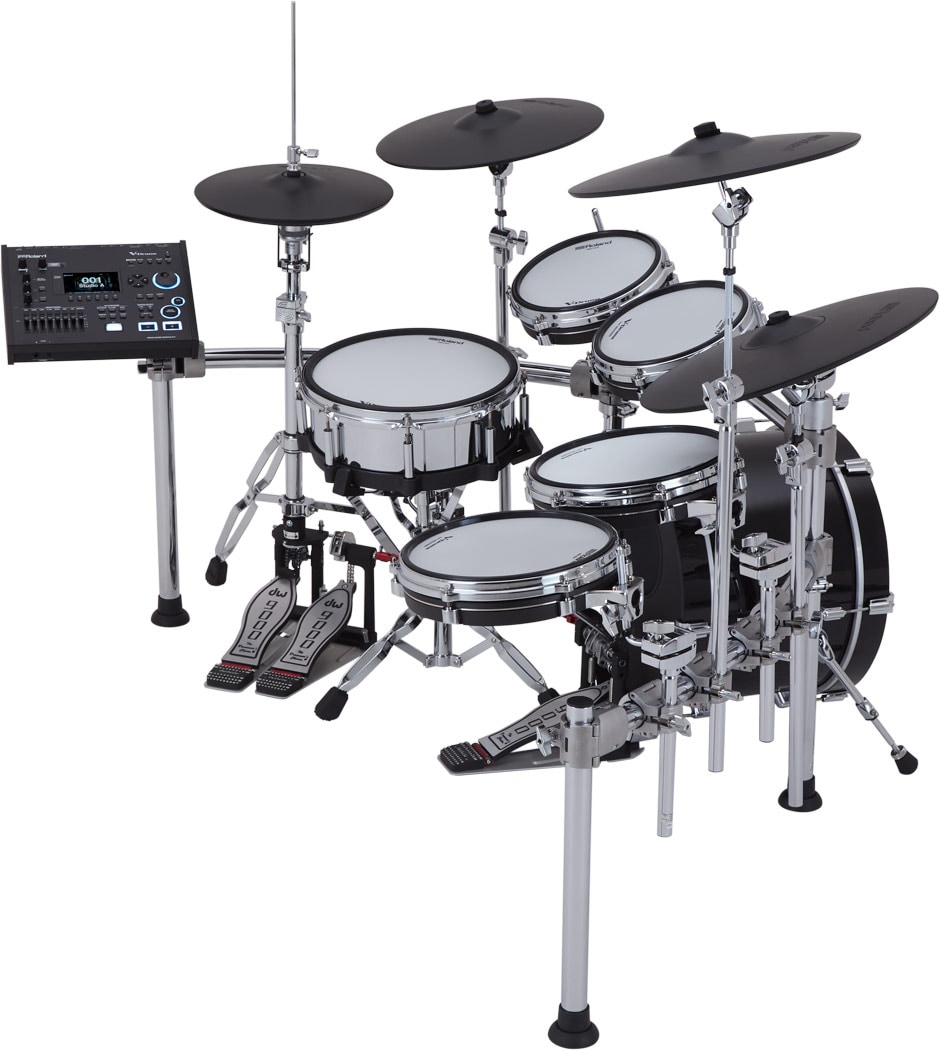

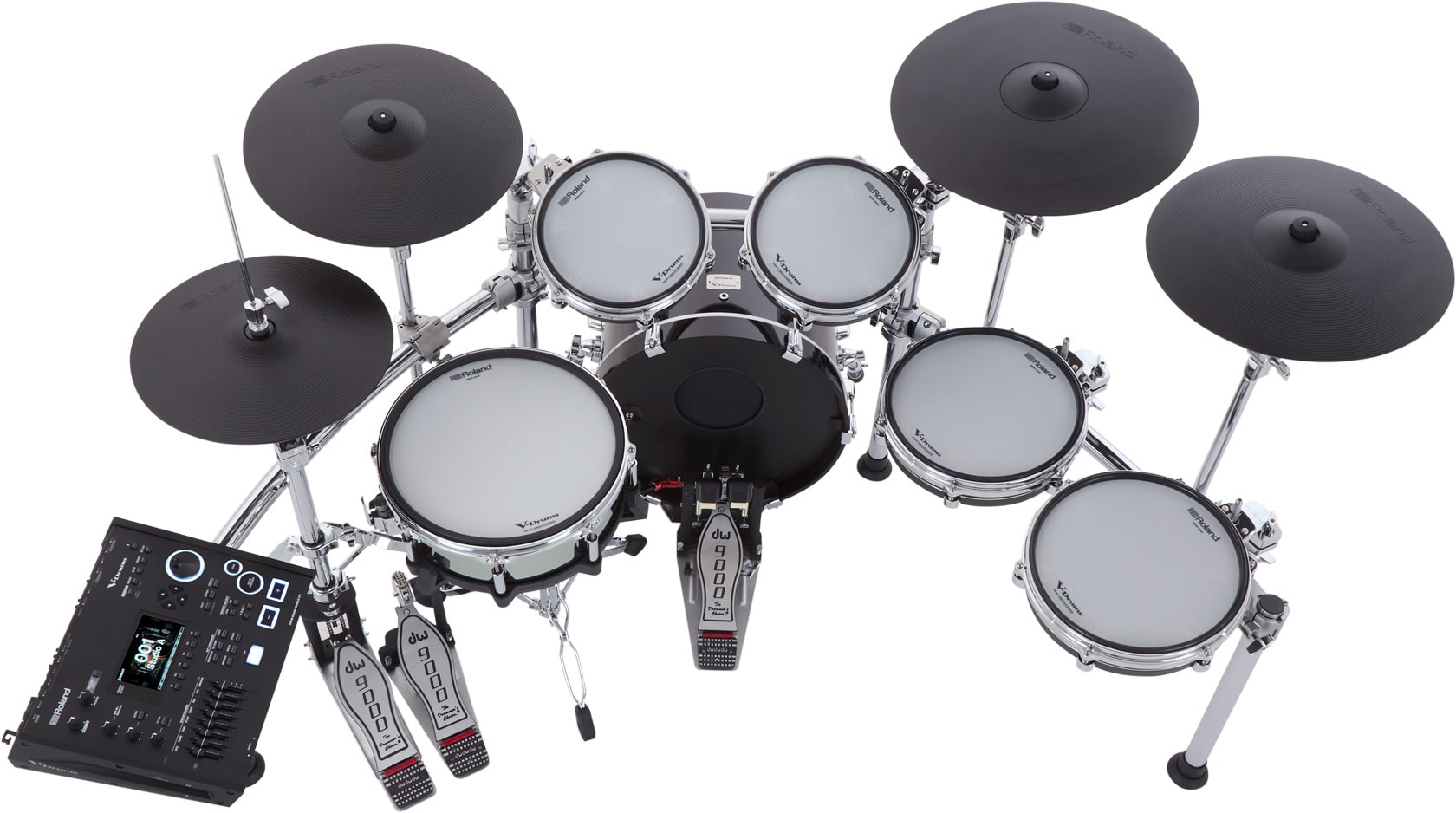

ROLAND / TD716

The TD716 is an electronic drum that inherits the legacy of previous V-Drums while raising the level of electronic drums to a new dimension with its newly designed sound module, next-generation pads, and enhanced editing functions.

■Set Contents
Sound Module: V71
Snare: PD-14DSX
Toms 1, 2: PD-10X
Toms 3, 4: PD-12X
Hi-Hat Cymbal: VH-14D
Crash Cymbal: CY-16R-T x 2
Ride Cymbal: CY-18DR
Kick: KD-18-BK
Stand: MDS-STG2
●Accessories: Setup Guide, Drum Key, Quick Start (including warranty), Roland Cloud Connect Setup Guide, Roland Cloud Activation Card, AC Adapter
●Sold Separately: V-Drum Accessory Package: DAP-3X, Noise Eater: NE Series
*Kick pedal, snare stand, hi-hat stand, and chair are not included.

■ Main Specifications
● Number of Drum Kits: 200 (Presets: Over 70)
● Number of Tones: Over 1000
● Effects: Layer Transient: Per Layer, Layer Equalizer: Per Layer, Pad Equalizer: Per Pad (Separate for Head and Rim),
Pad Compressor: Per Pad (Common to Head and Rim), Overhead Mic Simulator, Room/Reverb/Kit Resonance,
Bus Effects: 4 Systems (2 per System Can Be Used Simultaneously/With Side Chain Function)/94 Types, Bus Reverb, Master Compressor,
Master Equalizer
● User Samples: Number of User Samples: Up to 500 (Including Factory-Preset User Samples), Total Sound Length: 24 Minutes in Mono, 12 Minutes in Stereo,
Importable File Format: WAV (44.1kHz, 16/24 16-bit)
●Song Player (SD Card) = Audio File: WAV (44.1kHz, 16/24-bit), MP3
●Recorder = Recording Method: Real-time, Maximum Recording Notes: Approximately 40,000, Export File Format: WAV (44.1kHz, 16-bit), SMF

or Recording Method: Real-time, Maximum Recording Time: 60 minutes (Temporary Recording: 1 minute) (*1), File Format: WAV (44.1kHz, 16-bit)
●Display = 4.3-inch graphic color LCD, TRIGGER ACTIVITY indicator (LED)
●Faders = 8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)
●External Memory = SD Card (SDHC compatible)
●Connection Terminals = TRIGGER IN Terminals x 14: TRS 1/4"" phone type (exclusive use with digital pads), DIGITAL TRIGGER IN jacks x 3: USB A type,
MASTER OUT (BALANCED) jacks (L/MONO, R): 1/4"" TRS phone type (balanced), MASTER OUT (BALANCED) jacks (L, R): XLR type (balanced),
DIRECT OUT (BALANCED) jacks x 8: 1/4"" TRS phone type (balanced), PHONES jacks x 2: Stereo 1/4"" phone type, Stereo mini phone type,
MIX IN (STEREO) jack x 1: Stereo 1/4"" phone type, MIDI (IN, OUT/THRU) jacks, USB COMPUTER port: USB Type-C(R)
(Class-compliant audio and MIDI communication / audio and MIDI communication via Roland driver), FOOT SW jack: 1/4"" TRS phone type, DC IN jack
● Number of USB audio recording/playback channels = Bender Mode/Sampling Frequency (Original): 44.1 kHz
Sampling Frequency (with Sampling Rate Converter): 96 kHz, 48 kHz, Recording: 32 Channels, Playback: 32 Channels
Generic Mode/Sampling Frequency (Original): 44.1 kHz, Recording: 2 Channels, Playback: 2 Channels
●Power Supply: DC 12V (AC Adapter)
●Current Consumption: 2,400 mA
●Power Consumption in Off Mode (Automatic Power Off): 0.2 W
●Expansion Trigger Input Jacks: 4 (AUX 1 - AUX 4)
●External Dimensions (Required Footprint): 1,950 (W) x 1,500 (D) x 1,250 (H) mm (including kick pad, cymbal, hi-hat stand, and chair)
