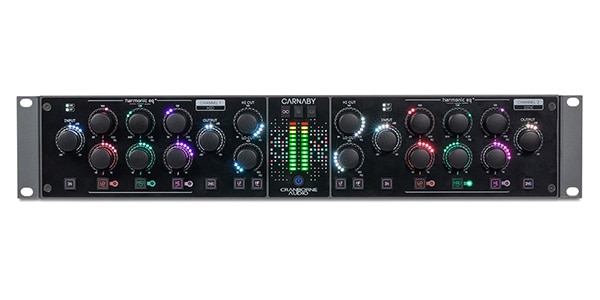

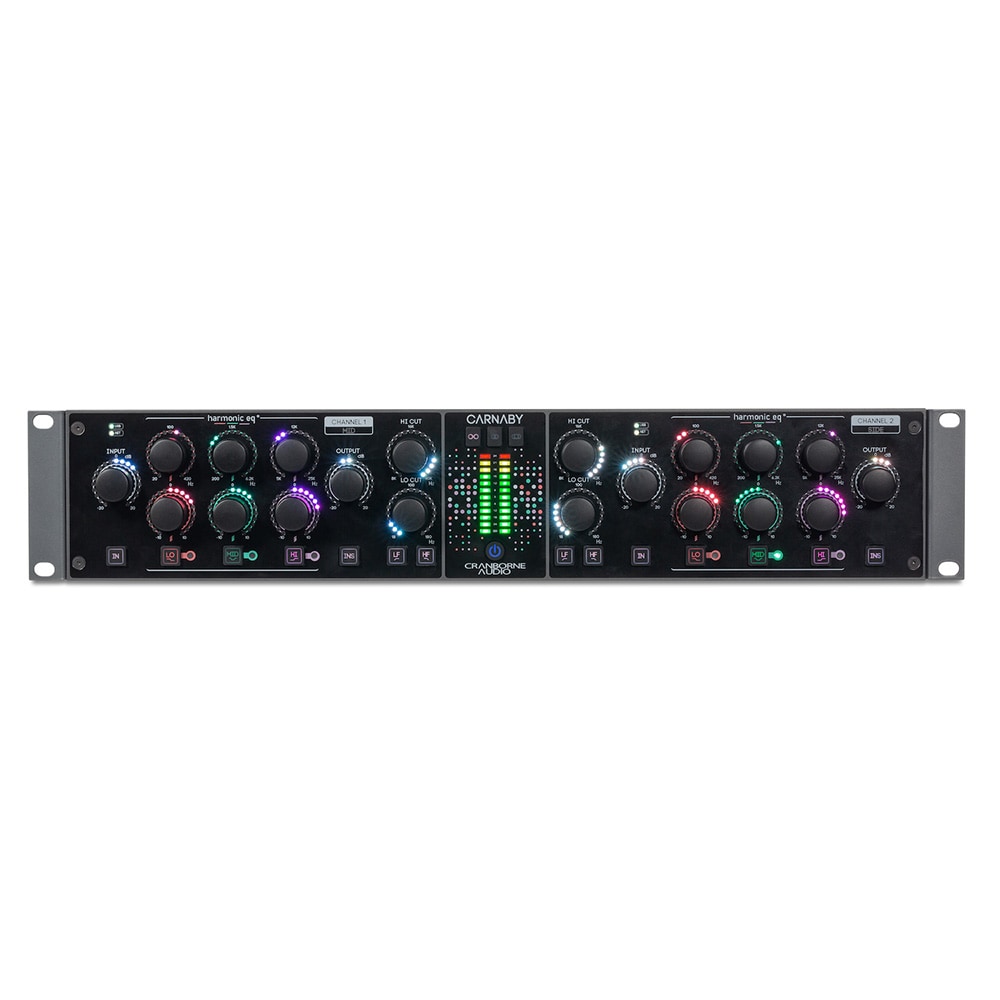

Cranborne Audio/Carnaby HE2 is a 2U rack stereo parametric EQ and an evolution of the harmonic EQ Carnaby 500 released in API 500 series format. Enhance your mixes with a true analog harmonic saturation EQ with intuitive equalizing controls.

■2ch 3-band parametric harmonic EQ
-3-band parametric harmonic EQ
-±20dB input and output for clean EQ to high-density harmonic saturation effects
-Stereo, dual mono, M/S support
-TRS terminals allow external hardware to be inserted within M/S processing (before EQ)

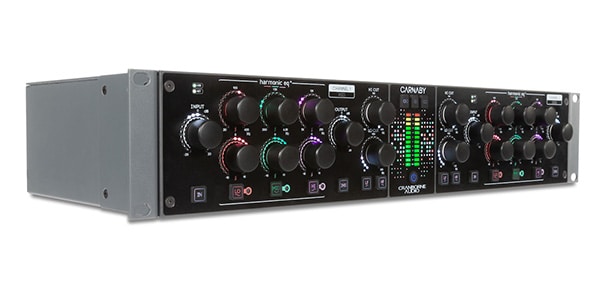

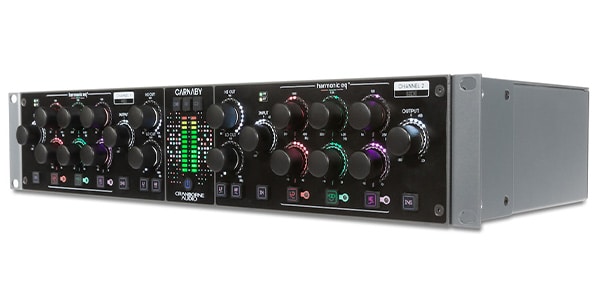

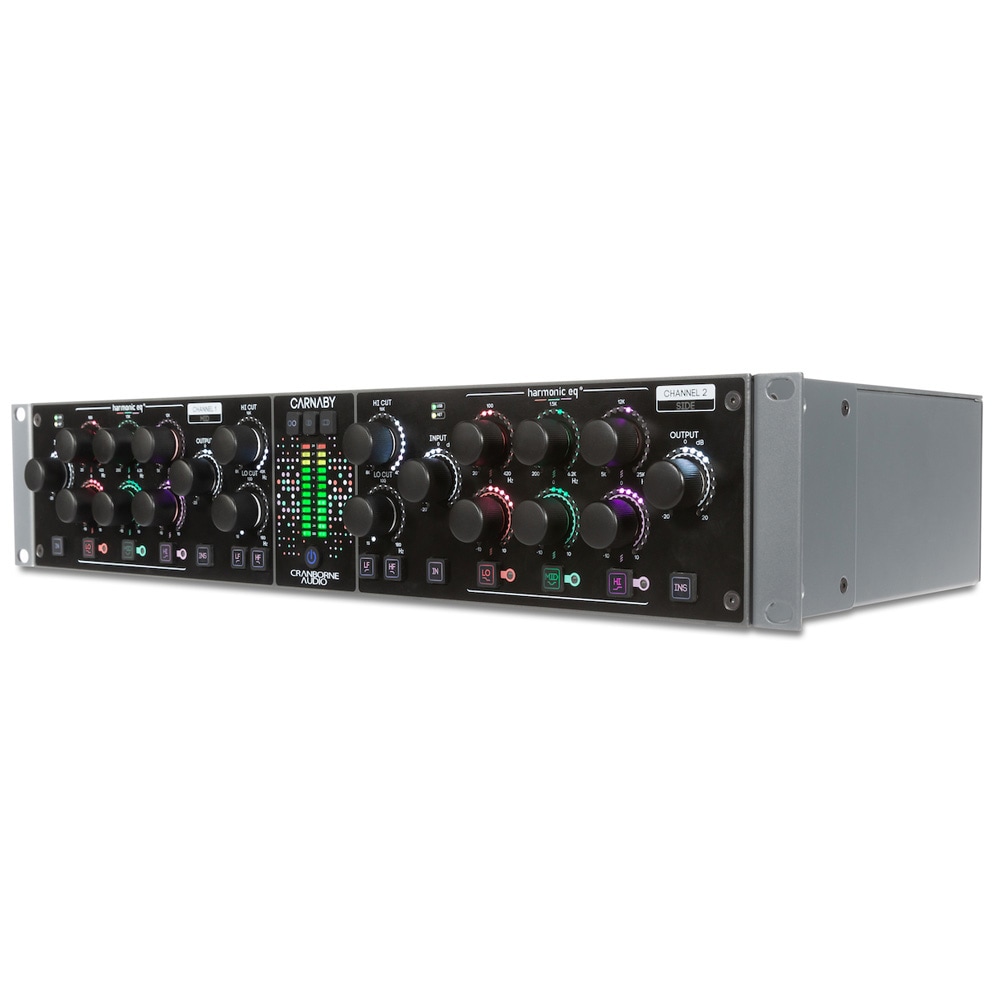

Carnaby HE2 is a 2U rack stereo parametric EQ, an evolution of the harmonic EQ Carnaby 500 released in API 500 series format.

Like Carnaby 500, it employs a unique and innovative concept of harmonic EQ to generate harmonic saturation to boost and cut each frequency content. Enhance your mix with a real analog harmonic saturation EQ with familiar and intuitive equalizing controls.

■2-channel HarmonicEQR + Much More
Carnaby HE2 features three processing modes: stereo, dual mono, and M/S, with three bypassable harmonic EQ bands on each channel in all modes. Each band has 10dB boost/cut and its own frequency control. Like the Carnaby 500, each band blends its own harmonic content appropriate for that frequency band to maximize musicality.

HI Band
The high band, from 5kHz to 25kHz, uses smooth saturation to naturally extend high frequencies beyond the audio band, giving vocals and acoustic instruments the ultimate air and breath.

MID Band
A peaking filter with a fixed Q and a wide sweepable frequency range from 200Hz to 6.2kHz. Uses saturation to add harmonic enhancement anywhere in the frequency range.

LO Band
The frequency range is from 420Hz to 20Hz, and uses hard clipping saturation to extend subharmonic frequencies into the audible low end. This is perfect if you want subtle low-end warming or extreme subharmonic saturation.

■Fully Digitally-Controlled with USB and Network options
All buttons and controls can be remotely controlled via USB or Ethernet.
The dedicated software Carnaby HE2 Control seamlessly integrates with the Carnaby HE2 hardware, allowing real-time control and recall from within your DAW. It also makes it easy to save and load presets.

Mid/Side Processing
The Carnaby HE2 is useful for mastering, mixing, and sound design applications. With M/S processing, you can apply harmonic EQ to the mid (center) and side (stereo width) of a stereo source separately. No additional hardware is required for M/S processing, as the Carnaby HE2 performs the necessary encoding and decoding on its own.

Inserts for outboard hardware

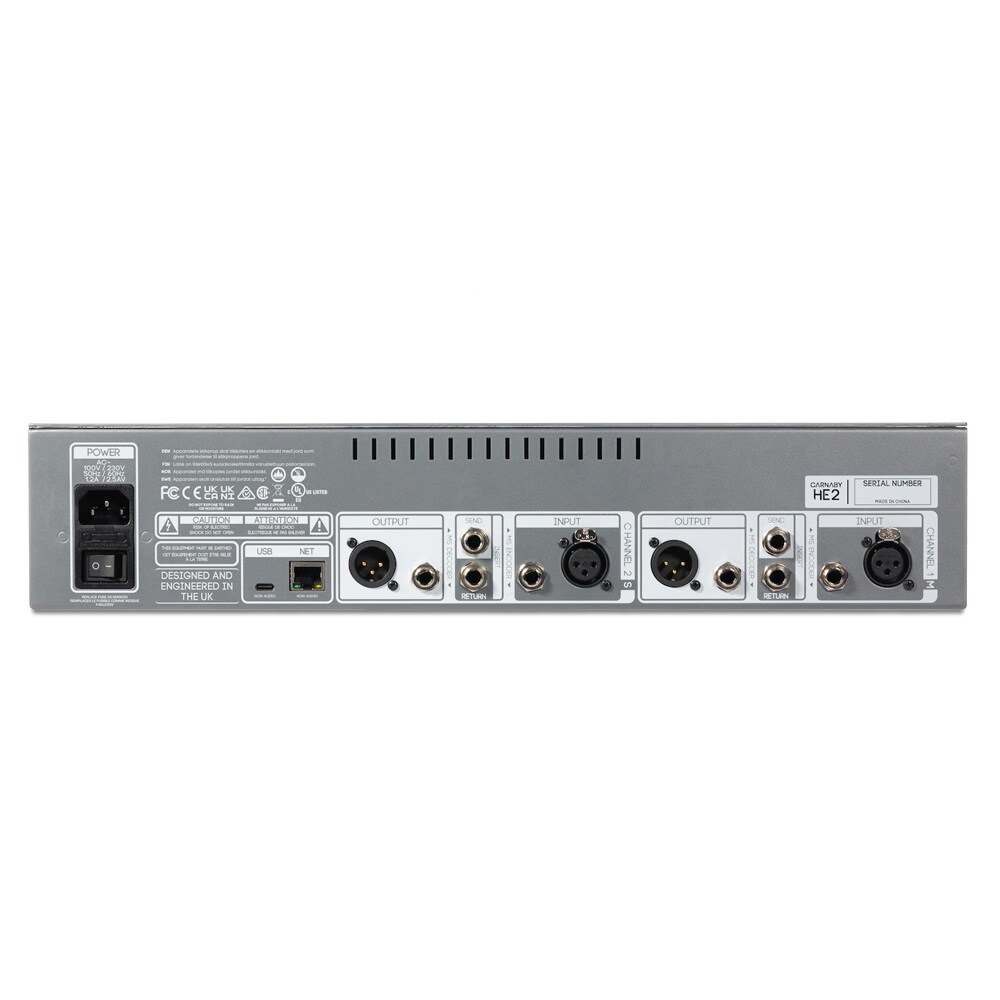

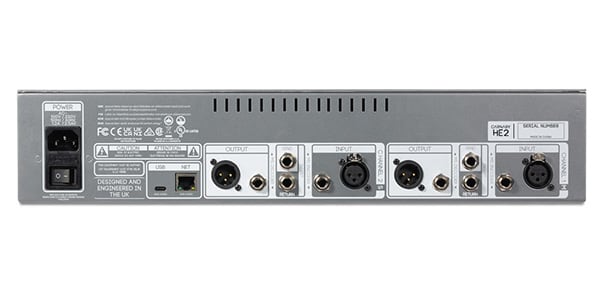

The Carnaby HE2 has a bypassable TRS insert on each channel. The inserts are located after M/S encoding and before M/S decoding, allowing you to connect other hardware using the inserts before the signal reaches the harmonic EQ processing.

Product Specifications Test Signal Path: APx555 (Line Out) - Input - Line Output - APx555 (Line In) Max Input Level: +26.0dBu (<0.003% THD) Max Output Level: +26.0dBu (<0.003% THD) Noise Floor: <-93dBu all bands bypassed Input Impedance: Line = 10 kOhms Output Impedance: Line = 15 0 Ohms Current Draw: 140mA per rail - idle, 160mA peak EQ Specifications Hi Band Filter Type: High Shelf Filter Frequency Range: 5kHz - 25kHz Boost/Cut: ±12dB, @ -6dBu, +13dB, - 18dB, @ +14dBu Harmonics: -8% THD+N (100Hz, +4dBu) -12% THD+N (100Hz, +14dBu) Mid Band Filter Type: Peak Filter Frequency Range: 200Hz - 6.2kHz Boost/Cut: ±5dB @ -6dBu　+10dB, - 18dB @ +14dBu Harmonics: -8% THD+N (100Hz, +4dBu)　-12% THD+N (100Hz, +14dBu) Lo Band Filter Type: Low She lf Filter Frequency Range: 20Hz - 420Hz Boost/Cut: ±8.5dB @ -6dBu, ±12dB @ +14dBu Harmonics: -8% THD+N (100Hz, +4dBu) -12% THD+N (100Hz, +14dBu) Hi Cut Filter Type: Progressive slope low-pass filter Slope: 1st order - 3db per octave 2nd order - 6db per octave 3rd order - 12dB per octave Frequency Range: -3db, 8kHz -40kHz Lo Cut Filter Type: Progressive slope high-pass filter Slope: 1st order - 6db per octave 2nd order - 12db per octave 3rd order - 18dB per octave Fre quency Range: -3db, 18Hz -180Hz 1/4" TRS Inserts Type: Balanced, dedicated send & return, normalled Config: Post M/S encoding & Carnaby, pre M/S decoding Max Input Level (return): +26.0dBu (<0.003% THD+N) Max Output Level (send): +26.0dBu (<0.003% THD+N) Mid/Side Type: Encoder/decoder Matrix: Sum-difference matrix Environmental Operating Temperature: +1 to 35 degrees Celsius Storage Conditions: -20 to 50 degrees Celsius Dims/Weights Unit Width: 48.3cm (19”) (Rackmount) Height: 8.9cm (3.5”) (2u) Depth: 23.6cm (9.3”) Unit Weight: 6kg ( 13lbs) Shipping carton Width: 60cm (23.6") Height: 18cm (7") Depth: 35cm (13.8") Carton Weight: 6.5 kg (14 lbs)
