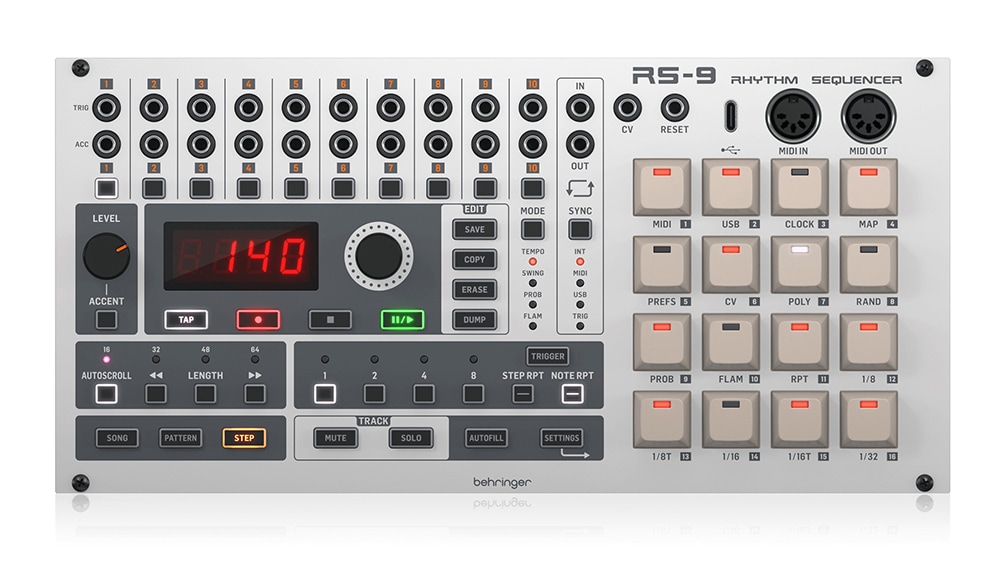

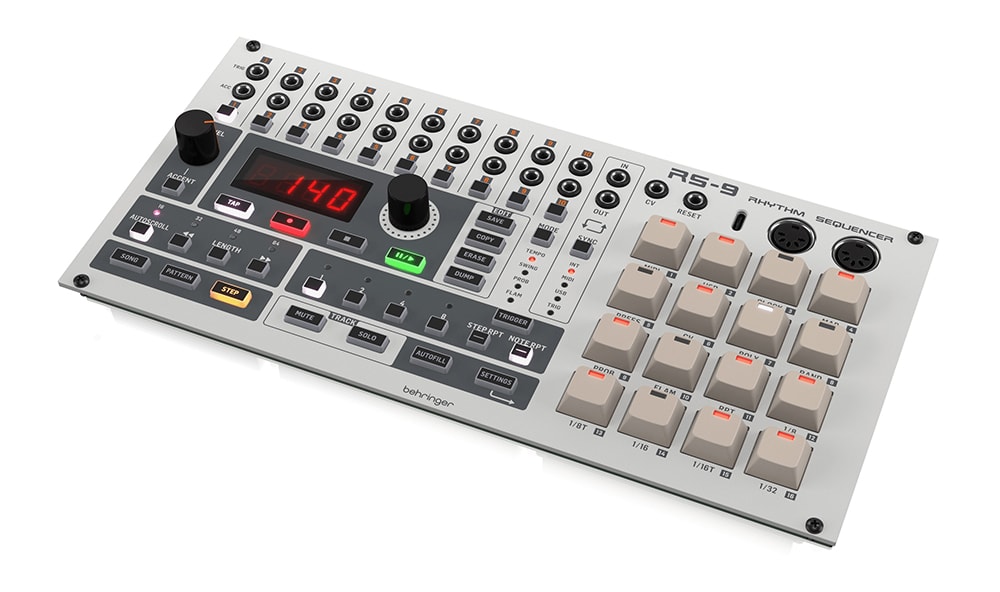

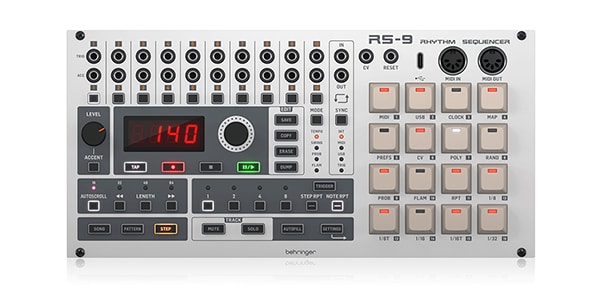

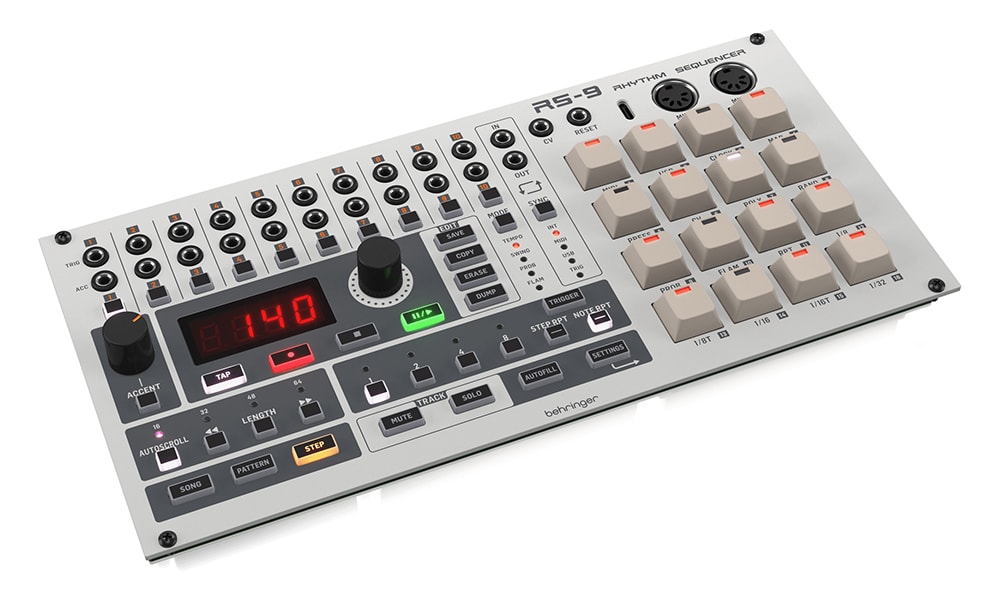

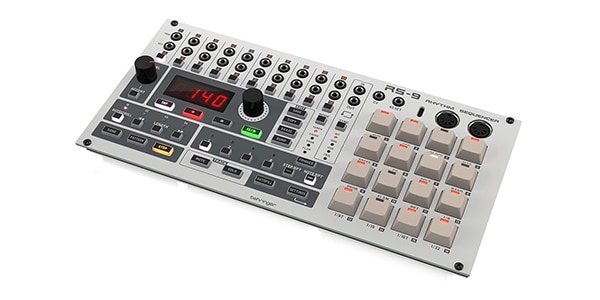

BEHRINGER / RS-9 Rhythm Sequencer Module

The RS-9 is a Eurorack module-type 10-drum channel and 64-step sequencer ideal for creating rhythms on the fly.

Stunning rhythm sequencer based on the RD-9 and designed specifically for live performance

10 drum channels with additional parameters and global accents

10 triggers, 10 accents, and 1 CV output to control external sound sources

Powerful 64-step drum sequencer with polymeter, step repeat, note repeat, real-time triggering, track mute, and track solo

Live CV automation for recording, editing, and playback

Up to 16 songs and 256 patterns can be stored. Import/export all patterns during playback, unlimited songs and patterns

In pattern mode, patterns can be arranged into full songs, with a set number of repeats per song part

Song mode allows songs to be linked together for live sets or extended compositions

Unique auto-scroll feature allows improvisation in all modes

Comprehensive MIDI input/output and USB implementation for synchronization and connection to external devices

USB, MIDI, clock, and internal sync options for versatile use

Encoders for editing parameters such as tempo, swing, probability, and flam

Highly visible LED display for easy editing of program parameters

Eurorack specs 52 HP, 350 mA +12 V, 20 mA -12 V

Complete Control
The RS-9 boasts step repeats, note repeats, real-time triggering, and live step overdubbing for live beat production in each sequencer mode. Recording in pattern mode is also easy, allowing you to build a song structure on the fly and switch to playback mode at the touch of a button.

Powerful and Feature-Rich Sequencer
The RS-9 is equipped with a powerful 64-step sequencer. It can store up to 64 patterns and 16 songs, and its continuously variable swing allows you to create more human-like beats, mimicking a real drummer.

Additional features
Pattern Mode - arrange a full song and set the number of repeats
Song Mode - string songs together into a live set
Auto Scroll - improvise in all modes

SPECIFICATIONS
Inputs
MIDI Input
Type 5-pin DIN

USB Input/Output
Type USB-C

Reset Input
Type 3.5 mm TS jack, DC coupled
Max. input: level 10 V

Sync input
Type 3.5 mm TRS jack, DC coupling
Max. input level: 10 V

Outputs
Trigger output
Type 10 x 3.5 mm TS jack, DC coupled
Impedance: 1 kΩ, unbalanced
Maximum output level: 10 V p-p

Accent output
Type 10 x 3.5 mm TS jack, DC coupled
Impedance: 330 Ω, unbalanced
Maximum output level: 10 V p-p

Synchronous output
Type 3.5 mm TRS jack, DC coupled
Impedance: 220 Ω, unbalanced
Maximum output level: 5 V p-p

MIDI output
Type 5-pin DIN

Controls
Knobs
Accent level, multi-function

Buttons
Track select x 10
Accent
Tap, record, stop, play/pause
Auto scroll, <<, length, >>, song, pattern, step
Song, Pattern, Step
Save, Copy, Erase, Dump
Mode, Sync
Trigger, Step Repeat, Note Repeat
1, 2, 4, 8
Track mute, track solo
Auto fill, settings
MIDI, USB, Clock, Map, Setup, CV, Poly,
Land, Prob.
Flam, Repeat, 1/8, 1/8T, 1/16, 1/16T, 1/32
4-character 7-segment LED

Power supply
Eurorack power supply
Current consumption +12 V 350 mA / -12 V 20 mA
Physical
Standard operating temperature
Temperature range 5° C to 45° C (41° F to 113° F)
Dimensions 263.8 x 128.5 x 41.1 mm
Rack Unit 52HP
Weight 0.51 kg
