audio technica / BP898cW

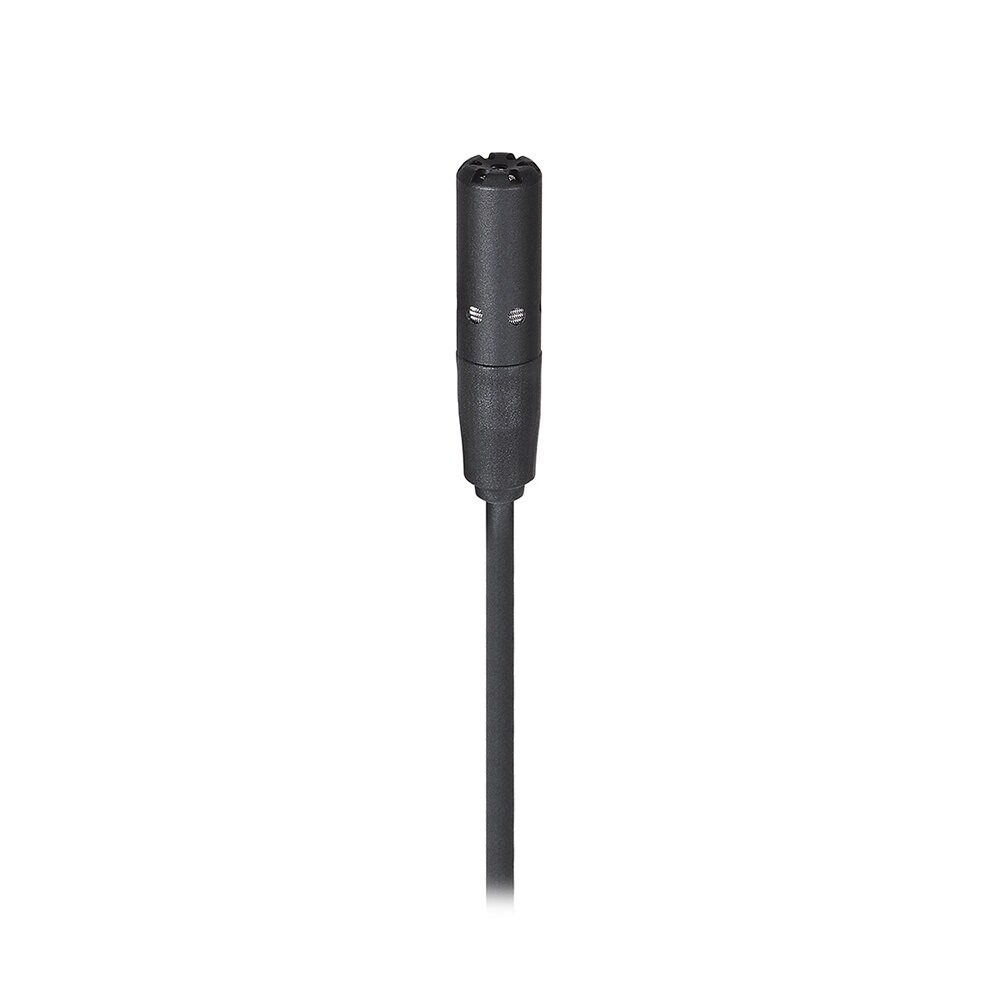

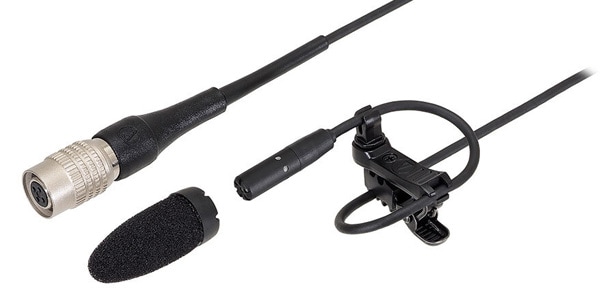

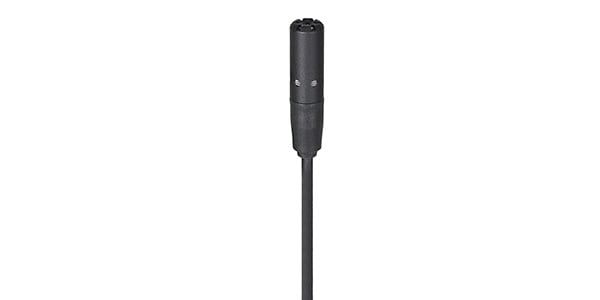

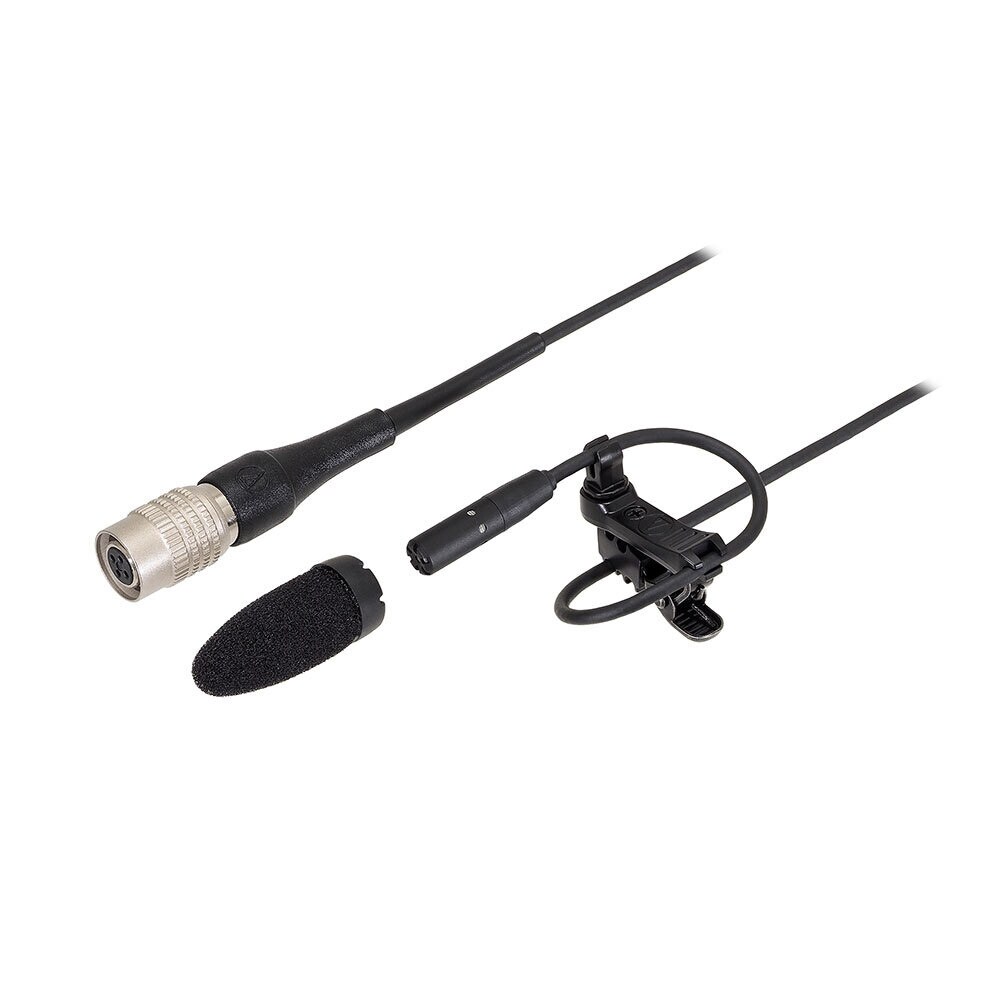

The BP898cW is a compact, unidirectional microphone that can be connected to a SYSTEM10 series belt pack and clearly and accurately captures voices during stage presentations and other situations.

Type: Back electret condenser
Polar pattern: Cardioid
Frequency response: 270 - 17,000 Hz (50 cm), 60 - 17,000 Hz (10 cm)
Low cut*: 80 Hz, 18 dB/octave
Sensitivity: -42 dB (7.9 mV) (0 dB = 1 V/Pa, 1 kHz)
Output impedance: 250 Ω
Maximum input sound pressure level (1 kHz THD 1%): 140 dB SPL
Noise: 28 dB SPL (A-weighted)
Dynamic range: 112 dB (1 kHz at Max SPL)
Signal-to-noise ratio: 66 dB (1 kHz at 1 Pa, A-weighted)
Phantom power*: 11 V 52VDC, 2mA
Switch*: Low-cut ON/OFF
Weight (microphone unit): 1.6g
Dimensions (microphone unit): Length: 22.3mm, Body Diameter: 5.3mm
Cable Length: 1.4m
Output Connector: cW Connector

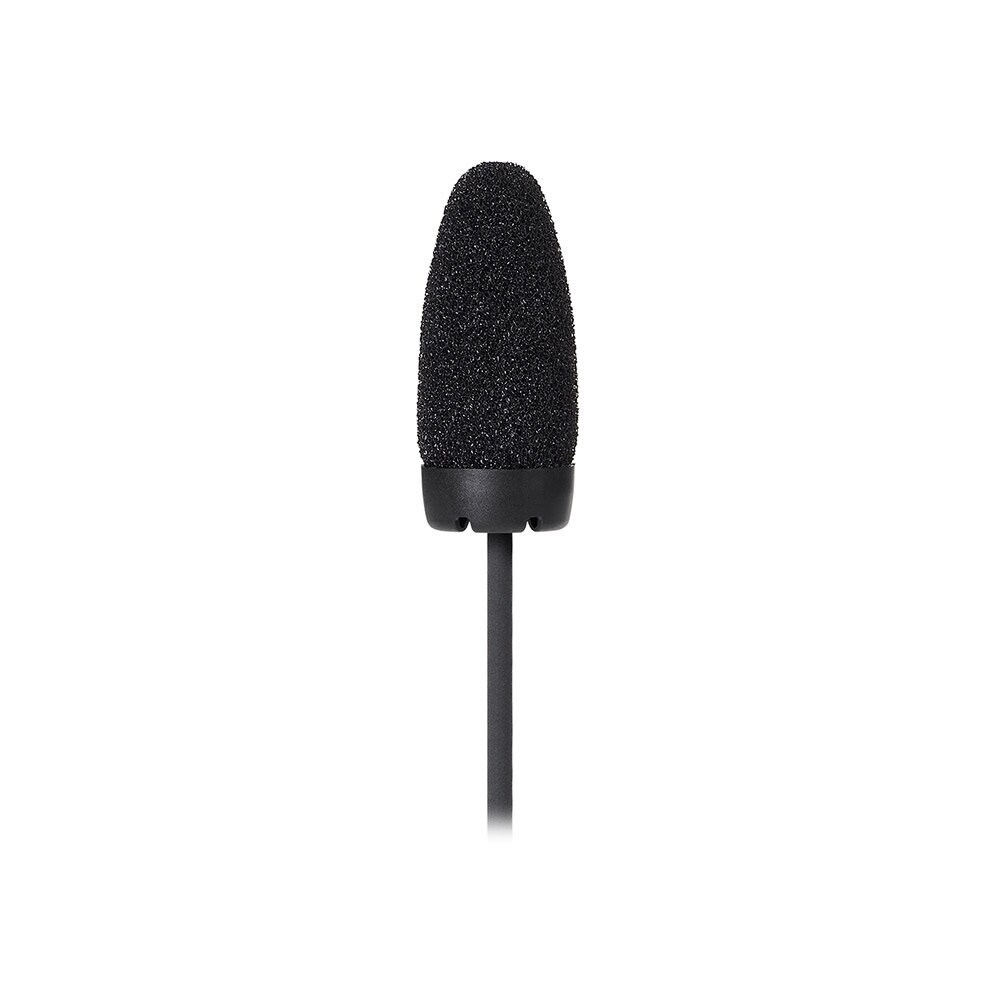

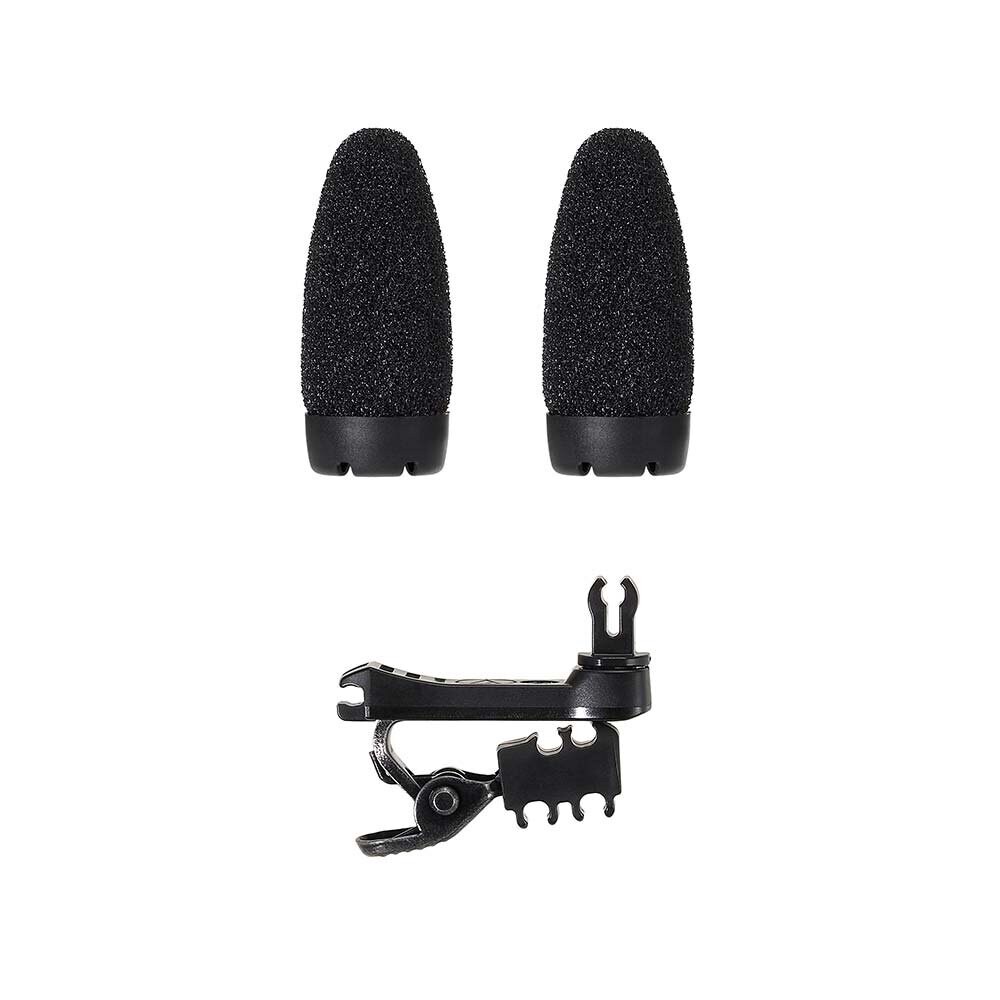

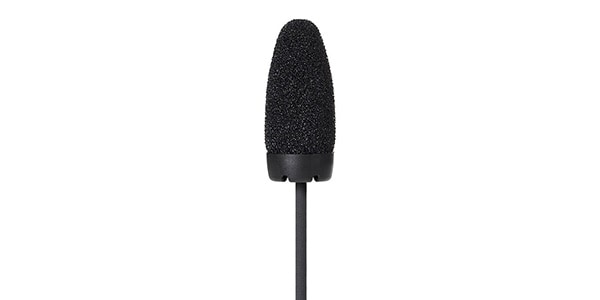

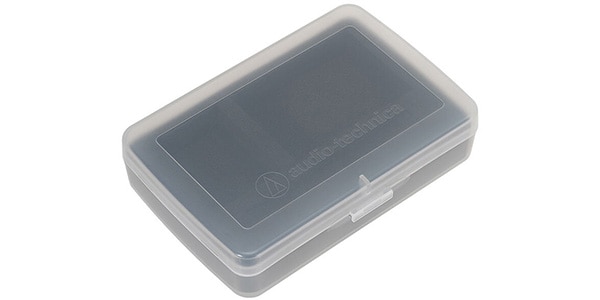

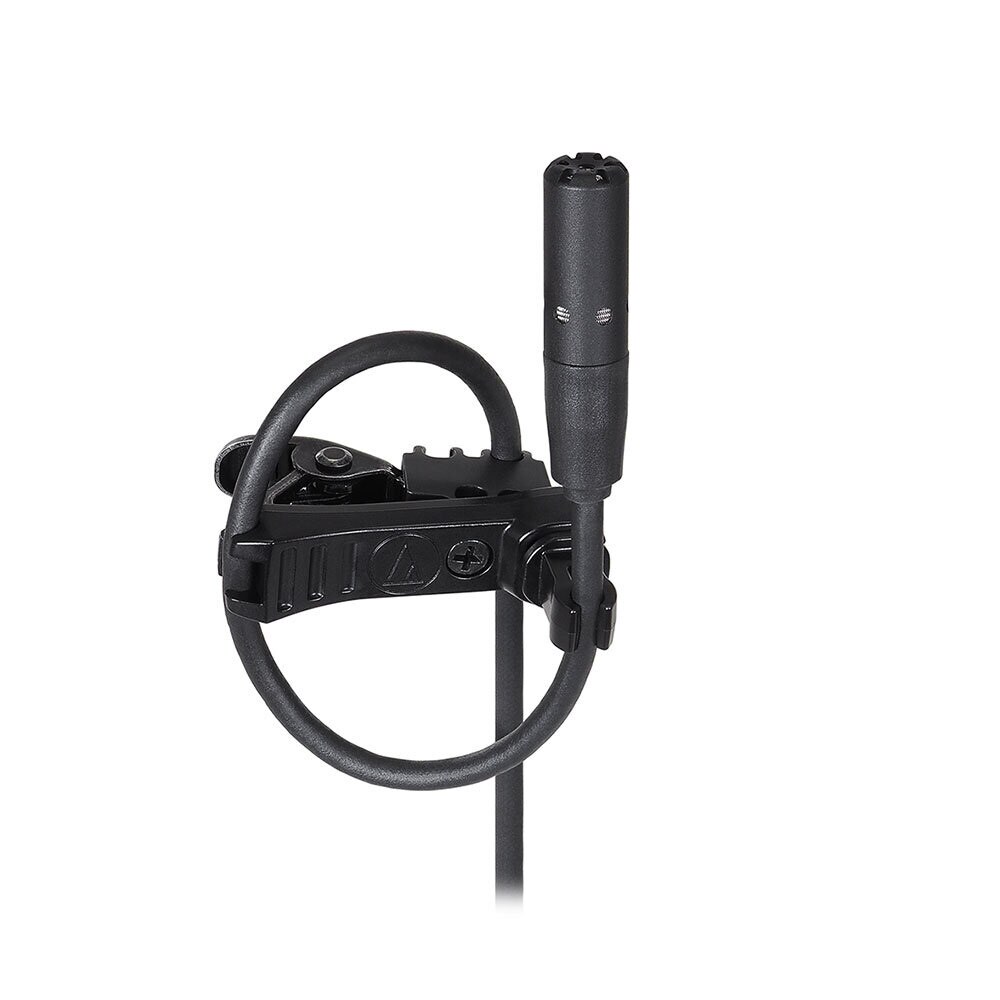

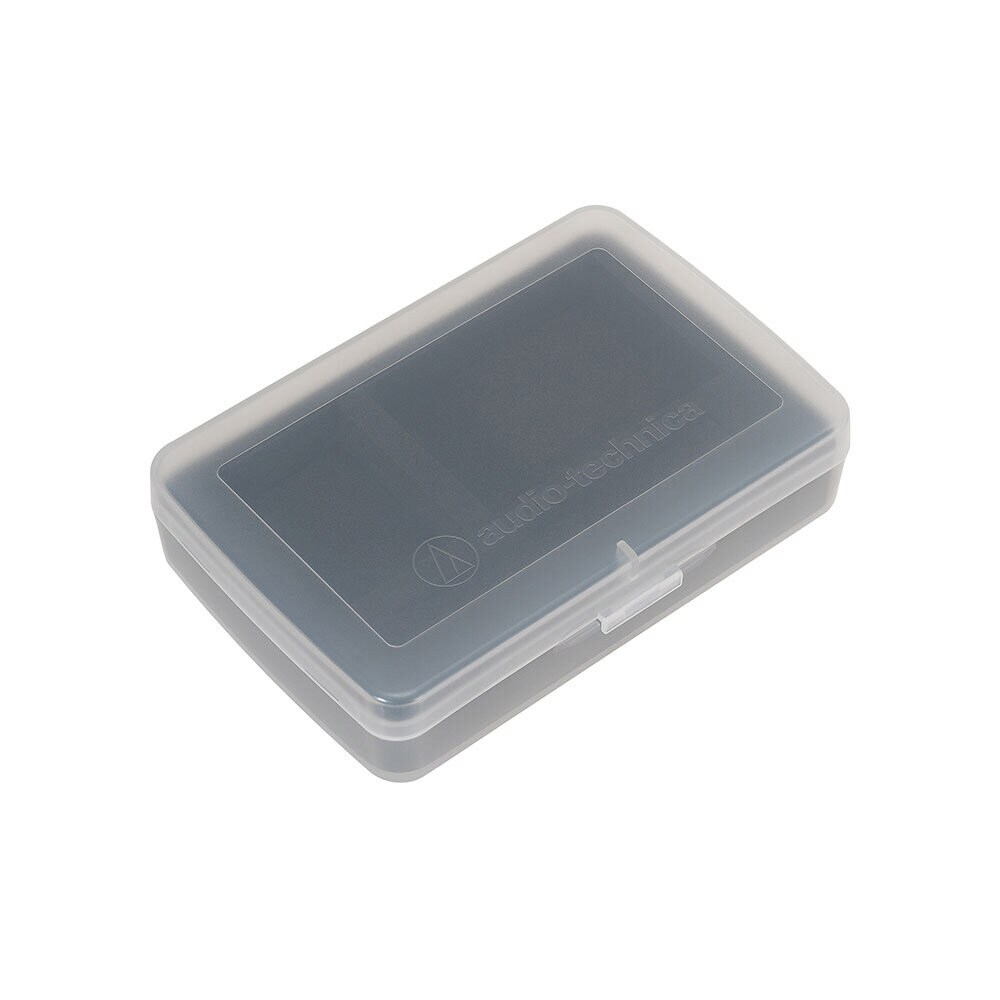

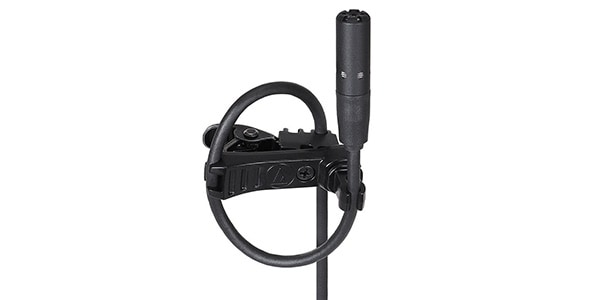

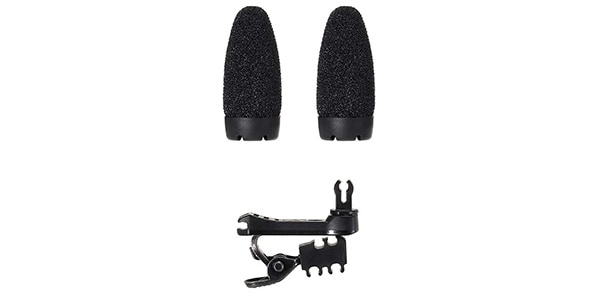

Accessories: Tie-pin clip (AT8461a, AT8461a-TH), Windscreen (AT8151a, AT8151a-TH), Case
*Products with power module
1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL (Subject to change without notice for product improvement, etc.)
