audio technica / ATW-T1402, Handheld transmitter

The System 20 PRO handheld transmitter. Equipped with a hypercardioid dynamic microphone, it is recommended for a wide range of applications, from vocals to speeches.

Digital Wireless “System 20” Series – Dedicated Handheld Transmitter
Features

Diversity reception for stable audio transmission

High-resolution sound quality with 24-bit / 48 kHz sampling

Equipped with a dedicated dynamic unit and carefully designed analog circuitry for premium audio performance

Compatible with 2-channel chargers (ATW-CHG3a/A, ATW-CHG3Na/A)

Up to 18 hours of operation

Rechargeable batteries ensure stress-free, long-term use

Mute slide switch

OLED display for clear visibility

Reduced handling noise for improved microphone performance

Specifications: Handheld Transmitter (ATW-T1402)

Modulation Method: GFSK

Reception Sensitivity: –90 dBm, typical

Antenna: Diversity

Microphone Type: Dynamic

Polar Pattern: Hypercardioid

Power Supply: DC 3 V (two AA batteries)

Operating Temperature Range: 5 – +40°C

Battery Life (approx., varies by conditions):

Alkaline AA: 18 hrs

Ni-MH AA: 16.5 hrs

Lithium AA: 35 hrs

Dimensions: 265.0 × φ53.7 mm

Weight: 300 g (without batteries)

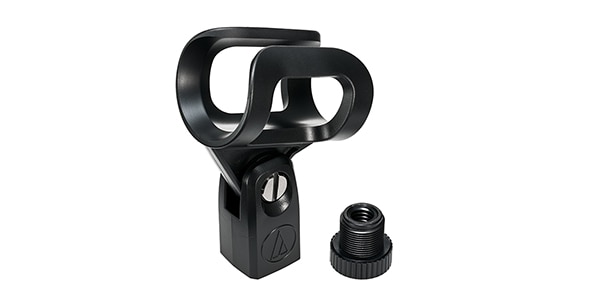

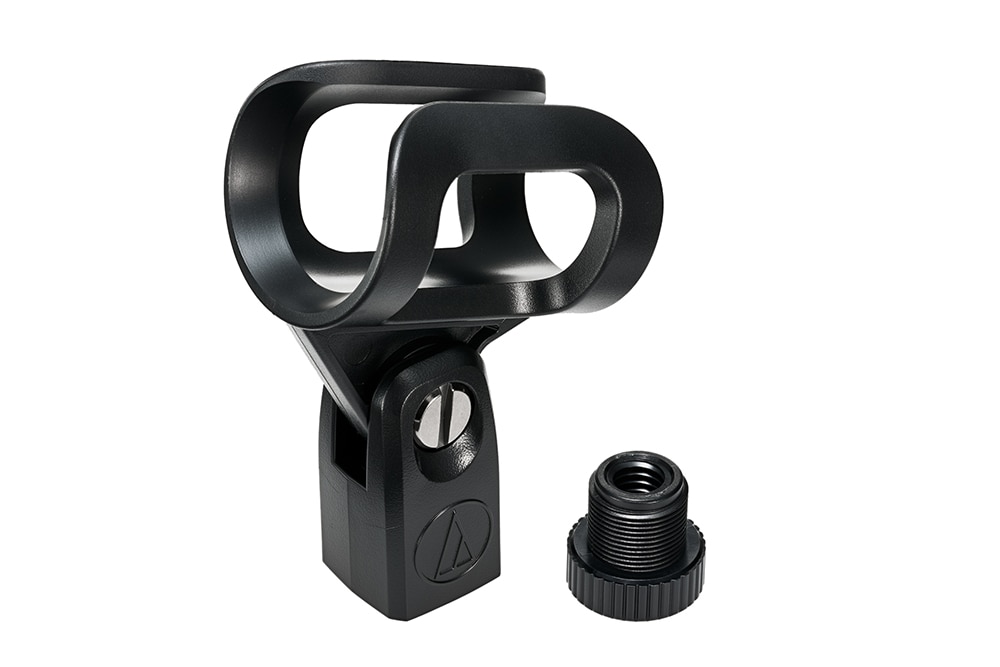

Accessories: AT8456a microphone holder ×2, thread adapter (3/8–5/8) ×2
