MOOG / Moog Sound Studio Accessory Kit

A rack system that can stack up to three of Moog's Mother ecosystem synthesizers, vertically mounting Mother-32, DFAM, Subharmonicon, Spectravox, and Labyrinth semi-modular synthesizers to maximize ” modularity” to expand your synthesis possibilities.

Stack, connect, create!
The Moog Sound Studio Accessory Kit is a highly anticipated rack system that allows you to stack up to three of Moog's Mother ecosystem synthesizers: Mother-32, DFAM, Subharmonicon, and Spectravox, Labyrinth semi-modular synthesizers can be mounted vertically for maximum “modularity” and expanded synthesis possibilities.
The Moog Sound Studio Accessory Kit includes a compact summing mixer that provides flexible signal routing. In addition, a three-port power supply hub provides power to the entire system from a single power source. Also included are patch cable hangers, dust covers, and of course all the cables needed to connect the various models.

About the included items
◯Personal stereo summing mixer and instrument cables
This 4-input analog summing mixer can be switched to mono or stereo configuration for versatile routing, and its built-in 3-outlet power supply hub powers up to three 60HP instruments from a single power source. Included instrument cables are provided in lengths and colors to match your system, reducing wiring hassles. The 3.5 mm output with built-in level control allows connection to headphones, audio interface, or monitor speakers.

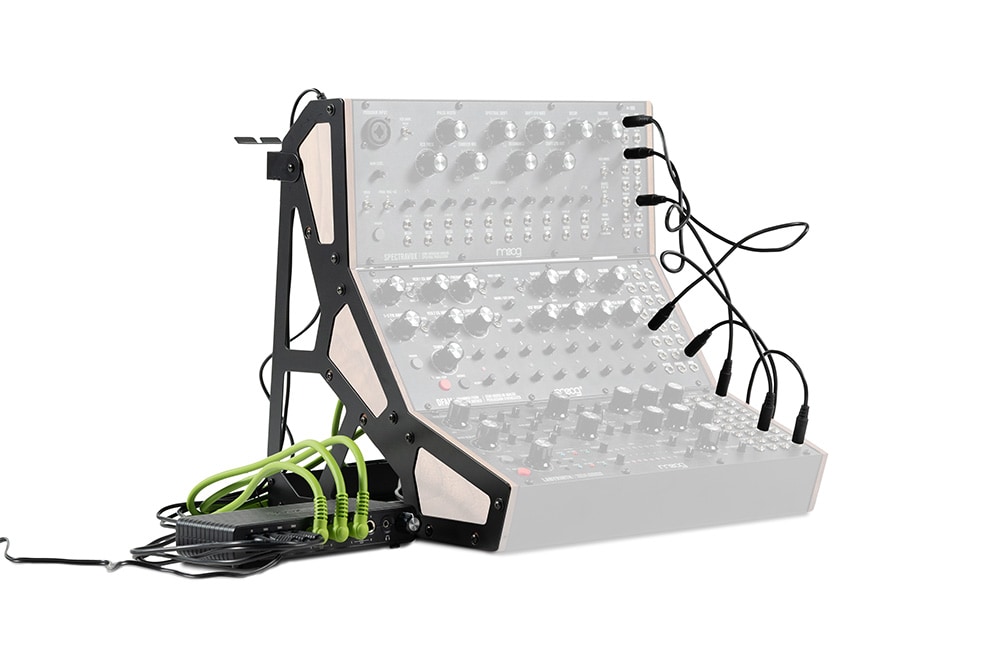

Fat 3-tier rack kit
Stack all three synthesizers and integrate the entire system into one with the summing mixer to maximize studio space. Vertical stacking provides optimal interconnectivity. Combining stability and design, the rack not only saves space, but also provides an ergonomic setup with easy access to all controls and patch points.

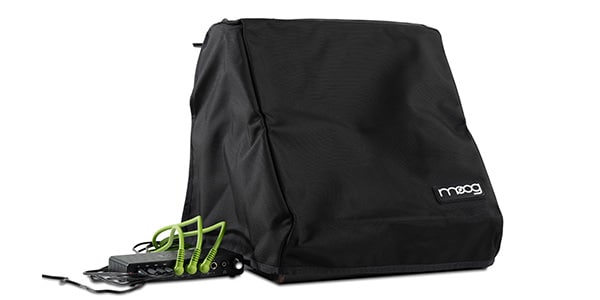

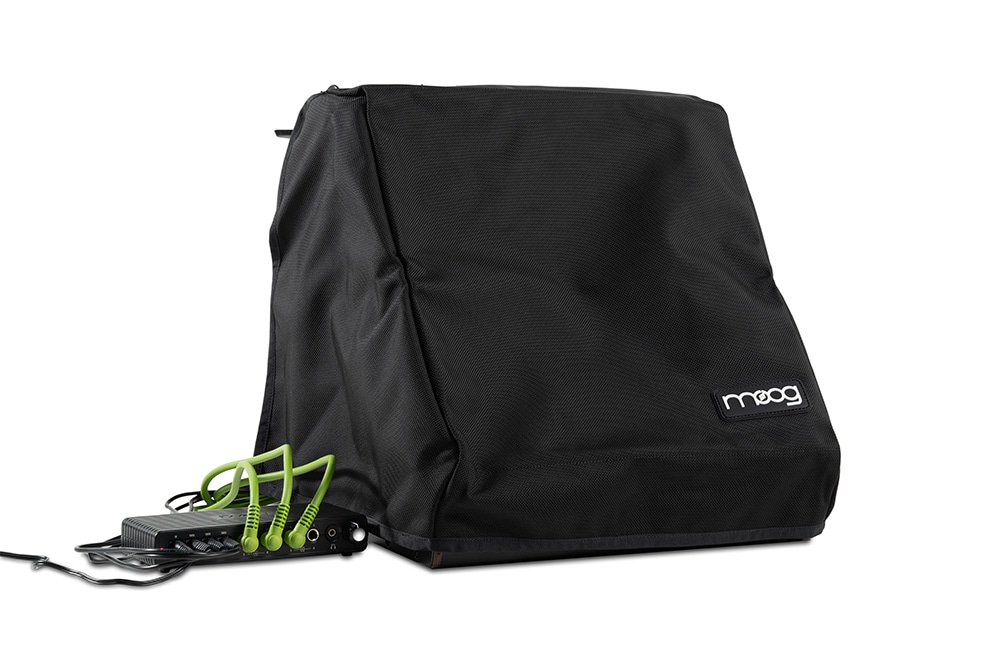

Fat protective dust cover
Protects your instrument when not in use. This water-resistant cover is made of durable Cordura Ballistic to protect your equipment from dust, splashes, and other studio and stage mishaps. It provides a roomy fit for access to patch cables and rear input/output panels. Adjustable Velcro straps keep the cover securely in place with a snug fit.

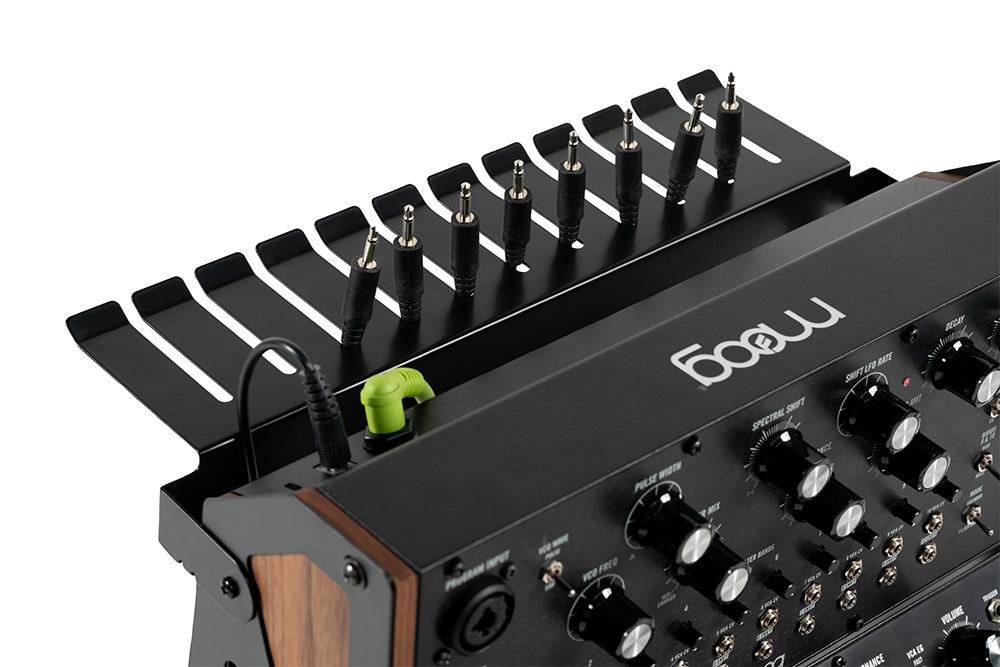

Fat cable hangers and custom patch cables
Attach the included cable hanger to the 3-tier rack to neatly store patch cables for a stress-free workflow. A custom set of patch cables comes with carefully selected lengths and numbers to maximize the “patchability” of the system.

Specifications

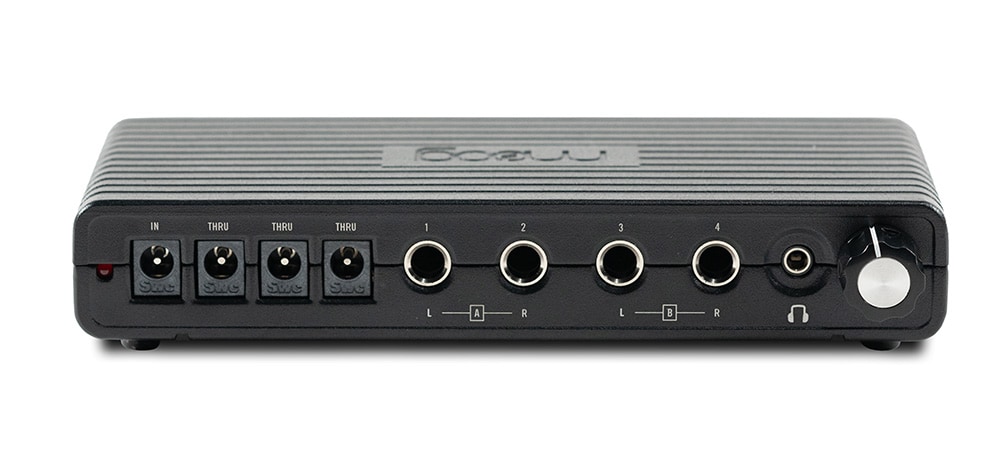

MOTHER MIXER (front)
Input: 6.3 mm TS input jack x 4
Output: 3.5 mm TRS output jack
Power supply specifications: power adapter connection, 3 power through connection jacks

MOTHER MIXER (rear panel)
Audio: 3+4 mono/B stereo switch, 1+2 mono/A stereo switch
Power adapter (included)
Specifications: Wall outlet; Barrel connection; Center positive
Power input: 100-240 V ~ 50/60 Hz max. 1.5 A
Power output: 12.0 V - 3.0 A, 36.0 W”

Weight & Dimensions
1.95 kg
35.05 W x 37.49 D x 6.4 H cm

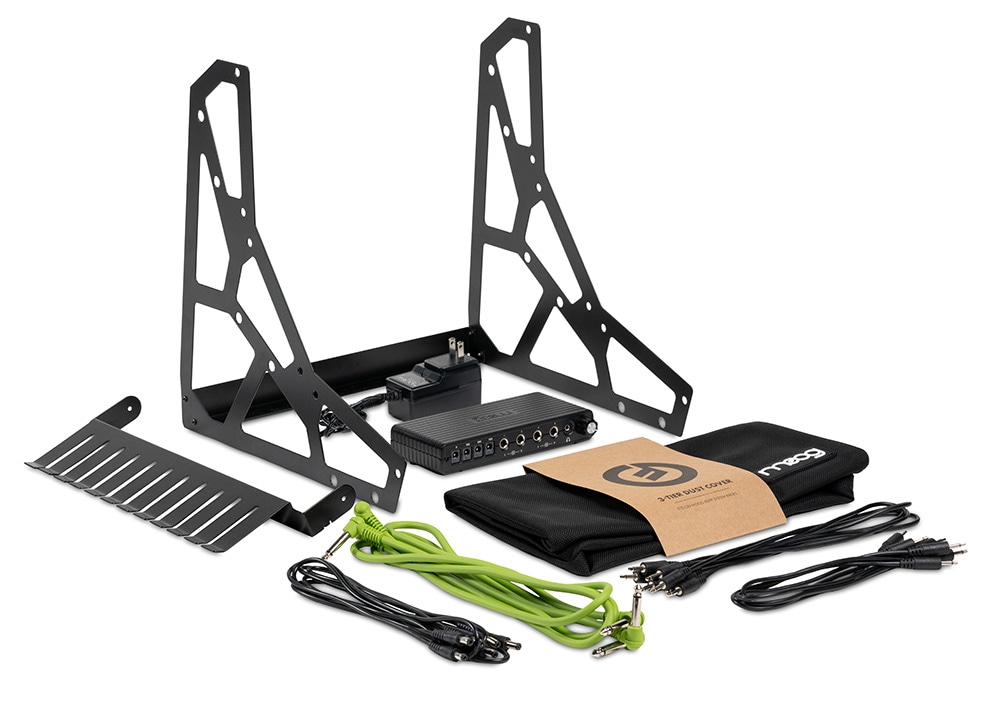

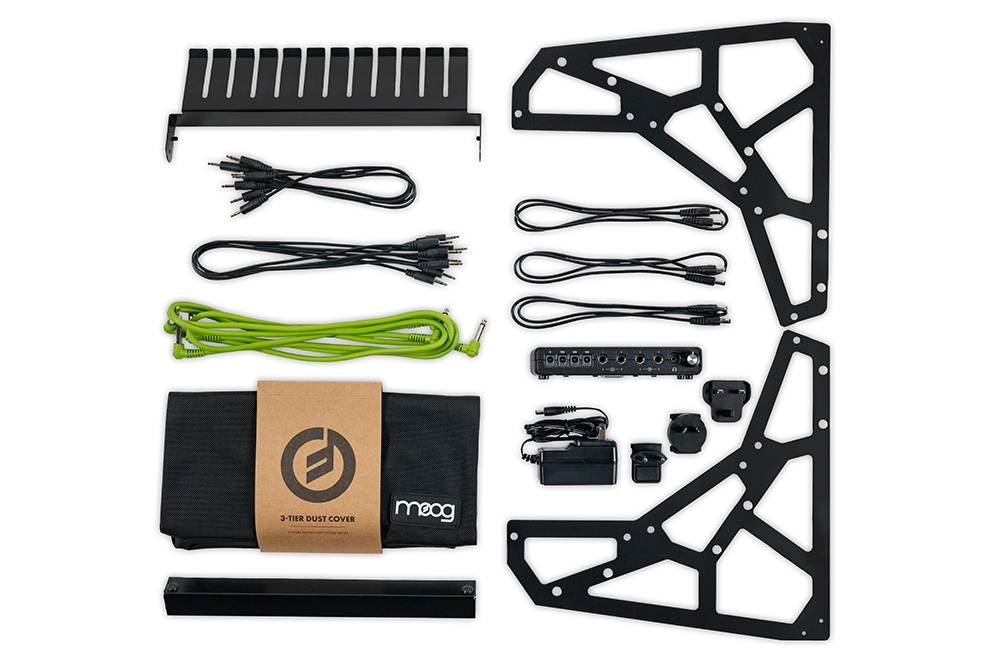

Included in the box
Power adapter
4-channel Mother Summing Mixer / Power Distributor
Three-drawer rack system and assembly tools
Four 3.5 mm TS patch cables (approx. 30 cm long)
Four 3.5 mm TS patch cables (approx. 45 cm long)
Audio cable (approx. 45 cm long) x 3
Barrel to barrel DC connector x 3
Phillips screwdriver
Dust cover
Quick start guide
Safety and Warranty Manual
