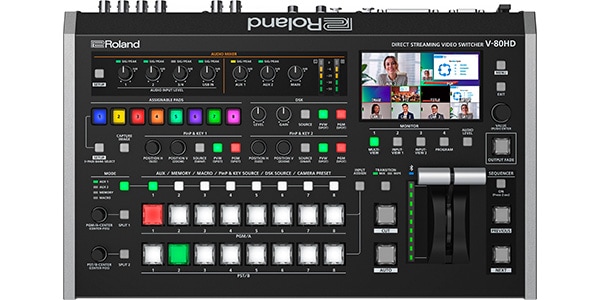

ROLAND / V-80HD DIRECT STREAMING VIDEO SWITCHER

It is a direct streaming video mixer/switcher that supports HDMI/SDI, USB, and LAN (RTMP/SRT) interfaces in a highly portable housing size. Video synthesis function that supports up to 5 layers, 28-channel digital audio mixer, PTZ camera control compatible with multiple manufacturers, and support for video monitoring with a dedicated application!

■Direct streaming video mixer/switcher

[Connection terminal]
■Video input terminal:
HDMI IN 1-4: HDMI type A x 4
*HDCP compatible
*Multi-format compatible
■SDI IN 1-4: BNC type x 4
*SMPTE 424M (SMPTE 425M-AB), 292M compliant
■Audio input terminal
analog:
AUDIO IN 1, 2: Combo type (XLR, TRS standard), phantom power (DC 48V, 10mA Max)
AUDIO IN 3/L, 4/R: RCA pin type
digital:
USB STREAM: USB Type-C(R)
Bluetooth
HDMI IN 1-4: HDMI type A x 4
SDI IN 1-4: BNC type x 4
■Audio output terminal
analog:
AUDIO OUT 1, 2: XLR type
PHONES: Stereo standard type
digital:
USB STREAM: USB Type-C(R)
Bluetooth
HDMI OUT 1-3: HDMI type A x 3
HDMI IN 3~4 THRU: HDMI type A x 2
SDI OUT 1-2: BNC type x 2
■Other terminals
USB HOST: USB A type (for USB memory, for remote by connecting a USB numeric keypad)
USB STREAM: USB Type-C(R) (for remote use by connecting a computer or iPad. Compatible with Roland Graphics Presenter)
Bluetooth: For remote use by connecting an iPad
CTL/EXP 1, 2: TRS standard type (for remote use by connecting a footswitch or expression pedal)
TALLY/GPIO: 25-pin D-sub type (female) (TALLY/GPO: 16, GPI: 8)
RS-232: 9-pin D-sub type (male) (for external control)
DIRECT STREAM: RJ-45, 1000BASE-T (for distribution, SRT input/output, external control)

[Audio input/output standards]
■Specified input level
AUDIO IN 1, 2: -64 to +4dBu (Maximum input level: +24dBu)
AUDIO IN 3/L, 4/R: -10dBu (Maximum input level: +10dBu) Input impedance AUDIO IN 1, 2: 8.4kΩ
AUDIO IN 3/L, 4/R: 10kΩ nominal output level AUDIO OUT 1, 2: +4dBu (maximum output level: +24dBu)
PHONES: 92mW + 92mW (at 32Ω load) Output impedance AUDIO OUT 1, 2: 600Ω
PHONES: 33Ω


【others】
■Bluetooth:
Standard version 5.0
Supported profiles: A2DP (audio), GATT (MIDI over Bluetooth Low Energy)
Compatible codec: SBC (Supports content protection using SCMS-T method)
■Display:
4.3 inch TFT color LCD: 480 x 272 dots
■Power supply: AC adapter
■Current consumption: 2.1A
■Power consumption: 51W
■Operating temperature 0~+40℃
■SIZE: 396(W)x103(H)x254(D)mm
■Mass: 3.5kg
*Excluding AC adapter
■Accessories:
Warranty
Startup guide
""Safety Precautions"" flyer
AC adapter
power cord
■Optional foot switch: BOSS FS-5U, FS-6, FS-7
Expression pedal: EV-5, EV-30, BOSS FV-500L, FV-500H
*0dBu=0.775Vrms
*The electromagnetic compatibility standard for this product is FCC Part 15 Class A.
