SHURE / SLXD24/N8SB Nexadyne 8/S

Variations

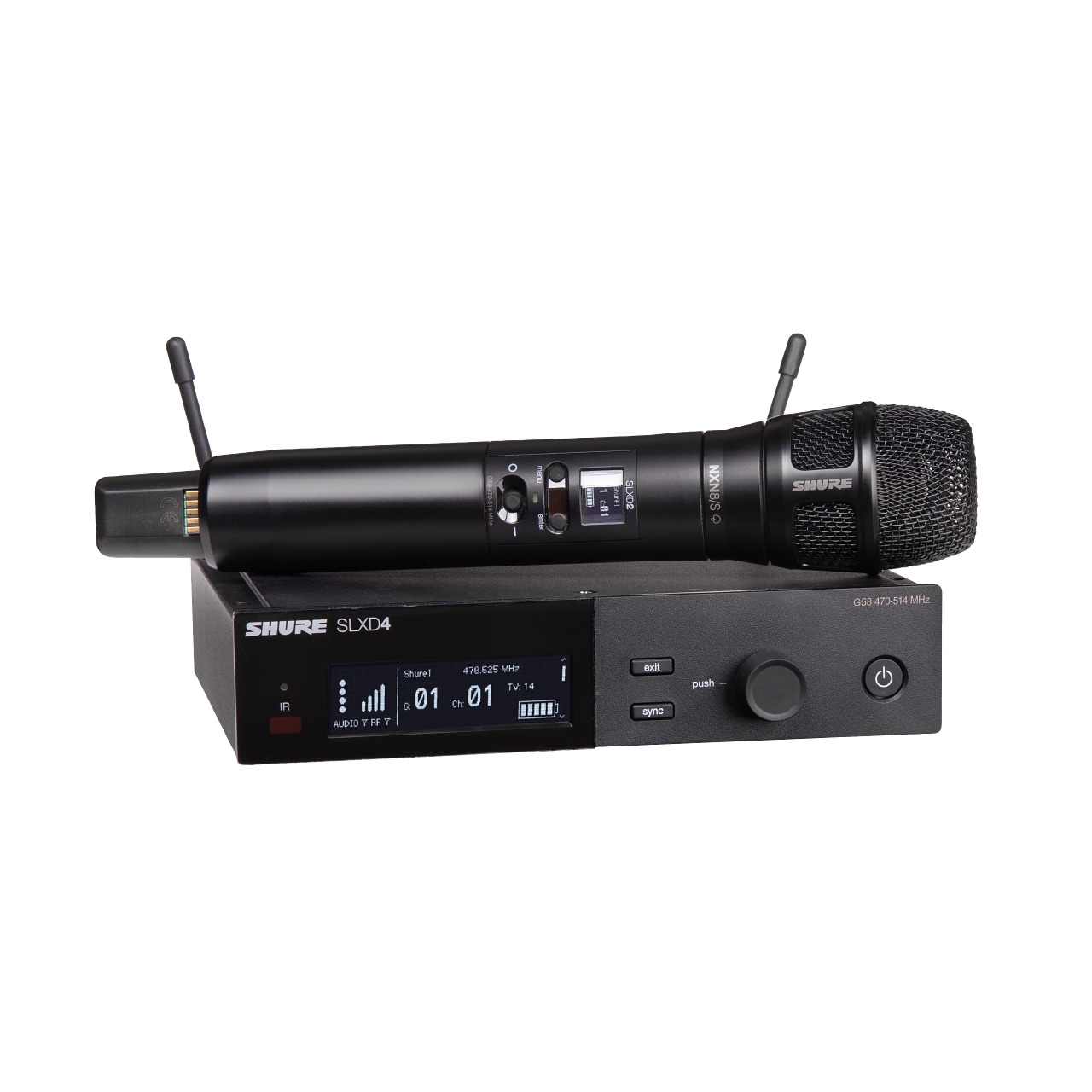

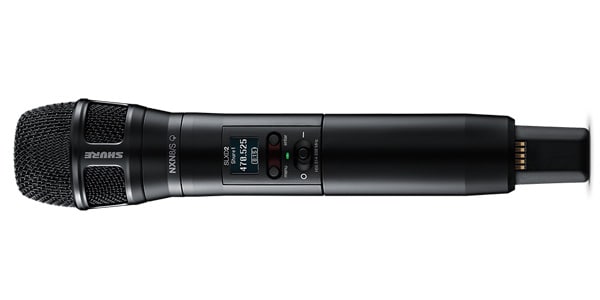

Includes the SLXD2/N8S handheld transmitter with the Nexadyne 8/S supercardioid dynamic microphone capsule, the SLXD4 single receiver, antennas, and rack mounting accessories.

recommended item

SENNHEISER / EW-D 935-S SET (EW-D Base set + MMD 935)

限定特価 ¥127,710(incl. tax)

The EW-D 935-S SET is a bundle package containing the EW-D SKM-S Base Set and the MMD935-1 microphone. This set includes a half-rack receiver, handheld transmitter, and microphone head (MMD 935), making it ideal for live applications. It is perfect for concert vocals and event PA use.

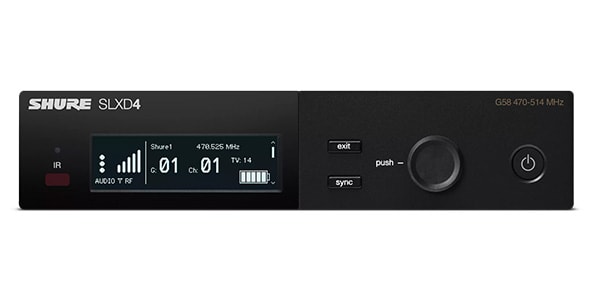

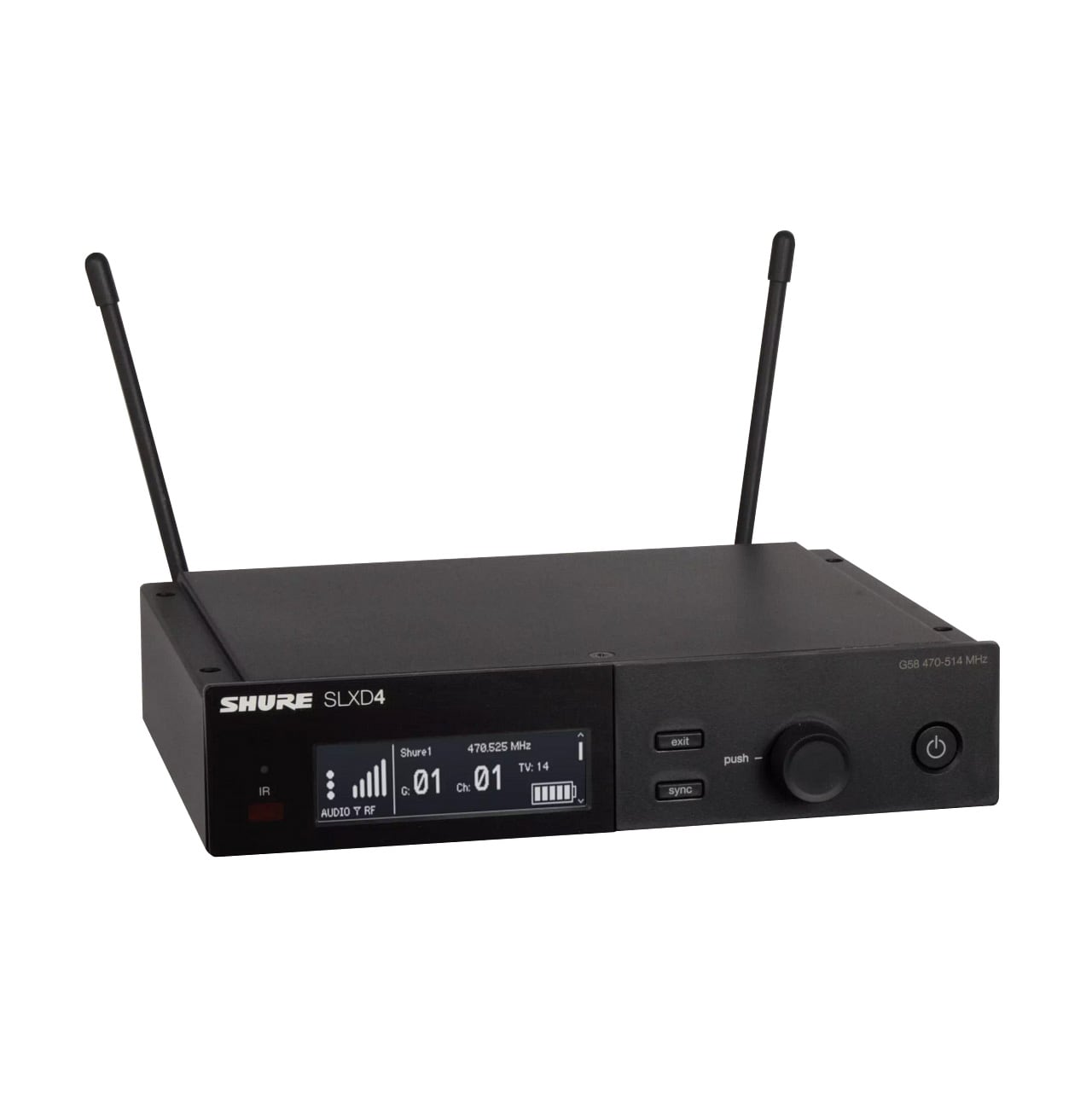

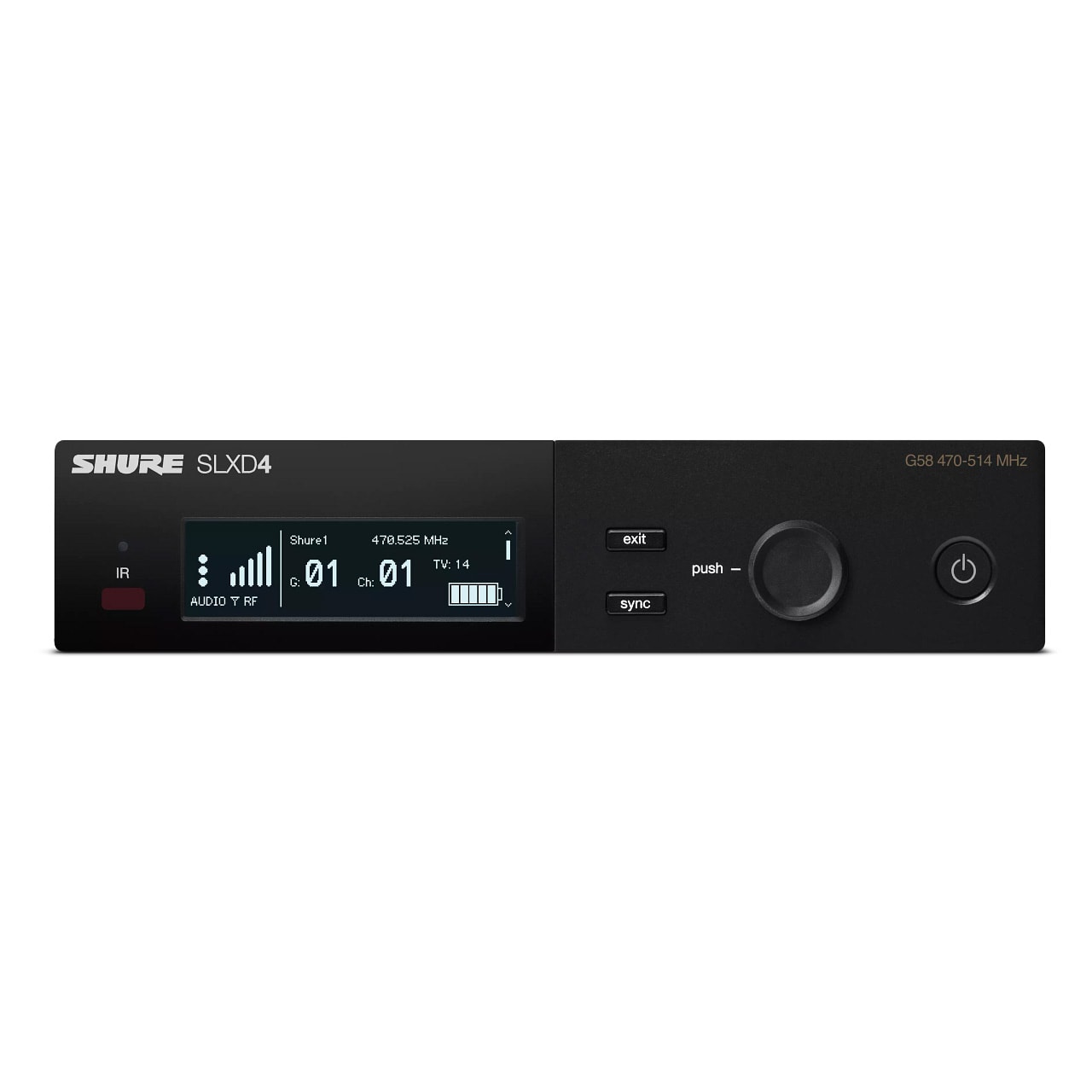

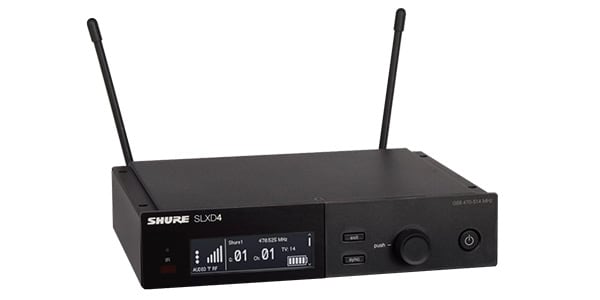

The SLXD4 features industry-leading digital wireless technology and design, allowing for easy synchronization of wireless transmitters.

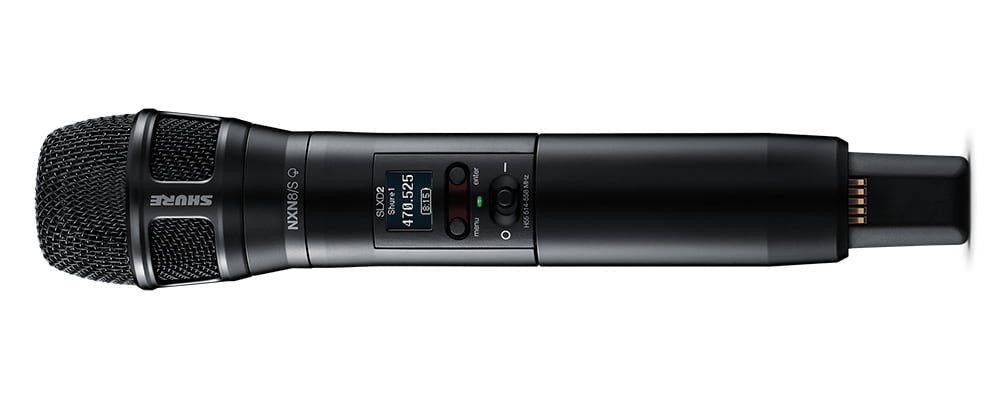

The SLXD2/N8CB handheld transmitter features a Nexadyne 8/C cardioid dynamic microphone capsule, supporting superior performance from conference rooms to live performances.

The Nexadyne 8/C microphone capsule features Shure's patented Revonic dual-engine technology, combining cutting-edge acoustic signal processing with exceptional linearity. It faithfully captures clear, natural vocals, delivering pristine vocals throughout the venue.

- Large, backlit LCD panel for easy viewing in dark environments
- Easy-to-use control knobs
- Group scan function for automatic frequency detection
- Built-in Ethernet port for firmware updates and third-party control device compatibility
- IR scan and synchronization for easy transmitter/receiver pairing

- Clear 24-bit digital audio
- Frequency response of 20 Hz to 20 kHz (varies depending on microphone capsule)
- Wide dynamic range of 118 dB
- Digital Predictive Switching Diversity
- Up to 100 m range (depending on operating environment)
- Up to 10 simultaneous channels in B band (depending on operating environment)
- IR scan and synchronization for easy transmitter/receiver pairing
- Up to 8 hours of continuous use* with two AA alkaline batteries or the optional Shure SB903 lithium-ion rechargeable battery. Reliable for extended operation. When using the SB903 lithium-ion rechargeable battery (sold separately), minute-by-minute and hour-by-hour battery charge and charge level monitoring is available (depending on usage environment).

Rugged metal chassis

SLXD4 Single Receiver Specifications

Number of Receive Channels: 1

Dimensions: 42mm H x 197mm W x 152mm D

Weight: 816g (excluding antenna)

Power Supply: DC 15V, 600mA, external power supply (tip positive)

Exterior: Zinc-plated steel

RF Input

- Spurious Rejection: >75dB, typical

- Connector Type: BNC

- Impedance: 50Ω

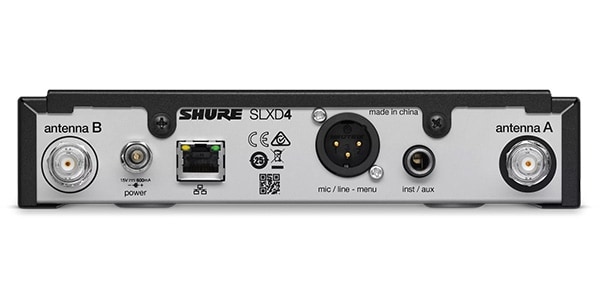

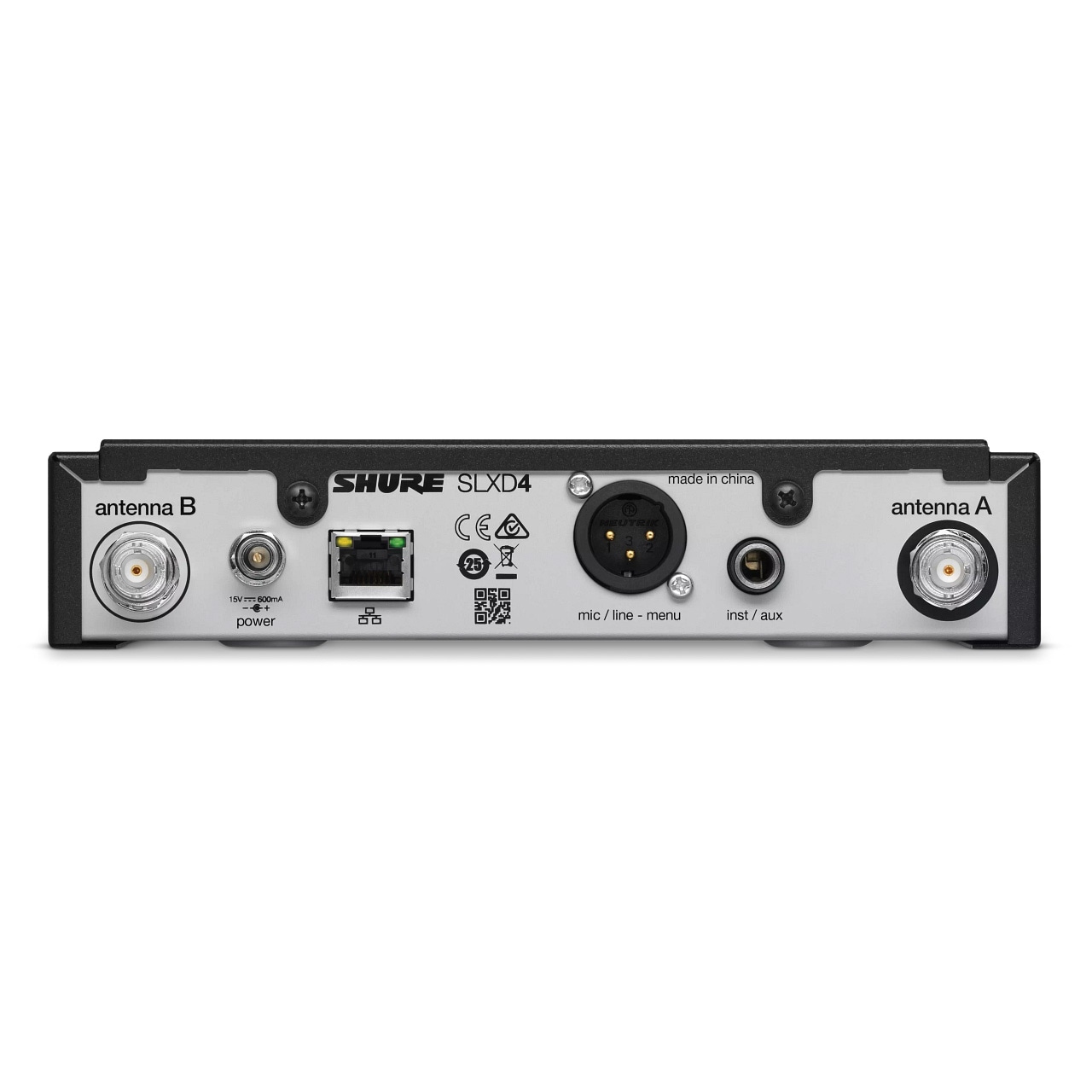

Audio Output

- Gain Adjustment Range: -18 to +42dB (1dB increments)

- Phantom Power Protection: Yes

- Configuration: 1/4 inch (6.35mm): Balanced (Tip = Audio +, Ring = Audio -, Sleeve = Ground)
XLR: Balanced (1 = Ground, 2 = Audio +, 3 = Audio -)
- Impedance: 1/4"" (6.35 mm): 1.3 kΩ (670 Ω unbalanced)
XLR (Line): 400 Ω (200 Ω unbalanced)
XLR (Mic): 150 Ω
- Full-Scale Output: 1/4"" (6.35 mm): +15 dBV balanced (+9 dBV unbalanced)
XLR: Line setting = +15 dBV, Mic setting = -15 dBV
- Mic/Line Switch: 30 dB Pad
- Network
- Network Interface: Single-Port Ethernet 10/100 Mbps
- Network Addressing: DHCP or Manual IP Address
- Maximum Cable Length: 100 m

- Type: Dynamic
- Polar Pattern: Cardioid
- Dimensions: Length 176 mm x Grip Diameter 37.1 mm
- Weight: 147 g (excluding batteries)
- Power Source: Two 1.5 V AA batteries or a lithium-ion rechargeable battery
- Housing: Aluminum
- Maximum Input Level (1 kHz at 1% THD): 8.2 dBV (2.57 Vrms, 7.27 Vpp) (Varies depending on microphone type)
- RF Output
- Antenna Type: Integrated single-band helical
- Occupied Bandwidth: <200 kHz
- Modulation Method: Shure proprietary digital
- Transmit Power: 1 mW or 10 mW *Varies by region

Manufacturer Model Number: SLXD24J/N8CB-JB
JAN Code: 0042406839006
Included Items: SLXD2/N8CB Handheld Transmitter x 1, SLXD4 Single Channel Receiver x 1, Microphone Pouch x 1, WA371 Microphone Holder x 1, AA Alkaline Batteries x 2, 3/8"" to 5/8"" Adapter x 1, 1/4 Wave Antenna x 2, BNC Adapter x 2, Coaxial Cable (55cm) x 2, AC Adapter x 1, Rack Mount Bracket (Short) x 1, Rack Mount Bracket (Long) x 1, Connecting Plate x 1, Hardware Kit
Country of Origin: China
Manufacturer's Warranty: 2 Years
