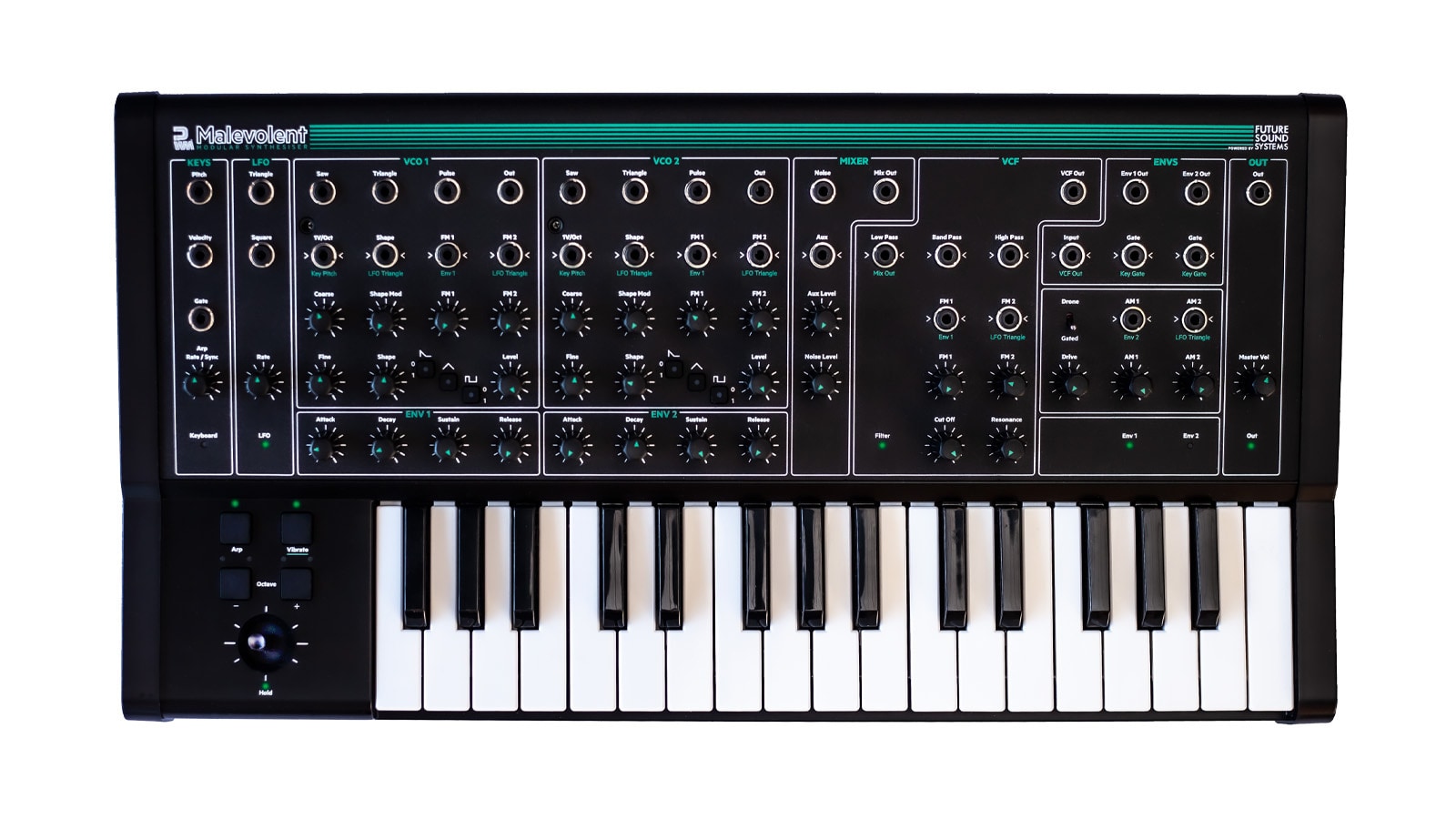

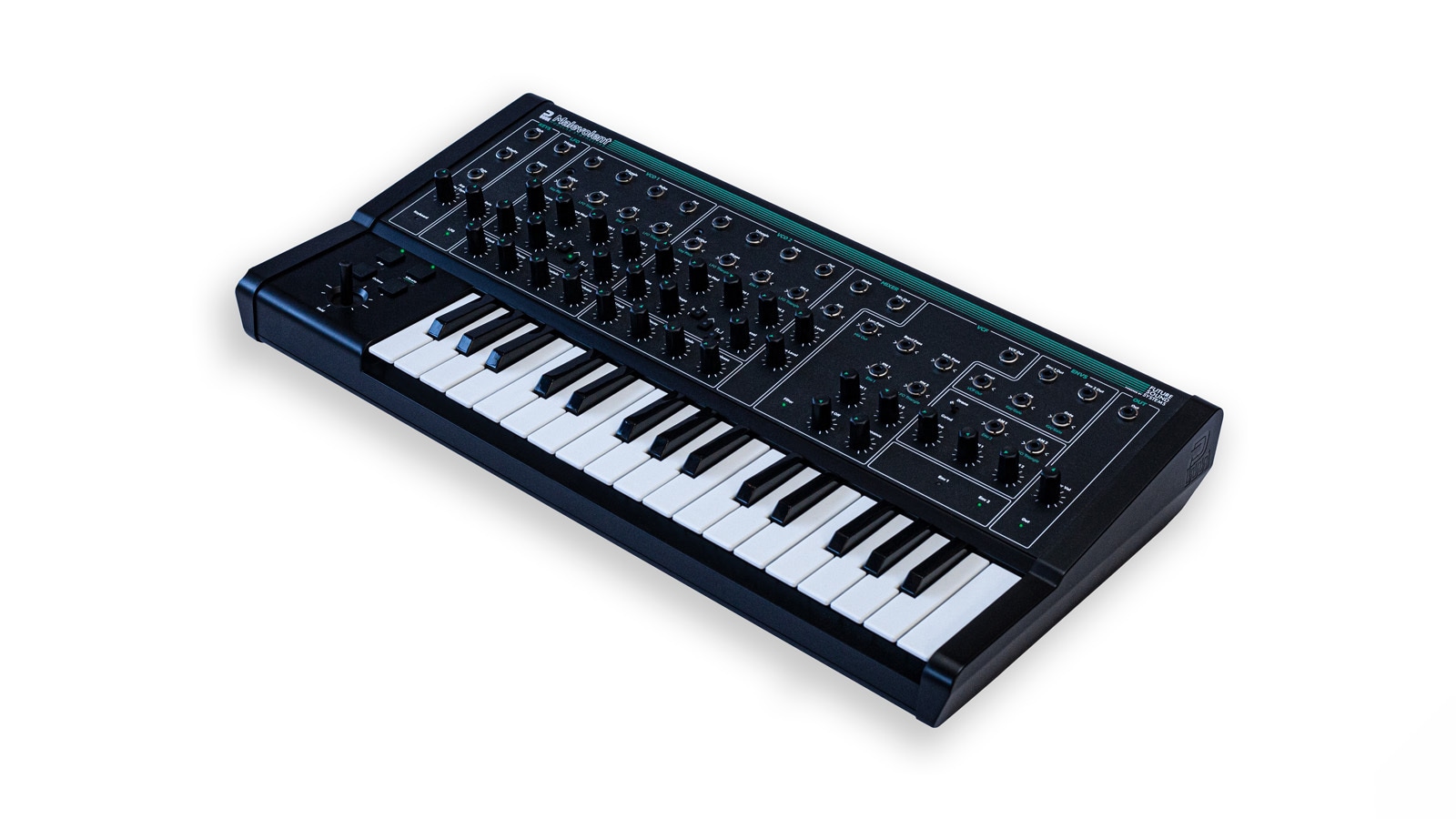

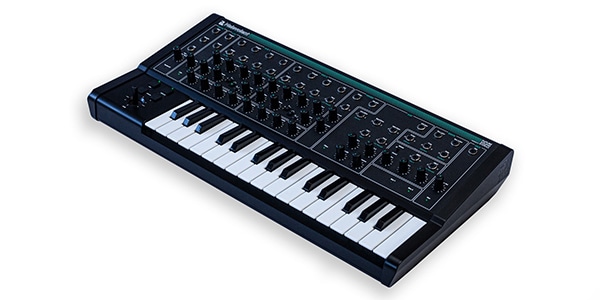

PWM / Malevolent

Malevolent is a pure analog synthesizer that gives you a lighthearted joy of playing. It features modern and versatile controls built around a stimulating Sarenky-type filter and a maddening retro sound.

Semi-modular pure analog synthesizer (monophonic)
Interconnectable, independent module sections
Eurorack standard compliant (1V / Oct CV & Gate)
USB-MIDI to CV conversion, arpeggiator, multi-function joystick
Analog clock input/output
VCO
The VCO is derived from the 4046-based core and provides unique waveform formation. Sawtooth, triangle, and pulse waves are all affected by the VCO's shape control and modulation parameters. The waveforms are designed to behave non-uniformly across the pitch spectrum, giving you a glimpse of Malevolent's potential even before it reaches the filter stage.

VCF
The VCF is an opto FET-controlled 2-pole Sarenky filter that provides different filter states at independent inputs. The filter is designed to interact with the incoming oscillator level, resulting in a wider range of resonances than typical analog synthesizers. Settings allow for contrasting filter behavior, subharmonic locking, self-oscillation, and even phase adjustment when using multiple state inputs from a single source.

VCA
The VCA is a discrete transistor-based design that provides the final distortion where it is needed. Turning up the drive control adds considerable gain and saturates the sound. Both CV inputs can also be used to easily add modulation to the VCA.

Envelope.
The envelope is designed with performance in mind, with attack, decay, sustain, and release controls. It allows a wide range of time settings from ultra-fast to moderately long, resulting in high performance.

SPECIFICATIONS
Analog signal path designed by Future Sound Systems
Pure VCOs
19 outputs and 19 inputs with 3.5 mm mono jacks for patching
Optimized signal path
Two VCOs
Sawtooth / Triangle / Pulse
1 V / Oct pitch control input
Shape control / pulse widus modulation inputs
Two fricity modulation inputs
Course / Fine Tune control
Shape modulation amp control
FM 1 / 2 modulation mount control
Shape control
Selectable waveforms on mix output
Individual oscillator level control
LFO
Triangle / pulse wave
Rate control
Two envelopes
Individual ADSR control
Individual gate inputs
Individual envelope outputs
Multimode 2-pole VCF
Low-pass, band-pass, and high-pass inputs
Two fricity modulation inputs with amount control
Filter cutoff
Filter Resonance
Mixer
Noise with level control
AUX input with level control
USB-MIDI to 1V / Oct CV and gate conversion
Full analog pitch and gate control
Analog clock in/out
Multi-function joystick
Pitch bend
Portamento
Vibrato
Latch hold mode
Arpeggiator
Type : Up, Down, Up/Down 1, Up/Down 2, Play, Random
Automatic clock synchronization
Rate Control
Latch
Octave width : 6
Analog / MIDI / USB-MIDI clock output (when arpeggiator is operating)
Keyboard
Mini size 32 keys
Octave shift : +/- 4 octaves
Pitch output
Velocity output
Gate output
Local Off

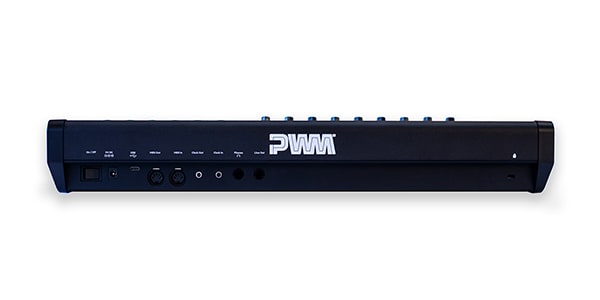

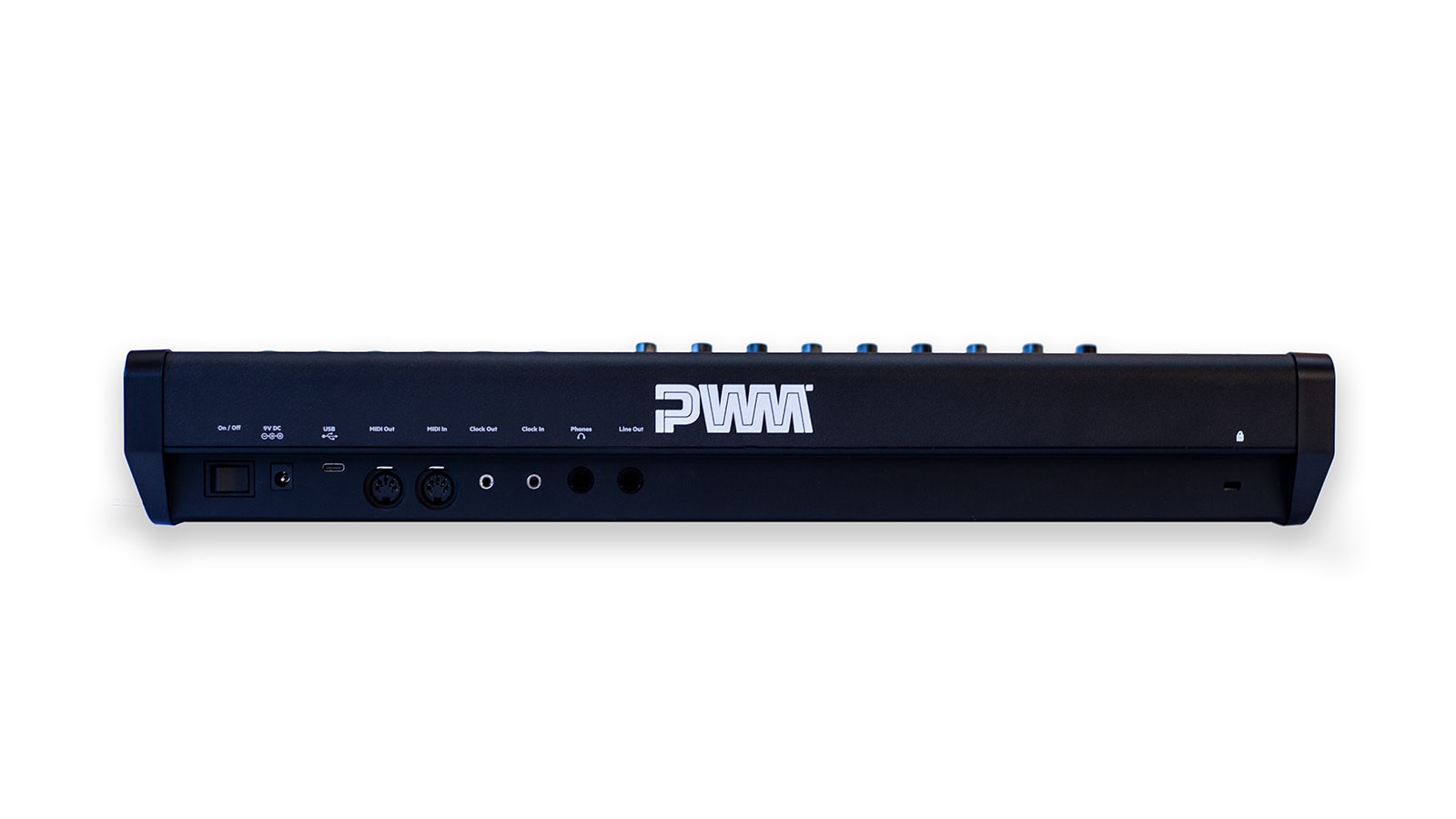

Miscellaneous
VCA with overdrive control
Compatible with Eurorack standard 1V / Oct gear
Pitch control for each VCO and gate control for each envelope
Monophonic
Line output
Headphone output
MIDI in/out
USB bus-powered
Dimensions and Weight
490 mm x 250 mm x 80 mm
2.61 kg
Accessories
Patch cable * 5
PSU (9V 600mA)
USB-C to USB-A cable
Getting Started Guide
