AJA Video Systems / FiDO-4R

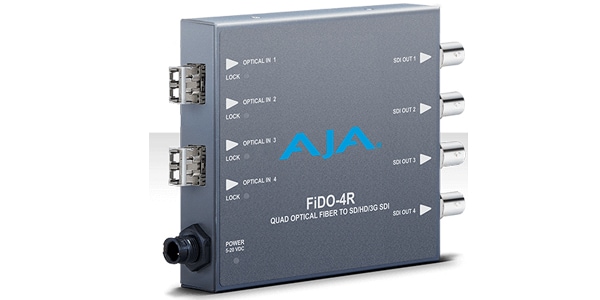

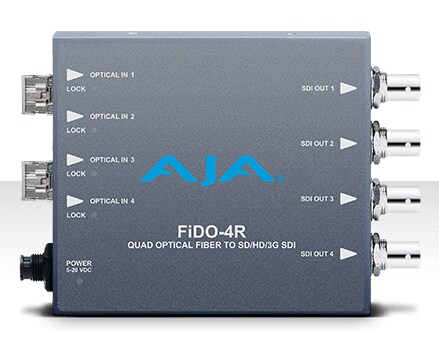

The FiDO-4R is a 4-channel single-mode LC Fiber to 3G-SDI receiver that offers unparalleled flexibility and cost-effectiveness in SDI to Fiber conversion. It can transmit up to 10 km over cable. It is electrically isolated and ground loop free.

■4-Channel Singlemode LC Fiber to 3G-SDI Receiver
■Video Format:
100Mbps to 3Gbps (automatic recognition)
■ Digital video input:
4-channel independent single-mode LC fiber output, SMPTE-297
Nominal wavelength: 1260-1620nm
Optical sensitivity: -18dBm (minimum)
Overload output: -3dBm (min.)
Digital video output:
4 independent 3G-SDI output channels, SMPTE-259/292/424
■Reclocking:
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - auto select
Other rates are pass-through and not reclocked
SIZE: 117(W)x24(H)x105(D)mm
■POWER: 4W max.
Uses 5-20V DC power supply (AJA power adapter DWP-U-R1 included)
