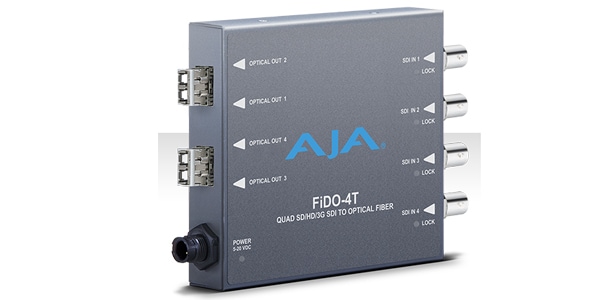

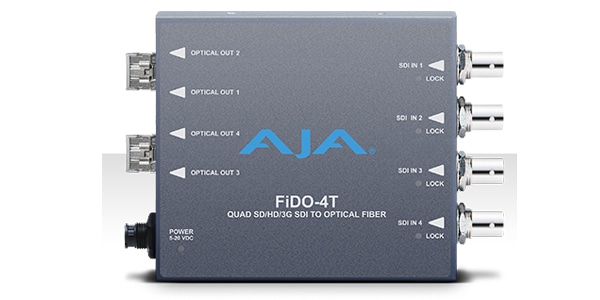

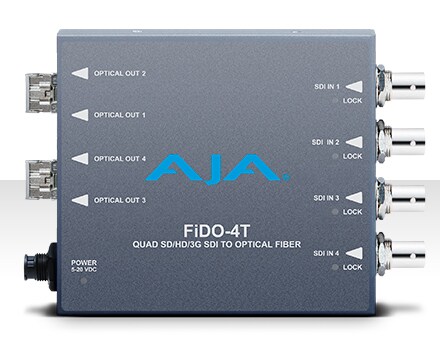

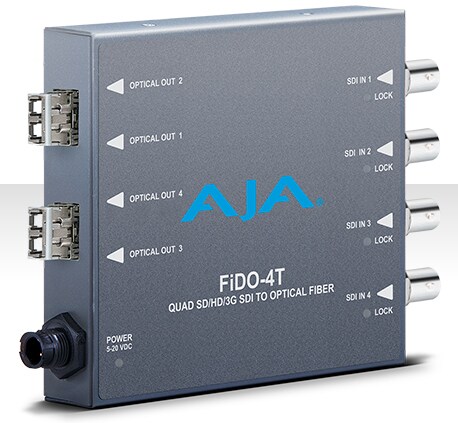

AJA Video Systems / FiDO-4T-MM

The G-SDI / Fiber Optic converter offers unparalleled flexibility and cost-effectiveness. It can transmit up to 700 meters for OM4 and 300 meters for OM3 using multimode fiber optic cables.

■4-channel 3G-SDI to Multimode LC Fiber Transmitter
■Video Format
100 Mbps to 3 Gbps (automatic recognition)
■Digital Video Inputs
4-channel independent 3G-SDI input, SMPTE-259/292/424
■Digital video output
4-channel independent multimode LC fiber output, SMPTE-297
Nominal wavelength : 850 nm
Optical output: -7 dBm (min), -2 dBm (max)
Attenuation ratio: 7.5dB (rated)
Reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - auto select
Other rates are pass-through and will not be reclocked
■SIZE: (w x d x h)
117(W)x43.5(H)x21.6(D)mm
■POWER:
3W max.
Uses 5-20 VDC power supply (AJA power adapter DWP-U-R1 included)
■Operating Environment
Safe operating temperature: 0°C to 40°C (32°F to 104°F)
Safe storage temperature (with power off): -40°C to 60°C (-40°F to 140°F)
Operating relative humidity: 10% to 90% (non-condensing)
Operating altitude: less than 10,000 feet (3,000m)
