AJA Video Systems / DANTE-AV-4K-R

Receiver to decode Daante AV Ultra JPEG 2000 to 12G-SDI or HDMI (Embedded Audio supported).

■Transmitter, 12G-SDI/HDM to Dante AV Ultra JPEG 2000
■Video Format
o(4K)4096×2160p
o(UltraHD)3840×2160p
o(2K)2048×1080p
o(HD)1920×1080p
o(HD)1280×720p
■VESA Format
o(WUXGA)1920×1200
o(UXGA)1600×1200
o(SXGA)1280×1024
o(XGA)1024×768
Note: RGB 4:4:4608-bit fixed in VESA format
■Discovery, Registration and Control
oAudinate DanteControllerSoftware (Windows/Mac compatible)
oAudinate DanteDomainManagerSoftware
oDante Ecosystem Friendly: Compatible with existing Dante-enabled products
Media Transfer Interface
Network interface: Standard 1GigE Ethernet
Audio Flow: 8 flows/8 channels per flow (unicast or multicast)
Video Flow: 1 channel per flow/flow (unicast or multicast)
Time stamping: Hardware time stamping, sample accurate playback supported

【Digital video output (4K-R)】
■12G-SDIBNC x 1, SMPTE292 (1.5Gb/s), 424, 425-A (3Gb/s), 2081, 2082, 352, SDI metadata supported
YCbCr4:2:2
10-bit
2-sample interlaced (2SI) 4K/UltraHD source mapping
■12GSDI x 1
(4K) 4096 x 2160p50, 59.94, 60
(UltraHD) 3840 x 2160p50, 59.94, 60
■6GSDI x 1
(4K) 4096 x 2160p23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p23.98, 24, 25, 29.97, 30
■3G-SDI (Level A) x 1
(HD)1920 x 1080p50, 59.94, 60
■1.5G-SDI x 1
(HD)1920 x 1080p23.98, 24, 25, 29.97, 30
(HD) 1280 x 720p50, 59.94, 60
■HDMI Type A connector x 1, HDMIv2.0*.
YCbCr4:4:4, 4:2:2, SMPTE, or full RGB
8-, 10-, 12-bit (limited to 4K/UltraHD4:4:4, 8-bit)
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(UltraHD) 3840 x 2160p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1280 x 720p50, 59.94, 60
(WUXGA) 1920 x 1200
(UXGA) 1600 x 1200
(SXGA)1280×1024
(XGA)1024 x 768

Note
RGB 4:4:4608-bit fixed in VESA format.
Only one input is supported at a time. The unit automatically identifies the source, but if both SDI and HDMI are connected, they can be selected arbitrarily.
*If a monitor that does not support HDMI protocol is connected, the unit will automatically switch to DVI protocol. no audio is transmitted over DVI protocol.

【Reference】
■BNC x 1:
Reference output terminal (to be supported in the future)

【Codec】
■Video codec: FPGA implementation optimized for JPEG2000 codec (IntoPIX license), DanteAPI management interface
■Audio format: DanteAudiooverIP
■Bit rate: up to 700 Mbps
■Video streaming: Unicast or multicast
■Copy Protection: HDCP2.2 and HDCP2.3 for network
■Latency: 0.5 frames (e.g., at 2160p60Hz, latency between encoder and decoder is less than 8 ms); overall latency depends on network configuration
■Bandwidth 1: 4Kp6010-bit 4:2:2, 500-600Mbps, highly dependent on network configuration and management settings
■Bandwidth 2: 1080p6010-bit4:2:2, 150-250Mbps, highly dependent on network configuration and management settings

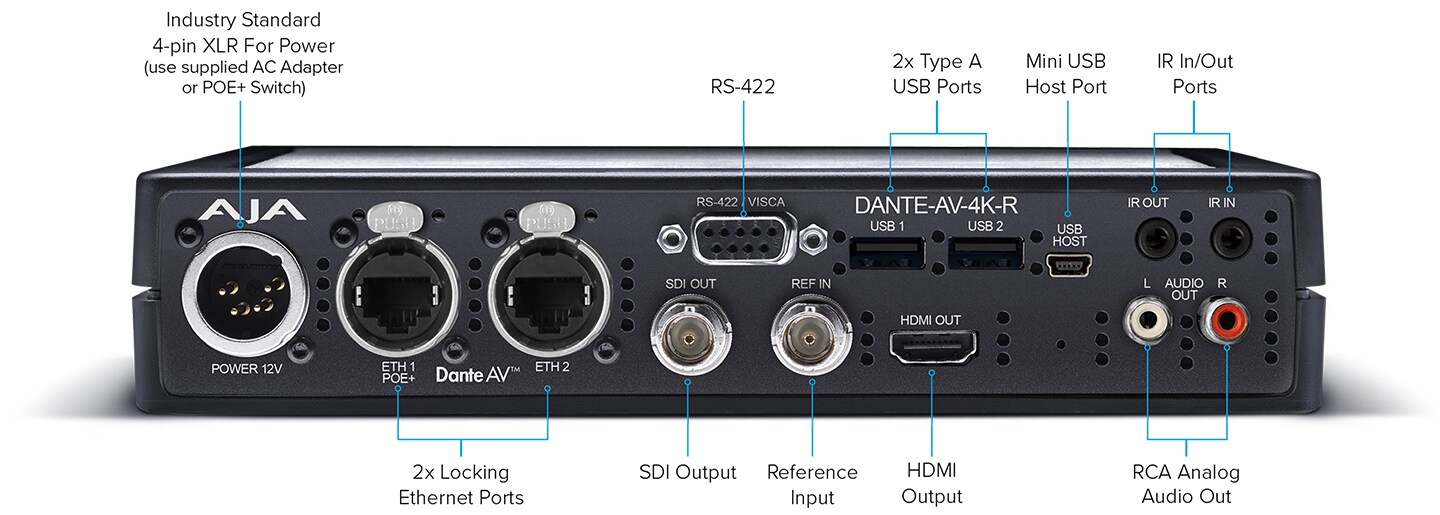

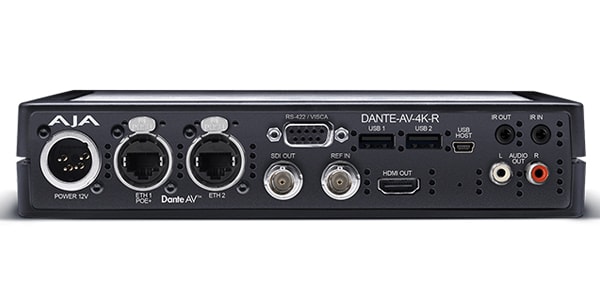

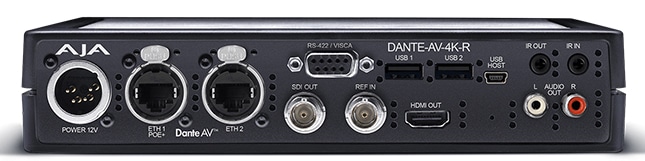

【Hardware Interface】
■Hardware Interface
NeutriketherConRJ45 terminal x 1 - 1GigE (supports DanteAV and PoE+)
NeutriketherConRJ45 terminal x 1 - 1GigE (for DanteAudio or DanteController, not PoE+ compatible)
1 DB-9RS-422/VISCA serial port
USB2.0 Type A port x 2
USB2.0 mini-B host terminal x 1
3.5mm IRTx jack for IRoverIP
3.5mm IRRx jack for IRoverIP

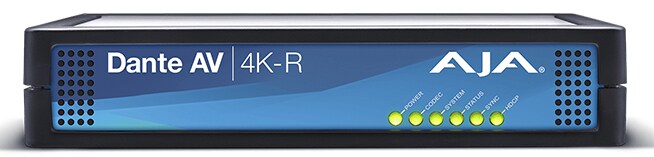

Front LED indicators: power, codec, system, status, sync, HDCP

【Size/Weight】
■SIZE：222.0(W)×41.91(H)×180.09(D)mm
■Weight: 1.5kg
