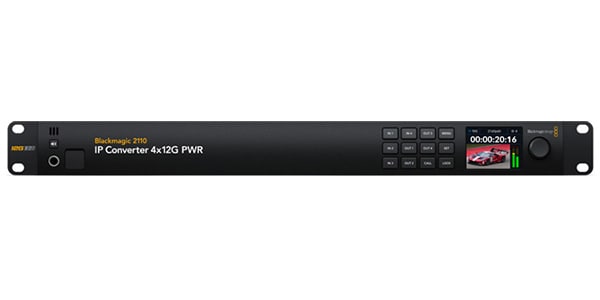

Blackmagic Design / Blackmagic 2110 IP Converter 4x12G PWR

Blackmagic 2110 IP Converter 4x12G PWR lets you add SMPTE-2110 IP video to 12G-SDI broadcast equipment. It features 4 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections which can also provide power.

■2110 IP Converter

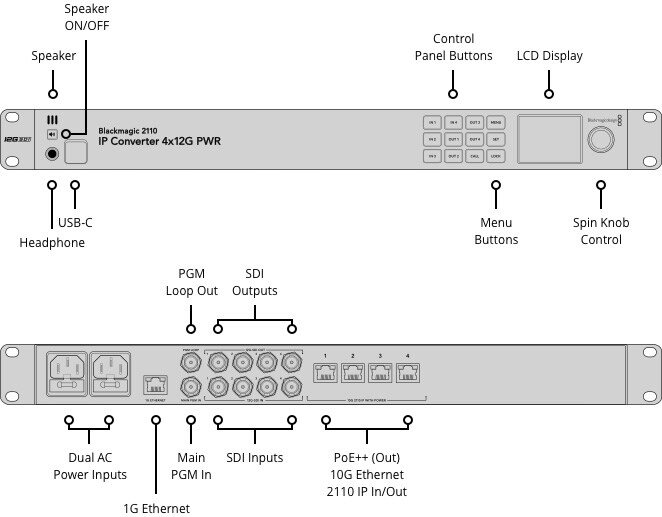

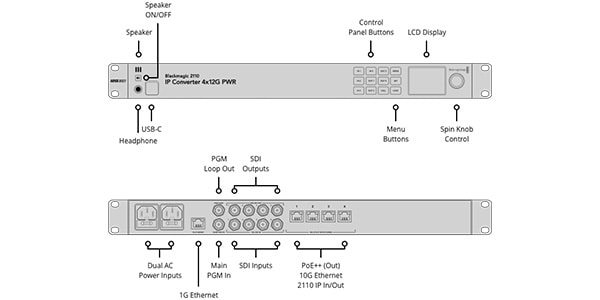

【Connections】
■Total SDI Inputs：5
■SDI Video Inputs：4
■SDI Main Program Inputs：1
■Total SDI Outputs：5
■SDI Video Outputs：4
■SDI Main Program Outputs：1 Loop Out.
■SDI Rates：270Mb, 1.5G, 3G, 6G, 12G.
■SMPTE ST-2110 IP Video Inputs：4x10G Ethernet
■SMPTE ST-2110 IP Video Outputs：4x10G Ethernet
■Analog Audio Outputs：
1 x 6.35 mm headphone socket.
■SDI Audio Inputs：
16 Ch embedded audio on SDI input.
■SDI Audio Outputs：
16 Ch embedded audio on SDI loop output.
■SMPTE ST 2110 IP Audio Inputs：
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
■SMPTE ST 2110 IP Audio Outputs：
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
■Multi Rate Support：
Auto detection of SD, HD, Ultra HD and 4K.
■Reclocking：Yes
■Ethernet：
4 x 10Gb/s RJ‑45 PoE++ connectors supporting 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out. PoE++ is power output only for powering connected PoE devices such as Blackmagic Cameras and Converters.
1 x 1Gb/s RJ‑45 connector supporting 10/100/1000 BASE-T for configuration and firmware updates.
■Computer Interface：
1 x USB-C 3.0 for configuration and firmware updates.

【SDI Video Standards】
■HD Video Standards：
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
■Ultra HD Video Standards：
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
■4K Video Standards：
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
■SDI Compliance：
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.
■SDI Video Rates：
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
■SDI Color Precision：4:2:2
■SDI Color Space：YUV
■SDI Auto Switching：
Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output.

【IP Video Compliance】
■SMPTE 2110-20 (Uncompressed Video)：IGMP v2
■SMPTE 2110-21 (Traffic Shaping)：Sender: Narrow
■Receiver: Narrow, Wide Synchronous, Asynchronous：
■SMPTE 2110-30 (PCM)：
Audio Conformance level: Level C
■SMPTE 2110-40 (Ancillary Data)：
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
■Codec：
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
■Precision Time Protocol：
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
■NMOS IS-04 Discovery and Registration：
v1.3.2
Peer-to-peer via mDNS/DNS-SD
■NMOS IS-05 Connection Management：
v1.1.2
■NMOS BCP-002-01：
Natural Grouping
■NMOS BCP-004-01：
Receiver capabilities

【Audio】
Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.

【Control】
■Built in Control Panel：
12 button control panel, 2.2 inch color display and spin knob for setup and menu settings.

*The warranty period for this product is one year from the manufacturer.
