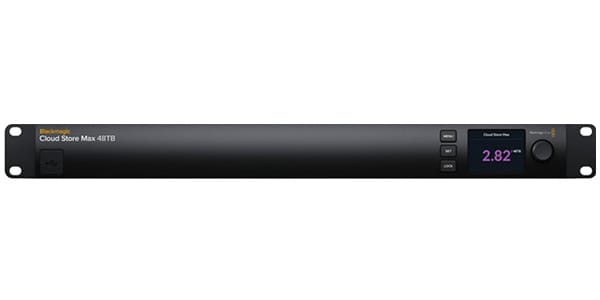

Blackmagic Design / Blackmagic Cloud Store Max 48TB

Blackmagic Cloud Store Max 48TB is an extremely high performance flash storage solution in a compact 1RU design. Cloud Store Max features 48TB capacity 12 card RAID 0 flash memory core, 4 x 10G Ethernet, 100G Ethernet, QSFP connection for high speed copper cables or longer optical fiber cables, USB-C and Blackmagic Cloud sync for distributing files globally.

■Flash Storage

【Connections】
■10G Ethernet Ports：
4 x Ethernet 100/1000/10G BASE-T
■100G Ethernet Ports：
1 x Ethernet 100/1000/10G/100G BASE-T
■USB-C Port：
1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
■SDI Monitor Outputs：1
■HDMI Monitor Outputs：1
■Computer Interface：
USB-C or Ethernet for shared file access, configuration and software updates
【File Sharing Protocol】
■Protocol：SMB
■Computer Connections:50 max.

【Cloud Synchronization】
■Compatible Services：
Blackmagic Cloud
Dropbox
Google Drive

【Storage】
■Storage Type：
M.2 NVMe SSD
■Total Capacity：48TB

【Displays】
■SDI Monitor Out Standards：
1080p50, 1080p59.94, 1080p60
■HDMI Monitor Out Standards：
1080p50, 1080p59.94, 1080p60
■Monitor Out Displays：
Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
■Front Panel Display：
Built in 2.2 inch LCD for settings and storage name, capacity and use.
■Status Indicator：
Front panel LED illuminates white indicating normal operation or red indicating disk fault.

【Control】
■Built in Control Panel：
3 buttons, 2.2 inch color display and spin knob for menu settings.
■External Control：
USB-C or Ethernet for configuration and software updates.

【Software】
■Software Included
Blackmagic Cloud Setup Utility
Blackmagic Proxy Generator Lite
Internal software upgrade via Blackmagic Cloud Setup using USB-C port.

*The warranty period for this product is one year from the manufacturer.
