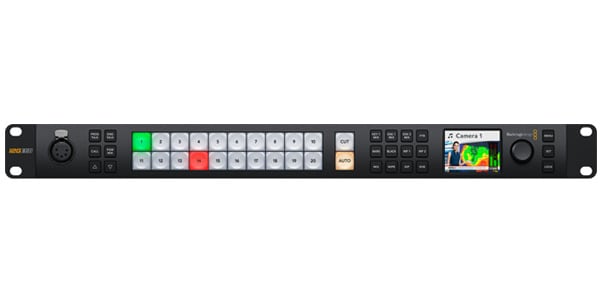

Blackmagic Design / ATEM 2 M/E Constellation 4K

ATEM 2 M/E Constellation 4K is a powerful 2 M/E Ultra HD live production switcher. It features 20 standards converted 12G-SDI inputs, 12 12G-SDI aux outputs, 2 DVEs, 8 ATEM Advanced Keyers, 2 multiviews, media players, USB webcam output and a SuperSource for a total of 6 DVEs.

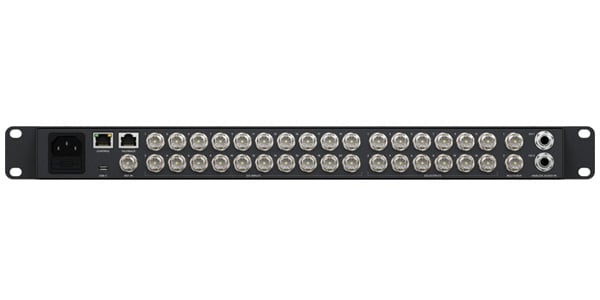

【Connections】
■Total Video Inputs：20
■Total Video Outputs：12
■SDI Rates：
1.5G, 3G, 6G, 12G
■Total Audio Inputs：
2 x balanced 1/4 inch Jack,
1 x 5 pin XLR Talkback.
■Total Audio Outputs：
1 x 5 pin XLR Talkback.
■SDI Audio Inputs：
16 Ch embedded audio on all SDI inputs.
■SDI Audio Outputs：
16 Ch embedded audio on all SDI outputs.
■Timecode Connections:None
■Reference Input:
Tri-Sync or Black Burst.
■Video Input Re-Sync:
On all 20 inputs.
■Frame Rate and Format Converters:
On all 20 inputs.
■SDI Aux Outputs：
Any of the 12 SDI outputs.
■SDI Preview Outputs：
Any of the 12 SDI outputs.
■SDI Preview Outputs：
Any of the 12 SDI outputs.
■Down Converted SDI Program Output：1
■Webcam Output：
1 x USB-C supporting 720p or 1080p at PGM frame rate.
■Total Multi Views：
2 x 12G-SDI
■Control Panel Connection：
Ethernet. Direct connection between panel and chassis, or via network.
■Internal Timecode Generator：Yes
■Talkback：
RJ45 for 3rd party talkback systems.
■Tally Output：
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
■Ethernet：
Supports 10/100/1000 BASE-T.
■Computer Interface：
1 x USB-C supports USB 2.0*The warranty period for this product is one year from the manufacturer.
【Standards】
■SD Video Standards：None
■HD Video Standards：
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97
2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
Video Sampling
4:2:2
■Color Precision：10-bit.
■Color Space：
REC 709, REC 2020
■SDI Auto Switching：
Automatically detects between 1.5G‑SDI, level A or level B 3G‑SDI, 6G‑SDI and 12G‑SDI.

【Product Specifics】
■Upstream Keyers：8
■Downstream Keyers：2
■Advanced Chroma Keyers：8
■SuperSource：1
■DVEs：2
■Linear/Luma Keyers：11
■Transition Keyer (Stinger/DVE)：
2 Stinger, 2 DVE.
■Total Number of Layers：15
■Pattern Generators：11
■Color Generators：2
■Control Panel：
Front fascia emergency switching, software or optional hardware panel.
■Routable Windows：32
■Windows Source Labels：Yes
■Tally：
Red for program and green for preview indication.
■Talkback Support：Yes
■Mix Minus Support：Yes

*The warranty period for this product is one year from the manufacturer.
