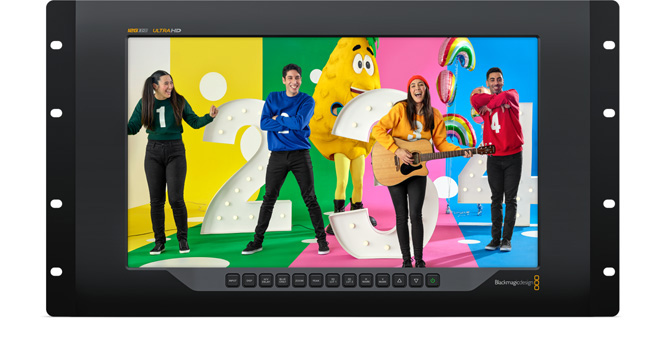

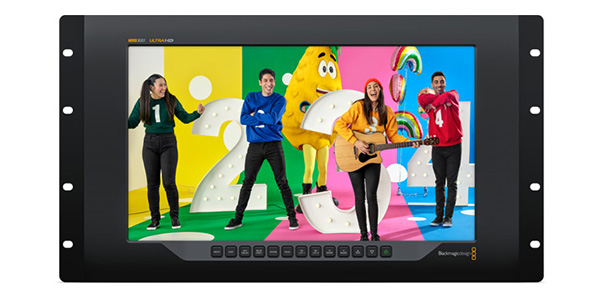

Blackmagic Design / SmartView 4K G3

SmartView 4K G3 is the first Ultra HD broadcast monitor with both 12G-SDI and SMPTE-2110 IP video inputs. SmartView 4K G3 connects directly to IP based broadcast systems as well as a range of 12G-SDI professional video equipment up to 2160p60, making it perfect for broadcast and live production.

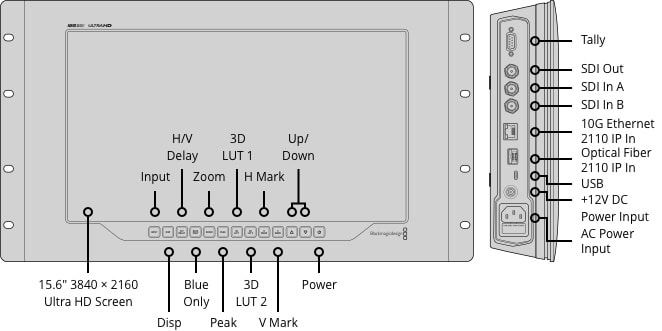

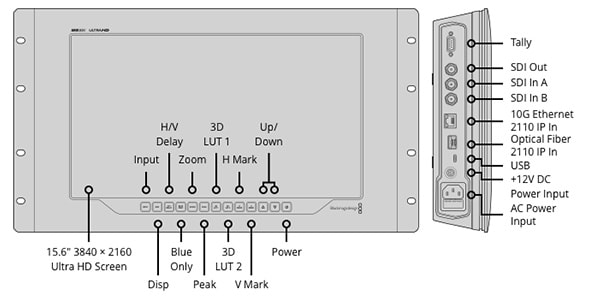

【Connections】
■SDI Inputs：2
Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.
■SDI Outputs：
1 loop out.
Reclocked video output that automatically switches to input selection.
■SDI Rates：
270Mb, 1.5G, 3G, 6G, 12G.
■Optical Video Input：
SFP Optical Fiber connector cage.
Supports 2110 IP video and optical SDI.：
■Multi Rate Support：
Auto detection of 4K, Ultra HD, 2K, HD or SD inputs.
■Updates and Configuration：USB
■Ethernet：
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
■Tally
9-pin D connector

【Standards】
■SD Format Support：
525i59.94 NTSC, 625i50 PAL
■HD Format Support：
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
■2K Format Support：
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30
■Ultra HD Format Support：
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
■4K Format Support：
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
■SDI Compliance：
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082.
■SDI Color Space：
REC 601, REC 709
■SDI Auto Switching：
Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
■Video Sampling：
4:2:2 and 4:4:4
*The warranty period for this product is one year from the manufacturer.

【IP Video Compliance】
■SMPTE 2110-20 (Uncompressed Video)：IGMP v2
■SMPTE 2110-21 (Traffic Shaping)：
Sender: Narrow
■Receiver: Narrow, Wide Synchronous, Asynchronous：
■SMPTE 2110-30 (PCM)：
Audio Conformance level: Level C
■SMPTE 2110-40 (Ancillary Data)：
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
■Precision Time Protocol：
IEEE 1588‑2008 (PTP v2)
ST 2059‑1
ST 2059‑2
■NMOS IS‑04 Discovery and Registration：
v1.3.2
Peer‑to‑peer via mDNS/DNS‑SD
■NMOS IS-05 Connection Management：
v1.1.2
■NMOS BCP‑002‑01：
Natural Grouping
■NMOS BCP‑004‑01：
Receiver capabilities
■Codec：
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
■Software：
Internal Software Upgrade
Via included firmware updater software.
■Settings Control：
Via USB or Ethernet.
*The warranty period for this product is one year from the manufacturer.
