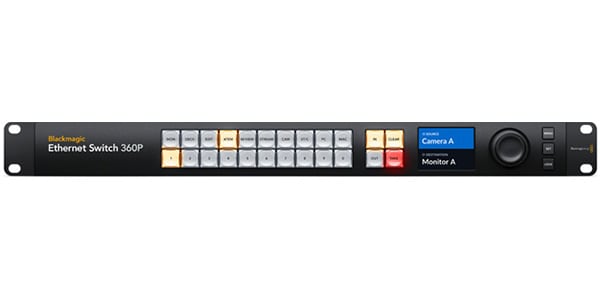

Blackmagic Design / Blackmagic Ethernet Switch 360P

Blackmagic Ethernet Switch 360P is the first Ethernet switch designed specifically for the film and television industry.

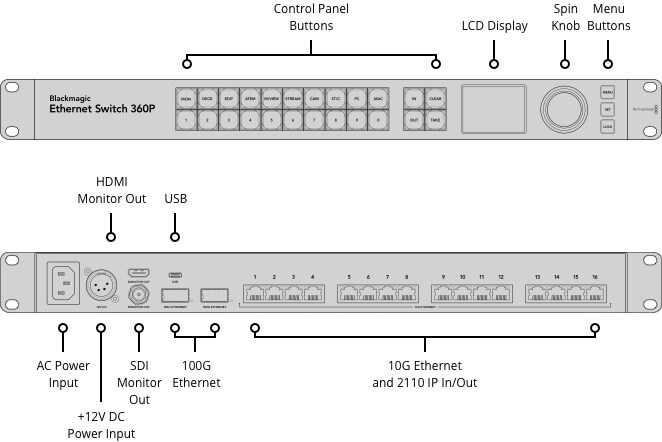

【Connections】
■10G Ethernet Ports：
16 x 10Gb/s RJ‑45 connectors supporting 100/1000/10G BASE‑T.
■100G Ethernet Ports
2 x 100Gb/s QSFP28 connectors.
■SDI Monitor Outputs：1
■HDMI Monitor Outputs：1
■Computer Interface：USB‑C

【IP Video Compliance】
■Precision Time Protocol：
IEEE 1588-2008 (PTP v2)
ST 2059‑1
ST 2059‑2
■NMOS IS-04 Discovery and Registration：
v1.3.2
Peer-to-peer via mDNS/DNS‑SD
■NMOS IS-05 Connection Management：
v1.1.2
■NMOS BCP‑002‑01：
Natural Grouping
■NMOS BCP‑004‑01：
Receiver capabilities

【Displays】
■SDI Monitor Out Standards：
1080p50, 1080p59.94, 1080p60
■HDMI Monitor Out Standards：
1080p50, 1080p59.94, 1080p60
■Monitor Out Displays：
Device Name, network connections, network activity.
■Front Panel Display：
Built in 2.2 inch LCD for video and menu settings.

【Control】
■Software Control：
Internal Software Upgrade
Via included updater application.
*The warranty period for this product is one year from the manufacturer.

【Power Requirements】
■Power Supply：
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
■Power Inputs：
1 x IEC C14 mains input.
■1 x 4-pin XLR +12V DC input.
■Power Usage：TBA
*The warranty period for this product is one year from the manufacturer.
