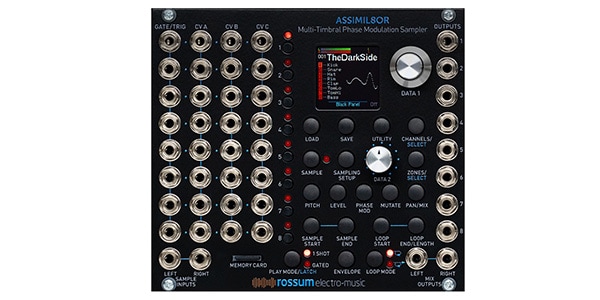

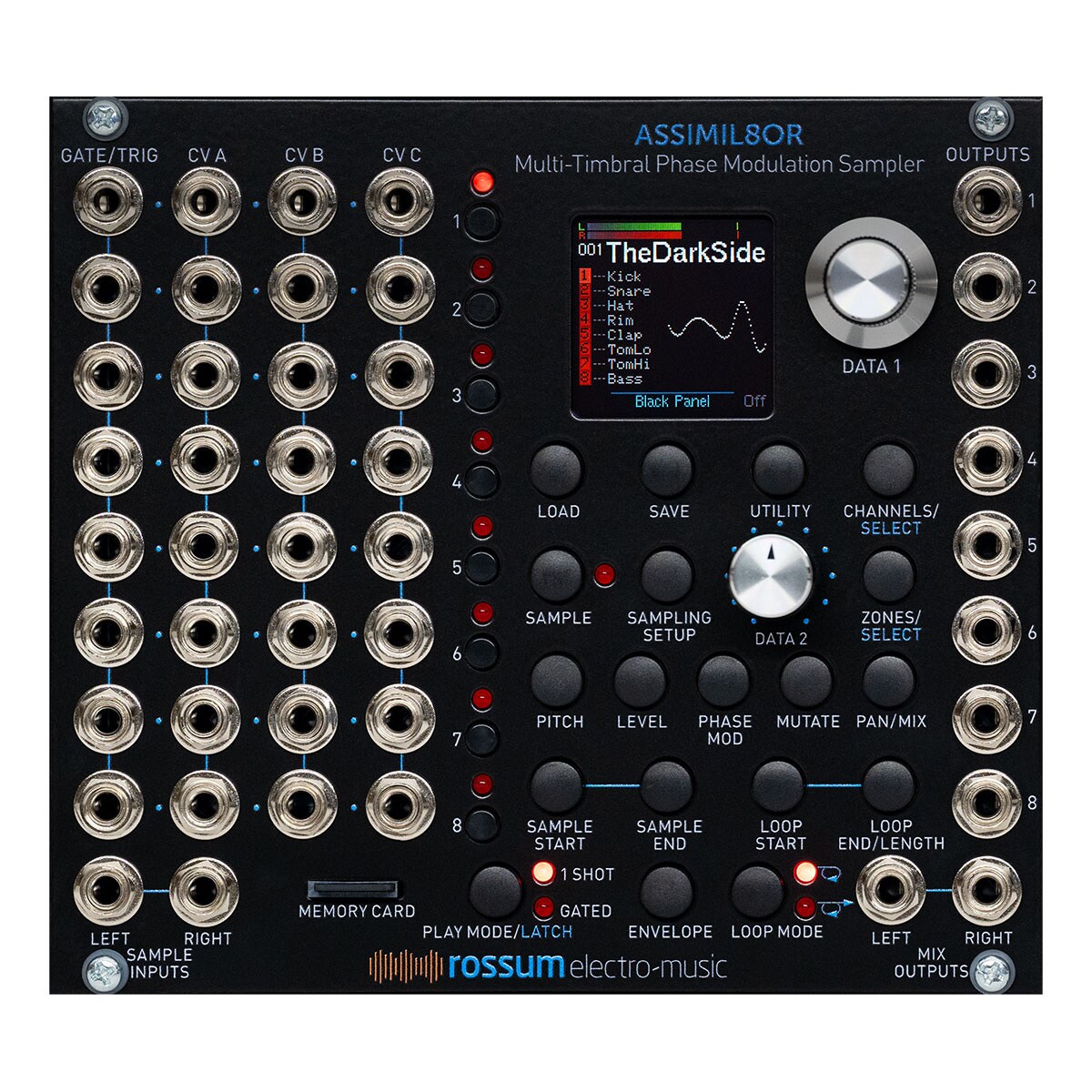

Rossum Electro-Music / Assimil8or Black

A sampler module that inherits the EMULATOR sound and features eight independent channels.

The ASSIMIL8OR Multi-Timbral Phase Modulation Sampler module is a powerful and flexible sampler module. It features eight independent sampling channels, covering a wide range of sound quality from high-fidelity sounds up to 192kHz to low-fidelity sounds like vintage samplers, all with real-time CV control.

Key features of the ASSIMIL8OR include:

8-channel multi-timbral control. Each channel has an independent output, and can also be output in a stereo mix from the MIX OUTPUTS.

24-bit A/D D/A conversion

Mono or stereo sampling. The channels can be configured with eight mono voices, four stereo voices, or any combination.

Assign up to eight samples to each channel and select them in real time with CV.

Supports DC coupling for sampling of CV signals.

Unique timbre function with the ability to phase modulate samples by external analog signals or other samples.

Independently selectable sample rates and bit rates.

Real-time CV control of bitrate
Real-time CV control of aliasing.
Extensive sample manipulation and looping capabilities.
CV-controlled sample scrubbing
Set attack and release times and play one shot or for the duration of the gate.
Each sample's gate/trigger input and CV input can be assigned to any sample parameter, independently for each channel.
Pitch
Level
Bit depth
Phase modulation
Pan
Scrub
Sample start point
Sample length
Loop start point
Loop length
Release time
Save samples and presets to SD card, accessible from the front panel.
And much more.

Maximum sampling time: 2,300 seconds (48kHz, mono)
Sample rate: 48kHz, 96kHz, 192kHz
A/D&D/A: 32Bit
Latency: 100µs (Mix Outputs), 180µs (Individual Outputs)
Width: 28HP
Depth: 25mm
Current consumption:
+12V: 220mA
-12V: 30mA
