KORG / NTS-3 kaoss pad kit DIY kit

This revolutionary FX unit product features KAOSS's iconic XY pad touch interface, and is compact yet powerful, making it a customizable DIY kit!

●Features
■Performance with KAOSS power
Despite its compact size, the NTS-3 kaoss pad is a treasure trove of KAOSS effects. From essential filters and compressors to immersive delays, reverbs and imaginative modulation effects, it offers original and unexplored performance possibilities.
Equipped with a powerful engine, the NTS-3 can play individual KAOSS effects or seamlessly combine up to four effects simultaneously. Freely switch these effects on and off and route them in various configurations for unlimited creative expression and endless performance possibilities.
And that's not all. The NTS-3 opens the door to a wide range of editing options, allowing you to customize and tweak the parameters of each effect to the finest detail, with the freedom and precision your creativity demands.

■Freely playable
The NTS-3 is more than just an FX unit; its unique interface brings new sounds. With its compact body that you can take anywhere and its excellent playability, it will take your performance to a new dimension.
Inspired by the intuitive usability that underpins all KAOSS products, the NTS-3 uses the iconic XY pad and features performance-specific functions such as Mute, FX Depth, and Tap BPM, as well as a creative latch function that allows you to control multiple effects simultaneously and individually.

■Overwhelming customizability and logueSDK
The NTS-3 offers flexible on-board editing and customization options, and with an open development API (Application Programming Interface) available on Github, users can develop and create completely new effects via the dedicated logueSDK (Software Development Kit)!
Users can load these new custom effects into the NTS-3 using the dedicated Librarian application (coming soon).

■Excellent connectivity
As a performance-specific FX instrument, the NTS-3 offers comprehensive and flexible connectivity options.
The Sync IN/OUT connection makes it quick and easy to play in sync with other devices. In addition, thanks to an internal switch, these connections can also be used as MIDI inputs and outputs, giving you even more connection options to suit your style and workflow!

■Nu:Tekt DIY fun
As with all Nu:Tekt DIY products, the NTS-3 KAOSS Pad Kit is safe and easy to assemble(*).
To make the assembly process even more fun, we've included reversible side panels in metallic black and metallic red reminiscent of the KAOSS.
(*) No soldering is required, and assembly takes less than 20 minutes.

■Physical customization and 3D data
Thanks to its DIY nature and open design, the NTS-3 is a highly customizable FX unit that can be modified in several ways. In addition to allowing users to build their own effects using the open source logueSDK, the NTS-3 hardware can be physically modified, both in appearance and functionality. To get started on your physical customization, we provide you with the necessary circuit diagrams and instructions!

●Specifications

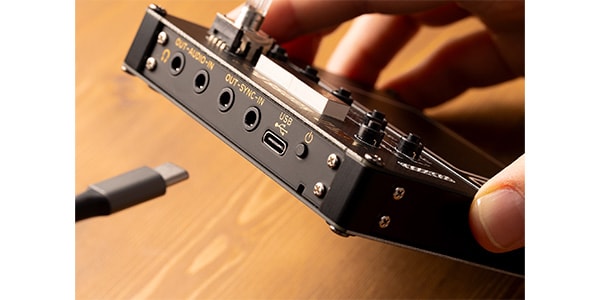

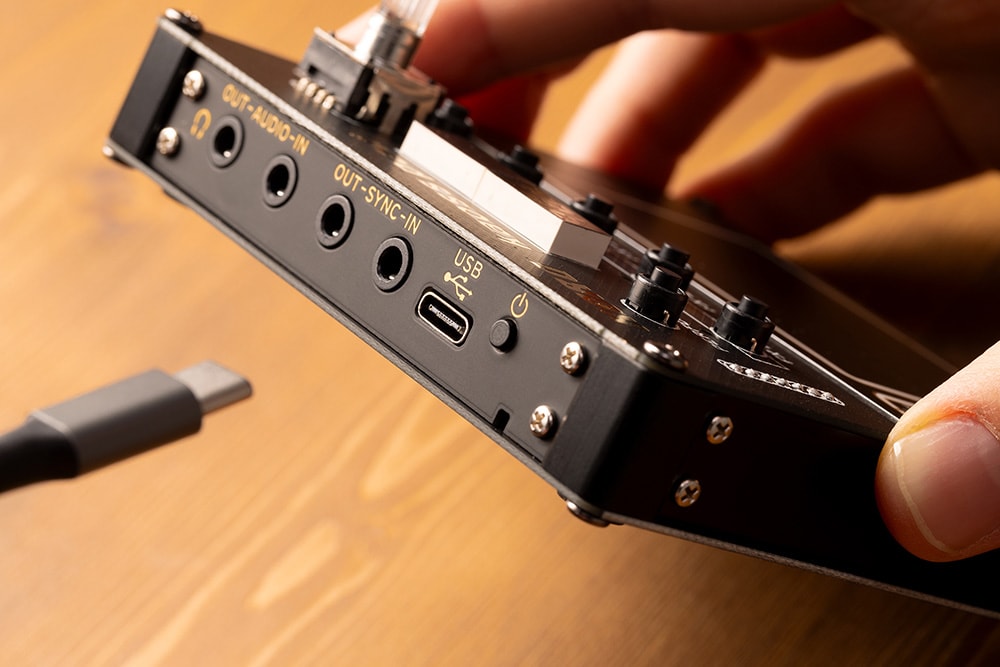

●Connection terminals: Headphone/AUDIO OUT terminal (3.5mm stereo mini terminal), AUDIO IN terminal (3.5mm stereo mini terminal), SYNC OUT terminal (3.5mm TRS mini terminal, output level 5V), SYNC IN terminal (3.5mm TRS mini terminal, maximum input level 20V), USB terminal (Type-C)
●Power supply: USB bus power mode
●Current consumption: 500mA or less
●External dimensions (width x depth x height): 104 x 101 x 39mm
●Weight: 119g (excluding batteries)
●Accessories: USB cable, assembly instructions
