Blackmagic Design / Blackmagic Media Player 10G

Dual 12G-SDI outputs for fill & key playback, 12G-SDI capture, capture & playback with 10G Ethernet for using DaVinci Resolve 19 as a media player & replay solution in live production and broadcast industry Solution! Transmit everything over a single Thunderbolt connection.

■Capture and Playback Solutions

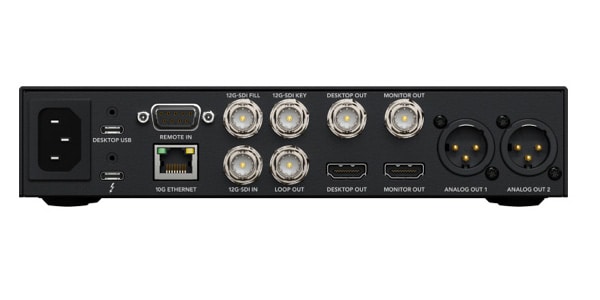

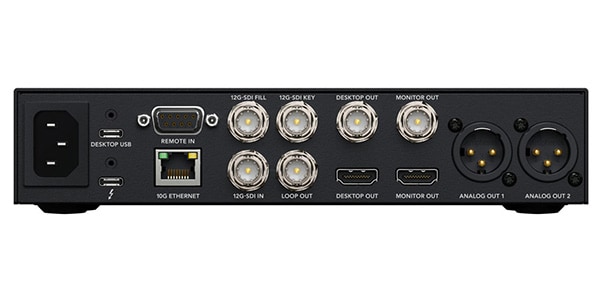

【Connection】
■SDI video input: 1
■SDI fill output: 1
■SDI key output: 1
■SDI loop output: 1
■SDI Expansion desktop output: 1
■SDI monitoring output: 1
■SDI rate: 270 Mb, 1.5G, 3G, 6G, 12G.
■HDMI extended desktop output: 1
■HDMI monitoring output: 1
■Analog audio output:
2ch professional balanced analog audio (3-pin XLR connector)
1x6.35mm headphonejack.
■SDI audio input:
16ch embedded (SD/HD/2K/UHD/4K)
■SDI audio output:
16ch embedded (SD/HD/2K/UHD/4K)
■HDMI audio output:
8ch embedded (SD/HD/UHD/4K)
■Device control:
Sony-compliant RS-422 deck control input port x1
■USB: USB-C3.1Gen1 (up to 5Gb/s) x1
■Computer Interface:
Thunderbolt?3 (MacOS, Windows, Linux) x2
USB-C (for keyboard, mouse, and other USB devices)x1
■ Ethernet:
10Gb/sRJ45 connector (supports 1000/10GBASE-T) x1

【Supported codecs】
■Video codecs:
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, uncompressed 8-bit 4:2:2, uncompressed 10-bit 4:2:2, uncompressed 10-bit 4:4:4

【Software/Software Applications】
■ Included software:
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
■Built-in software upgrades:
Firmware is included with the software driver. Firmware is included with the software driver and can be loaded at system startup or via updater software.
■ Software applications:
DaVinci Resolve
Fusion

【SDI video format】
■SD Video Format:
525i59.94 NTSC, 625i50 PAL
HD video formats:
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
■2K Video Formats:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD video formats:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■4K Video Format:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
■SDI Standards:
SMPTE 259M, SMPTE 292M, SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST 2108-1.
■ Supported SDI metadata:
RP 188/SMPTE 12M-2, closed captioning
■Supported multi-rate:
SDI video connections can be switched between SD/HD/2K/UHD/4K.
■SDI audio sampling:
Standard TV sample rate (48 kHz/24-bit)
■SDI Video Sampling:
4:2:2, 4:4:4
SDI color accuracy:
8/10/12-bit RGB 4:4:4 (modes up to 4Kp30), 8/10-bit YUV 4:2:2 (all modes)
■SDI color space:
REC 601, REC 709 and REC 2020
■HDR Support:
HDR static metadata packing, HLG and PQ transfer characteristics

【HDMI Video Formats】
■SD Video Format:
SD video format: 525i59.94 NTSC, 625i50 PAL
HD video format
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD video formats:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■4K Video Format:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
■HDMI Audio Sampling:
TV standard sample rate (48kHz/24-bit)
■HDMI Video Sampling:
4:4:4, 4:2:2 and 4:2:0
HDMI color accuracy:
8, 10, 12-bit
HDMI Color Space:
REC 601, REC 709 and REC 2020
HDR Support:
HDR static metadata packing, HLG and PQ transfer characteristics
HDR Configuration:
HDMI 2.0b supports Deep Color and HDR. Automatic configuration for connected displays.
■Multi-rate support:
HDMI Video Tuning
Hardware Framebuffer
Hardware Framebuffer
v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), Ay10 (10-bit YUVA), R12B, R12L (12-bit RGB)

【Controls】

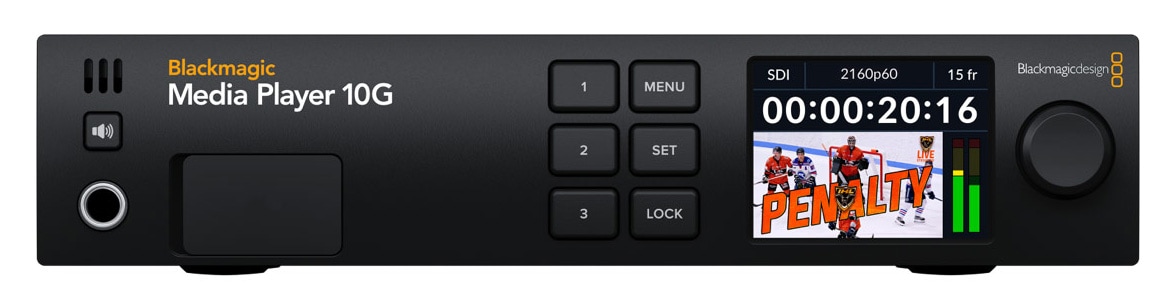

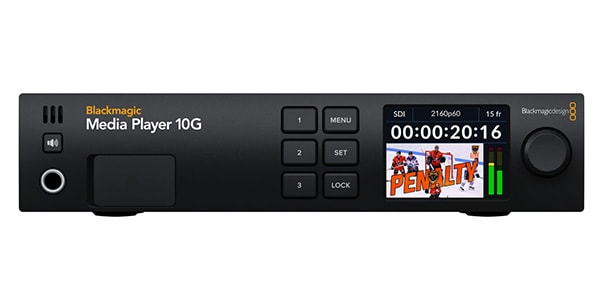

■Built-in control panel:
6 buttons, spin knob, 2.2” color display (for menus and settings), front speaker on/off button
■External Controls:
RS-422 deck control input (for software remote control); Advanced Media Protocol also supported

【Operating System】
■ Operating System:
Mac 13.0 Ventura
Mac 14.0 Sonoma or later version
Windows 10 64-bit
Windows 11

Power requirements
■Power supply:
Built-in 100?240V AC 50/60Hz (IEC C14 socket) x1
Power consumption: TBA

【Installation/Size、Weight】.
■Installation
Width: 1/2U rack, Height: 1U rack
■SIZE：210(W)x44.2(H)x228(D)mm
Weight: 1.3kg

【Operating environment】
■Operating temperature:
5° to 40°C (41° to 104°F)
■Storage temperature:
-20° to 45°C (-4° to 113°F)
■Relative humidity:
0% to 90% (no condensation)

【Other Specifications】
Included in the box
Blackmagic Media Player 10G
Welcome Wallet (with QR code for software download)
Warranty: 3-year limited manufacturer's warranty
