Blackmagic Design / CINECAMCPYXD60LFEF

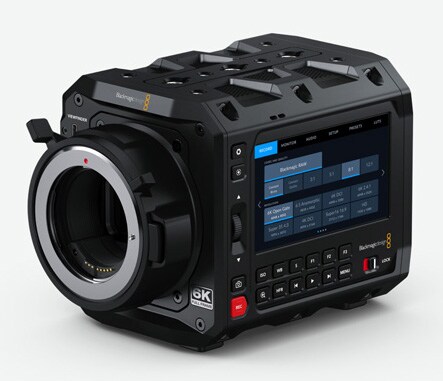

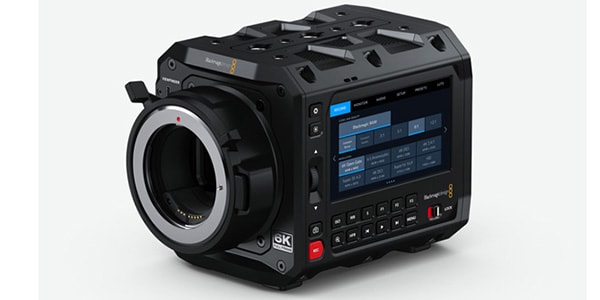

An advanced digital film camera with a 6048 x 4032 full-frame HDR sensor, built-in optical low-pass filter, dual native ISO, and dual CFexpress media slots. Equipped with a fixed EF locking mount, you can use compatible Canon photography and cinema lenses.

■Digital film camera

[Camera functions]
■Effective sensor size:
36mmx24mm (full frame)
■Lens mount:
Locking active EF lens mount
■Lens control:
Iris, focus (when using compatible lenses)
■Dynamic range:
13 stops
■Dual native ISO:
400 and 3200
■Photography resolution:
6048x4032 (OpenGate3:2) up to 36fps,
4832x4032(Anamorphic6:5) up to 36fps,
6048x3200 (6KDCI17:9) up to 48fps,
6048x2520(6K2.4:1) up to 60fps,
4096x3072 (Super354:3) up to 50fps,
4096x2160 (4KDCI17:9) up to 60fps,
2112x1184 (Super1616:9) up to 100fps,
1920x1080 (1080HD16:9) up to 120fps,
■Frame rate:
Maximum sensor frame rate depends on selected resolution and codec. Project frame rate supports 23.98, 24, 25, 29.97, 30, 50, 59.94, 60fps.
Off-speed frame rates up to 60fps at 6K2.4:1 and 4KDCI17:9, up to 100fps at Super 1616:9, and up to 120fps at 1080HD.
■Focus:
Autofocus possible with compatible lenses
■Iris control:
Manual iris adjustment on lenses electronically controllable with iris wheel and touchscreen slider. Automatic iris setting for compatible lenses with Iris button.
■Screen size:
4”1920x1080.
■Screen brightness:
1500nits
■Screen type:
capacitive lcd touch screen
■Metadata support:
Automatically add lens data from electronic EF lenses. Automatically record camera settings, motion sensor data, and slate data (projects, scene numbers, takes, notes, etc.). 3DLUT can also be embedded into the metadata of BlackmagicRAW files.
■Control:
4-inch screen with touchscreen menu, push buttons for controls, and 3 configurable shortcut keys.
■Time code clock:
High precision timecode clock. Less than 1 frame error every 8 hours

【connection】
■Video input total: Not supported
■Total video output: 12G-SDI (up to 2160p60) x1
Viewfinder USB-C (supports power, data, video, locking connectors) x1
x1 data, video and locking connector.
■Analog audio input:
Mini XLR analog audio input x1 (Mic with phantom power, switchable on line up to +14dBu)
mic with phantom power support and line level(up to +14dBu)
3.5mm stereo input x1
■Analog audio output:
3.5mm headphone jack x1
■Reference input:
Tri-level sync/black burst/timecode
■Computer interface:
USB type C (recording to external drive, PTP camera control, for software updates)
■Ethernet:
1Gb/s RJ?45 connector (supports 10/100/1000 BASE-T) x1

【audio】
■Microphone: Built-in stereo microphone
■Built-in speaker: Mono speaker x1

【media】
■Media:
CFexpressTypeB card slot x2, USB-C3.1Gen1 expansion port x1 (for BlackmagicRAW and H.264 proxy recording to external media)
■Media format:
Can be formatted to exFAT (Windows/Mac) or HFS+ (Mac)

[Supported codec]
■ Codec:
Blackmagic RAW constant bitrate 3:1,
Blackmagic RAW constant bitrate 5:1,
Blackmagic RAW constant bitrate 8:1,
Blackmagic RAW constant bitrate 12:1,
Blackmagic RAW fixed quality Q0,
Blackmagic RAW fixed quality Q1,
Blackmagic RAW fixed quality Q3,
Blackmagic RAW fixed quality Q5,
H.264 Proxy in 1920x1080, 8-bit 4:2:0

【control】
■External control:
Control your camera and lens from the tripod handle with Blackmagic Zoom Demand and Blackmagic Focus Demand.
iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris, and zoom with compatible lenses. External control over HTTP with Camera Control REST API over Ethernet when using a REST client application such as Postman.

[Network management]
■NTP:
Compatible with Network Time Protocol, allowing time synchronization when the camera is connected to any NTP server on the network.

■Web Media Manager:
When connected to a browser via Ethernet, Web Media Manager allows you to access, browse, download, and delete files on any drive connected to your camera.
■FTP:
Download files from any drive connected to your camera using FTP.
■SMB:
File sharing using SMB.

[Storage function]
■Storage type: CFexpress Type Bx2
1x high-speed USB-C expansion port (for external media)
■Recording format
BlackmagicRAW3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5 (Film/Video/ExtendedVideo dynamic range or embedded in metadata) custom 3DLUT) 6048x4032, 4832x4032, 6048x3200, 6048x2520, 4096x3072, 4096x2160, 2112x1184, 1920x1080
Supports optional portrait mode metadata recording at all resolutions for BlackmagicRAW and H.264 proxies.
■Storage rate
Storage rate based on 30fps

6048x4032(6KOpenGate3:2)
Blackmagic RAW3:1-370MB/s
Blackmagic RAW5:1-223MB/s
Blackmagic RAW8:1-140MB/s
Blackmagic RAW12:1-94MB/s
Blackmagic RAWQ0-278?555MB/s
Blackmagic RAWQ1-186?444MB/s
Blackmagic RAWQ3-124?318MB/s
Blackmagic RAWQ5-75?186MB/s

4832x4032(Anamorphic6:5)
Blackmagic RAW3:1-297MB/s
Blackmagic RAW5:1-179MB/s
Blackmagic RAW8:1-112MB/s
Blackmagic RAW12:1-75MB/s
Blackmagic RAWQ0-223?445MB/s
Blackmagic RAWQ1-149?356MB/s
Blackmagic RAWQ3-100?255MB/s
Blackmagic RAWQ5-60?149MB/s

6048x3200(6KDCI17:9)
Blackmagic RAW3:1-295MB/s
Blackmagic RAW5:1-177MB/s
Blackmagic RAW8:1-111MB/s
Blackmagic RAW12:1-75MB/s
Blackmagic RAWQ0-221?441MB/s
Blackmagic RAWQ1-148?353MB/s
Blackmagic RAWQ3-99?253MB/s
Blackmagic RAWQ5-60?148MB/s

6048x2520(6K2.4:1)
Blackmagic RAW3:1-233MB/s
Blackmagic RAW5:1-140MB/s
Blackmagic RAW8:1-88MB/s
Blackmagic RAW12:1-59MB/s
Blackmagic RAWQ0-175?348MB/s
Blackmagic RAWQ1-117?279MB/s
Blackmagic RAWQ3-78?199MB/s
Blackmagic RAWQ5-47?117MB/s

4096x3072(Super354:3)
Blackmagic RAW3:1-192MB/s
Blackmagic RAW5:1-116MB/s
Blackmagic RAW8:1-73MB/s
Blackmagic RAW12:1-49MB/s
Blackmagic RAWQ0-145?288MB/s
Blackmagic RAWQ1-97?231MB/s
Blackmagic RAWQ3-65?165MB/s
Blackmagic RAWQ5-39?97MB/s

4096x2160(4KDCI17:9)
Blackmagic RAW3:1-136MB/s
Blackmagic RAW5:1-82MB/s
Blackmagic RAW8:1-52MB/s
Blackmagic RAW12:1-35MB/s
Blackmagic RAWQ0-102?203MB/s
Blackmagic RAWQ1-69?163MB/s
Blackmagic RAWQ3-46?117MB/s
Blackmagic RAWQ5-28?69MB/s

2112x1184(Super1616:9)
Blackmagic RAW3:1-40MB/s
Blackmagic RAW5:1-24MB/s
Blackmagic RAW8:1-16MB/s
Blackmagic RAW12:1-11MB/s
Blackmagic RAWQ0-30?59MB/s
Blackmagic RAWQ1-21?48MB/s
Blackmagic RAWQ3-14?34MB/s
Blackmagic RAWQ5-9?21MB/s

1920x1080
Blackmagic RAW3:1-33MB/s
Blackmagic RAW5:1-20MB/s
Blackmagic RAW8:1-13MB/s
Blackmagic RAW12:1-9MB/s
Blackmagic RAWQ0-25?49MB/s
Blackmagic RAWQ1-17?40MB/s
Blackmagic RAWQ3-12?29MB/s
Blackmagic RAWQ5-8?17MB/s

Fixed quality storage rates are for reference only.
Actual storage rates will vary depending on the subject of the image.

【software】
■Bundled software
Blackmagic OS
DaVinci Resolve Studio (activation key) for Mac and Windows
Blackmagic Camera Setup
Blackmagic RAW Player
Blackmagic RAW QuickLook Plugin
Blackmagic RAW SDK
Blackmagic RAW Speed ​​Test
*The warranty period for this product is one year of the manufacturer's warranty.
