AJA Video Systems / HI5-12G-R-ST

12G-SDI to HDMI 2.0 converter with ST Fiber receiver function that converts 4K/UltraHD up to 60p from 12G-SDI to HDMI 2.0 with accurate image fidelity and transmits over a single cable.

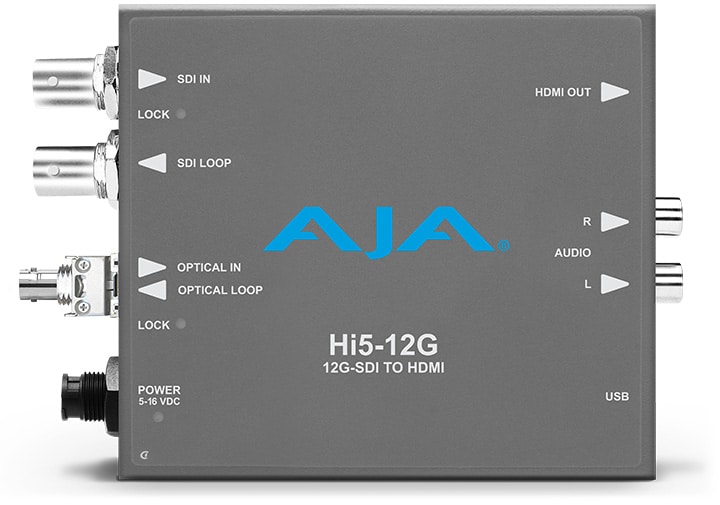

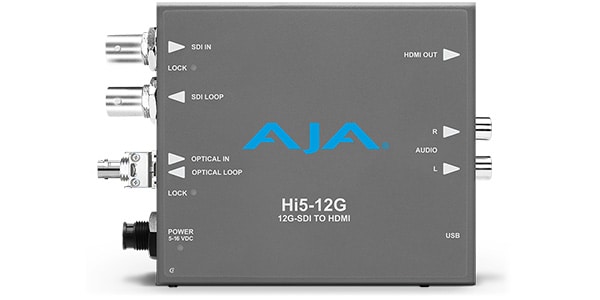

HI5-12G-R-ST
■12G-SDI to HDMI 2.0 Converter with T Fiber receiver function

■Video Format
(4K)4096x2160p
(UltraHD)3840x2160p
(2K)2048x1080p
(HD)1920x1080p
(HD)1920x1080i
(HD)1280x720p
(SD)720x576i
(SD)720x480i
Note: For details on supported resolutions/frame rates, please refer to “Hi5-12GVideoFormat” in the manual available for download from the AJA.com Hi5-12G product page: Support menu or from the Document menu.

■Digital Video Input Format
12G-SDIBNCx1, SMPTE-259/292/424/2081/2082
YCbCr4:2:2/4:4:4
RGB4:4:4, SMPTE or full level
8/10/12-bit
4K/UltraHD input signal mapping format: 2 sample interleave (2SI)
12GbSDIx1
(4K)4096x2160p23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD)3840x2160p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
6GbSDIx1
(4K)4096x2160p23.98, 24, 25, 29.97, 30
(UltraHD)3840x2160p23.98, 24, 25, 29.97, 30
3GbSDI (Level A or B-DualLink)x1
(2K)2048x1080p23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K)2048x1080PsF23.98, 24, 25, 29.97, 30
(HD)1920x1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD)1920x1080PsF23.98, 24, 25, 29.97, 30
(HD)1920x1080i50, 59.94, 60
(HD)1280x720p*50, 59.94, 60
1.5GbSDIx1
(2K)2048x1080p23.98, 24, 25, 29.97, 30
(2K)2048x1080PsF23.98, 24, 25, 29.97, 30
(HD)1920x1080p23.98, 24, 25, 29.97, 30
(HD)1920x1080PsF23.98, 24, 25, 29.97, 30
(HD)1920x1080i50, 59.94, 60
(HD)1280x720p50, 59.94, 60
270MbSDIx1
(SD)625i50
(SD)525i59.94
*1280x720p is only available on Level A.

■Fiber input (Hi5-12G-R-ST)
1 x 12G-SDIFiberST connector, SMPTE297/259/292/424/2081/2082
Nominal wavelength: Rx1260nm (min), 1620nm (max)
Optical sensitivity: -10dBm (min. 12Gbps), -14dBm (max. 3Gbps)
Overload power: -2dBm (min.)

■Digital video output format:
HDMI Type A connector*x1, HDMIv2.0b
HDRinframe generation and pass-through or override for colorimetry and transmission characteristics
YCbCr4:2:2/4:4:4/4:2:0
RGB4:4:4, SMPTE or full level
8/10/12-bit (8-bit for 4K/UltraHD high frame rate 4:4:4)
(4K) 4096x2160p23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD)3840x2160p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K)2048x1080p23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(HD)1920x1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD)1920x1080i50, 59.94, 60
(HD)1280x720p50, 59.94, 60
(SD)720x576i50
(SD)720x480i59.94
Note: If the connected monitor does not support the HDMI protocol, it will automatically switch to the DVI protocol. In that case, audio will not be transmitted.

■Digital Audio Pass-Through Supported Formats
PCM
DolbyDigital(AC-3)
DolbyDigitalPlus (E-AC-3) including Atmos Immersive Sound (JOC)

■Digital audio input:
SDI-embedded audio, 24-bit (up to 20-bit for SD format), 16 channels
■Digital Audio Output:
HDMI-embedded audio, 24-bit, 8 channels
■Analog audio outputs:
2x RCA connectors, 2 channels -10dBu (nominal)
■User Interface:
Device configuration and status can be checked via Mini-Config software from Mac or Windows by connecting the included cable to the USB port
■SIZE：116.84(W)x22.86(H)x102.11(D)mm
■Weight: 0.3kg
■Power supply
5-16VDC regulated power supply, 11W, power adapter included
AC adapter: 100-240VAC, 50/60Hz, universal input
■Operating Environment
Safe operating temperature: 0°C to 40°C (32°F to 104°F)
Safe storage temperature (with power off): -40°C to 60°C (-40°F to 140°F)
Operating relative humidity: 10% to 90% (non-condensing)
Operating altitude: less than 3,000m (less than 10,000 feet)
*Each Hi5-12G series consumes approximately 11W of power. Convection cooling is required. The unit is hot to the touch, but this is normal. Do not stack the Hi5-12G with other mini-converters.
