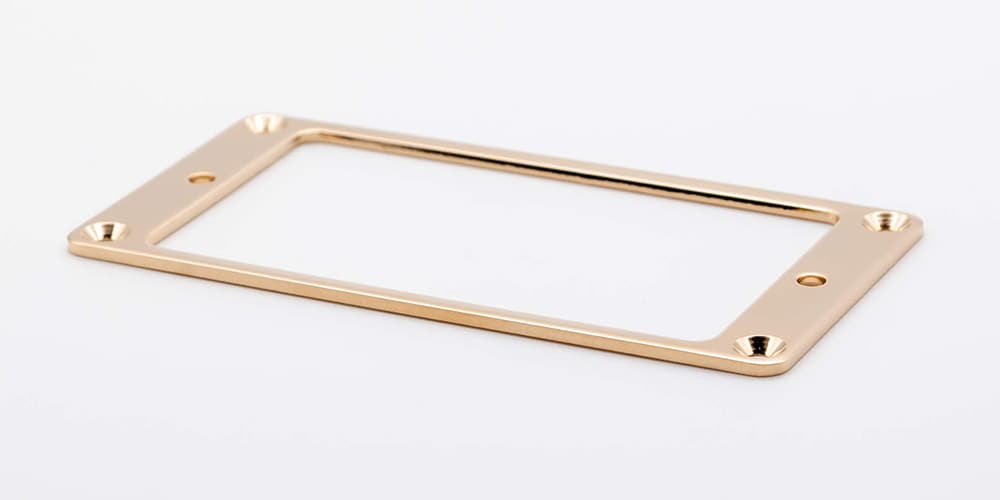

ESP / エスカッション メタルSE Gold

ESP escutcheon, metal, 1.5mm thick.

■Pickup escutcheon
■Metal
■Gold
■Dimensions
Thickness: approx. 1.5mm
Mounting holes on the body: approx. 2.8mm on the escutcheon side (mounting screws approx. 2.6mm)
PU mounting hole: approx. 3.2mm on the escutcheon side (mounting screw: 2.6-2.8mm)

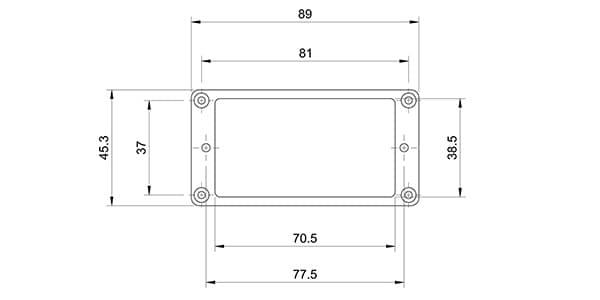

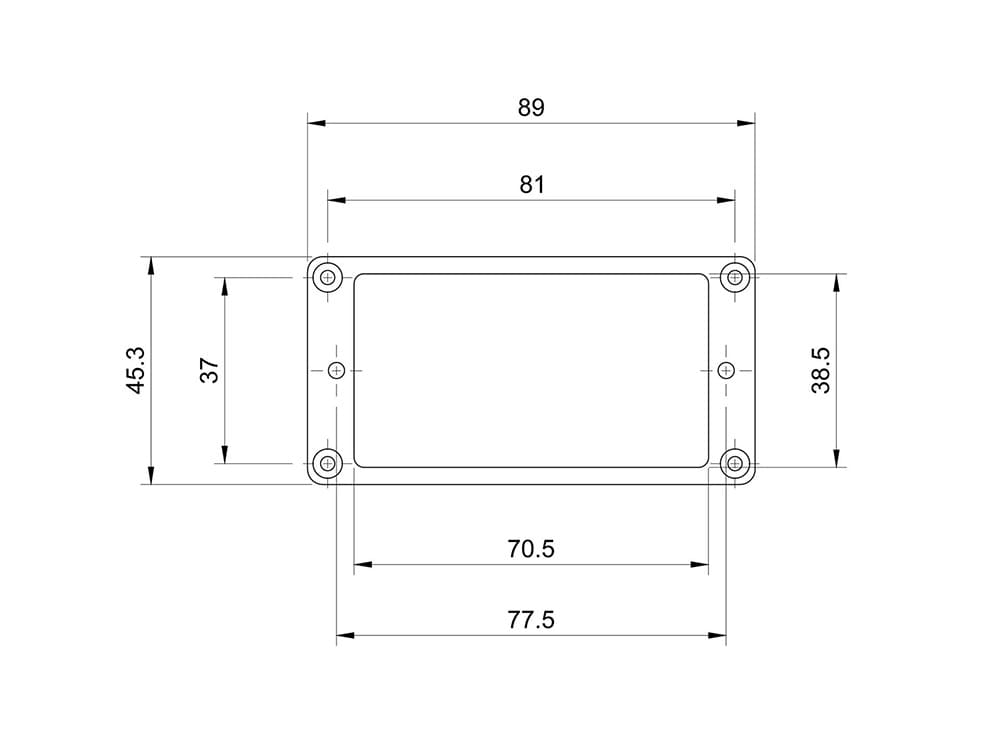

Our measured values below
Internal dimension: approx. 70 x 38.5 mm
External dimension: approx. 89 x 45 mm
PU mounting screw hole pitch: approx. 77.5 mm
Pitch of mounting screw holes: approx. 81 mm
Pitch of mounting screw holes: approx. 37 mm
