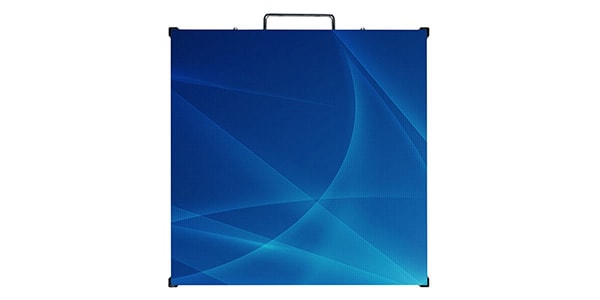

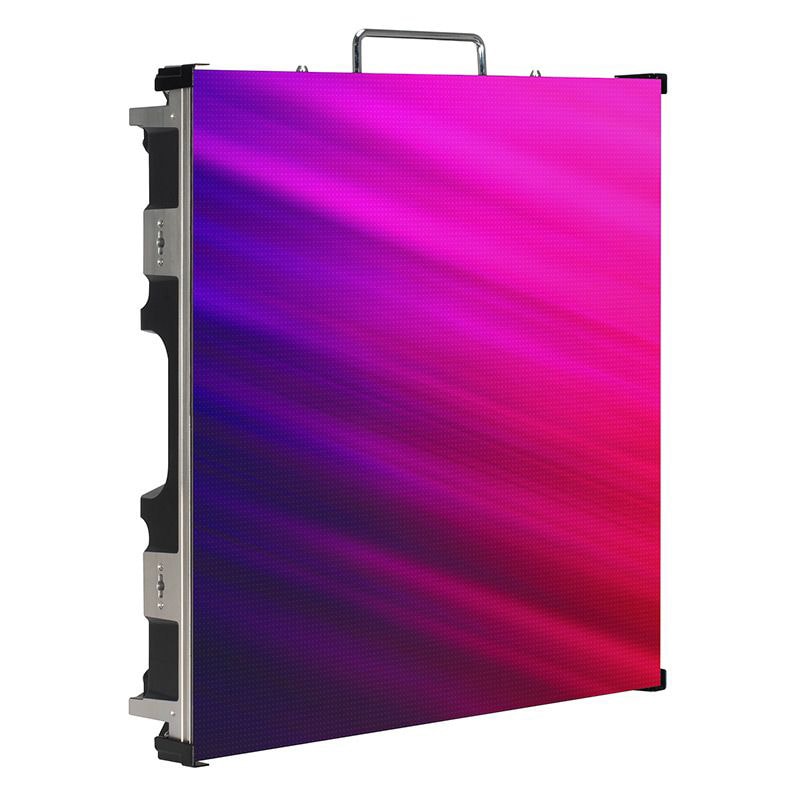

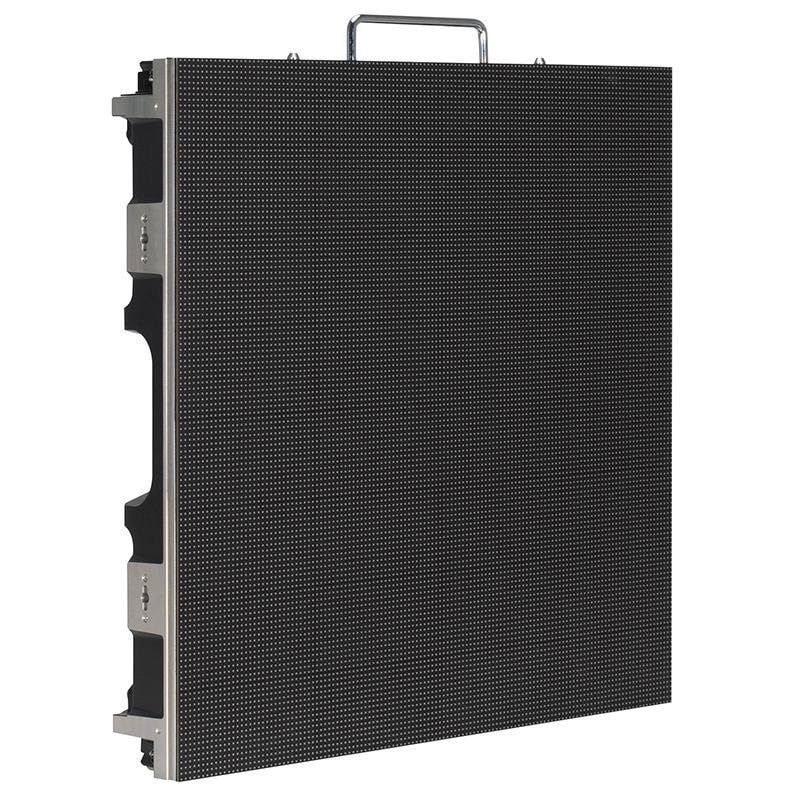

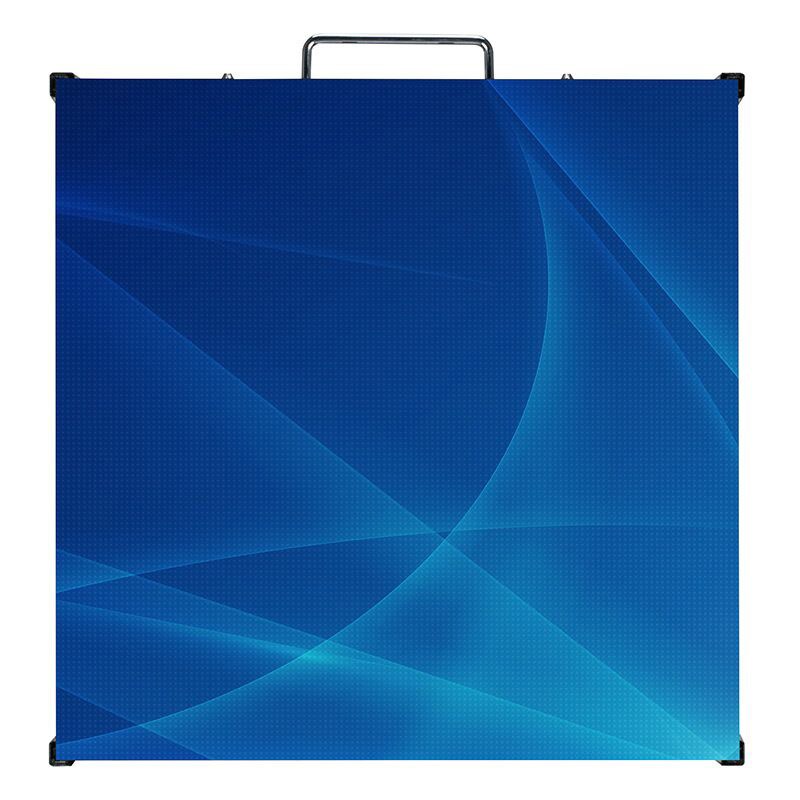

The ADJ Lighting EVS3 LED Video panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED. Each panel has four individual mini modules and is front and rear serviceable. Up to 8 EVS3 video panels fit inside the VSFC8 flight case. Hang up to 20 EVS3's vertically with the VSRB1 rigging bar.
SPECIFICATIONS:
• Pixel Pitch: 3.91mm (0.15”)
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 128x128; 65536 per square meter
• Size :19.68” x 19.68” x 2.96” / 500 x 500 x 75mm
• Module Quantity: 4
• Weight: 16.5 lbs. / 7.5kg.
FEATURES:
• Memory on Module (MOM)

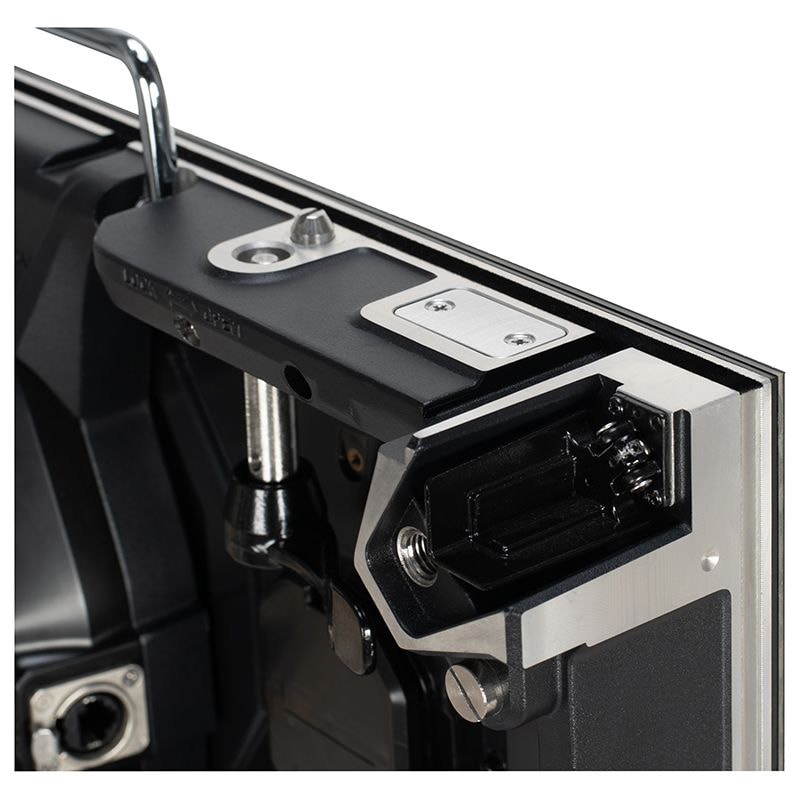

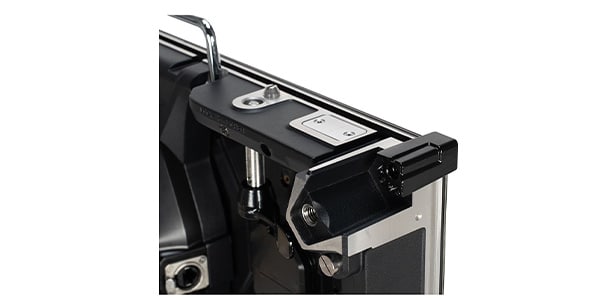

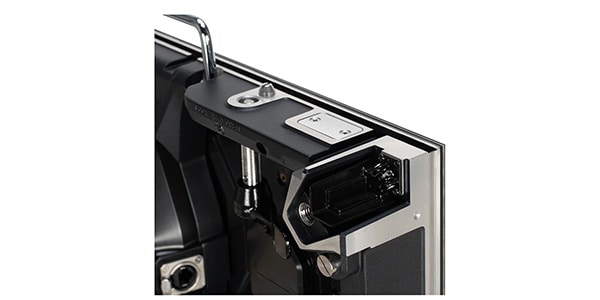

• Corner Protectors to protect the corners of the EVS3 during transport, set-up and teardown

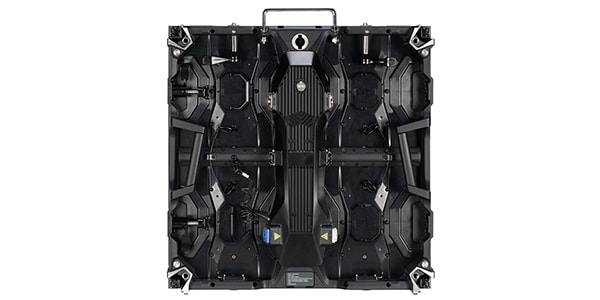

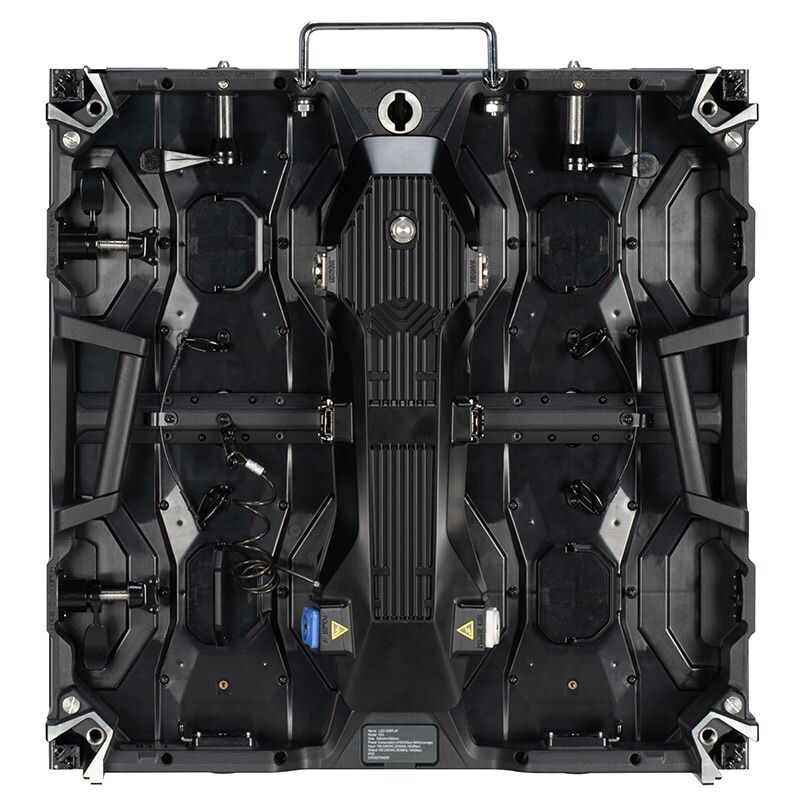

• Front and rear serviceable: 4 easy to replace video modules on each panel
MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:
• Brightness: 800 NITS
• View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
• Gray Scale: ≥14-bit
• Display Color: 256
• Brightness Adjustment: 0~100% 100 Levels
• Contrast ratio: 5000:1
• Processing: 14-bit
POWER SUPPLY:
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 120W/per panel
• Ave. Power Consumption: 48W/per panel
• Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out
CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-75Hz
• Scan Mode: 1/16
• Refresh Rate: 3840Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <120m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
ENVIRONMENTAL:
• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
OPTIONAL ACCESSORIES:
• VSFC8 (VS8100): Flight Case – Fits 8 EVS3 Video Panels
• VSRB1 (VS1100): Rigging Bar – Hang up to 20 EVS3 Video Panels vertically

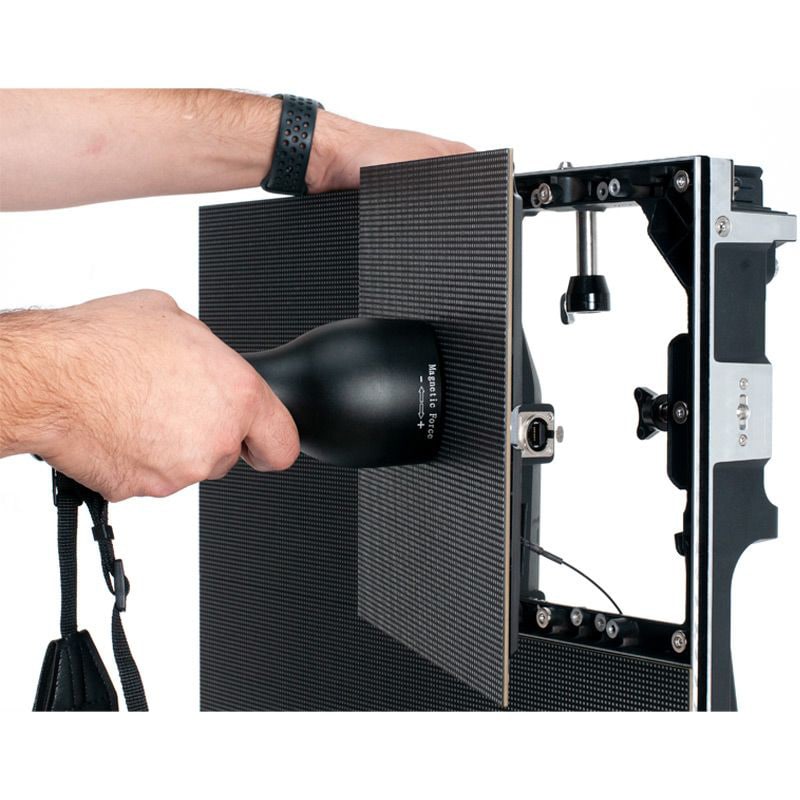

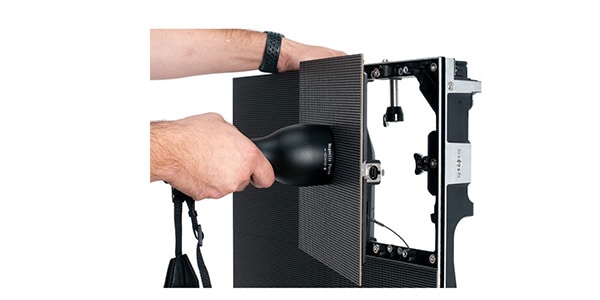

• VSMRT (VSM111): Module Removal tool - Magnetically assists the tech in removing modules from the front side when servicing.

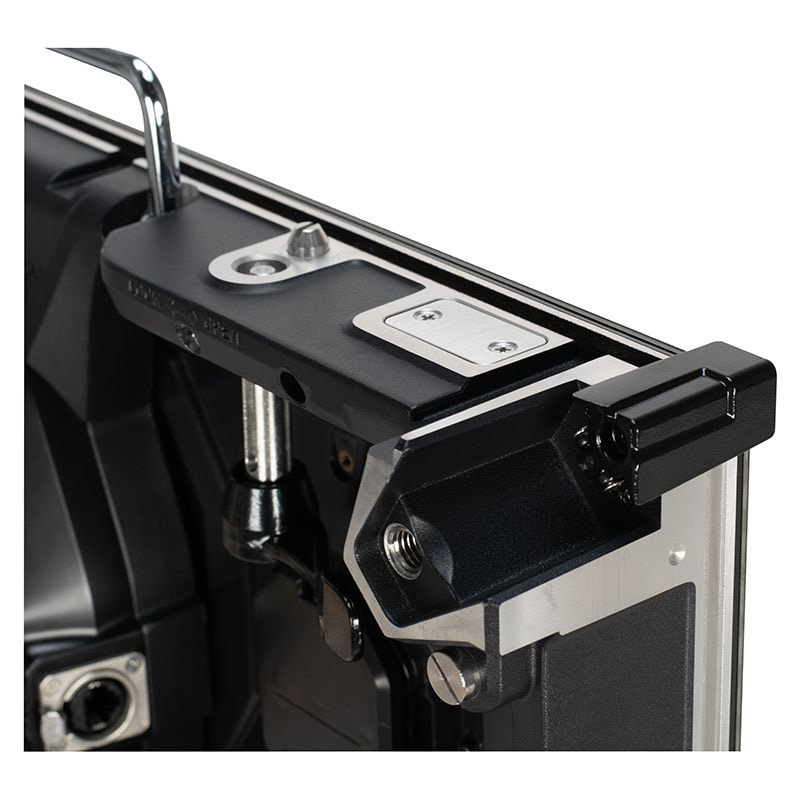

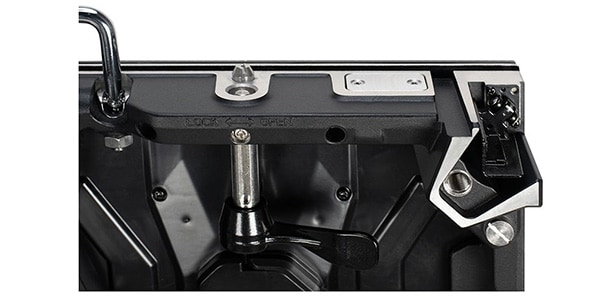

• VSRQR (VSR210): Quick Rig - Attaches and locks on to the rear of EVS3 so it can be fastened to a 2" pipe or truss
• VS1RSB (VS1126) Rear Support Bracket for EVS3
• VSSCSB VSS225): Single Column Support Base
• VSGSB (VSG100): Ground Support Base
• VSGSLT (VSG132): Ground Support Ladder Truss
• VSGSCSB (VSG155): Clamp Support Bar
• EVSVAC (EVSVAC): Vacuum Tool to Remove Modules
• Novastar VX4S: Video Processor
• Novastar MCTRL-300: Video Processor
• Novastar Nova Pro HD: Video Processor
• Arkaos Media Master: Video Software
• Arkaos GrandVJ 2.0: Video Software
CABLES:
• Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
• Indoor Power Locking Link Cables
• Indoor Power Locking Main Power Cables
CERTIFICATIONS:
• cETLus
This product was developed for temporary use only! It should not be permanently installed.
