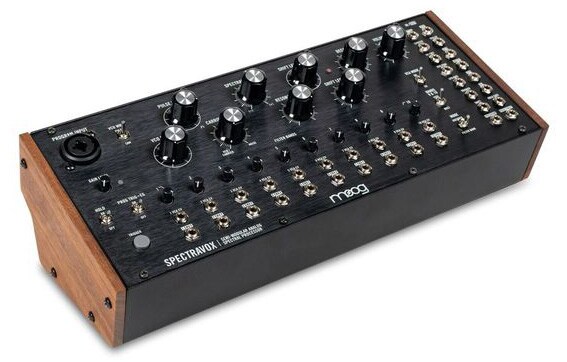

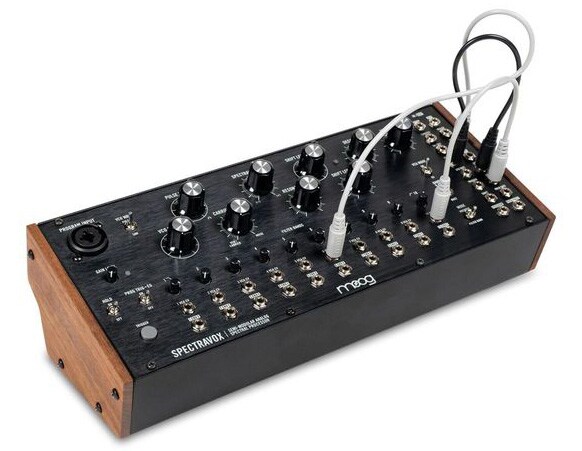

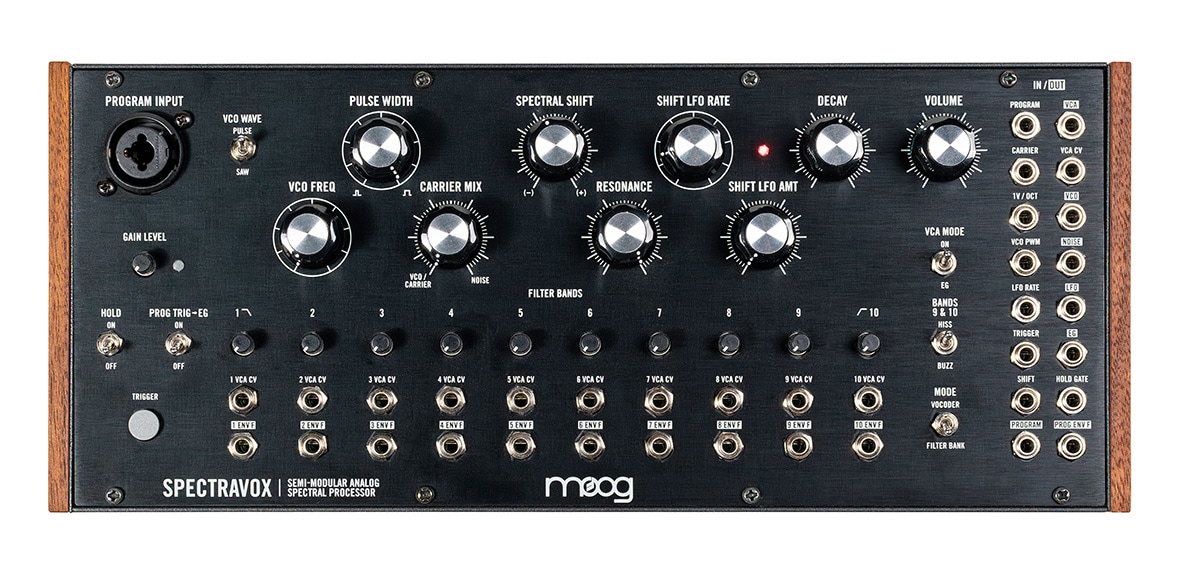

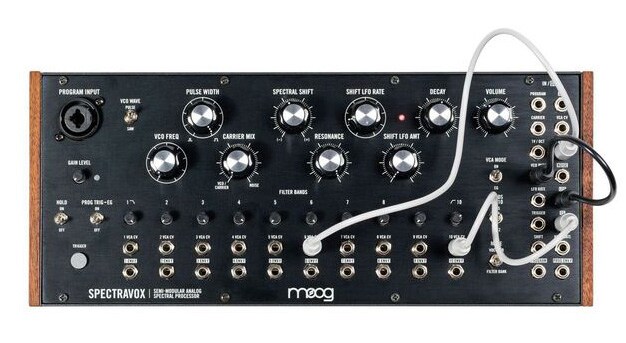

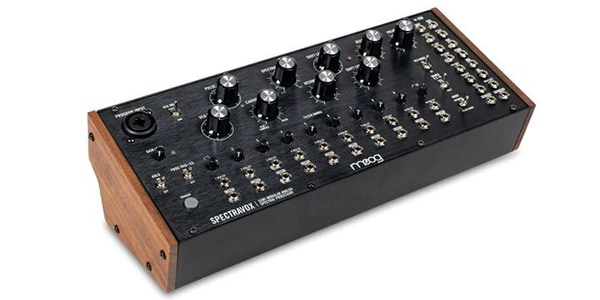

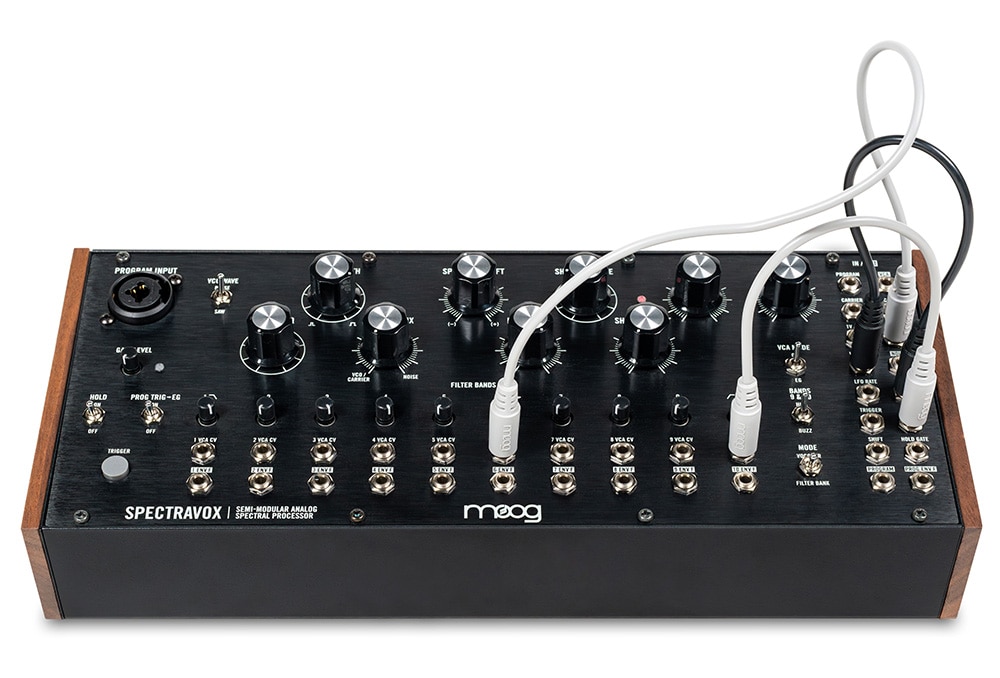

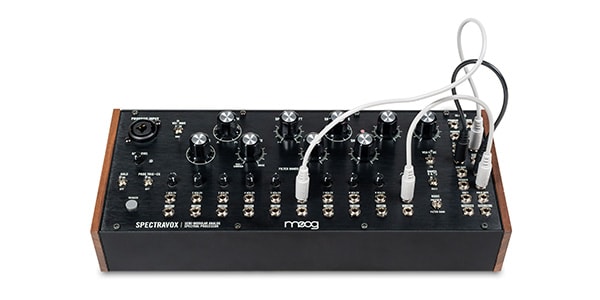

MOOG / Spectravox

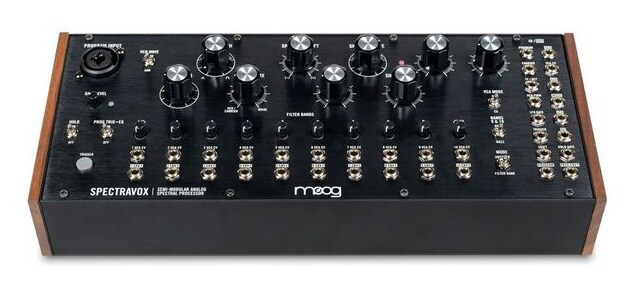

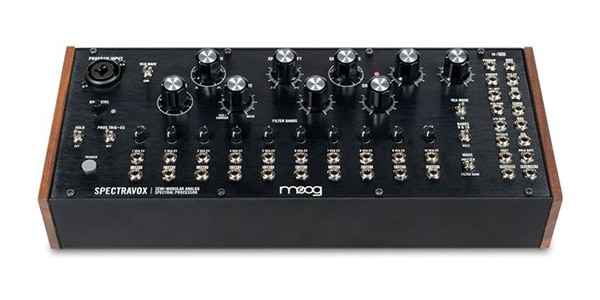

Spectravox, an analog spectral processor with variable 10-band filter banks, can be used not only as a desktop synth, but also as a vocoder when connected to a microphone.

Product Specifications

Analog Sound Engine
Sound Source : Analog oscillator, white noise generator
Filter : Voltage controlled variable resonance filter x 10
Low-pass filter x 1
Bandpass filter x 8
High-pass filter x 1
Envelope :VCA EG (decay)

Analysis Engine Source
Source :Ext. (external input) input (6.3 mm/XLR combo jack with preamplifier and 3.5 mm) *XLR input accepts dynamic microphones; external 48V phantom power required when using a condenser microphone
Total number of patch bay jacks: 3.5 mm x 36
Inputs: Input jacks x 19
Outputs: 17 output jacks

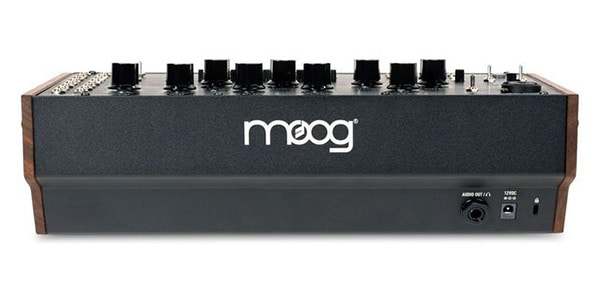

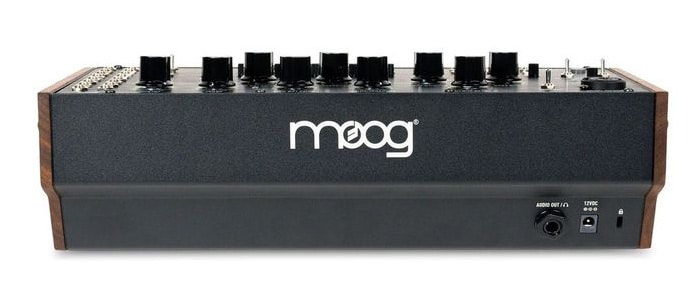

Rear Panel
Audio: 6.3 mm TRS headphone or 6.3 mm TS instrument output
Power Supply :Power supply connection
Security :Kensington lock slot

Patch bay
Total number of jacks :3.5 mm x 36
Input: Input jack x 19
Outputs: 17 output jacks

Rear Panel
Audio: 6.3 mm TRS headphone or 6.3 mm TS instrument output
Power Supply :Power supply connection
Security : Kensington lock slot

Power Supply (included)
Power Supply :Wall Outlet ; Terminal Specification ; Center-Plus
Input :100-240VAC;50 Hz-60 HzOutput :+12VDC;2.0A
Power Consumption Typical Power Consumption :4.8 W
Eurorack Specifications
Power Consumption :12V DC max. 450mA (10-pin header)
Occupied HP :60 HP (depth 38.1 mm)

Included
Spectravox Analog Synthesizer
Power supply
Quick start guide
Product poster
Preset overlay
Patch cables (approx. 30 cm x 5)

Weight & Dimensions
Weight of product only (kg)1.5 kg
Dimensions (cm)32.61W x 14.33 D x 10.67 H
Weight (kg) including cosmetic box 2.4 kg
Dimensions (cm)35.97W x 20.73 D x 16.76 H
