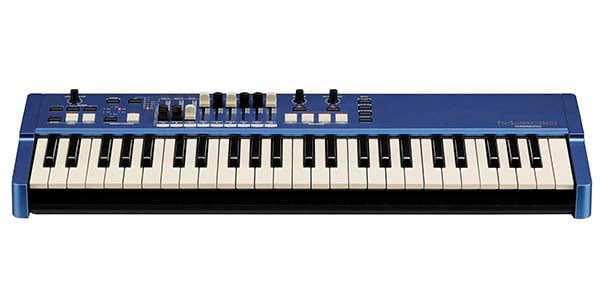

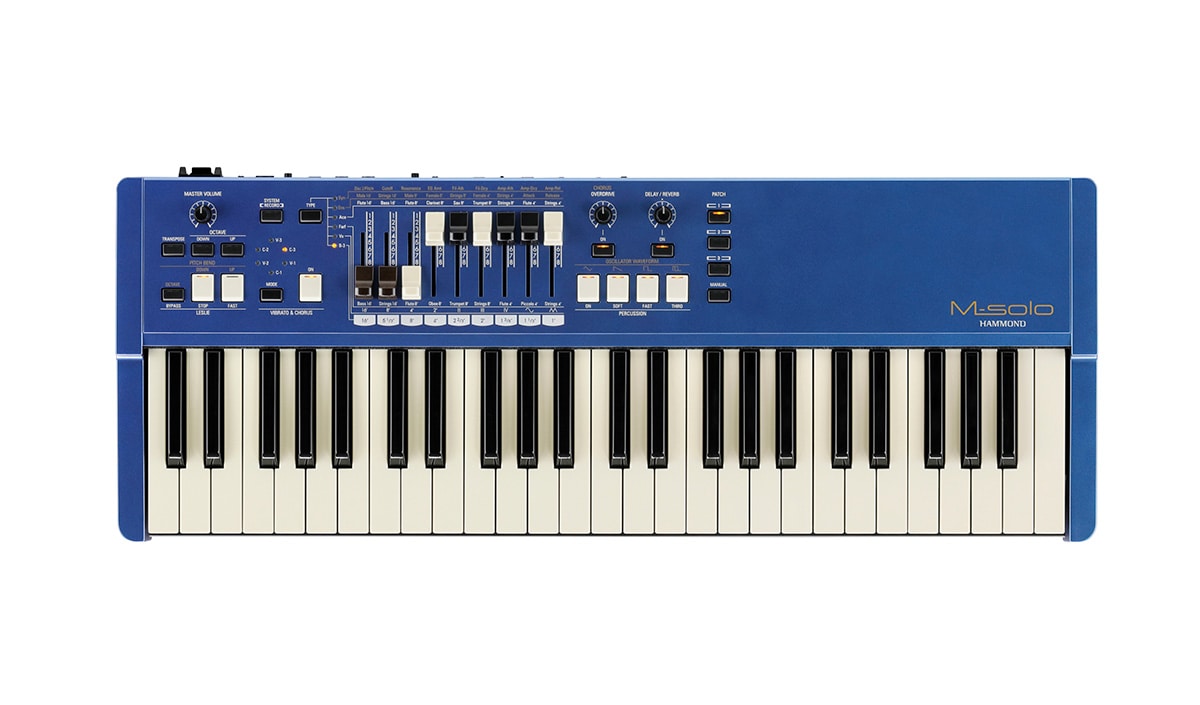

HAMMOND / M-solo Blue Drawbar Keyboard

The smallest and lightest 49-key model in Hammond's history, it features a total of six instrument types, including four different organs, a string ensemble, and a polyphonic synthesizer, covering the full range of vintage '70s sounds that stick in today's music scene.

■Keyboard
49 keys, light weight (velocity compatible)
■Sound Source
Tone Wheel Organ (B-3)
MTW2 (Modelled Tone Wheel 2) sound source, 61 simultaneous notes
Transistor Organ (Vx, Farf, Ace)
Sampling sound source, 96 simultaneous sounds
String Ensemble (Ens)
Sampling sound source, 96 simultaneous sounds
Polyphonic Synthesizer (Syn)
Analog modeling sound source, 8 simultaneous sounds
Organ
Drawbars]
9 rows per set
Organ type】
4 (B-3, Vx, Farf, Ace)
Percussion】
Button (On, Soft, First, Third)
String Ensemble
Stop]
7 (Male 16′, Strings 16′, Male 8′, Female 8′, Strings 8′, Female 4′, Strings 4′)
Envelope]
Attack, Release
Polyphonic synthesizer
Oscillator】 【Oscillator】.
Waveforms (Triangle, Sawtooth, Short, Pulse), Sub-oscillator
Filter]
LPF 24dB/oct
Modulator]
LFO 1 (delay vibrato & wah-wah/PWM), EG 2 (filter, volume)
Effects
Tone Wheel Organ (B-3)
Leslie, Vibrato & Chorus, Overdrive
Transistor Organ (Vx, Farf, Ace)
Leslie, Vibrato, Overdrive
String Ensemble (Ens)
Vibrato, chorus
Polyphonic Synthesizer (Syn)
Delay Vibrato & Wah-Wah/PWM, Chorus
Master] Delay/reverb
Delay/Reverb
■Key Maps
Octave, Transpose
■Controllers
[Leslie]
Bypass, Stop, Fast
Pitch bend]
Octave, Down, Up

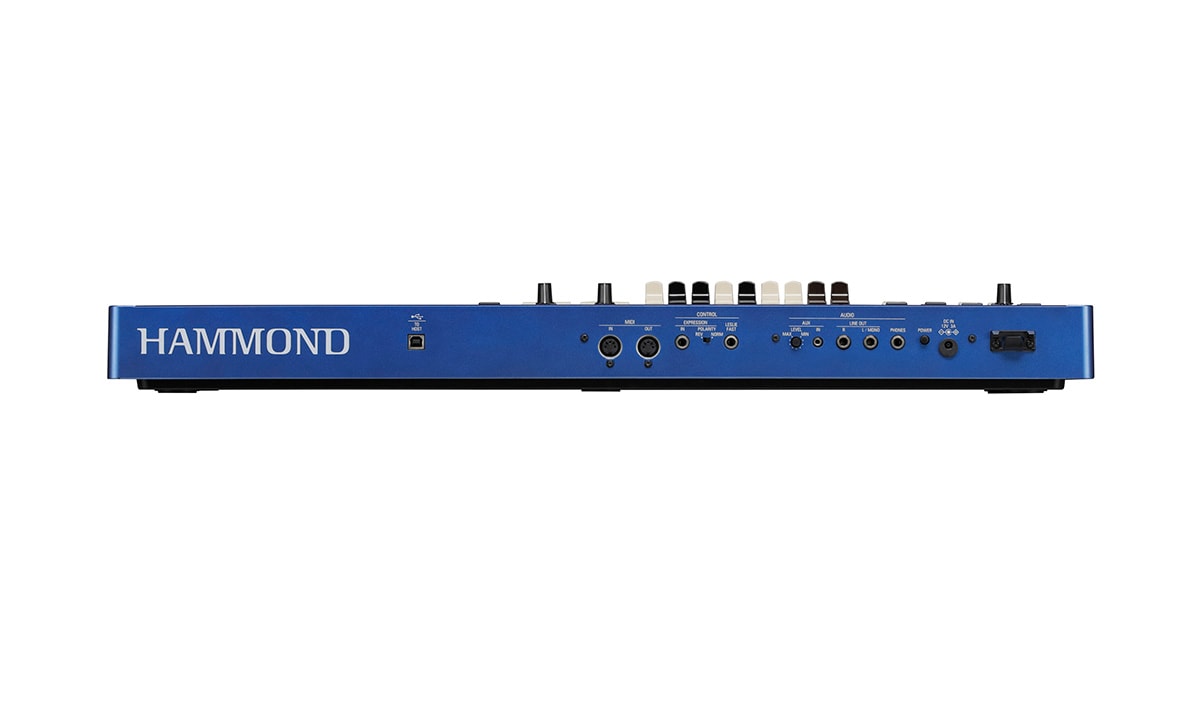

External terminals
MIDI] MIDI IN, MIDI OUT
USB] TO HOST
AUDIO] LINE OUT (L/R), PHONES, AUX IN (power level adjustable) AUDIO] LINE OUT (L/R), PHONES, AUX IN (power level adjustable)
CONTROL] EXPRESSION IN (with polarity switch), LESLIE FAST
Dimensions
W731×D274×H85mm
Weight 3.6kg
Accessories
AC adapter (AD3-1230-2P) x 1, Power cable x 1
