BOSS / KTN500B HD BASS AMPLIFIER

This compact head amp for bass guitar combines ideal tone and powerful output, perfected by BOSS's advanced technology. The sophisticated preamp and newly developed Class D circuitry deliver a clear, high-quality tone that responds naturally to the player's nuances. This professional 500W bass head amp is equipped with the innovative CAB RESONANCE function.

・Powerful yet compact, a bass head amp with a maximum output of 500W
・Newly developed class D circuit and innovative CAB RESONANCE function realize an ideal bass tone with a low center of gravity and a sense of speed
・AMP FEEL 4 that provides two different tones and responses. 4-band equalizer with BASS and TREBLE, LOW MID and HIGH MID selectable from three types
・Dedicated COMP and DRIVE knobs selectable from three types each Selling points
・SHAPE selectable from three types with different frequency characteristics (mid scoop/bright/wide range)
・BOTTOM knob that cuts unnecessary low frequencies to obtain a clear sound
・HI CUT selectable from three types
・BLEND knob 1 that realizes sound creation that makes the most of the original character of the bass
・PAD that allows you to switch the input level according to the bass you connect
・The memory function allows you to save and recall tones created12. Equipped with two speaker outs that use Speakon type terminals
・LINE OUT with XLR terminal, Equipped with standard phone PHONES/REC OUT

Equipped with audio interface function, recording possible via USB

With the dedicated app (Windows/macOS), you can use over 60 effects and create sounds on your PC

By attaching the optional Bluetooth Audio MIDI Dual Adaptor (BT-DUAL), you can edit sounds from the dedicated smartphone app (iOS/Android)

Compatible with the optional GA-FC/GA-FC EX Foot Controller for advanced control

Best match with KATANA Cabinet 112 Bass

■Bass amp head
■Class D
■Maximum output: 500W (4Ω), 250W (8Ω)
■INPUT: -10dBu (1MΩ), RETURN IN: -10dBu (100kΩ)

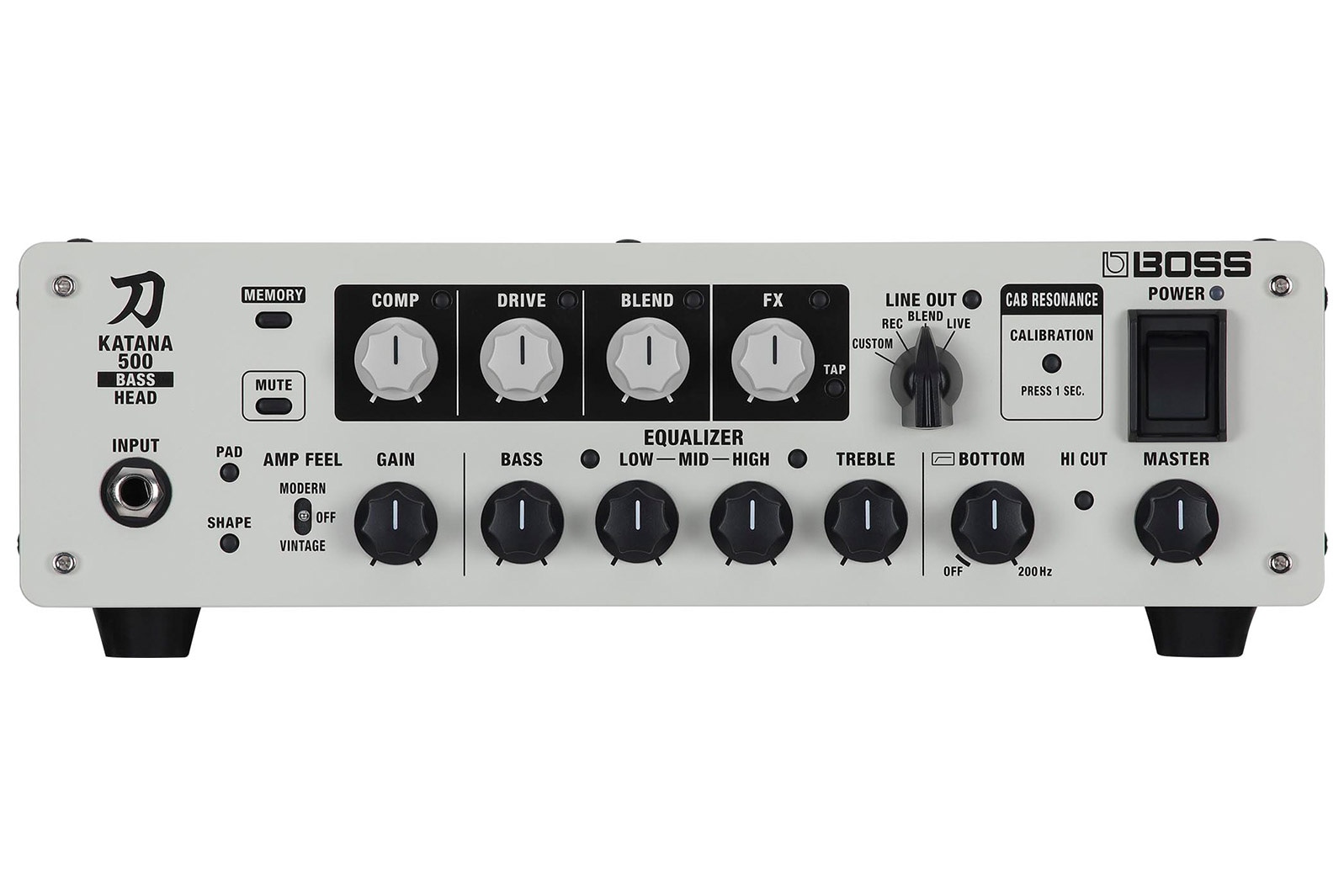

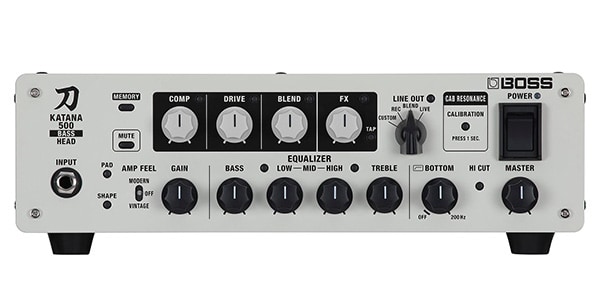

■MEMORY button, MUTE button, BOTTOM, HI CUT button, MASTER VOLUME, POWER
＜AMPLIFIER＞PAD button, SHAPE button, AMP FEEL (VINTAGE, FLAT, MODERN), GAIN
＜INPUT EFX＞COMP button, DRIVE button, COMP, DRIVE
＜EFFECTS＞BLEND button, FX button, TAP button, BLEND, FX
＜EQUALIZER＞LOW MID button, HIGH MID button, BASS, LOW MID, HIGH MID, TREBLE
＜LINE OUT＞LINE OUT button, LINE OUT (CUSTOM, REC, BLEND, LIVE), GND LIFT (OFF, ON), SELECT (POST, PRE, DIRECT)
CALIBRATION button
■PAD, SHAPE, MEMORY, MUTE, COMP, BLEND, FX, TAP LOW MID, HIGH MID, LINE OUT, CALIBRATION, HI CUT, POWER

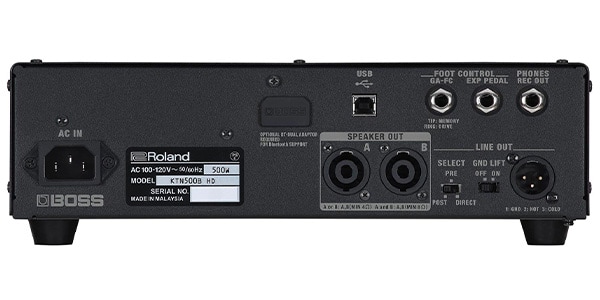

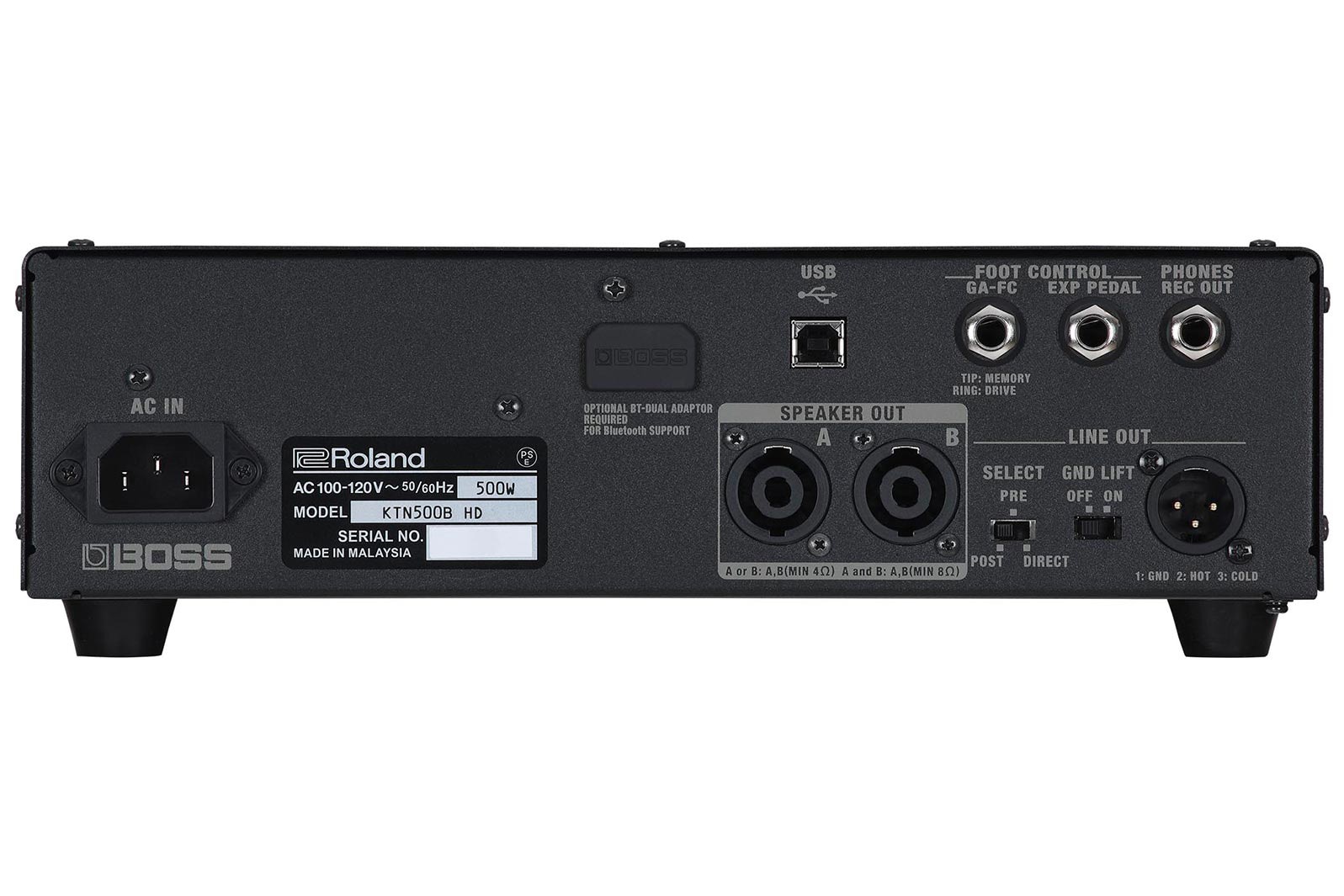

■Connection terminals
INPUT terminal: Standard type
LINE OUT terminal: XLR type
SPEAKER OUT (total MIN4Ω) terminal A/B: Speakon type
PHONES/REC OUT terminal: Stereo standard type
EXP PEDAL/Terminal: TRS standard type
GA-FC/CTL CH1/CH2 terminal: TRS standard type
USB terminal: USB B type
Bluetooth ADAPTOR SLOT: Bluetooth Audio MIDI Dual Adaptor
AC IN Terminals
■AC100V (50/60Hz)
■Power consumption: 500W
■Dimensions: 298 (W) x 212 (D) x 96 (H) mm (including rubber feet)
■Weight: 2.8kg
■Sold separately
Foot: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC, GA-FC EX)
Bluetooth Audio MIDI Dual Adaptor (Model number BT-DUAL)
