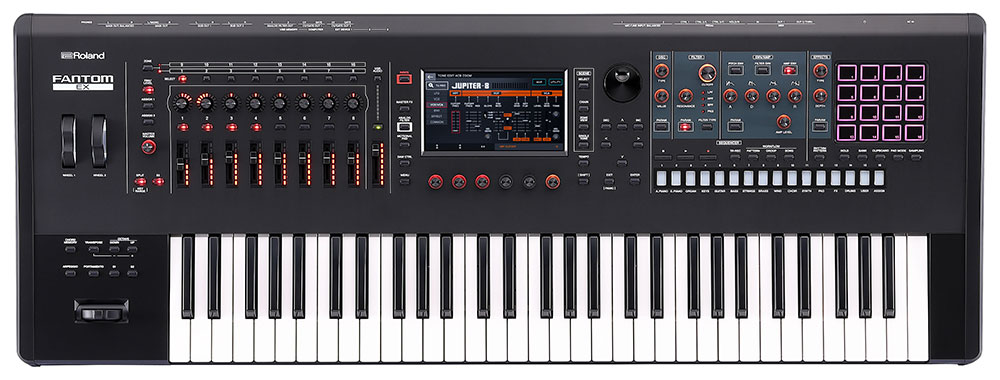

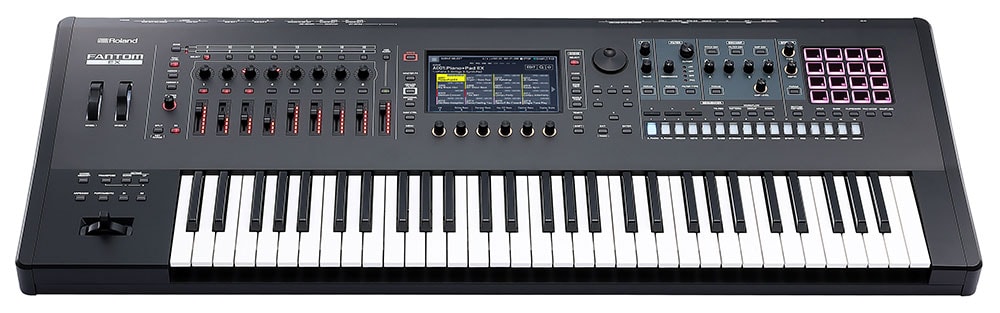

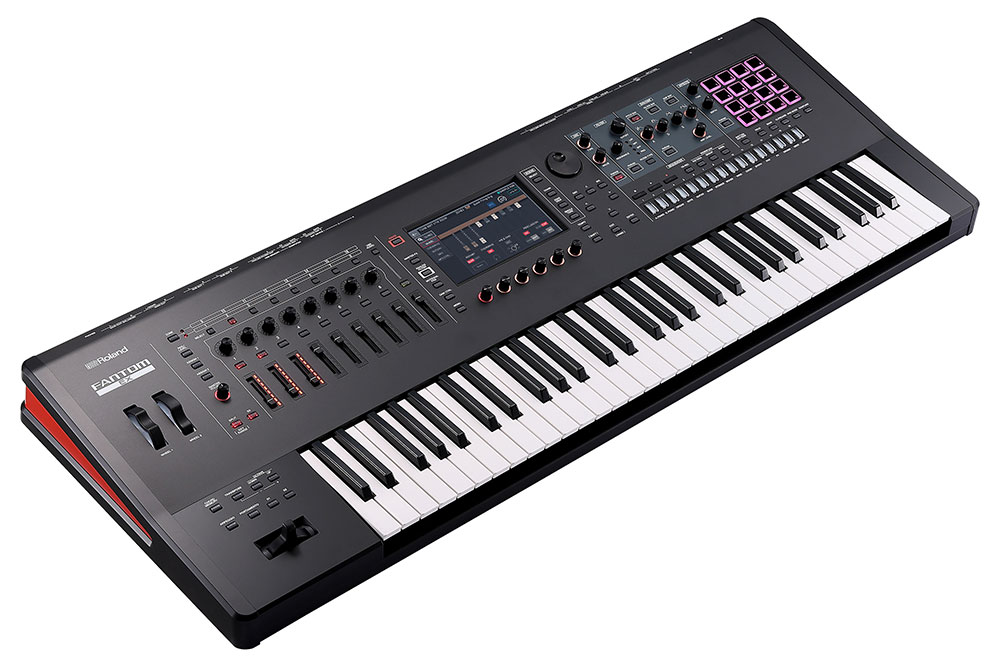

ROLAND / FANTOM-6EX MUSIC WORKSTATION

ROLAND's flagship synthesizer "FANTOM" series has been updated with the latest technology. It features a powerful and intuitive UI. It is equipped with Roland's cutting-edge sound engine that can be used immediately. With smooth integration with DAW, powerful composition tools, and diverse connectivity, FANTOM EX is at the heart of music production.

Specifications
●Keyboard
FANTOM-6EX: 61 keys (semi-weighted keyboard, aftertouch compatible)
FANTOM-7EX: 76 keys (semi-weighted keyboard, aftertouch compatible)
FANTOM-8EX: 88 keys (PHA-50 hybrid structure (wood x resin center frame), with escapement, ivory and ebony tones, aftertouch compatible)
■Sound source section
●Tone
ZEN-Core
V-Piano Technology (ZONE1 only)
ACB (ZONE1 only)
VTW Organ (ZONE2 only)
SuperNATURAL Acoustic
SuperNATURAL Acoustic Piano
SuperNATURAL Electric Piano
Various model sound sources
※ ZEN-Core tones and model tones can be imported and exported
●Expansion
EXZ series
EXSN series
EXM series
ACB series
※ Expansion is the rewritable sound source memory of the main unit. You can download data from Roland Cloud and write it to the internal memory using a USB memory stick.
●Number of parts
16 zones (Internal + External)
●Number of scenes
128 scenes x 4 banks
*Import/export possible
●Number of tones
More than 3,500 tones
More than 90 drum kits
●Tone remain
16 zones
*V-Piano tones, ACB tones, VTW tones excluded
●Favorites
Rating 4 levels (0 to 3)
●Tone search/Scene search
Rating, text
●Effects
Multi-effects: 16 systems, 93 types
Part EQ: 16 systems
COMP for drum parts: 6 systems
Insert effects: 2 systems, 90 types (serial or parallel connection selectable)
TFX: 1 system, 90 types
Input MFX: 2 systems (parallel), 90 types
Chorus: 9 types
Reverb: 7 types
Master EQ
Master compressor
Input reverb: 7 Type
Input equalizer: 2 systems (in parallel)
●Analog filter
Stereo
TYPE: LPF1 / LPF2 / LPF3 / HPF / BPF / Bypass
Drive
Amp
●Vocoder
Number of bands: 13, 20, 32
Type: Mono, Stereo
Preset settings: 10
User settings: 20
●Scene chain
Chain: 1 set of 16 scenes x 32 pages (512 scenes)
Sets: 100
Markers: 62 types per set (0 to 9, A to Z, a to z)
■Sequencer
Number of MIDI tracks: 16
Groups: 16
Patterns: 8 (per track)
Pattern length: 64 bars
Recording method: Real-time recording, step recording,
TR-REC
Editing method: Piano roll edit (supports touch edit and automation), Microscope song: 1 (per scene)
Save format: Original, SMF Export/import support
* You can record trigger information for the PAD sampler.
■Sampler
● Keyboard sampler section (multi-sample support)
Format: 16/24-bit linear, 44.1kHz/48KHz, WAV/AIFF
Number of samples: 8,000
Number of multi-samples: 128
Maximum sampling time: 2 minutes 44 seconds (per sample)
* Up to 2GB can be saved in total (area shared with expansion data)
* The keyboard sampler section can be imported and exported as ZEN-Core sounds.
● PAD sampler section
Format: 16/24-bit linear, 44.1kHz/48KHz, WAV/AIFF import supported
Number of simultaneous voices: 8
Number of samples: 16 pads x 4 banks
Maximum sampling time: 60 minutes (equivalent to approximately 660MB)
*Can store up to approximately 2GB in total (including imported WAV files)
*Operation is required to use PAD samples as sound source waves.
● Internal storage area (for files)
Size: 2GB
■ Other
● Rhythm patterns
● Arpeggios
● Chord memory
● Motional Pad
● PAD MODE
Sample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play, Group Play
● AIRA LINK
※ When connected to MX-1
※ When connected to MX-1
● CV/Gate control
2 x CV/Gate or 3 x CV/1 x Gate
● Controllers
Pitch bend/modulation lever *1
S1/S2 button
Control knob x 8
Slider x 8
USB AUDIO slider
Wheel x 2 *1
FUNCTION knob x 6
Sound modify knob x 11 *1
4 x 4 pads
*1: 1024 Supports stepwise operation.
Sound modification knobs only support Cutoff, Resonance, Attack, Decay, Sustain, Release, Amp, and FX Depth.
●Display
7-inch graphic color LCD (WVGA 800 x 480dots)
Touch screen, with Wallpaper function

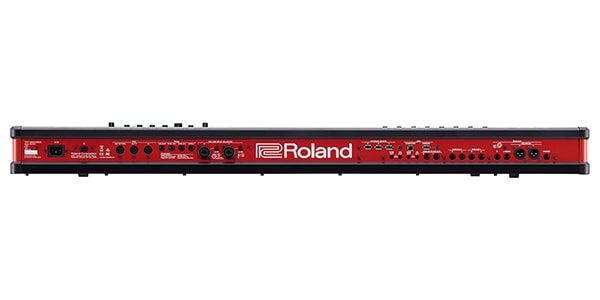

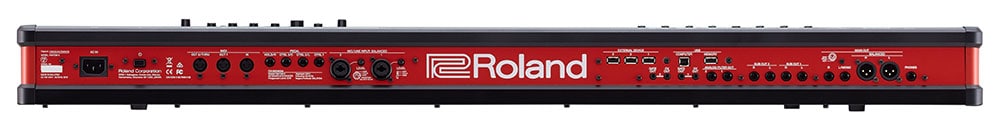

●Connection terminals
PHONES terminal (standard stereo type)
MAIN OUTPUT terminal (L/MONO, R) (standard TS type)
MAIN OUTPUT terminal (L, R) (XLR type)
SUB OUT1 terminal (L, R) (standard TS type)
SUB OUT2 terminal (L, R) (standard TS type)
ANALOG FILTER OUT (1, 2) (standard TS type)
MIC/LINE INPUT terminal (1, 2) (standard XLR/TRS combo type)
CV OUT terminal (1, 2), GATE terminal (1, 2)
FOOT PEDAL terminal (HOLD, CTRL1, CTRL2, CTRL3) 1024 steps
Support
MIDI Terminals (IN, OUT1, OUT2/THRU) Supports high-resolution velocity output
USB MEMORY terminal (USB A)
USB COMPUTER terminal (audio/MIDI compatible) (USB B)
EXTERNAL DEVICE terminal (1, 2, 3) (USB A): Compatible with A-49 and A-PRO Series
* Connection of generic MIDI devices is not guaranteed
●Audio interface
Maximum 24bit/96KHz
Recording: 16 stereo channels
Playback: 3 stereo channels
●External memory
USB memory (sold separately)
●Power supply
AC100V (50/60Hz)
●Power consumption
50W
●External dimensions
FANTOM-6EX: 1,084 (width) x 403 (depth) x 106 (height) mm
FANTOM-7EX: 1,296 (width) x 403 (depth) x 106 (height) mm
FANTOM-8EX: 1,432 (width) x 439 (depth) x 153 (height) mm
●Weight
FANTOM-6EX: 15.3 kg
FANTOM-7EX: 17.7 kg
FANTOM-8EX: 27.7 kg
●Accessories
Instruction manual
Power cord
Warranty card
●Optional items
Keyboard stand:
FANTOM-6EX: KS-10Z, KS-12
FANTOM-7EX: KS-10Z, KS-12
FANTOM-8EX: KS-G8B, KS-10Z, KS-12
Pedal switch: DP series, RPU-3
Expression pedal: EV-5
USB memory (※)
※Please use a commercially available USB memory. However, we do not guarantee that all commercially available USB memory will work.
