iFI Audio / ZENDAC3

iFi audio ZEN DAC 3 is the latest innovation proudly brought to you by iFi, a pioneer in Hi-Fi audio equipment. ZEN DAC 3 is a stationary USB-DAC amplifier featuring an all-new design and the latest features, designed to impress gaming, casual listening, and all-important audiophile experiences.

■ZEN DAC 3 has both fixed and variable outputs and can be seamlessly connected to headphones, power amplifiers, and active speakers, providing unparalleled versatility for any audio system. Equipped with two 4.4mm balanced outputs, one dedicated for headphones and one for all other audio devices with line inputs. The innovative 4.4mm fully balanced design minimizes distortion, crosstalk, and noise for pure sound output that lets you truly immerse yourself in the music.

■From PCM768kHz to DSD512 and MQA full decoding, we guarantee that every nuance of your music is faithfully reproduced with amazing clarity and detail. Plus, with enhancements like improved DC offset and USB-C input overvoltage protection, you can enjoy your favorite songs worry-free. Reliable and safe operation is guaranteed.
Plus, with additional features like XBass+ and PowerMatch analog correction processing, you can precisely and delicately customize your listening experience.

■ZEN DAC 3's DAC stage is based on the Burr-Brown DAC chip. Selected for their natural-sounding ""musicality"" and true native architecture, iFi uses them in a wide range of products. This DAC chip, combined with the XMOS chip used for input processing, allows you to deliver all digital audio formats, including Hi-Res PCM, native DSD, and MQA, with excellent sound quality. Considering its price range, the ZEN DAC 3's digital audio capabilities are very impressive.

■PCM and DXD audio data supports up to 32bit/768 kHz and DSD rates from 2.8 MHz (DSD64) to 12.4 MHz (DSD256). Due to the Burr-Brown DAC chip's true native design, PCM and DSD follow separate paths. This allows DSD to remain ""bit perfect"" in its native format all the way to analog conversion. Many DACs that claim DSD compatibility will accept DSD data, but convert it to PCM. In short, ZEN DAC 3 is a great and affordable solution for DSD purists.

■Another circuit feature that distinguishes iFi's DACs, including the ZEN DAC 3, from other DACs is that iFi programs its XMOS chips in-house. While other manufacturers simply use off-the-shelf firmware shipped with their chips, which are generally not optimized for audio-grade sound, iFi programs its own custom firmware to enhance audio performance.

■iFi's continuous software development allows for the addition and optimization of functions through firmware updates, allowing you to adjust ZEN DAC 3 to your preferences and keep it at the cutting edge for a long time. Users can also download and install different versions of firmware to try out different digital filters if they wish. To eradicate jitter, a wide range of clocks are maintained throughout the digital stages, preserving the integrity of the digital signal up to the DA conversion.

■ZEN DAC 3's analog stage has a fully balanced design, which is extremely rare for USB-DAC amplifiers in this price range. It incorporates a series of high-quality circuit parts carefully selected for audio performance, including TDK C0G capacitors and high-quality analog volumes.

■The headphone amplifier stage has a switchable gain function, which iFi calls PowerMatch. By adjusting the input sensitivity and output power, the drive level can be matched to the load of the headphones/earphones. For sensitive earphones such as IEMs (in-ear monitors), turning PowerMatch off provides ultra-low noise performance. On the other hand, for headphones that require more output, such as most on/over-ear type headphones, press the PowerMatch button on the front panel to increase the gain.

■The introduction of XBass+ analog correction processing takes the personalized audio experience one step further. XBass+ is a proprietary circuit for boosting low frequencies, and its sophisticated features allow it to enhance bass frequencies without muddying the midrange while maintaining bass clarity. For example, it's useful with some open-back headphones that have light bass. ""Corrects"" the bass so that it sounds the way the artist intended.

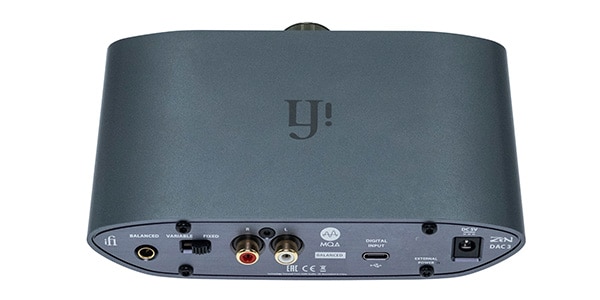

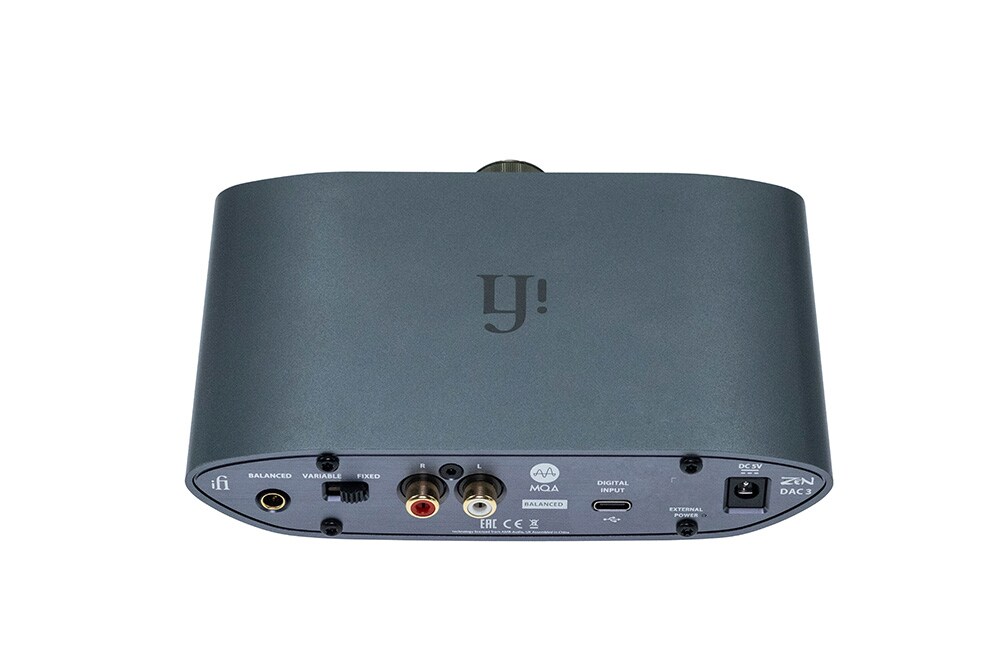

■ZEN DAC 3 is equipped with 4.4mm balanced outputs on both the front and rear panels. This is a relatively new terminal, designed to allow balanced signal transmission between compact products that cannot use traditional XLR connections.

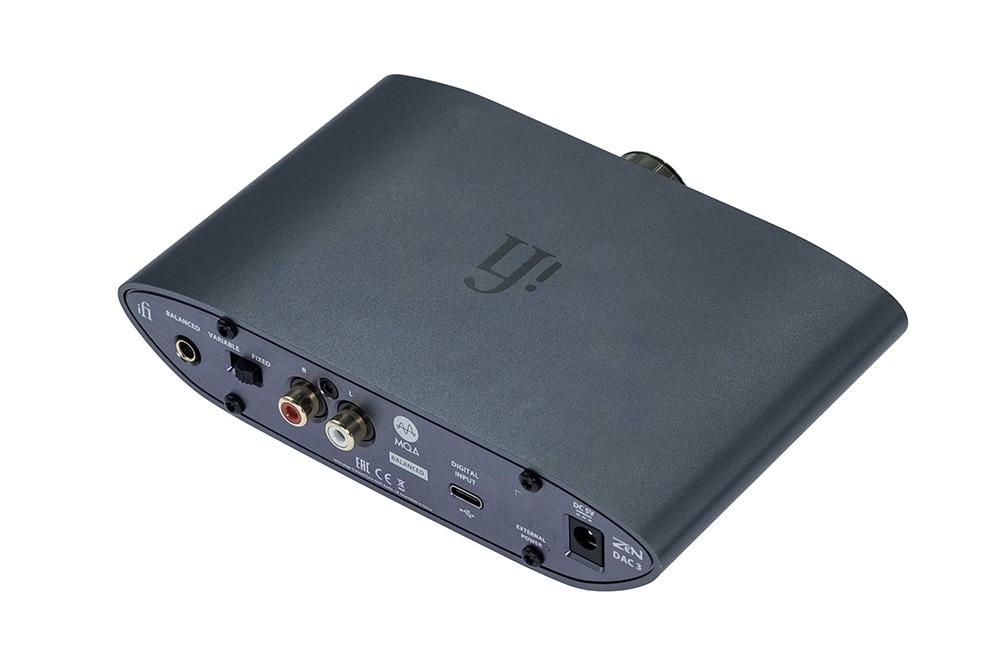

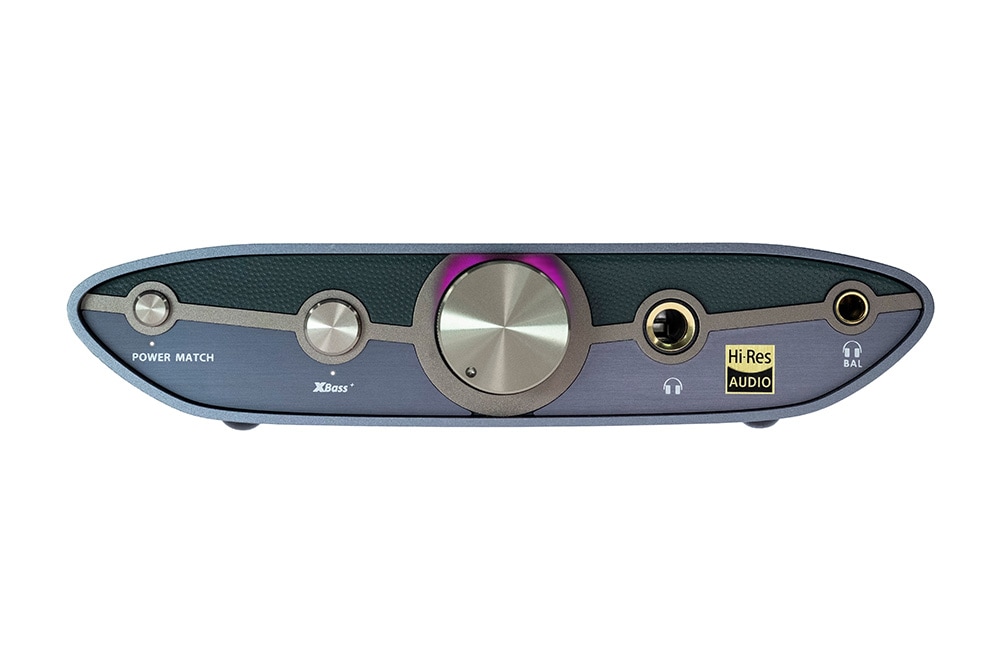

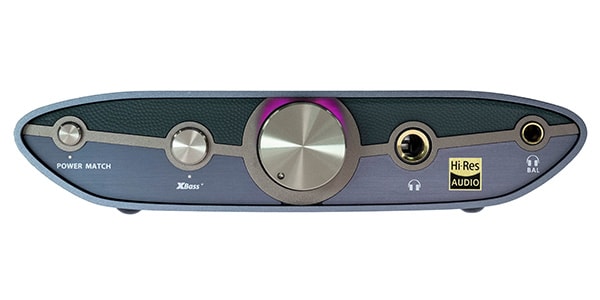

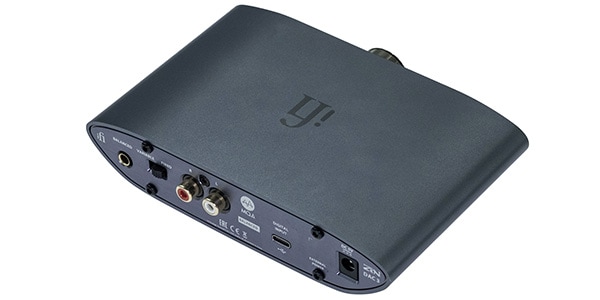

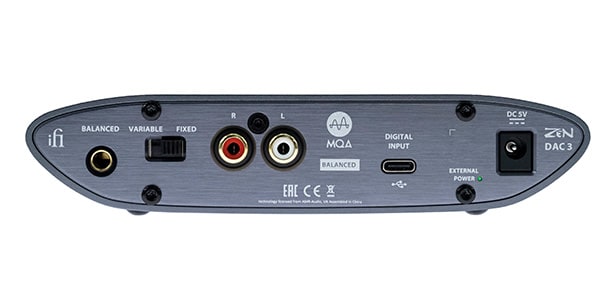

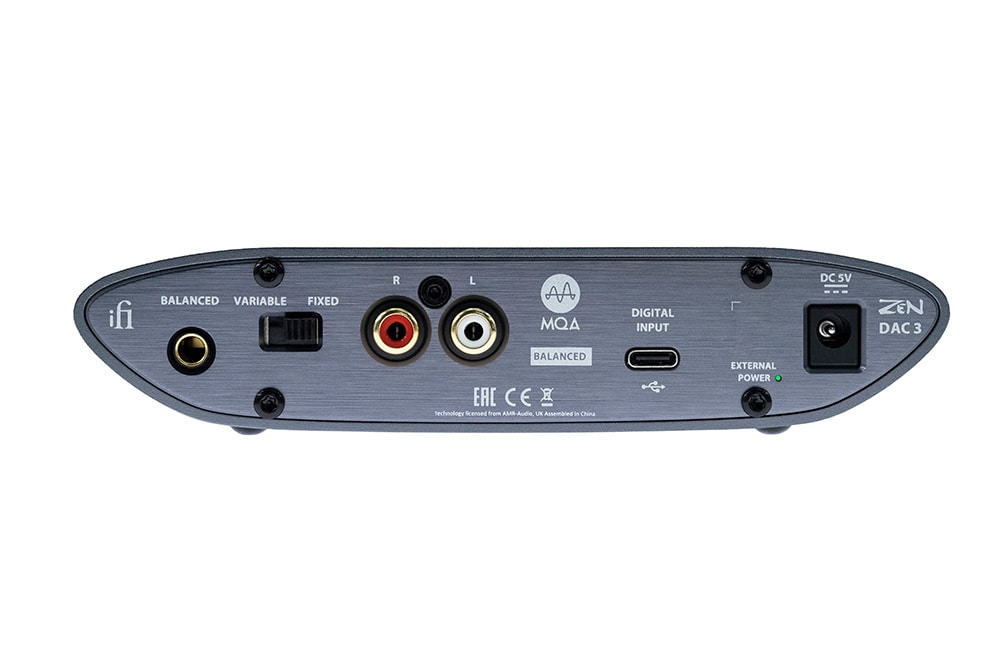

■The 4.4mm balanced output on the front is placed alongside the common 6.3mm single-ended headphone output, making it compatible with all types of headphones, both balanced and single-ended, while taking full advantage of the balanced headphone design. A 4.4mm balanced output on the rear allows connection to an amplifier or active speaker with a balanced line input (4.4mm input, or XLR input via 4.4mm-XLR cable). It also has a single-ended RCA output.

■These line outputs (balanced and single-ended) can be switched between ""variable"" and ""fixed"", increasing the versatility of ZEN DAC 3. Variable settings enable volume on the audio signal and allow the ZEN DAC 3 to act as a preamplifier for connecting to power amplifiers or active speakers. The fixed setting bypasses the volume and fixes the output to 4.2V (balanced) or 2.1V (single-ended) and can be connected to a preamp or integrated amplifier.

・DSD512/PCM768/MQA full decoding supported*
・Convenient and highly durable USB-C input*
・Two headphone outputs: 4.4mm balanced, 6.3mm single-ended with maximum output power of 390mW
・Two line outputs that can be switched between fixed and variable: 4.4mm balanced, RCA
・Equipped with XBass+ function: Corrects the lack of low frequency of open headphones*
・Equipped with PowerMatch function: You can select the optimal gain for your headphones and earphones.
・Equipped with the latest low jitter function GMT (Global Master Timing): Jitter reduction performance of up to 20 dB or more
・Improved internal circuitry including optimization of DC offset improves signal purity and accuracy*
Equipped with a 16-core XMOS low-latency microprocessor that manages DSD512 and MQA full decoding

・Digital input: USB-C
・Supported formats: DSD512/PCM768kHz/MQA full decoding
・DAC:Bit-Perfect DSD & DXD DAC by Burr Brown
・Line output: 4.4mm balanced, RCA single ended
・Line output level: 4.4mm Balance: 2V / maximum 6.2V (variable), 4.2V (fixed), single end: 1V / maximum 3.3V (variable), 2.1V (fixed)
・Output impedance: 200Ω (balanced), 100Ω (single-ended)
・Line output S/N ratio: 113dB @ 0dBFS (balanced/single-ended)
・Line output dynamic range: 113dB @ 0dBFS (balanced/single-ended)
・Line output THD+N: 0.0015% @ 0dBFS (balanced), 0.003% @ 0dBFS (single-ended)
・Headphone output: 4.4mm balanced, 6.3mm single ended
・Headphone output level: 6.2V max (balanced), 3.3V max (single-ended)
