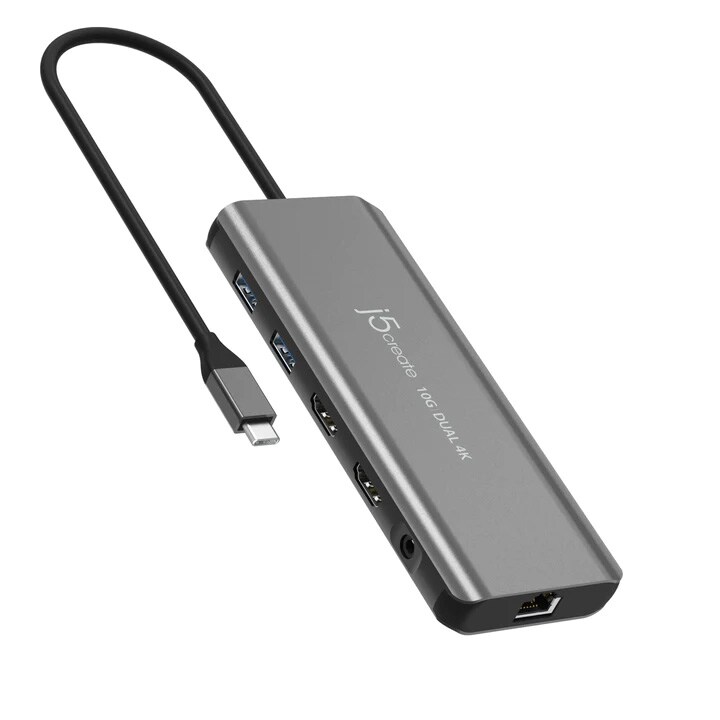

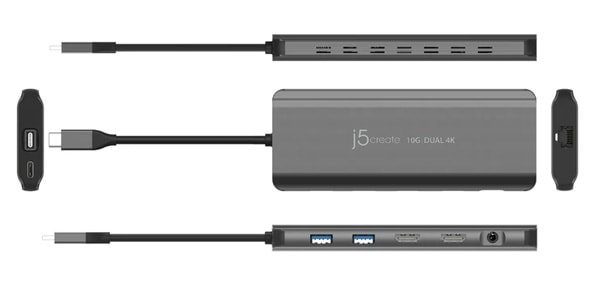

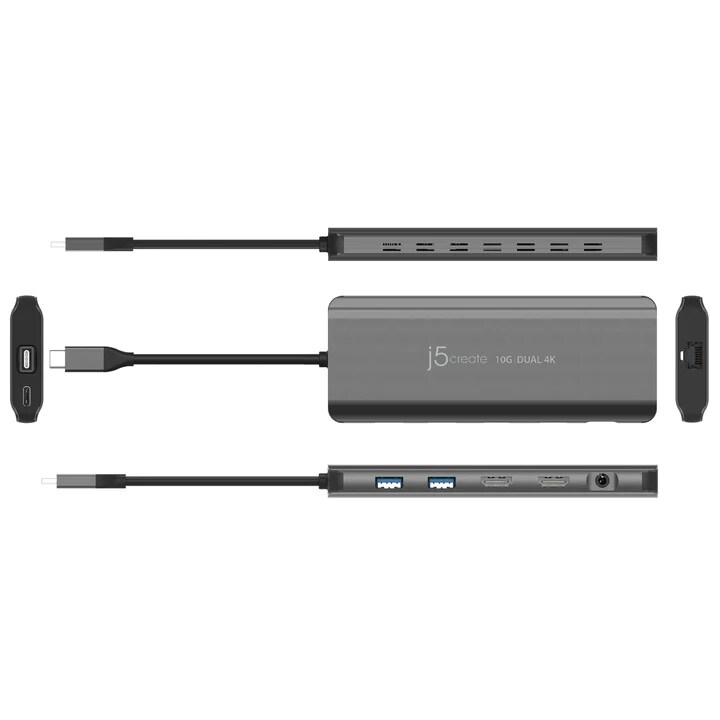

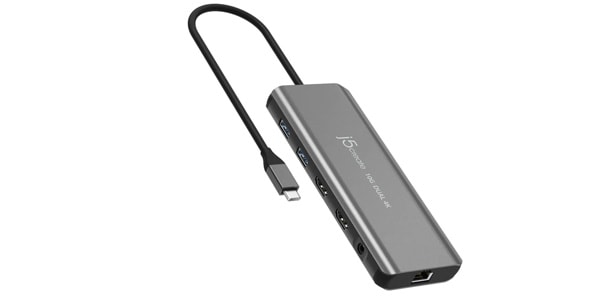

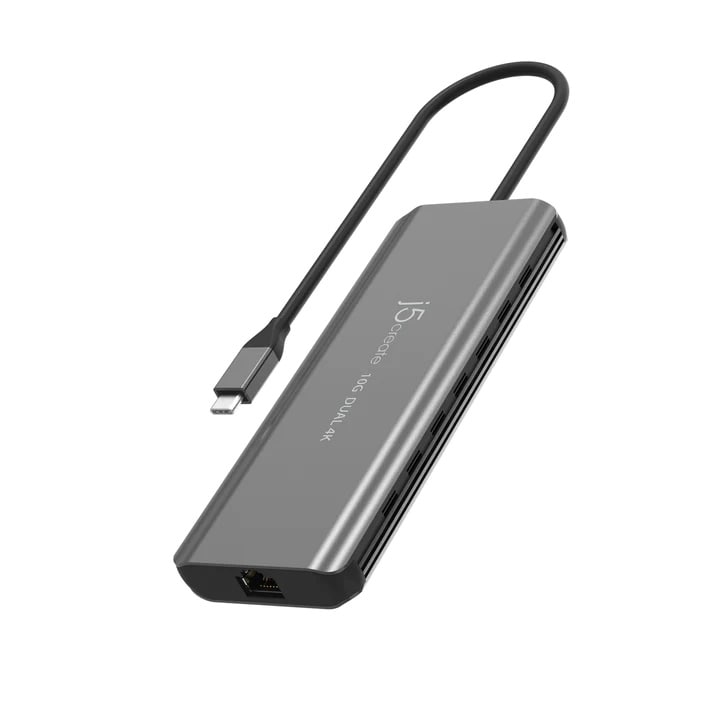

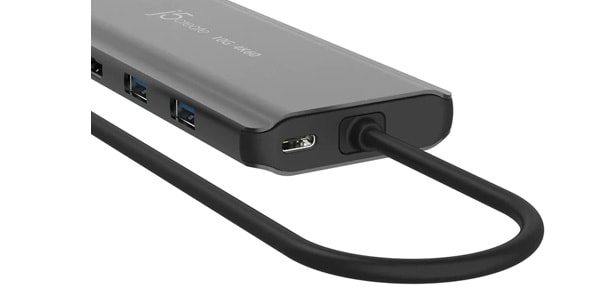

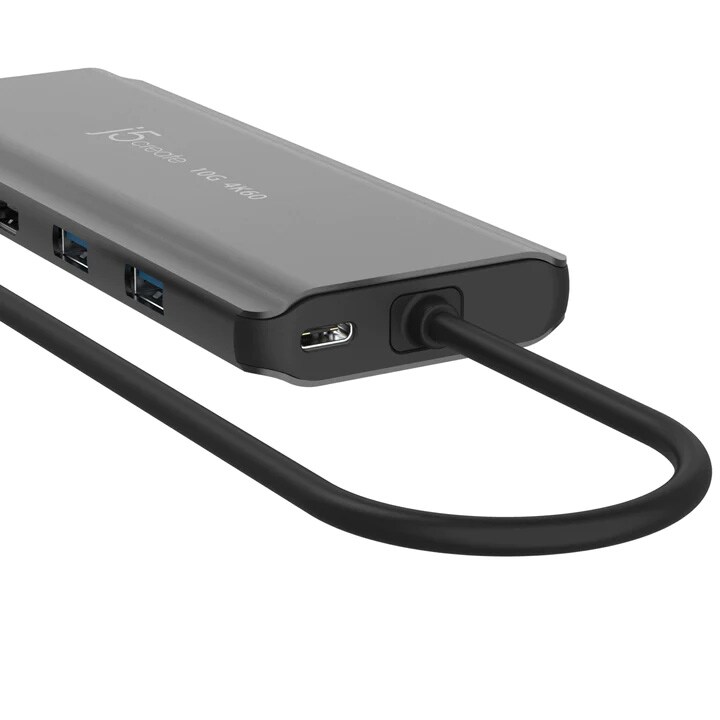

j5 create / JCD398 USB-C Dual HDMI Gen2 7in1 Multi-Hub

It can be connected to a PC with a single USB-C cable to expand 7 functions at once, supports simultaneous dual HDMI output, and uses USB graphics and DP Alt Mode technology to add two displays to an Apple M1/M2/M3 MacBook that can only output one external monitor.

■USB-C Dual HDMI Gen2 7in1 Multi-Hub
(M1/M2/M3 compatible)
■Host: USB-C (male)
■Expansion port：
USB Type-A 3.2 Gen2 10Gbps x2
USB-C Power Delivery 100W input x1
4K 60Hz HDMI x1 (DisplayPort Alt Mode output)
4K 30Hz HDMI x1 (USB graphic output)
Gigabit wired LAN x1
3.5mm combo jack x1
■Power supply method: Bus-powered & self-powered
When using bus power, some ports may not operate due to lack of power, so please use a PD charger.
■Maximum resolution
HDMI①：3840x2160 @60Hz(DisplayPort Alt Mode output)
HDMI②：2048x1152 @30Hz(USB graphic output)
■Material：Aluminum
■SIZE：147.2(W)x14.8(H)x56.9(D)mm　
Cable：19.8cm, weight approx. 113.5g
■Package Contents
JCD398 main unit
Quick installation guide
Warranty card
■System requirements and notes:
Windows and macOS compatible
PC Type-C port must support Display Port Alt Mode and Power Delivery.
This product is not recommended to be connected via a USB hub.
HDCP is not supported.
Apple USB SuperDrive” is not supported due to manufacturer's limitation.
Driver installation is required.
To ensure stable connection of the adapter, please install the driver for this product on the “Product Support & Driver” page of the manufacturer's website.
MacOS (manual):
Please install the driver from the manufacturer's website MacOS10.13 is unstable due to enhanced security. Please update the latest OS.
WindowsOS (automatic):
The driver will automatically download when plugged in a network environment. If the automatic download is not activated, please install the driver manually at the manufacturer's website.
