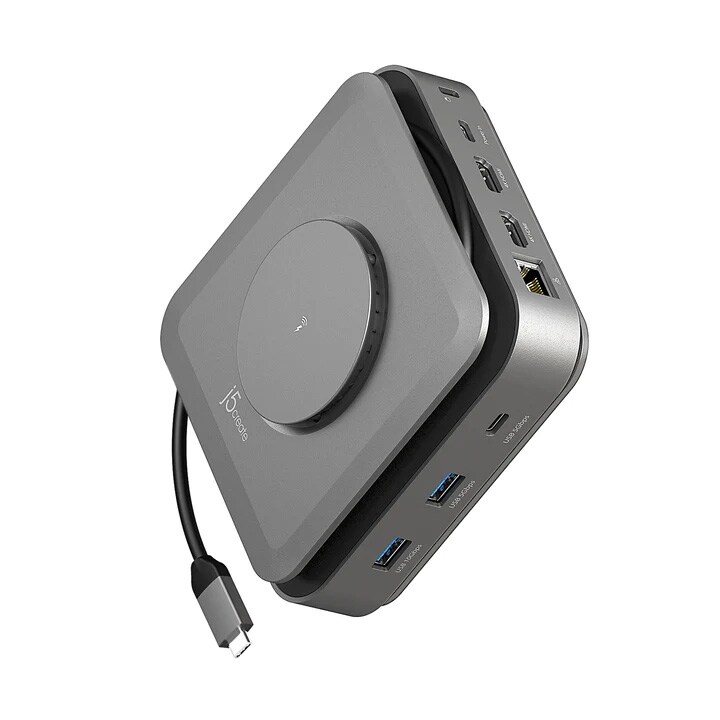

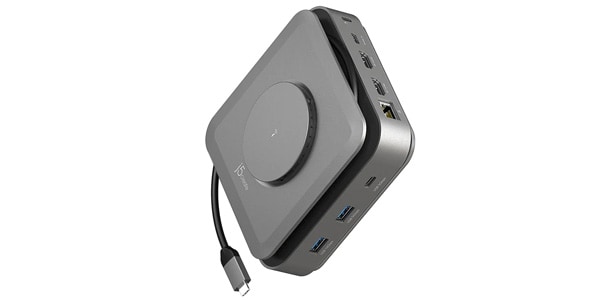

j5 create / JCD3199　USB-C 12in1 with wireless charging

This is a revolutionary new concept product that combines a PC function-expanding docking station with a magnetic adsorption wireless charging pad. Generally, when using a PC and a smartphone at the same time, a separate charger for the smartphone needs to be prepared, but with this product, they can be consolidated into one, making your desk smarter.

■USB-C 12in1 docking station with wireless charging
(M1/M2/M3 compatible)
■Host (PC connection side): USB Type-C (male)

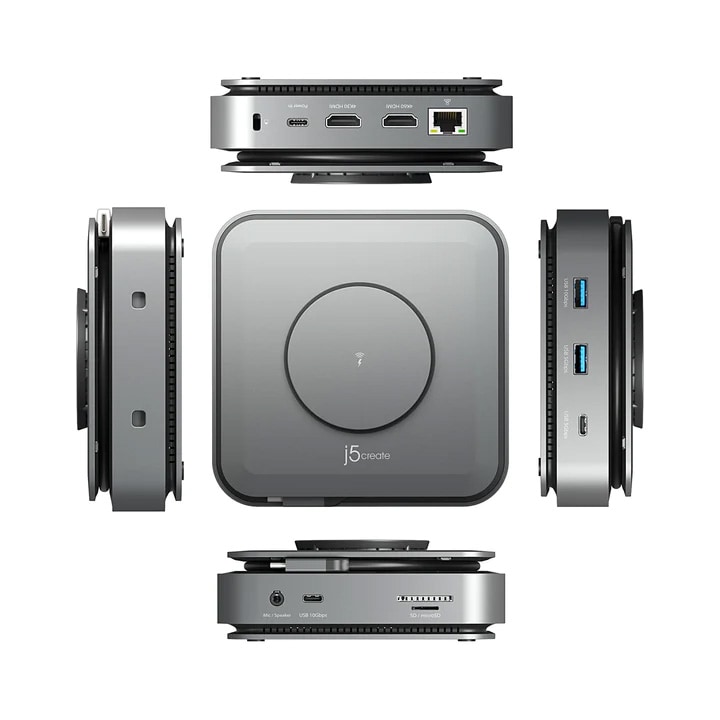

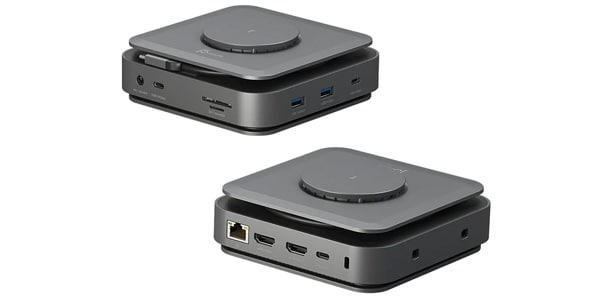

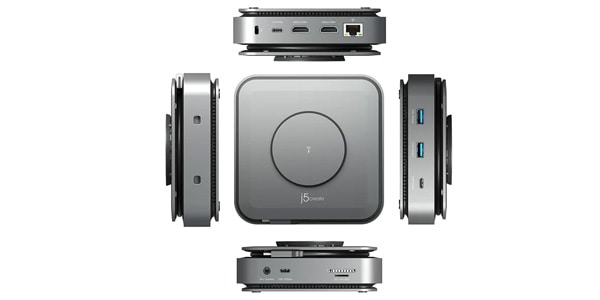

Expansion port:
USB Type-A 3.2 Gen1 5Gbps x1
USB Type-A 3.2 Gen2 10Gbps x1
USB Type-C 3.2 Gen1 5Gbps x1
USB Type-C 3.2 Gen2 10Gbps x1
USB-C Power Delivery3.1 140W input x1
4K 60Hz HDMI x1 (DisplayPort Alt Mode output)
4K 30Hz HDMI x1 (USB graphic output)
Gigabit wired LAN x1
UHS-I microSD/SD card slot x1
3.5mm combo jack x1
Kensington Rock slot x1
Magnetic wireless charging pad 15W
■Power supply system bus-powered/self-powered:
(To use the wireless charging pad function, a PD charger with a PD power of 60W or higher must be plugged into the Power in port, which is provided separately.)
■Maximum resolution:
HDMI①: 3840x2160@60Hz (DisplayPort Alt Mode output)
HDMI②：3840x2160@30Hz(USB graphic output)
■Material: Plastic
SIZE：130(W)x43.5(H)x130(D)mm　
Cable: 69.5cm
■Weight: Approx. 416g

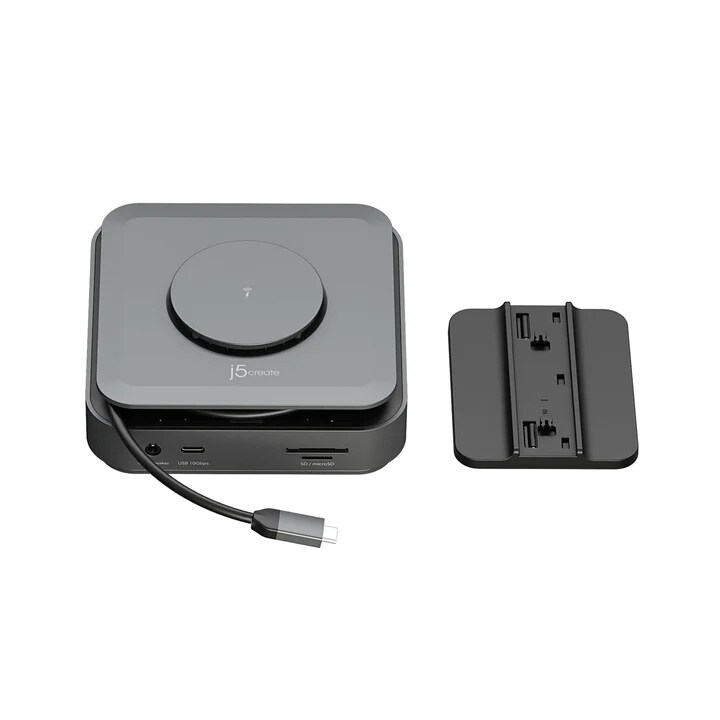

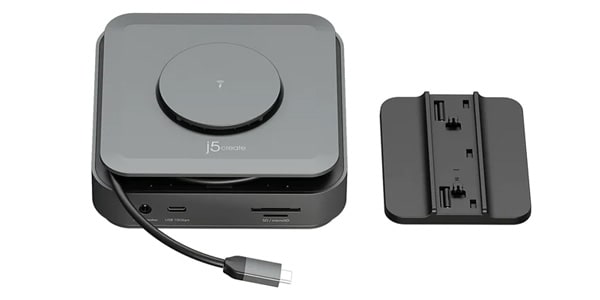

■Package Contents:
JCD3199 main unit

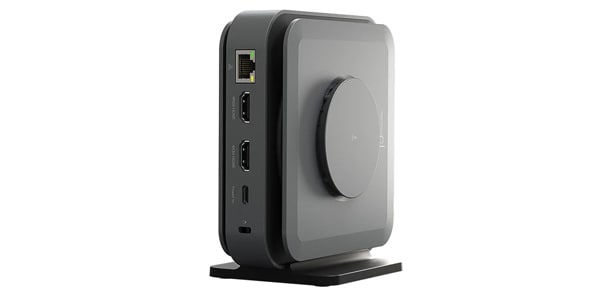

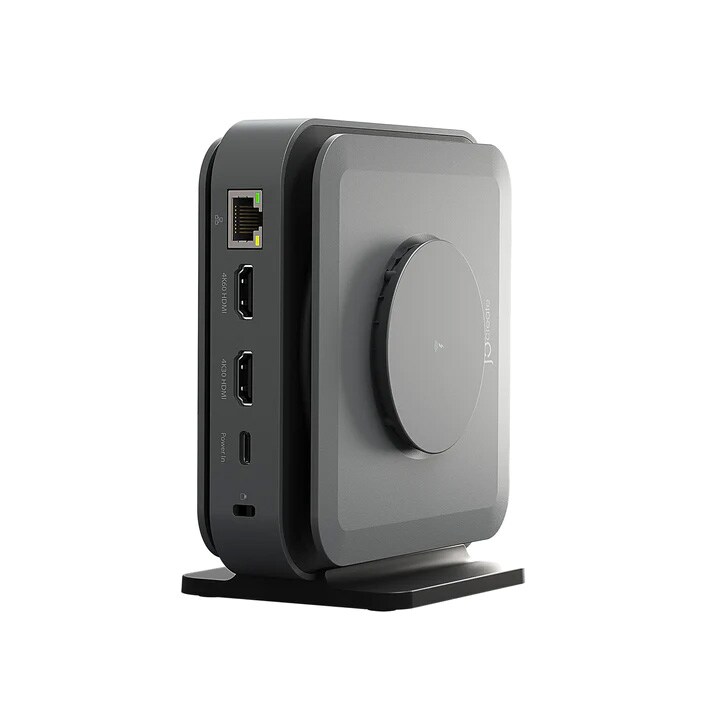

Vertical installation stand
Quick installation
Warranty card
■System Requirements and Precautions
Windows and macOS compatible
PC Type-C port must support Display Port Alt Mode and Power Delivery.

This product is not recommended for connection via a USB hub.
HDCP is not supported.
Apple USB SuperDrive” is not supported due to manufacturer restrictions.
To output the wireless charging function, please use a separately prepared PD charger connected to this product.
Driver installation is required.
To ensure stable connection of the adapter, please install the driver for this product on the “Product Support & Driver” page of the manufacturer's website.
MacOS (manual):
Please install the driver from the manufacturer's website MacOS 10.13 is unstable due to enhanced security. Please update the latest OS.
WindowsOS (automatic):
The driver will automatically download when plugged in a network environment. If the automatic download is not activated, please install the driver manually at the manufacturer's website.
