ALLPARTS / PU-0419-010

ALLPARTS bass pickups, Gibson bass, humbucker, bridge

■Bass pickup
■For 4 strings
■Bridge
■Magnet: Ceramic
■E/G pole piece spacing - 49.4mm
■Pickup cover dimensions: 67mm (L) x 28mm (W) x 16mm (H)
■Escutcheon: 93mm (length) x 33mm (width) x 12mm (height)
■Pickup height screw spacing (center distance): 75mm
■Surround screw mount spacing (c to c): 84mm x 26mm
■Total height including pickup base plate: 28mm
■Cable: Single core shielded wire
■DC resistance value: 10.0kΩ
■Chrome

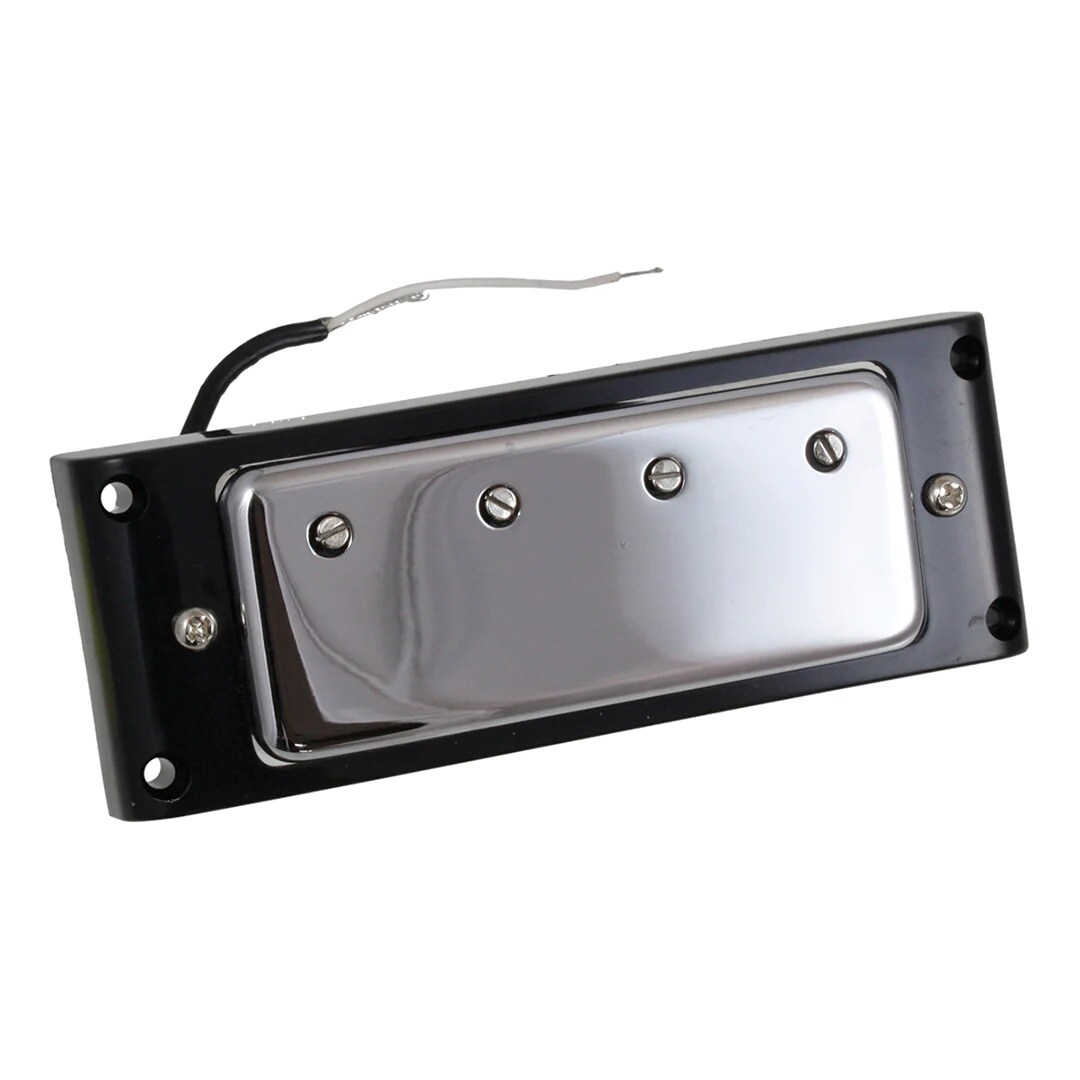

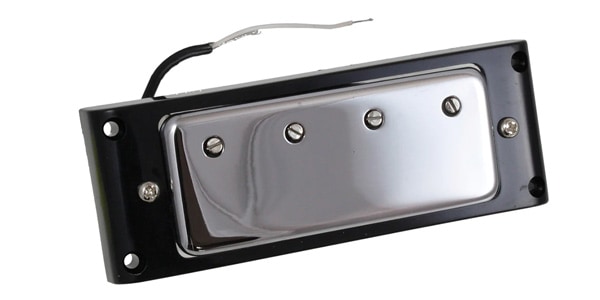

*The image is for illustrative purposes only.
