KORG / KROSS2-88-MB Case & Damper Set

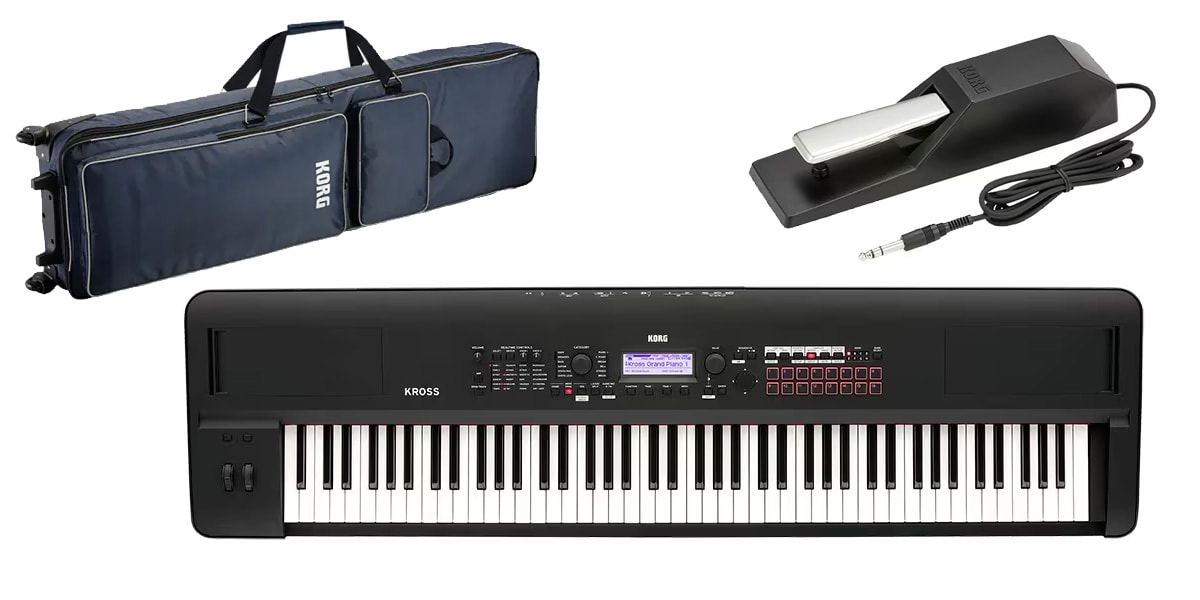

Three-piece set includes KORG's KROSS2 synthesizer workstation, soft case, and damper pedal.

■Set Contents:
Main unit
Soft case (SC-KROSS2/KROME-88)
Pedal (DS-1H)

■Keyboard
KROSS 2-61
61 keys
(Velocity supported, aftertouch not supported)
Standard C2 - C7 ([C1 ... C6] to [C3 ... C8]) C8])

KROSS 2-88
88 keys
NH keyboard (natural weighted hammer action, velocity compatible, not aftertouch compatible)
Standard A0 - C8 ([-A1 ... C7] - [A1 ... C8]) C7] to [A1 ... C9]) C9])
* The NH keyboard reproduces the touch of an acoustic piano, being heavier in the lower register and lighter in the upper register.

■System
EDS-i (Enhanced Definition Synthesis - integrated)

Sound Source
Maximum 120 voices (120 oscillators) in single mode
60 voices (60 oscillators) in double mode
* Actual maximum number of simultaneous voices varies depending on oscillator settings such as stereo multisample, velocity crossfade, etc. Preset PCM memory approx. 128Mbyte (at 48kHz, 16-bit linear PCM conversion)
496 multisamples (including 7 stereo), 1,014 drum samples (including 49 stereo) Expanded PCM memory: approx. 128Mbytes (48kHz, 16-bit, linear PCM conversion)
* Used for loading optional PCM, etc.

Program: Oscillator OSC1 (Single), OSC2 (Double): stereo multisample support, 4-step velocity switch/crossfade/layering per oscillator
　Filters 4 filter routings (single, serial, parallel, 24dB), 2 multimode filters per voice (low-pass, high-pass, band-pass, band-reject)
　Modulation 2 envelope generators per voice (Filter & Amp), 2 LFOs, 2 key tracking generators (Filter & Amp), 2 AMS mixers, plus Pitch EG, common LFO, 2 common key tracking generators
Combination: up to 16 timbres; switching, layering, and crossfading by key zone and velocity zone settings; program settings can be changed by tone adjust function
　Master Keyboard function allows control of external MIDI devices
Drum kit: stereo/mono drum sample assignable; 4-step velocity switch with crossfade/layering function

Number: 896 user combinations (384 preloaded combinations)
　User Programs 1,280 (768 preloaded programs)
　User drum kits 58 (42 preloaded programs)
　Preset Programs 265 (256 GM2 Preset Programs, 9 GM2 Preset Drum Programs) * Total number of preloaded/preset programs: 1,075 (810 preloaded programs, 265 preset programs)
Fav.
Number of memory 128 (16 Favourites x 8 banks)
■ Effects
5 insert effects, 2 stereo input/output master effects, 134 total stereo input/output effect types (74 insert effects, 101 master effects1, 120 master effects2 to choose from)Modulation Dynamic Modulation dynamic modulation effect control path stereo sidechain (limiter, gate, vocoder, etc.)

Polyphonic arpeggiator
1 program mode 2 combination modes 2 sequencer modes 5 preset arpeggio patterns (UP, DOWN, ALT1, ALT2, RANDOM) 1,280 user arpeggio patterns (1,024 preloaded)
Number of tones: 12 tones
Number of steps: Up to 64 steps

■Step sequencer
Program mode
Combination mode
1 sequencer mode
Number of tones: 12 tones + 1 accent tone
Number of steps: 64 steps max.
* Can be created for each program, combination, and song.
Drum Tracks
772 preset patterns (common to sequencer patterns), other Trigger Mode/Sync/Zone settings available

■Sequencer
16 MIDI tracksMax. 128 songsQuarter note resolution/480 tempo40.00 ? 300.00 (in 1/100BPM units)Maximum storage capacity210,000 MIDI event countersMeasure/Beat/Tick template song16 presets, 16 user template song presets/patterns772 (common with drum track patterns) FormatCompatible with Korg (KROSS) format and SMF format 0 and 1

■Pad sampler
Specifications 16 pads x 8 banks
Automatic saving and loading to SD card
Up to 4 pads can be played simultaneouslyRecording formatPCM audio format (48kHz/16bit)Recording timeMaximum stereo sample per pad approx. 14 secondsImportWAVE format (extension .wav)44.1kHz/16bit, 48kHz/16bit, stereo
* 44.1kHz is automatically converted to 48kHzEdit waveform display and editing functions, start address, loop and other settings, normalization and other edits

■Audio Recorder
Recording format PCM audio format (48kHz/16bit) import WAVE format (extension .wav) 44.1kHz/16bit, 48kHz/16bit, stereo
* 44.1kHz automatically converted to 48kHz Export WAVE format (extension .wav) 48kHz/16bit, stereo Recording time Continuous recording time: up to 3 hours
Total recording time: depends on SD card used (approx. 90 minutes per 1GB) Number of songs up to 200 songsMultiple recording countDependent on remaining capacity of SD cardCounter Hour/Min/Sec pad audio play 16 pads x 8 banks
Direct playback of SD card data
Multiple pads cannot be played simultaneously

■Control Inputs
DAMPER (Half Damper supported)
ASSIGNABLE SWITCH
ASSIGNABLE PEDAL

■Audio output (analog)
AUDIO OUTPUT L/MONO, R connector: 6.3mm phone jack (TS unbalanced)
OUTPUT IMPEDANCE: 1.1kΩ (550Ω for L/Mono jack Mono output)
Maximum output level: +10.0 dBu (standard)
Load impedance: 10kΩ or more
Controlable by VOLUME knob HEADPHONE OUTPUT CONNECTOR: 3.5mm stereo mini phone jack
Output impedance: 33 ohms
Maximum output: 40+40mW
VOLUME knob control

■Audio Input (analog)
LINE IN connector: 3.5 mm stereo mini phone jack
Input impedance: 1.1kΩ
Maximum input level: -42 ? 0dBuMIC IN connector: 6.3mm phone jack (TS unbalanced)
Input impedance: 33Ω
Maximum input level: -48 ? -6dBu
Phantom power / Plug-in power not supported
Other
MIDIIN, OUTUSBUSB terminal (TYPE B) x 1: USB-MIDI interface, USB audio interface SD card slot x 1
* Compatible with SD cards up to 2GB, SDHC cards up to 32GB (SDXC cards not supported)

■Major standards
Power supply AC adapter power supply terminal (DC 9V)
6 AA alkaline batteries or 6 NiMH batteries
Battery life 6 AA alkaline batteries: approx. 6 hours
AA nickel-hydrogen batteries (1900mAh) 6 pcs: approx. 7 hours
* Varies depending on batteries used and usage conditions.
Power consumption: 5W

■Main unit
KROSS 2-61
Dimensions: 935 (W) × 269 (D) × 88 (H) mm
Mass: 3.8kg

KROSS 2-88
External Dimensions: KROSS 2-88: 1,448 (W) x 383 (D) x 136 (H) mm
Mass: 12.3 kg

■Accessories
AC adapter, Quick Start Guide
