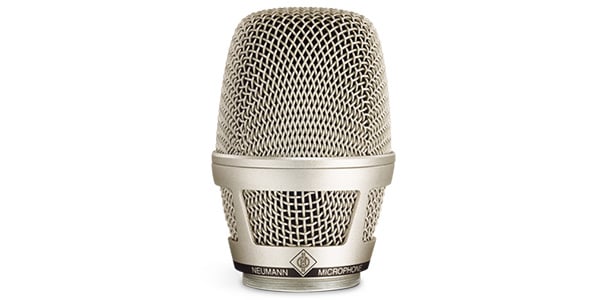

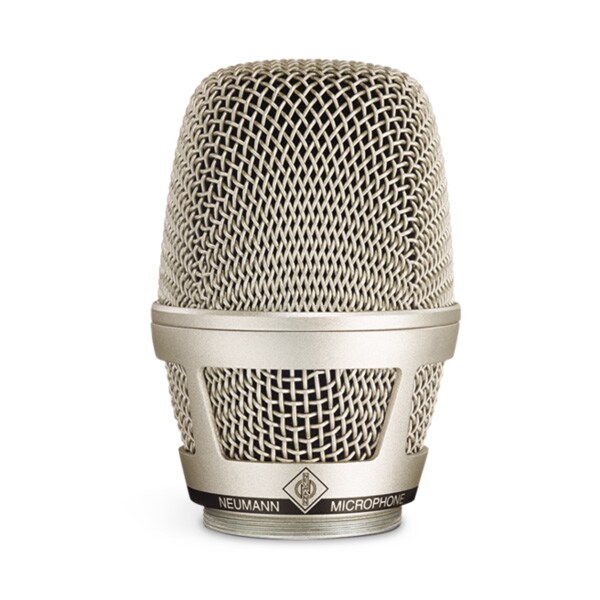

NEUMANN / 8653

A microphone head for Sennheiser wireless systems equipped with a supercardioid condenser capsule that is resistant to feedback. You can choose from two colors: black and nickel.

◆Features

・Supercardioid pattern that resists howling
・Studio grade Neumann condenser capsule
・For Sennheiser SKM 2000/6000/9000, EW G4 300/500, EW-D wireless system



◆Specifications

Polar pattern: supercardioid

Color: Nickel

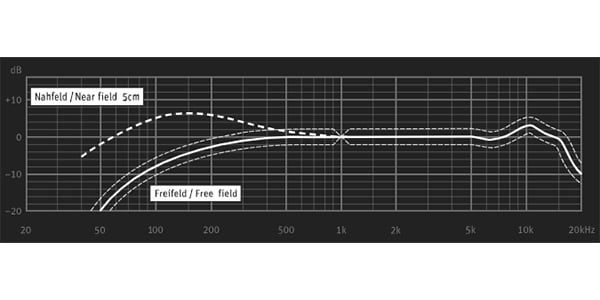

Frequency band: 40 Hz ... 20 kHz
Sensitivity: 1 kHz at 1 kohm 2.8 mV/Pa ± 1 dB equ. 51 dBV
Equivalent noise level, CCIR 1): 35 dB
Equivalent noise level, A-weighted 1): 24 dB-A
Maximum SPL at THD 0.5% 2): 150 dB
Signal-to-noise ratio, CCIR (relative to 94 dB SPL)1): 59 dB
Signal-to-noise ratio, A-weighted (94 dB SPL reference)1): 70 dB-A
Weight: Approx. 500g (including transmitter + power supply unit)
Diameter: 55mm
Length: 272 mm (including SKM 2000)

1) CCIR weight according to IEC 60268-1, quasi-peak according to CCIR 468-3, A-weight according to IEC 61672-1, effective value.
2) Measured as equivalent Elpida input signal
