SHURE / SLXD15/UL4B-JB

メーカー商品ページ

Variations

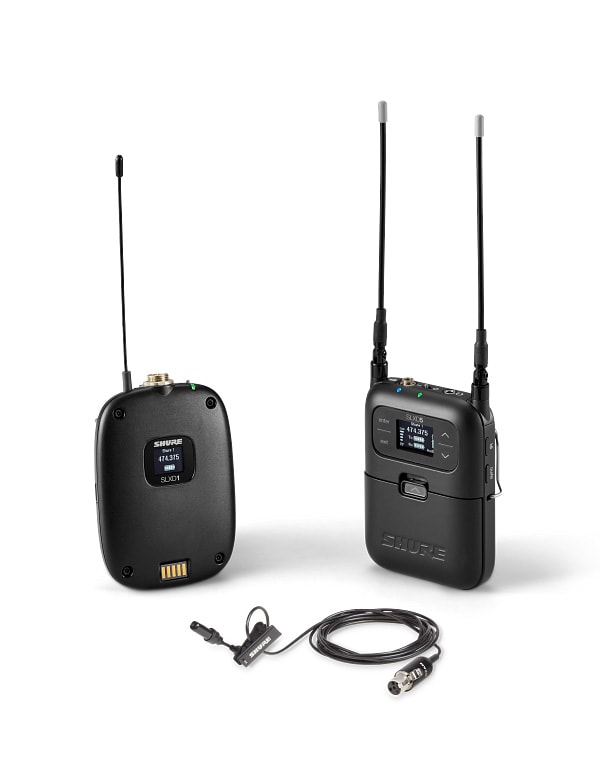

SLX-D1 Bodypack Transmitter SLX-D5 Portable Receiver UL4 Lavalier Microphone (black) Set of

-Faithful sound
Featuring clear 24-bit digital audio, the SLX-D digital wireless comes in a slim, portable enclosure that makes it easy to bring to outdoor sites.
With an excellent frequency response of 20 Hz to 20 kHz and a wide dynamic range of 118 dB, it can accurately capture even the most subtle sounds.

-Reliable Wireless
The unpredictable nature of the shooting scene demands stability from a wireless microphone.
The superior spectral efficiency and stable RF quality performance of digital microphones ensure high noise immunity and high signal quality even in crowded RF environments.

-Ease of use
Innovative features such as RF scan, infrared sync, and multi-microphone mode simplify the process from frequency assignment to transmitter/receiver pairing, making setup simple and straightforward.

-Portability
The SLXD5 portable receiver and SLXD3 plug-on transmitter combine to maximize portability and durability, ideal for video production.
The receiver, designed for use with a camera mounted in a cold shoe mount or in an audio bag, and the transmitter, which allows wireless support without disturbing the movement of people or equipment, offer new possibilities in video production.
In addition, a multi-microphone mode allows monitoring of multiple sound sources.

-Superior Scalability
Flexible scalability allows for a wide range of production needs at various scales.
Compatible with Shure handheld transmitters and lavalier microphones, up to 10 channels can be operated in the B-band (806-810 MHz). *Depends on usage conditions

-Long time operation
Powered by AA alkaline batteries or Shure SB903 lithium-ion rechargeable batteries (sold separately), continuous operation time is up to 6 hours for the receiver and 8 hours for the transmitter. *Depends on usage conditions.
Optional SB903 lithium-ion rechargeable batteries and charging accessories are also available separately.

SLXD1 bodypack transmitter
Transmission frequency: 806.125 to 809.750 MHz, any one of 30 B-band channels
Frequency interval: 125 kHz intervals
Frequency interval: 125 kHz intervals ・ Radio format: F1D, F1E
Transmission output: 1mW, 10mW
Antenna type: Quarter-wave whip antenna - Impedance: 50 Ω
Frequency Response: 20Hz to 20kHz (±1dB) * Total system bandwidth varies depending on microphone type
Audio input terminal: 4-pin male mini-connector (TA4M), impedance 1 MΩ
Maximum input level: 8.2 dBV (7.27 Vpp)
Preamplifier equivalent input noise: -118dBV
Offset gain adjustment range: 0dB to +21dB (3dB step)
Power source: 2 x AA alkaline batteries or dedicated lithium-ion rechargeable battery SB903
Battery life (at 10mW output): approx. 8 hours (alkaline batteries), approx. 8 hours (SB903) *Depends on operating environment
Operating temperature range: -18°C to 50°C
Dimensions Width: 68 x Height: 98 x Depth: 25.5 mm
Weight: 89 g (static eliminator)

SLXD5 single-channel portable wireless receiver
Dimensions Height 107 × Width 68 × Depth 25.3 mm (excluding antenna)
Weight 182 g
Weight 182 g ・ Exterior Aluminum
Power source　
　 - Batteries: AA alkaline batteries x 2 or dedicated lithium-ion rechargeable battery SB903
　 - AC adapter: SBC-DC-903 battery eliminator or 5 VDC supply via USB-C

Inputs
　 - Spurious Rejection: >75 dB typical
　 - Impedance: 50 Ω
　 - Phantom power protection: Supported
　 - Antenna Type: Quarter-wave whip

Audio Output
　 - Frequency Response: 20 Hz to 20 kHz
　 - Connector Type: 2 x 3.5 mm mini plugs

Audio Output Frequency Response: 20 Hz to 20 kHz Connector Type　
　 - Balanced mono: Tip audio [+], Ring audio [?] and sleeve [ground].
　 - Dual mono: Tip audio [left], Ring audio [right], Sleeve [ground].

Impedance (camera)
　 - Balanced mono (line): 450 Ω
　 - Balanced mono (mic): 240 ohms
　 - Dual mono (line): 400 ohms
　 - Dual mono (mic): 200 ohms

Full Scale Output　
　 - Camera (balanced line): 15 dBV
　 - Headphone: 13 mW @ 64 Ω load

[UniPlex UL4 Lavalier Microphone - Black]
Type：MEMS
Directional Characteristic：Cardioid
Frequency Response: 40 to 20,000Hz
Open Circuit Sensitivity: -42.0 dBV/Pa, at 1kHz 1Pa=94 dB SPL
Equivalent noise level: 32 dB SPL-A, A-weighted, typical
S/N ratio: 62 dB, 94 dB SPL at 1 kHz
Maximum input sound pressure level: 130.0 dB SPL, 1 kHz at 1% THD, typical
Dynamic range: 98 dB, typical
Recommended operating voltage: 3.5 V DC to 5.5 V DC
Microphone current consumption: 530μA, max.
Connector: MTQG/TA4F
Polarity: Positive pressure on the diaphragm generates a positive voltage on pin 3 relative to ground pin 1.
Microphone cable diameter: 1.6 mm
Microphone cable length: 1.67 m
Dimensions: Φ5 x 17 mm (microphone section)
Weight: 12.5g

SLXD1 bodypack transmitter x 1
SLXD5 portable receiver x 1
UniPlex UL4 lavalier microphone, black, cardioid x1
2 Pouches
1 WA311 cold shoe mount
1 3.5mm to 3.5mm cable
1 x 3.5mm to XLR cable (male)
AA alkaline batteries x 4

Country of origin: China
