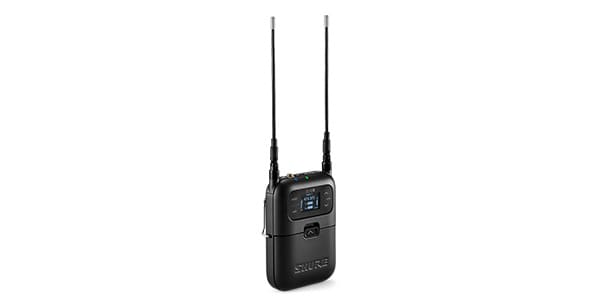

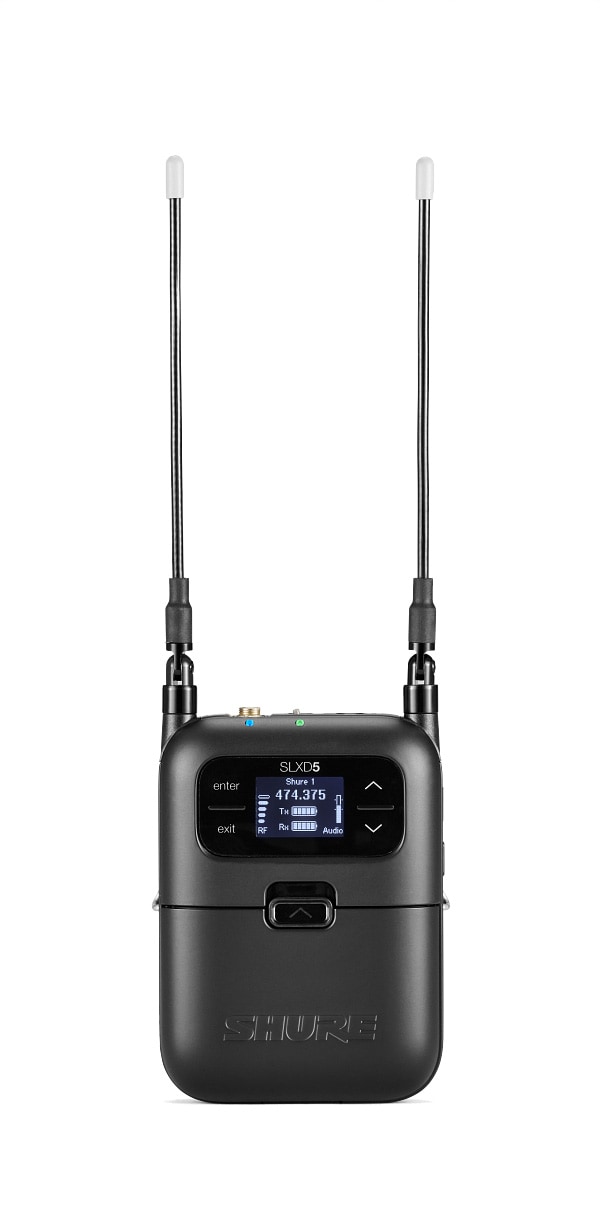

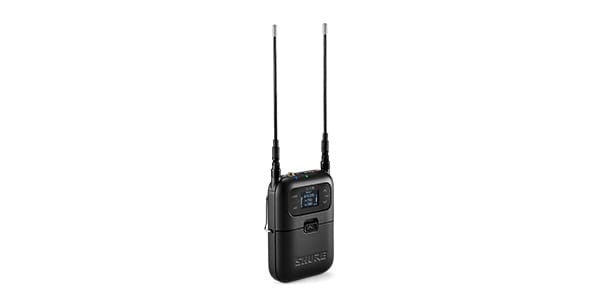

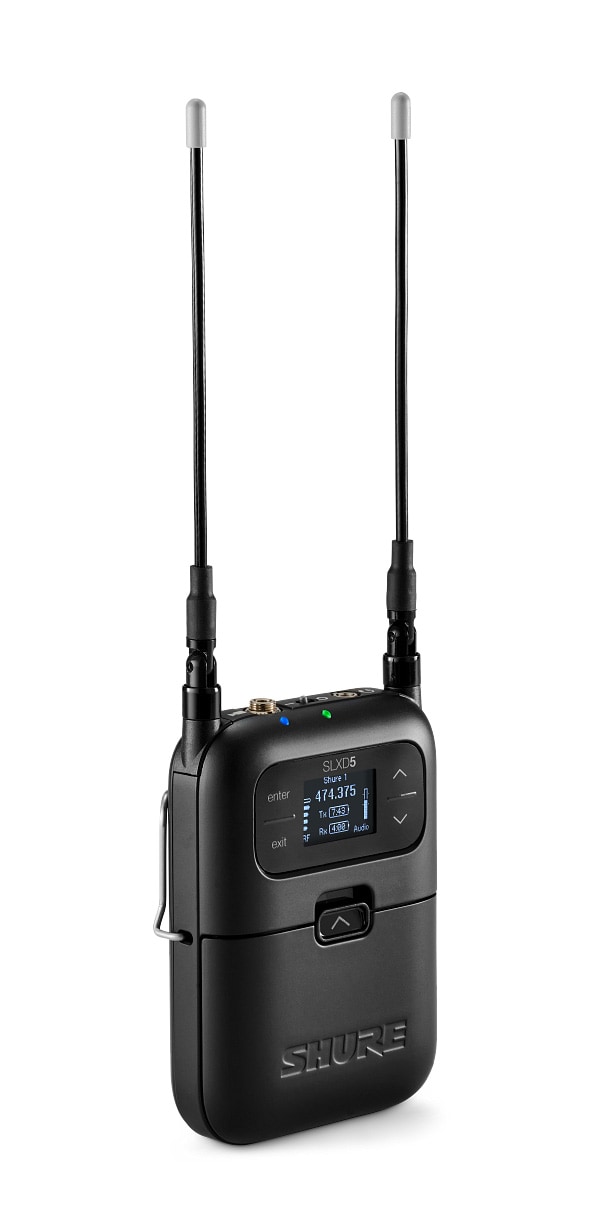

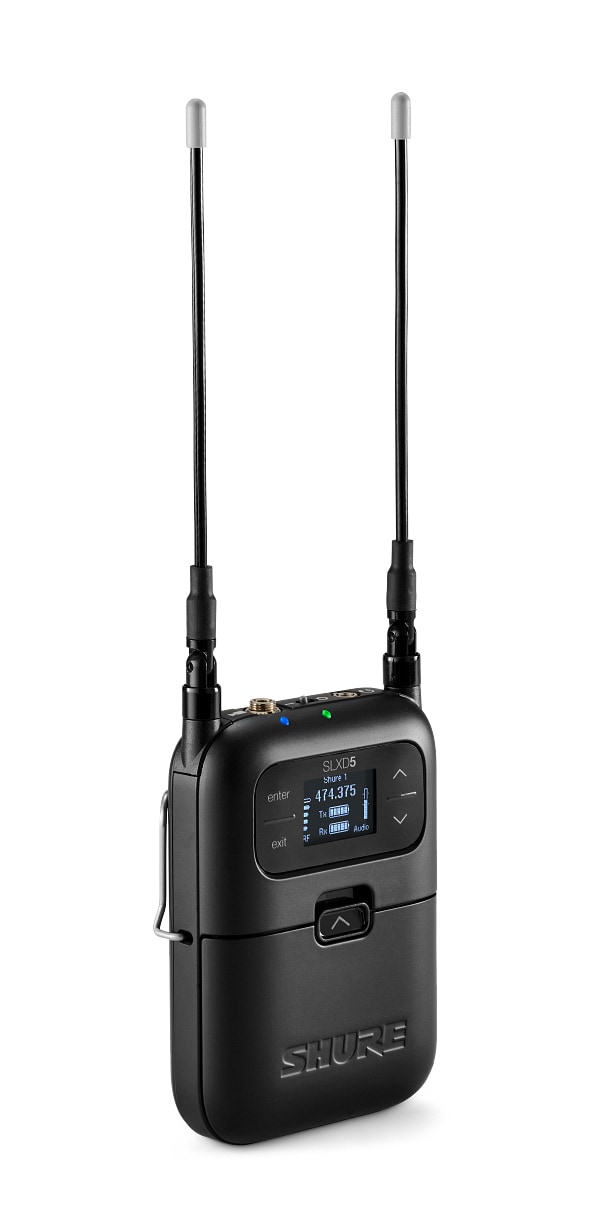

SHURE / SLX-D Single-channel portable digital wireless receiver

The SLX-D single-channel, portable digital wireless receiver is designed to fulfill a variety of audio recording applications while maintaining the versatility of the SLX-D digital wireless system.

The SLX-D single-channel portable digital wireless receiver is designed to fulfill a variety of audio recording applications while retaining the versatility of the SLX-D digital wireless system.
Featuring clear 24-bit digital audio, efficient UHF long-distance transmission, and easy-to-use setup features, the SLXD5 has a slim, portable housing that can be stored in an audio bag or attached to a camera.
Infrared sync and RF scanning capabilities simplify tasks from frequency assignment to transmitter/receiver pairing. A multi-microphone mode allows monitoring and management of complex multi-channel configurations.

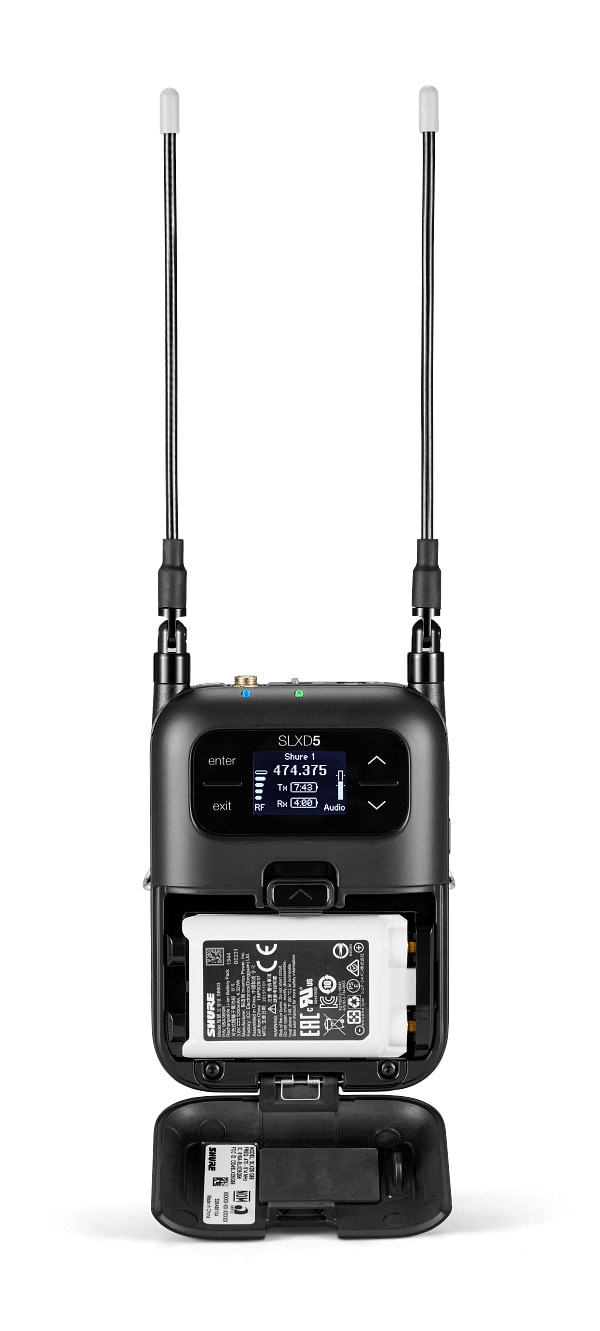

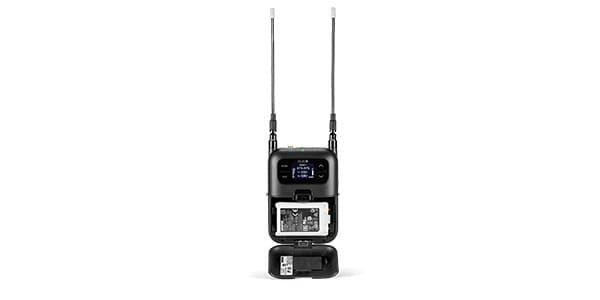

The optional SB903 lithium-ion rechargeable battery provides an easy-to-use, reliable wireless system with up-to-the-minute battery life displayed on a high-visibility OLED screen.
Includes SLXD5 portable receiver, 2 AA alkaline batteries, cold shoe mount for WA311 - SLXD5, and zippered pouch.

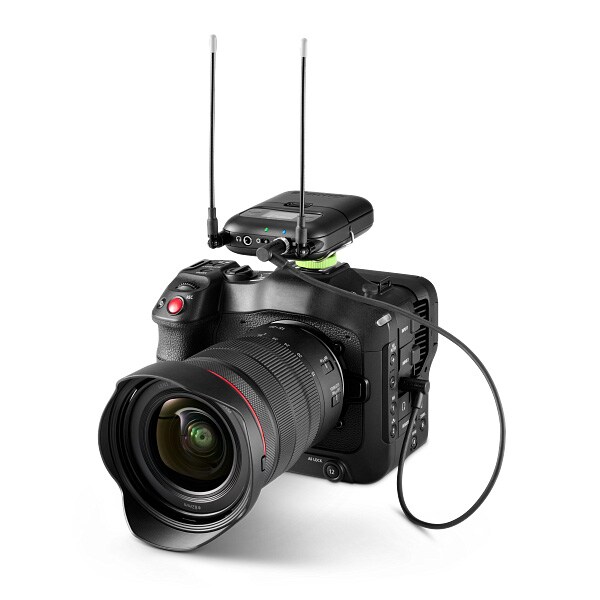

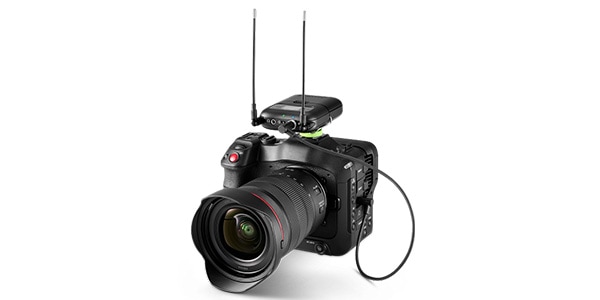

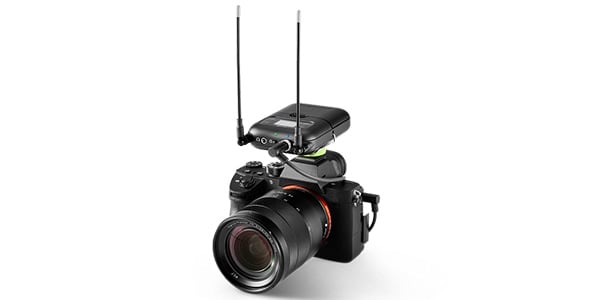

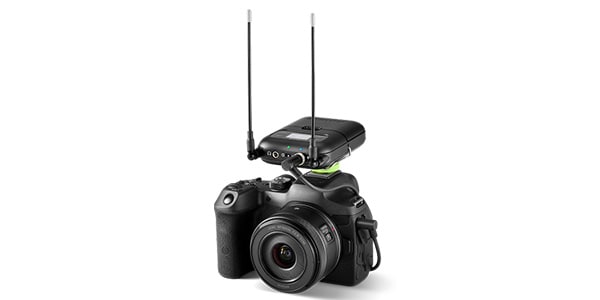

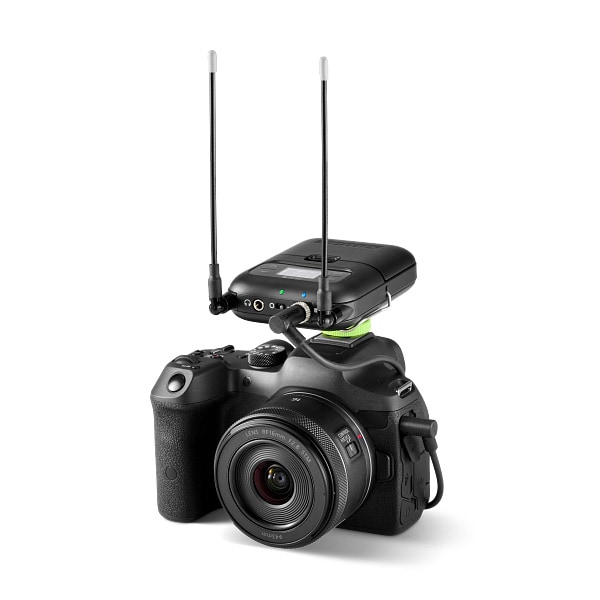

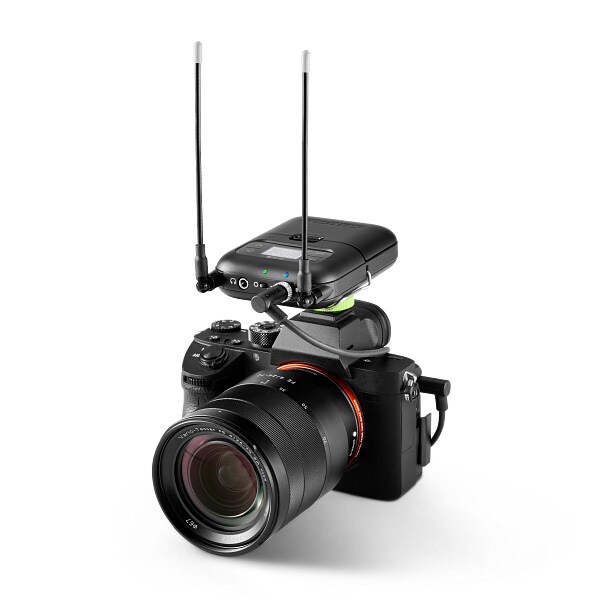

High-performance portable digital wireless receiver designed for use in a variety of environments, such as with a camera mounted on a cold shoe mount or in an audio bag
Clear 24-bit digital audio
Wide frequency range of 20Hz to 20kHz (depending on microphone)
Wide dynamic range of 118dB
3.5mm mini plug for dual outputs: headphone monitor output and switchable line/microphone output
Multi-microphone mode allows multi-channel frequency scanning for clean frequencies and easy assignment via infrared sync
Front panel user settings allow monitoring of multiple sound sources from a single receiver
Digital Predictive Switching Diversity
Up to 10 channels in B-band for simultaneous use
Robust metal chassis

＜Specifications
Dimensions 107 x 68 x 25.3 mm (H x W x D) (excluding antenna)
Weight 182 g
Weight 182 g ・ Exterior: Aluminum
Power source　

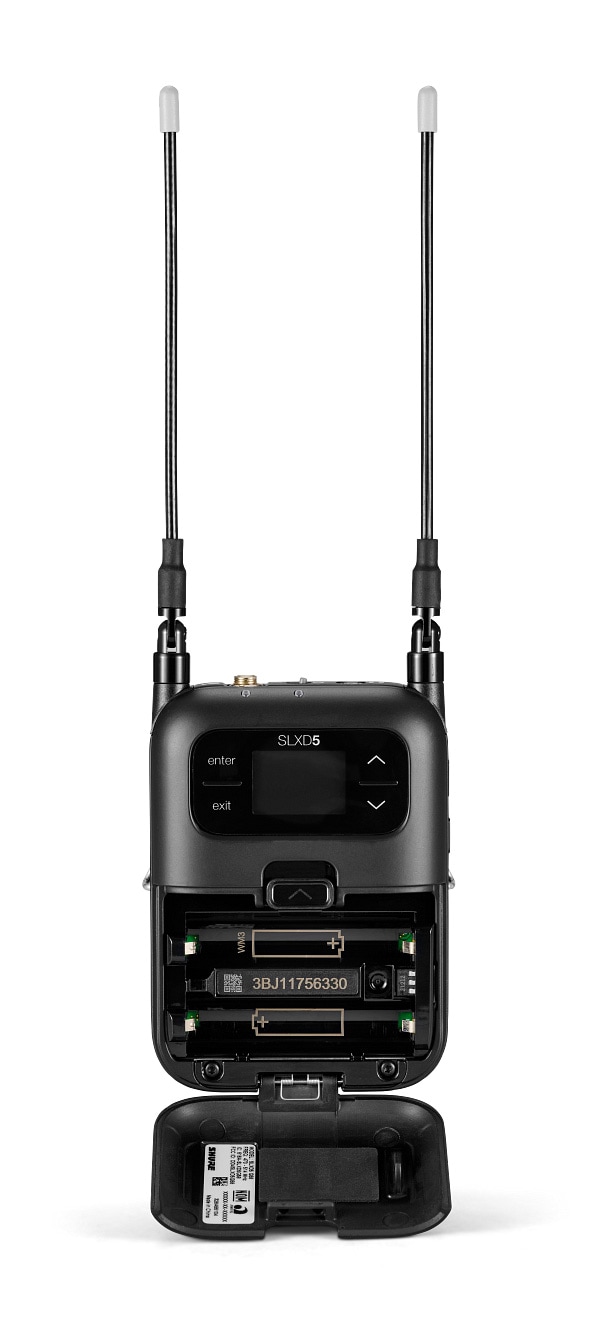

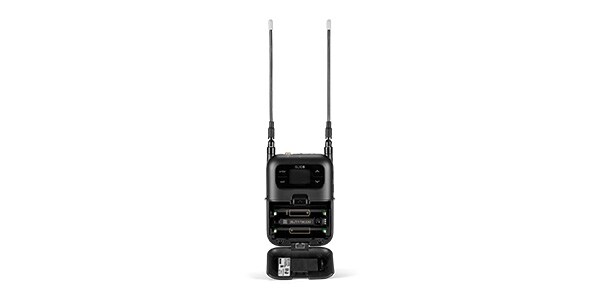

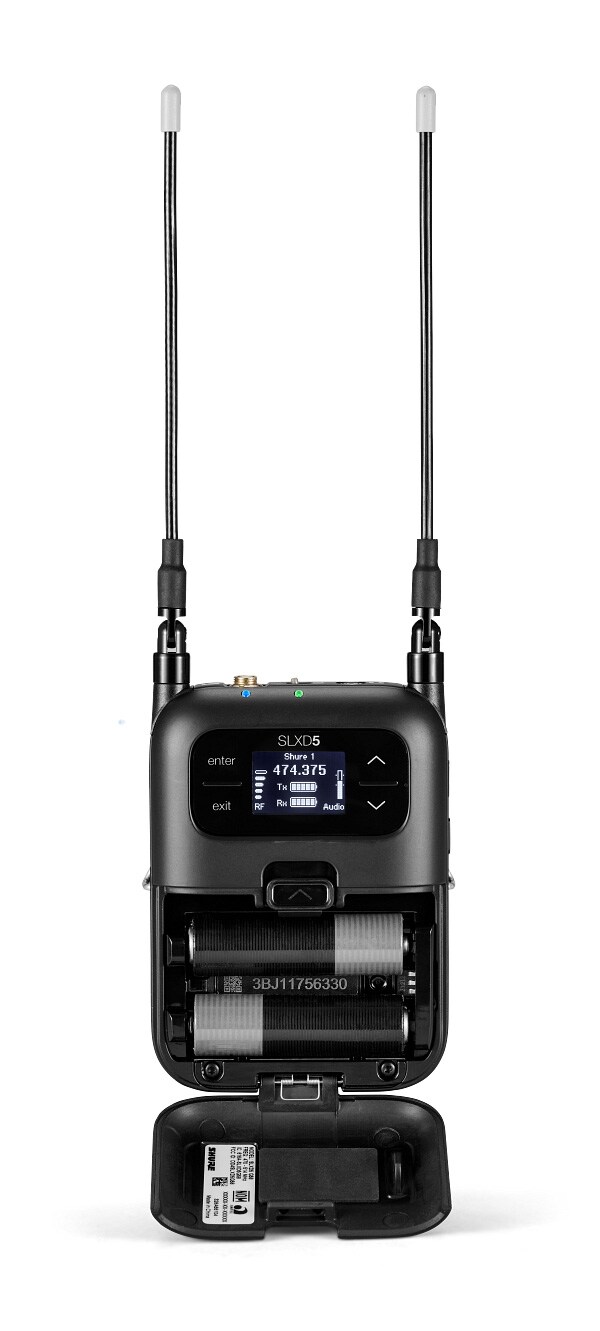

　 - Batteries: AA alkaline batteries x 2, or dedicated lithium-ion rechargeable battery SB903

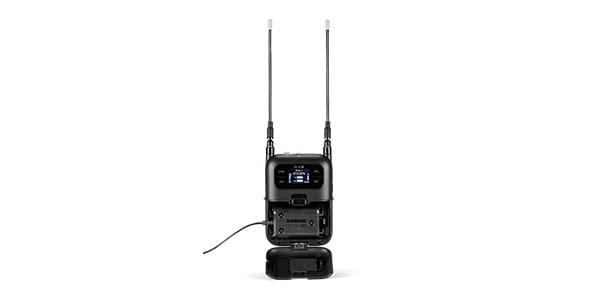

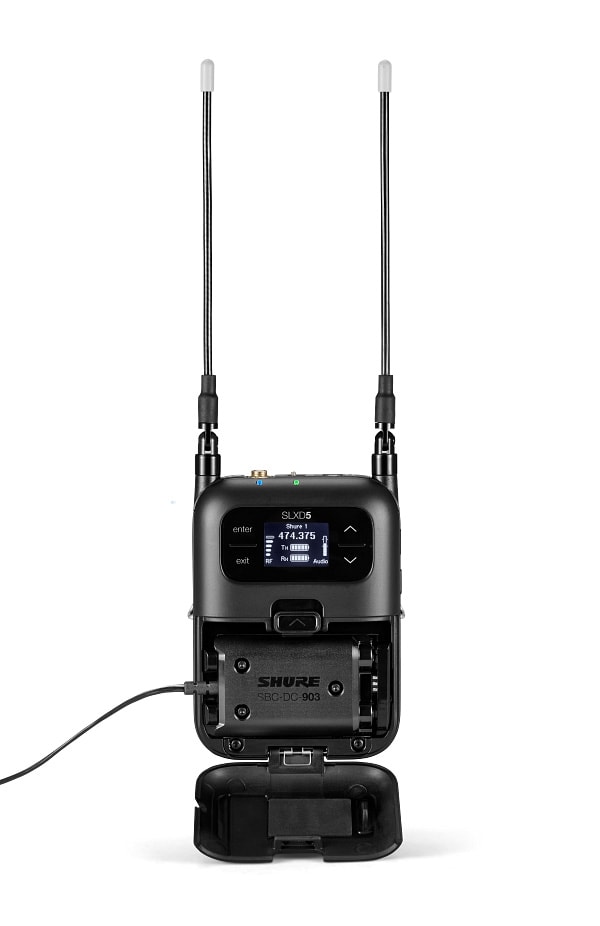

　 - AC adapter: SBC-DC-903 battery eliminator or 5 VDC supply via USB-C

Inputs
　 - Spurious Rejection: >75 dB typical
　 - Impedance: 50 Ω
　 - Phantom power protection: Supported
　 - Antenna Type: Quarter-wave whip

Audio Output
　 - Frequency Response: 20 Hz to 20 kHz
　 - Connector Type: 2 x 3.5 mm mini plugs

Audio Output Frequency Response: 20 Hz to 20 kHz Connector Type　
　 - Balanced mono: Tip audio [+], Ring audio [?] and sleeve [ground].
　 - Dual mono: Tip audio [left], Ring audio [right], Sleeve [ground].

Impedance (camera)
　 - Balanced mono (line): 450 Ω
　 - Balanced mono (mic): 240 ohms
　 - Dual mono (line): 400 ohms
　 - Dual mono (mic): 200 ohms

Full Scale Output　
　 - Camera (balanced line): 15 dBV
　 - Headphone: 13 mW @ 64 Ω load

SLXD5 portable receiver x 1
Pouch x 1
WA311 cold shoe mount x1
3.5mm to 3.5mm cable x1
3.5mm to XLR cable (male) x1
AA alkaline batteries x 2

Country of origin: China
