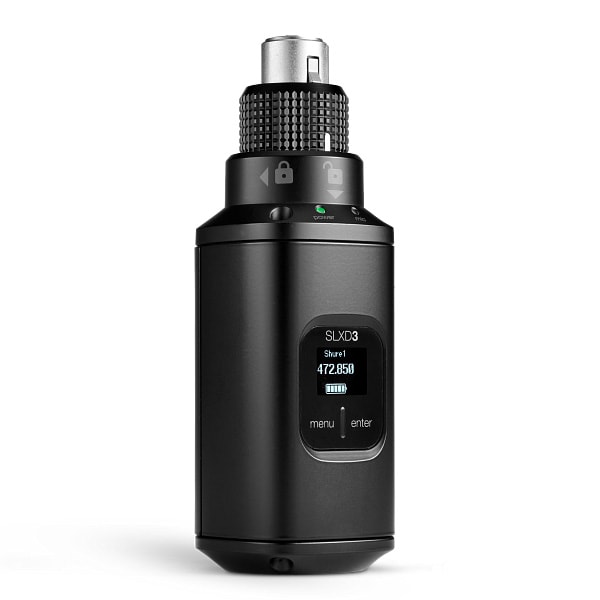

SHURE / SLXD3 Plug-on Digital Wireless Transmitter

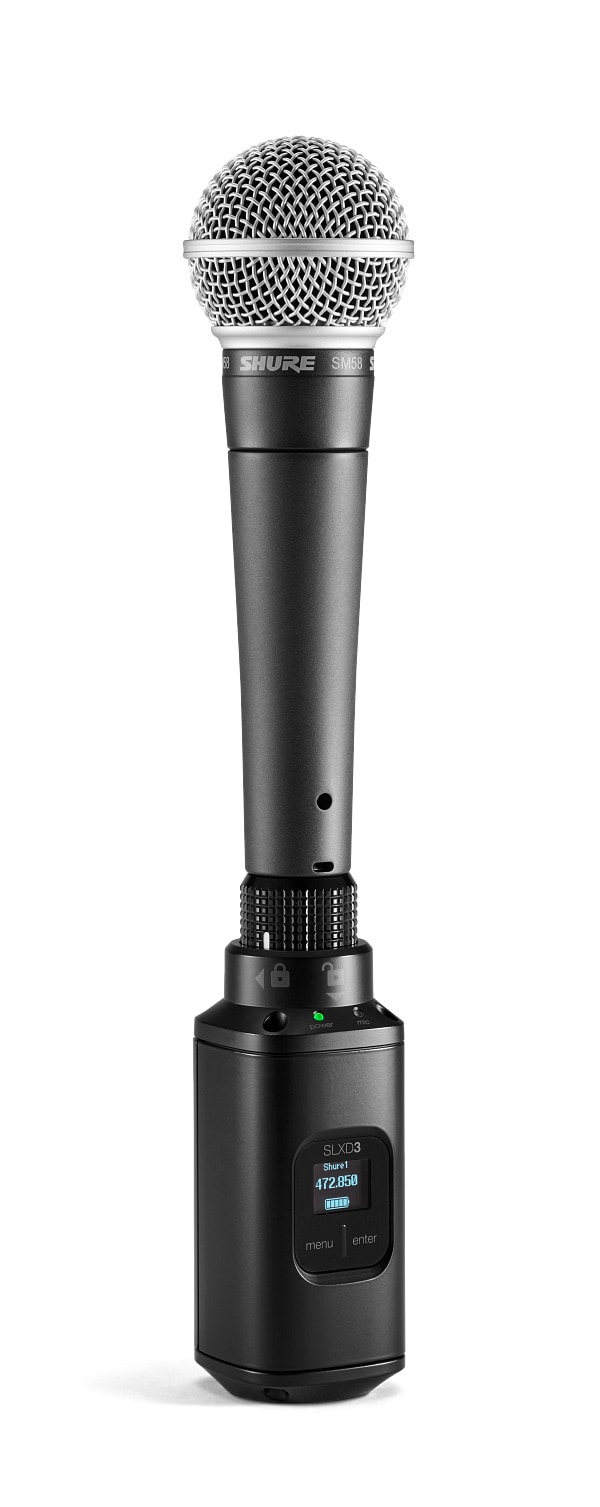

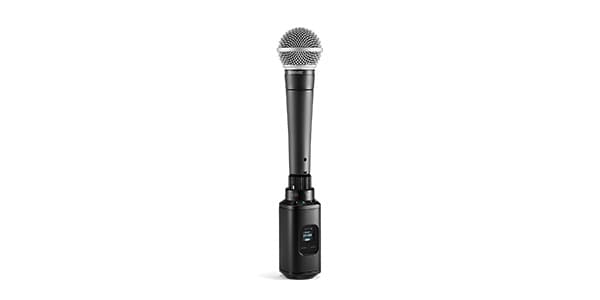

Plug-on digital wireless transmitter that converts any XLR source, including dynamic and condenser microphones, into an SLX-D wireless system.

The SLX-D plug-on digital wireless transmitter converts any XLR source, including dynamic and condenser microphones, into an SLX-D wireless system.
The SLXD3 features a patented locking connector that prevents disconnection. With robust RF performance, it transmits clear, stable 24-bit digital audio to SLX-D receivers (SLXD4, SLXD5).
Quick and easy pairing of the transmitter to the SLX-D wireless receiver using infrared sync.

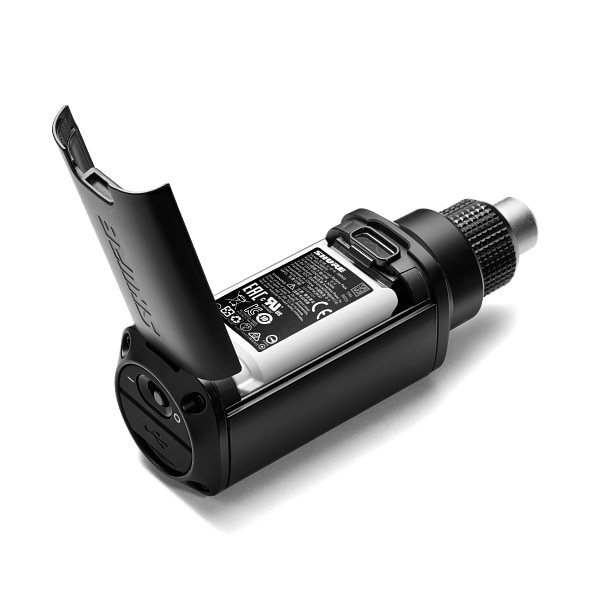

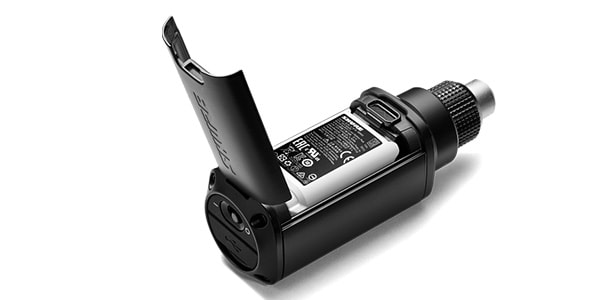

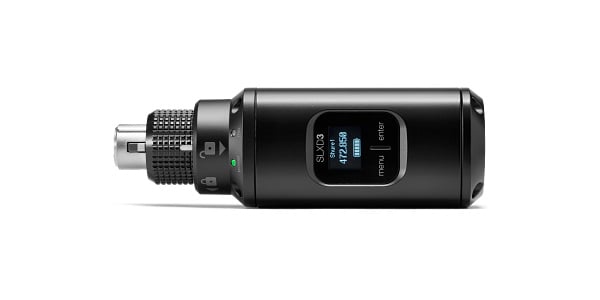

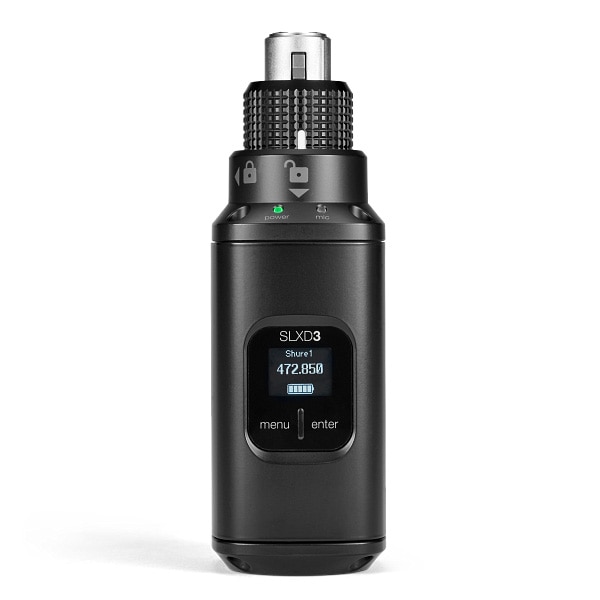

Highly visible, easy-to-operate OLED screen displays key system statuses such as battery level and transmit frequency. With the optional SB903 lithium-ion rechargeable battery, the remaining battery life is displayed in minutes on the highly visible OLED screen for an easy-to-use and reliable wireless system.

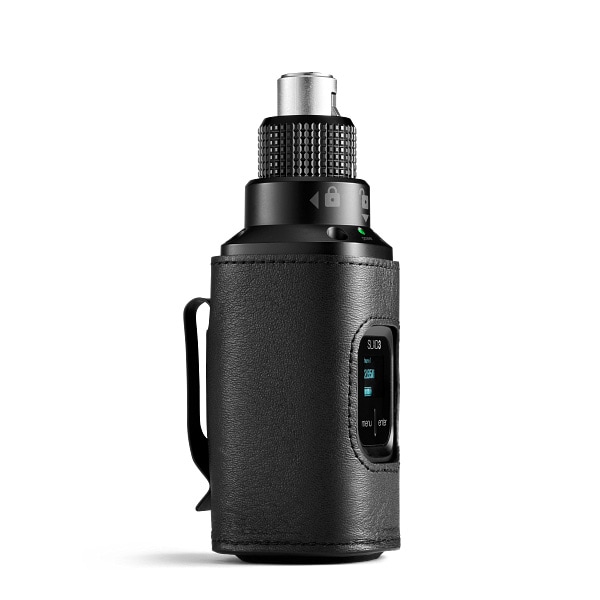

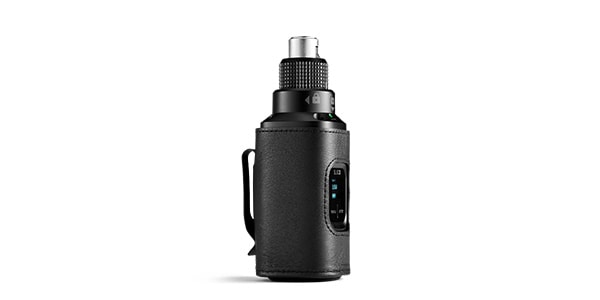

Includes SLXD3 plug-on transmitter, 2 AA alkaline batteries, protective sleeve with leather belt clip, and zippered pouch.

＜Features

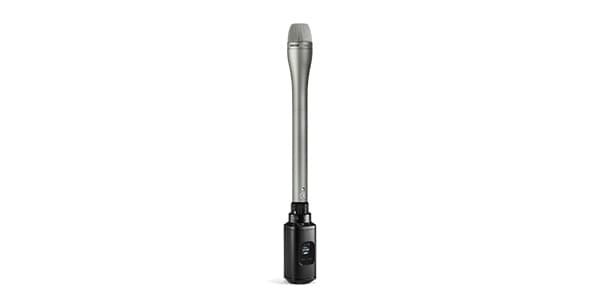

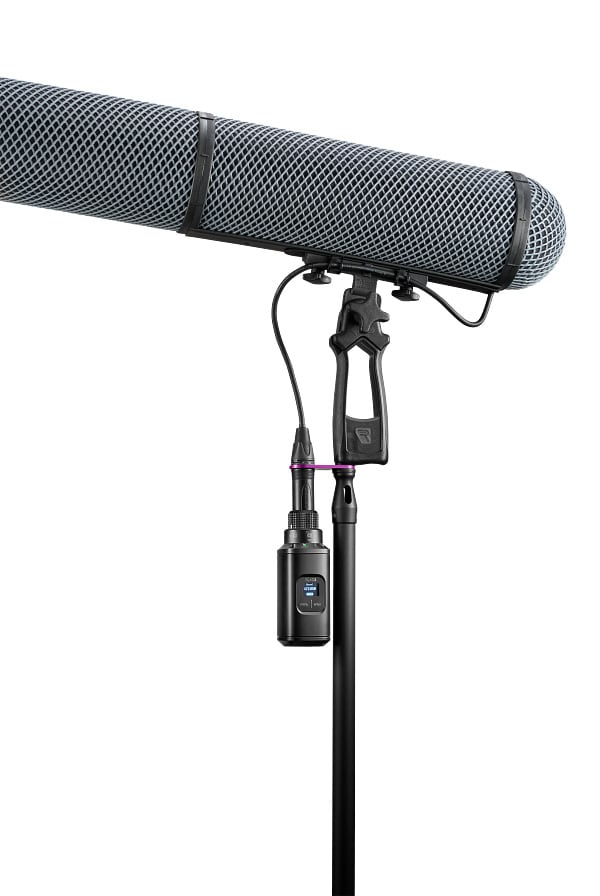

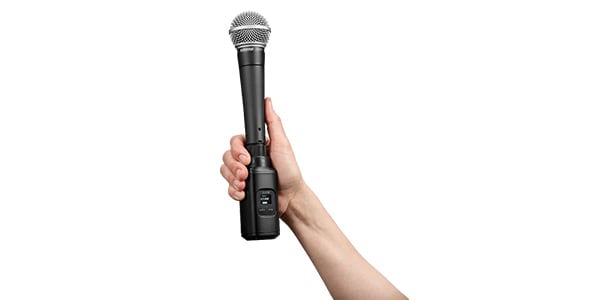

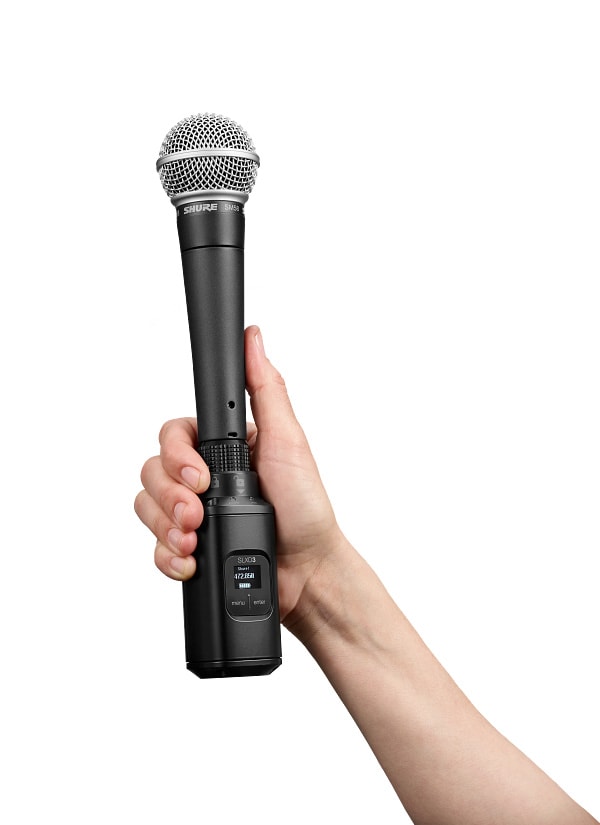

Converts any XLR source for use with the SLX-D wireless system

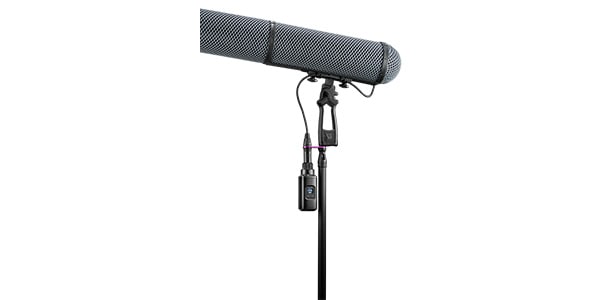

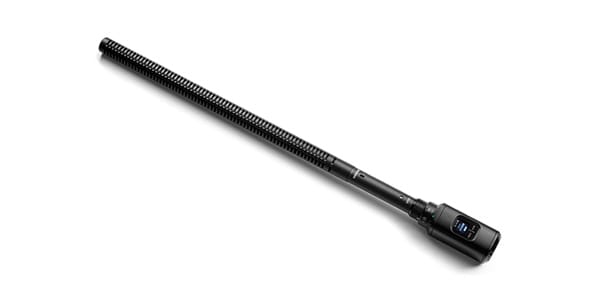

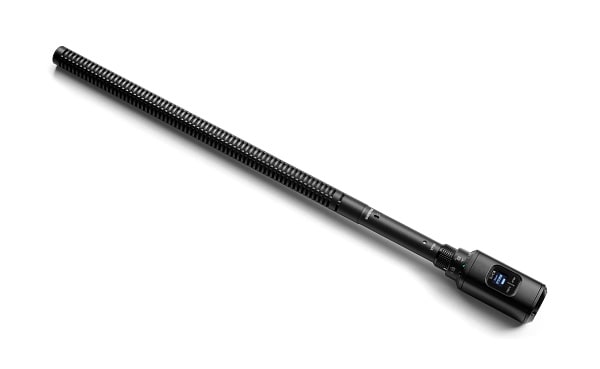

Phantom power (+12/+48V) for use with condenser microphones

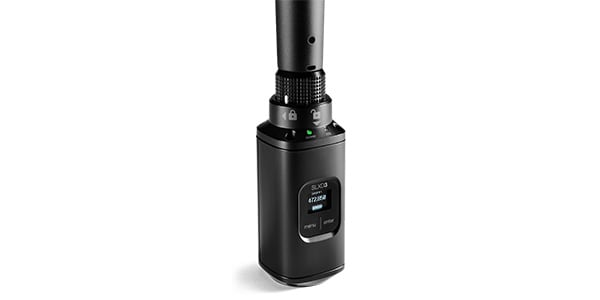

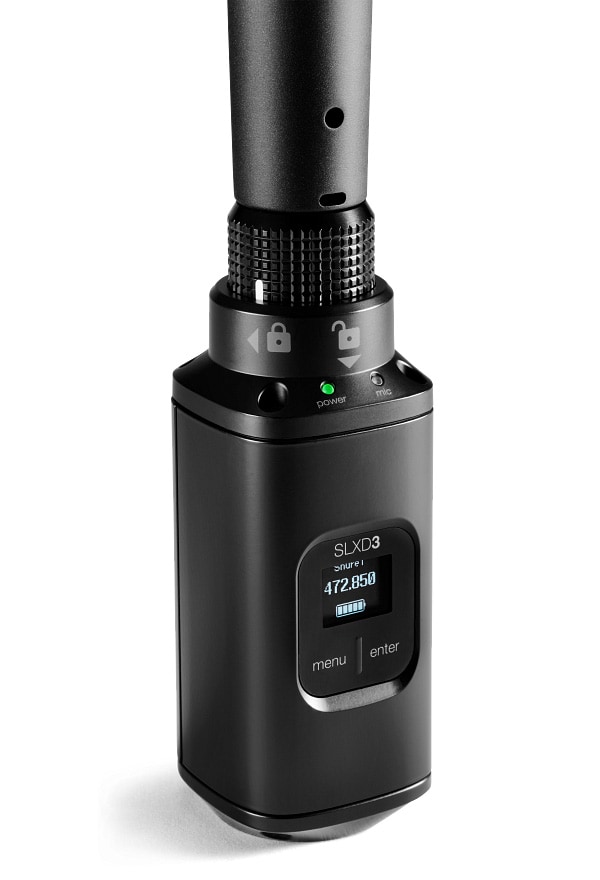

Patented locking XLR connectors with anti-disconnect feature
Clear 24-bit digital audio
Wide frequency range of 20 Hz to 20 kHz (depending on microphone)
Wide dynamic range of 118 dB
Digital Predictive Switching Diversity
Output switching: B-band = 1/10 mW (depending on region and bandwidth)
Up to 10 channels in B-band for simultaneous use (Japan)
RF scanning and infrared sync for easy pairing between transmitter and receiver

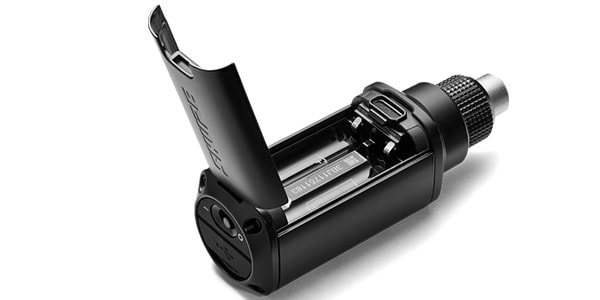

Up to 8 hours of continuous use with AA alkaline batteries (included) or Shure SB903 rechargeable batteries (sold separately)
Rugged metal chassis

＜Rugged metal chassis

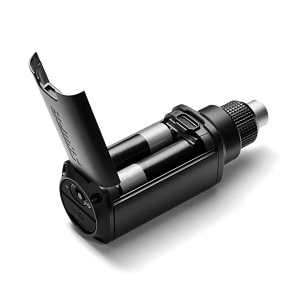

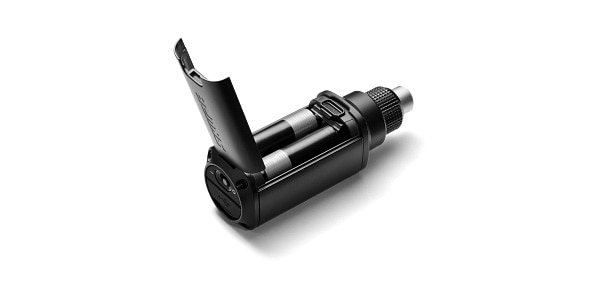

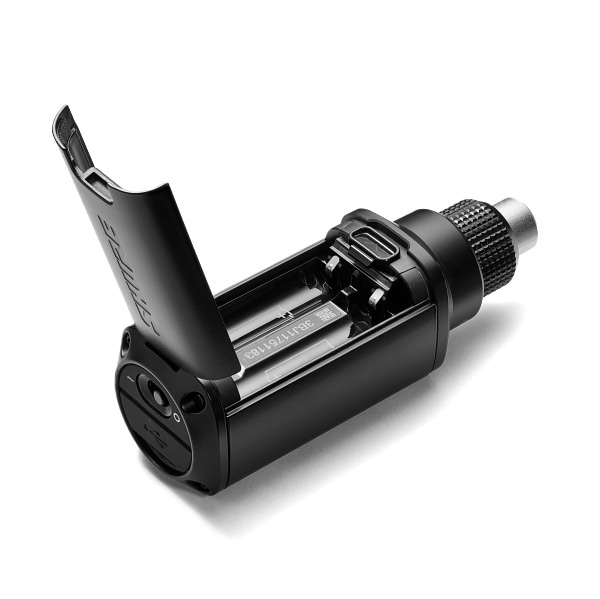

Battery type AA alkaline batteries x 2 or dedicated lithium-ion rechargeable battery SB903
Dimensions Height 126 × Width 41 × Depth 41 mm
Weight 200 g (excluding batteries)
Exterior Aluminum, zinc alloy, polycarbonate/ABS resin
Connector XLR
Maximum input level　
　 - 1 kHz @ 1% THDPad -12 dB: 20.5 dBV
　 - 0 dB: 8.5 dBV

Boost
　 - +12 dB: -3.5 dBV Note: Depends on microphone type

Phantom power
　 - +48 V (7 mA max.)
　 - 12 V (15 mA max.)

Transmit Output
　 - Antenna type Bipole
　 - Occupied bandwidth <200 kHz
　 - Modulation Shure proprietary digital modulation
　 - Transmit power 1 mW/10 mW

＜Contents
SLXD3 Plug-on Transmitter x 1
Pouch x 1
Belt clip x 1
AA alkaline batteries x 2

Country of origin: China
