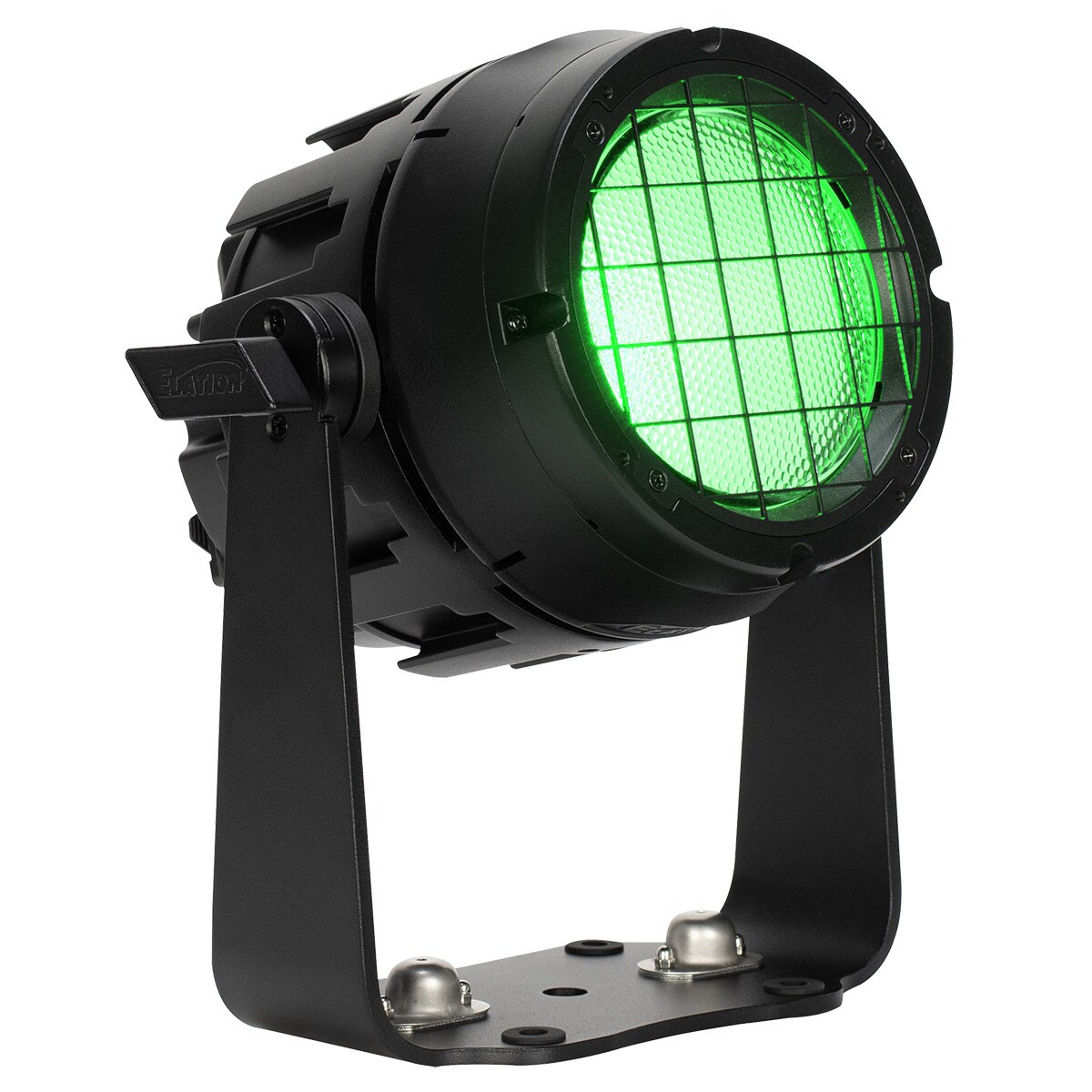

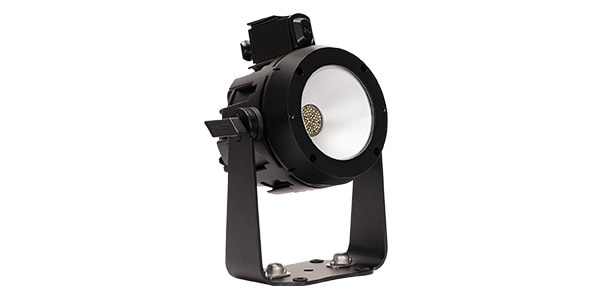

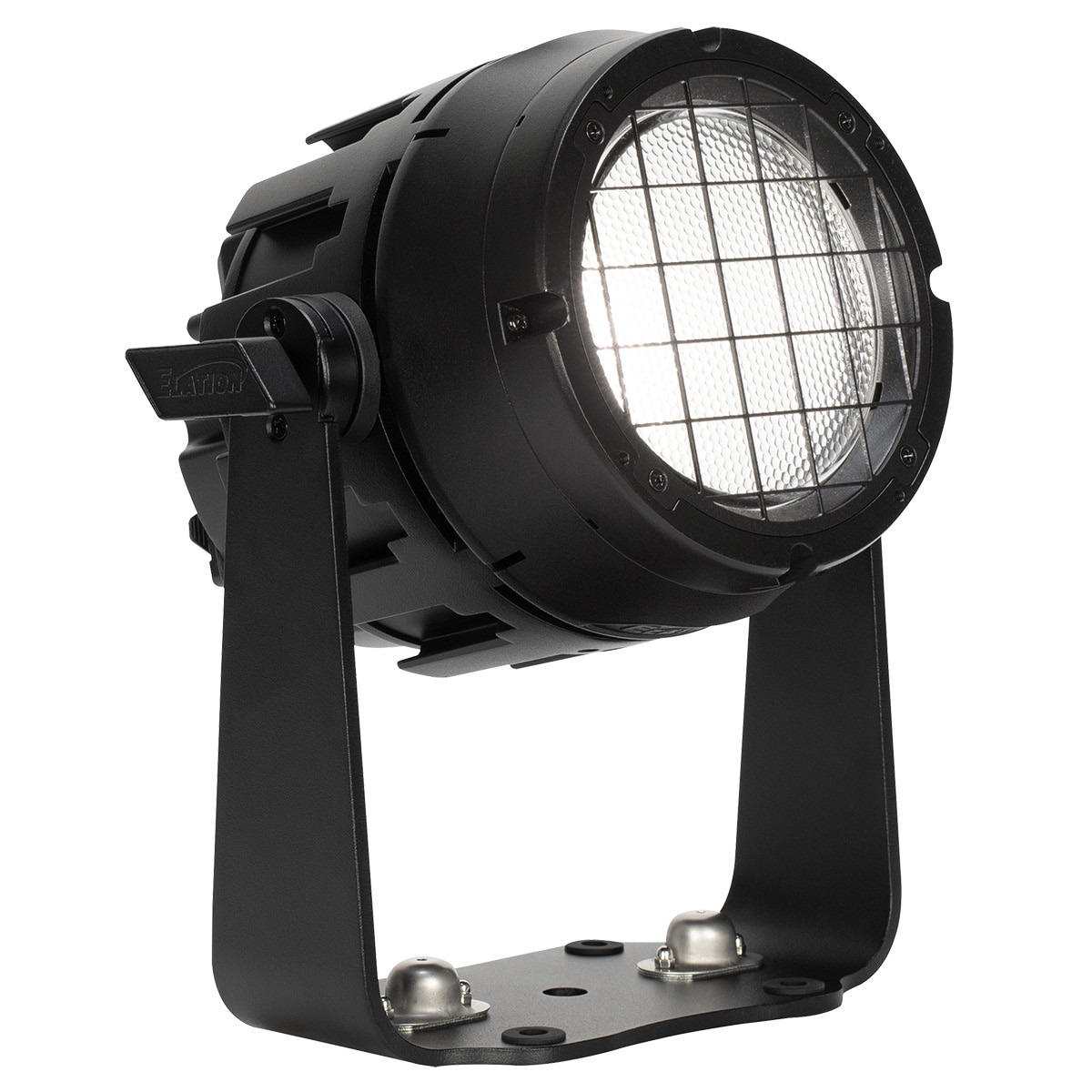

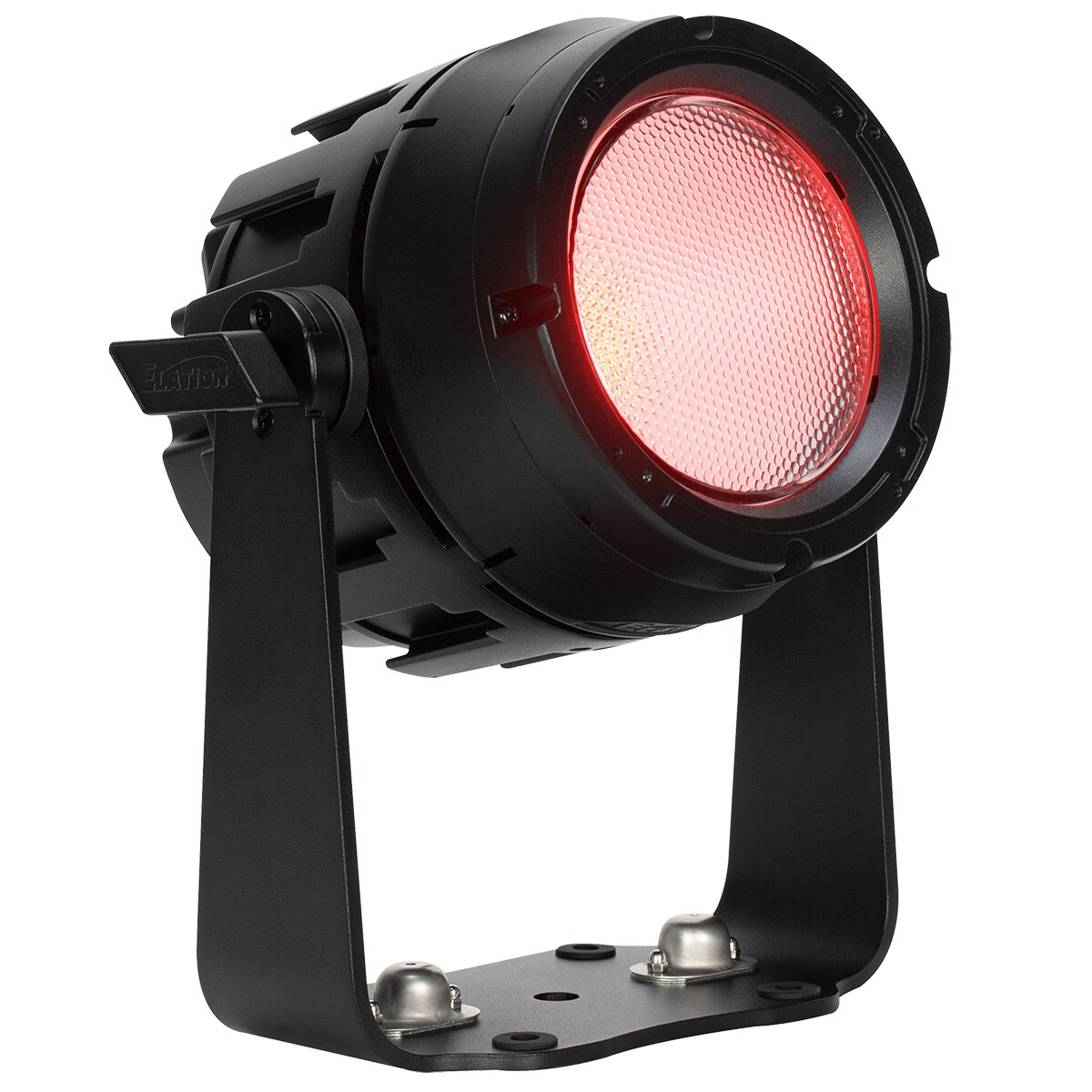

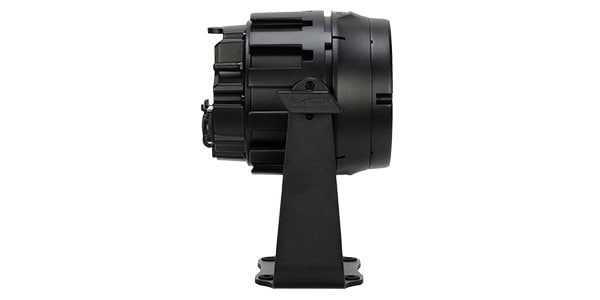

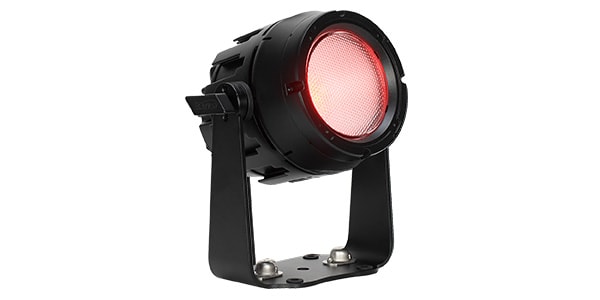

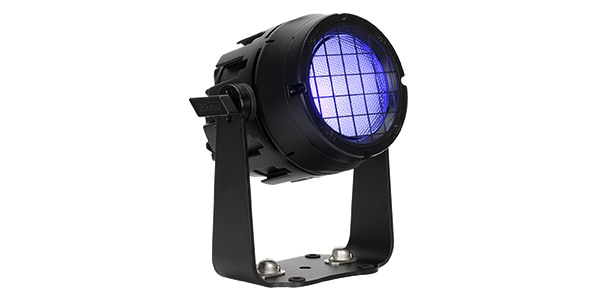

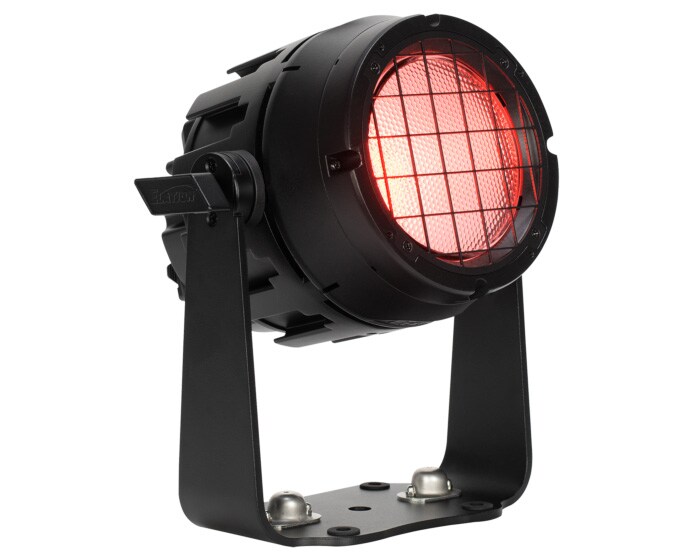

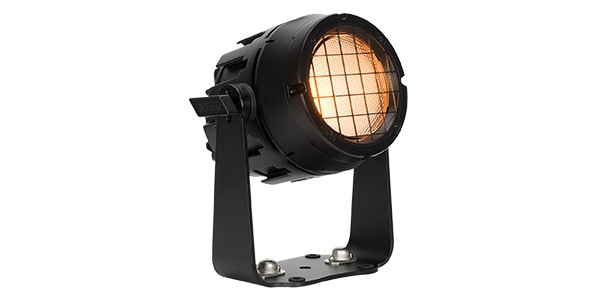

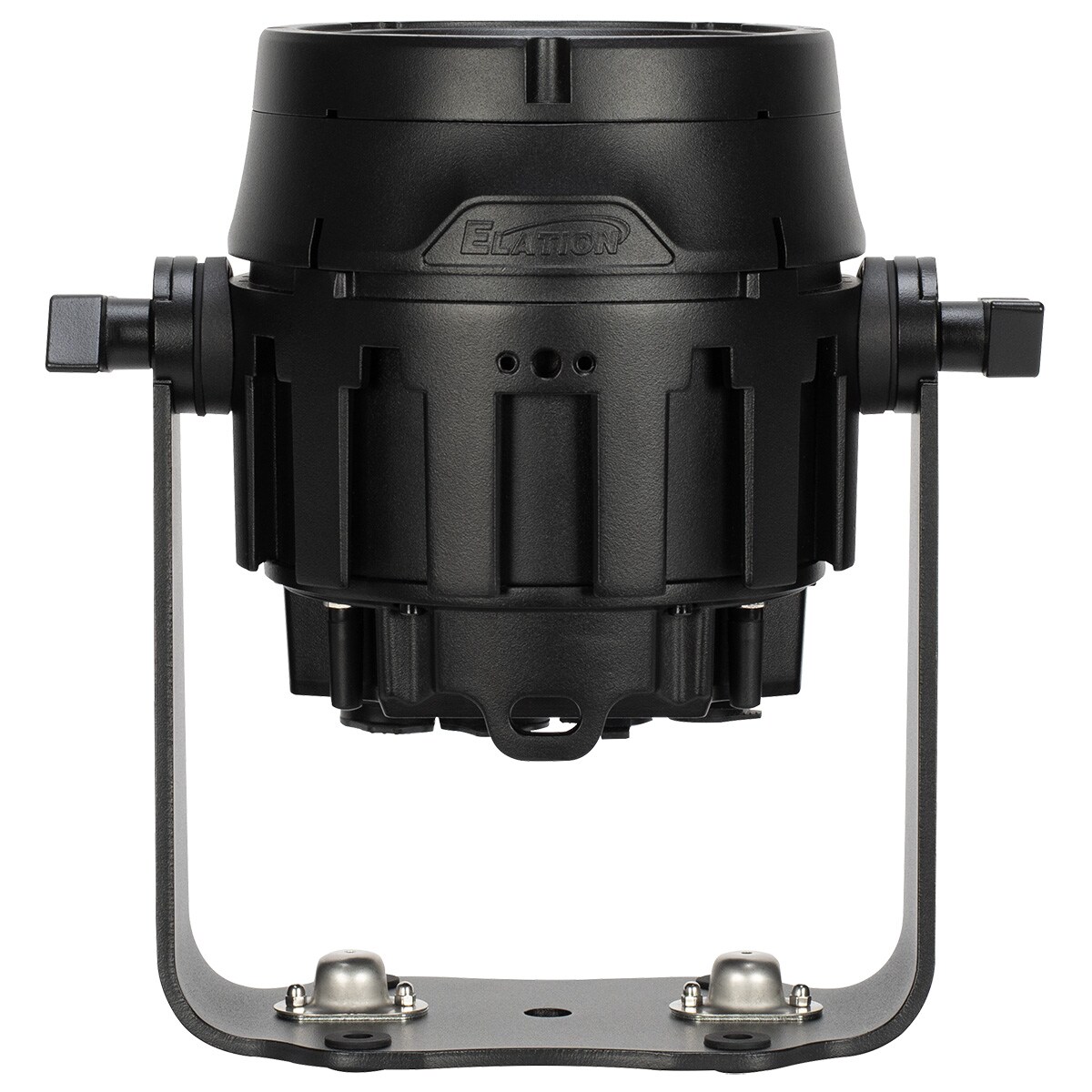

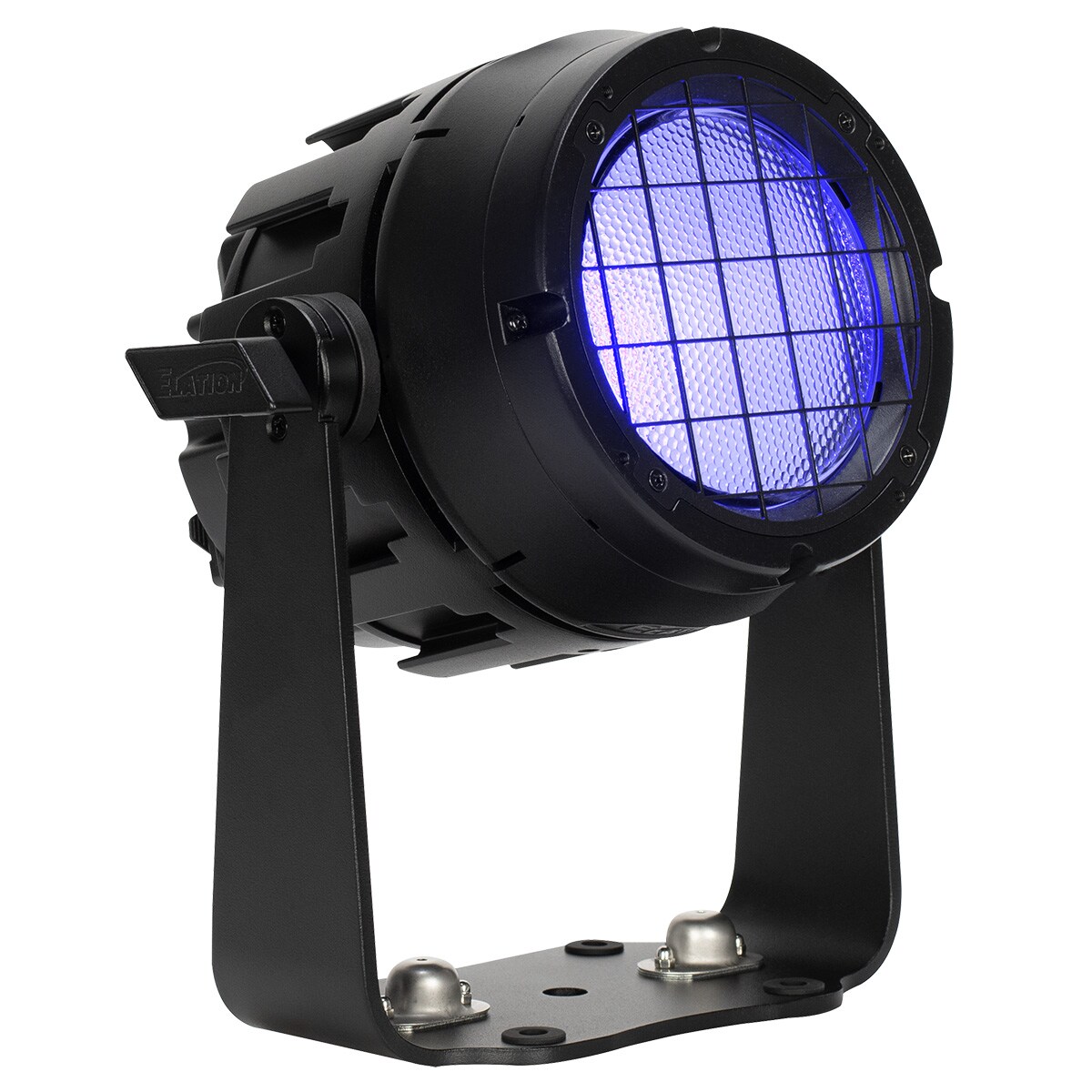

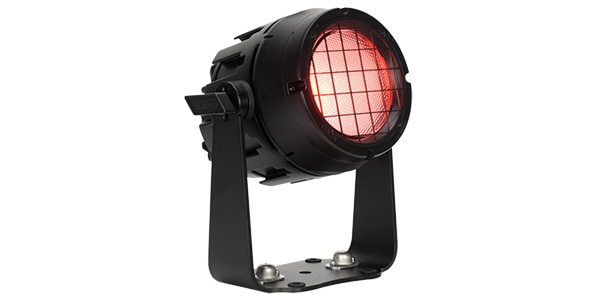

ELATION / SOL001

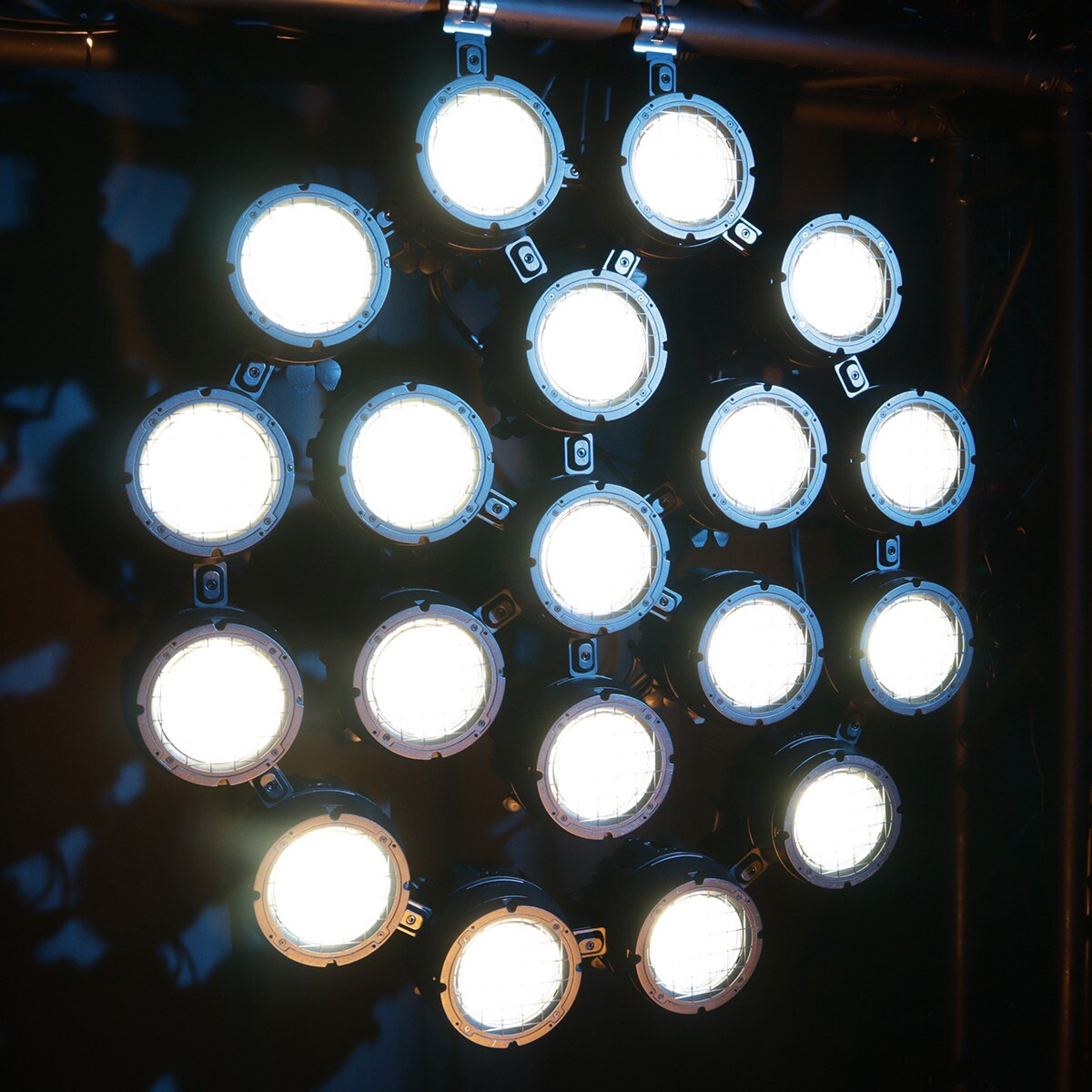

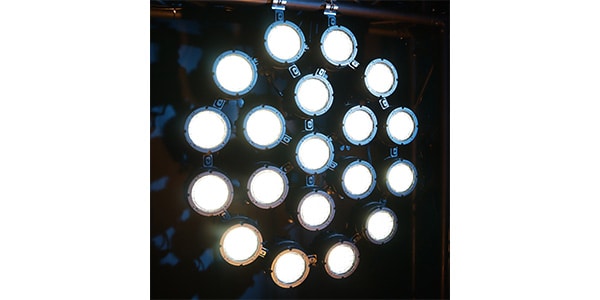

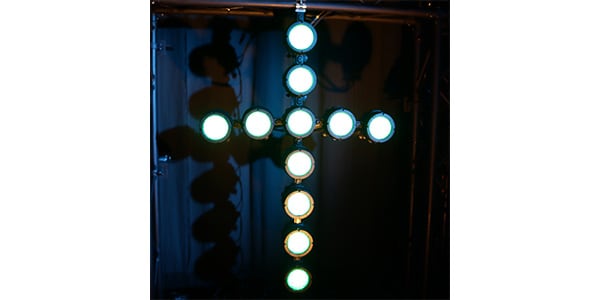

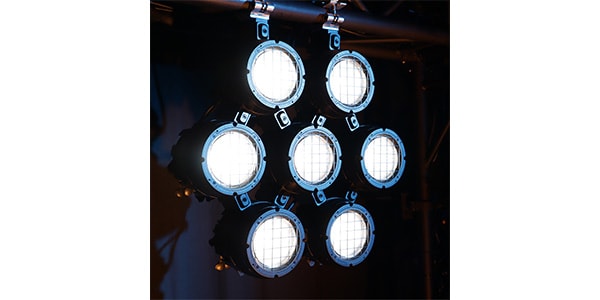

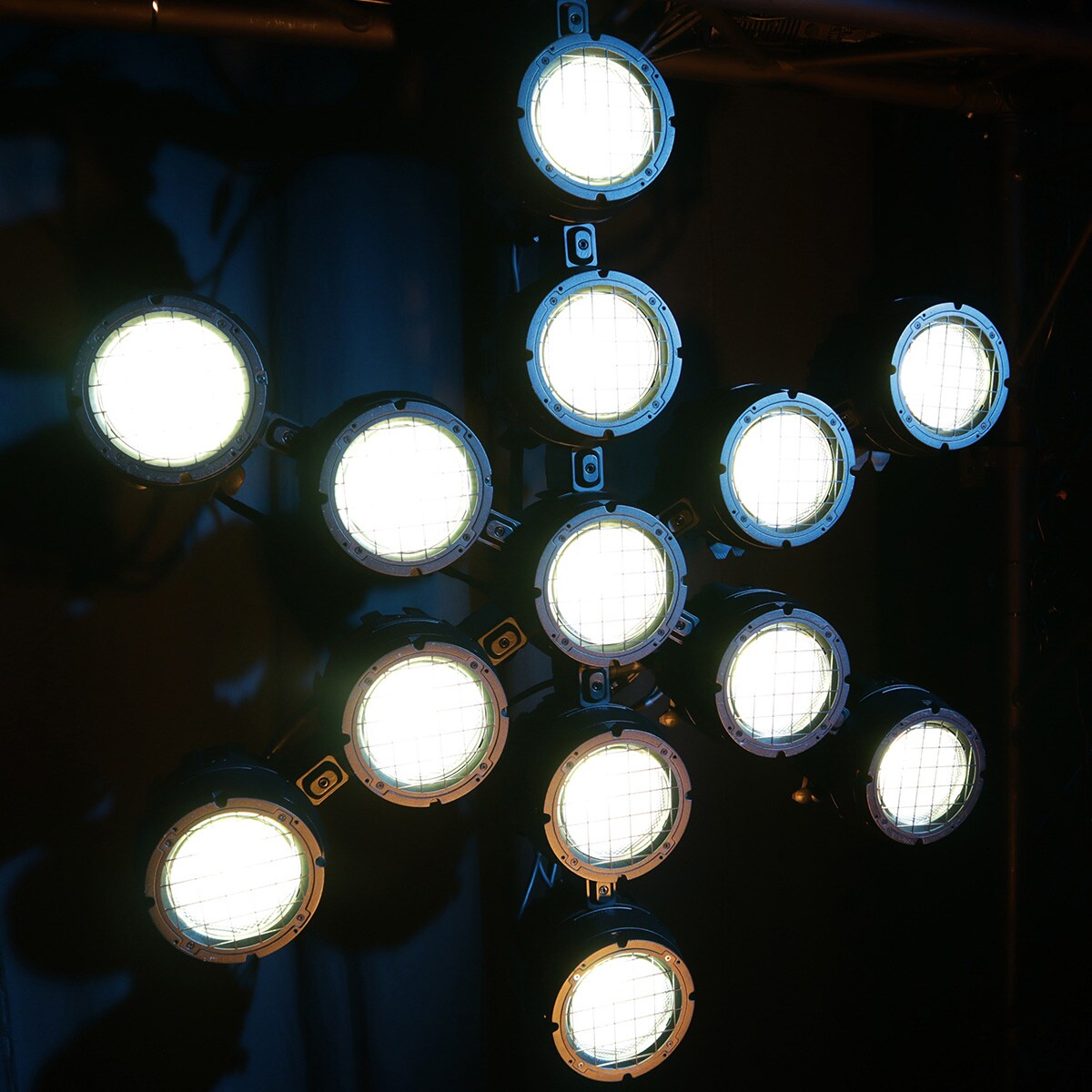

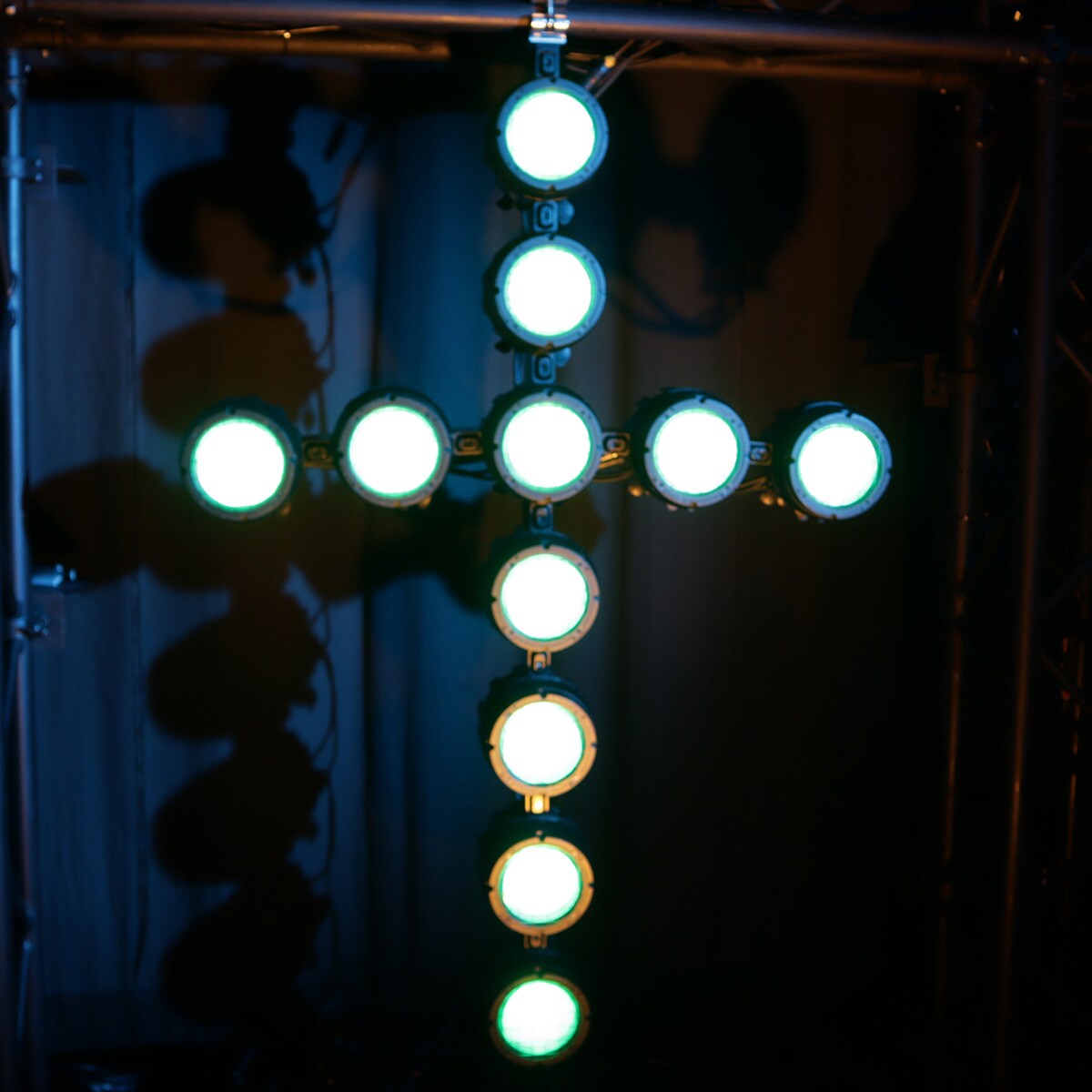

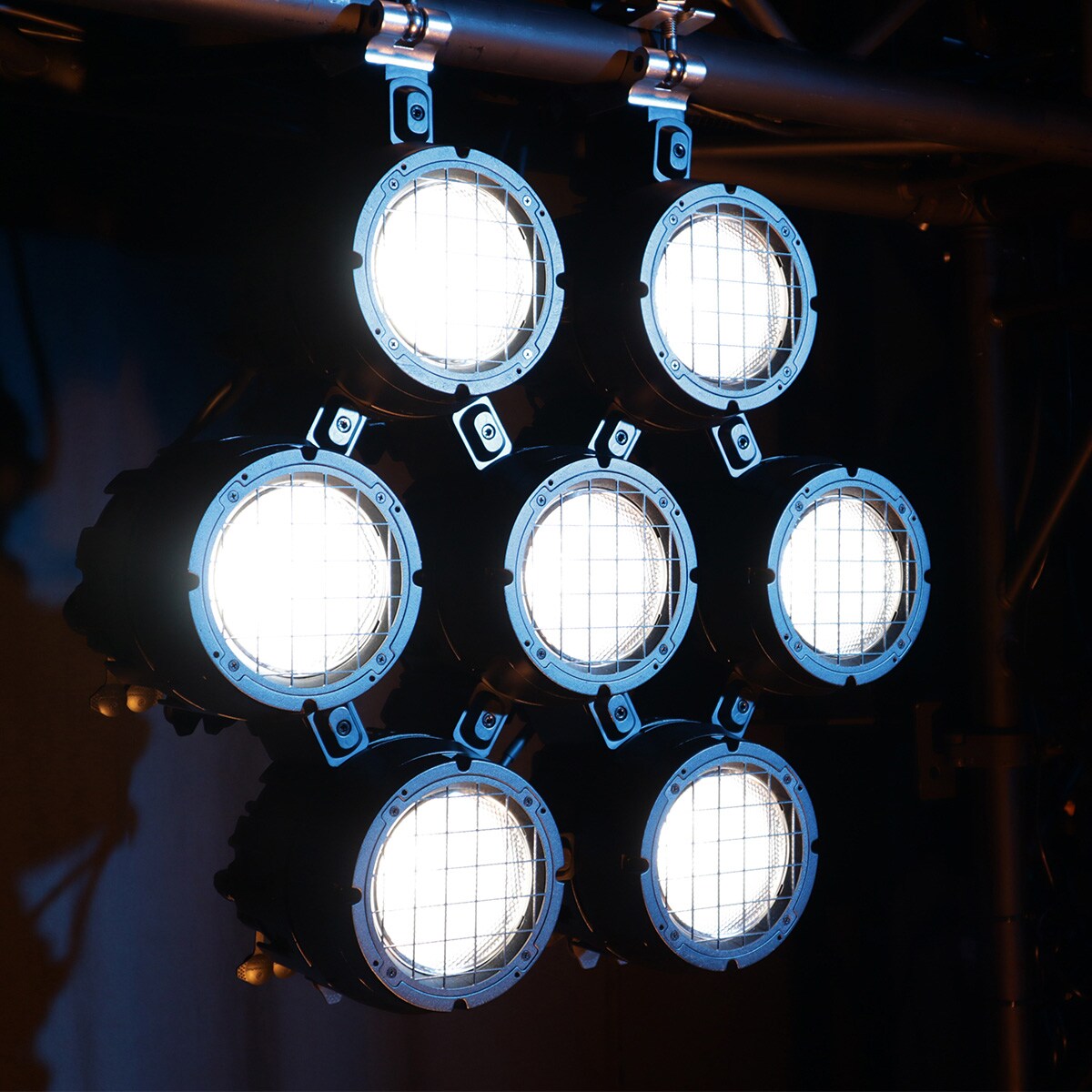

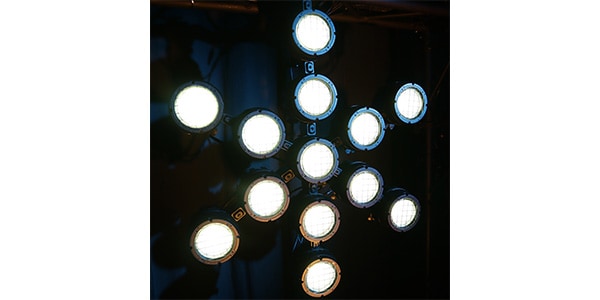

ELATION's IP65 compliant blinder. Equipped with a 250W RGB+Lime+Amber+White LED engine, it achieves high quality color reproduction with 93+ CRI. The ingenious modular design and various mounting options allow you to create a unique visual for each performance or event.

■Light source

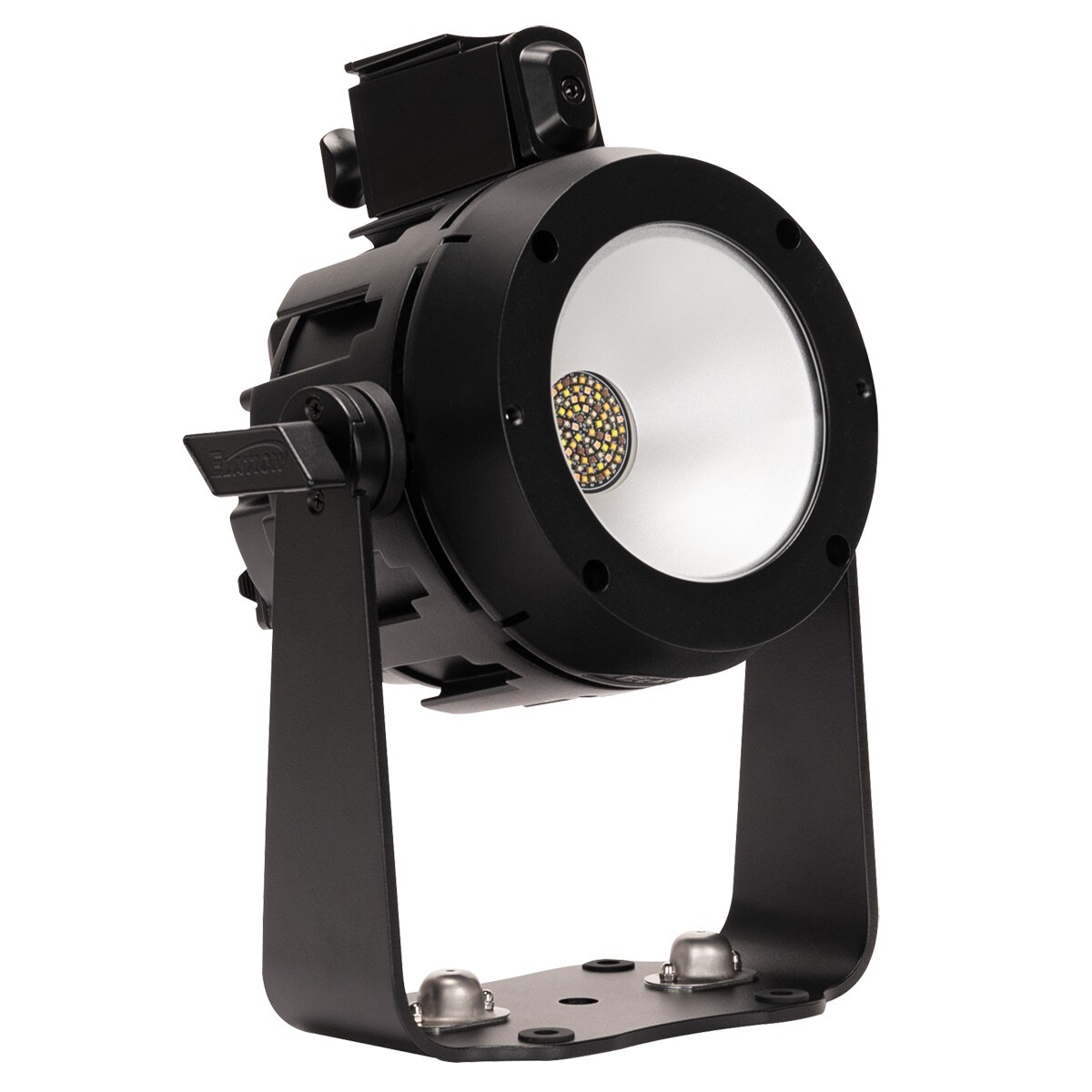

- 250W RGBLAW LED
- Average 30,000 hour LED lifespan*
*Lifespan may vary depending on the following factors:
Environmental conditions, power supply/voltage, usage pattern (on/off frequency), control and dimming settings

■Optical data
Total lumen output
- 9128 (integrating sphere measurement)

■When using compound lenses
- Beam angle: 46°
- Field angle: 85°

■No lens
- Beam angle: 52°
- Field angle: 95°

■Effect
- Variable strobe speed: 1~20Hz
- Dim-to-warm emulation
- Variable 16bit dimming mode & dimming curve
- High power blinder mode or constant power mode selectable

■Color
- RGBLAW color layout
- CMY emulation
- Variable color temperature: 1800K to 8500K
- Virtual gel swatch book

■Control/Connection
- 12 DMX channel modes (1ch, 2ch, 3ch, 4ch, 6ch, 7ch, 13ch, 21ch, 10ch, 15ch, 10ch & 15ch)
- Simple ""array mode"" addressing system
- Manual and DMX dimming and color control

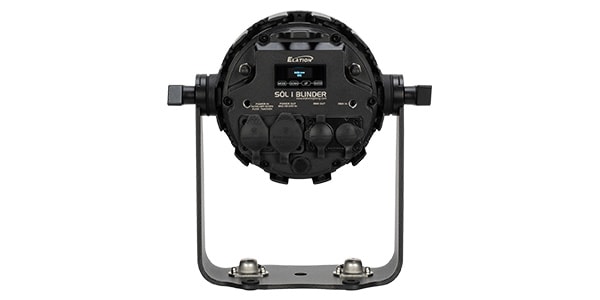

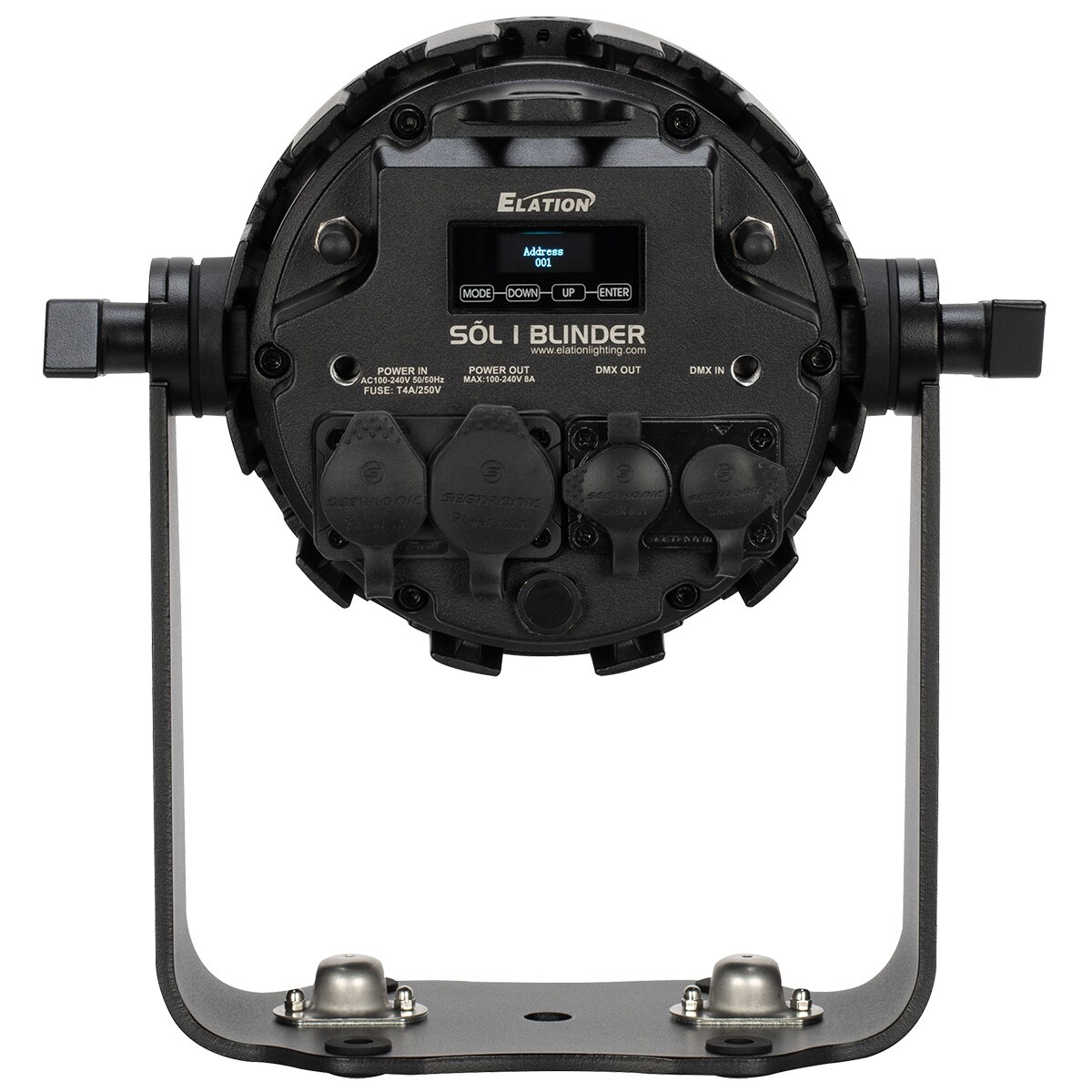

- 4-button operation panel & LED display
- Aria x2 wireless device management features
- Supports RDM (Remote Device Management)
- 5 pin DMX and IP65 locking power cable in/out

■Size/Weight (without accessories)
- Length: 185mm
- Width: 114mm
- Height: 114mm
- Body weight: 2.9kg
- Weight with floor stand/yoke: 9.25 lbs 4.2 kg

■Electrical/thermal characteristics
- Voltage: AC 100V 50/60Hz
- Maximum power consumption: 285W
- Power connection capacity: 8A
- Operating temperature range: 5°F to 113°F (-15°C to 45°C)
- Calorific value (±10%): 972 BTU/hr

■Accessories

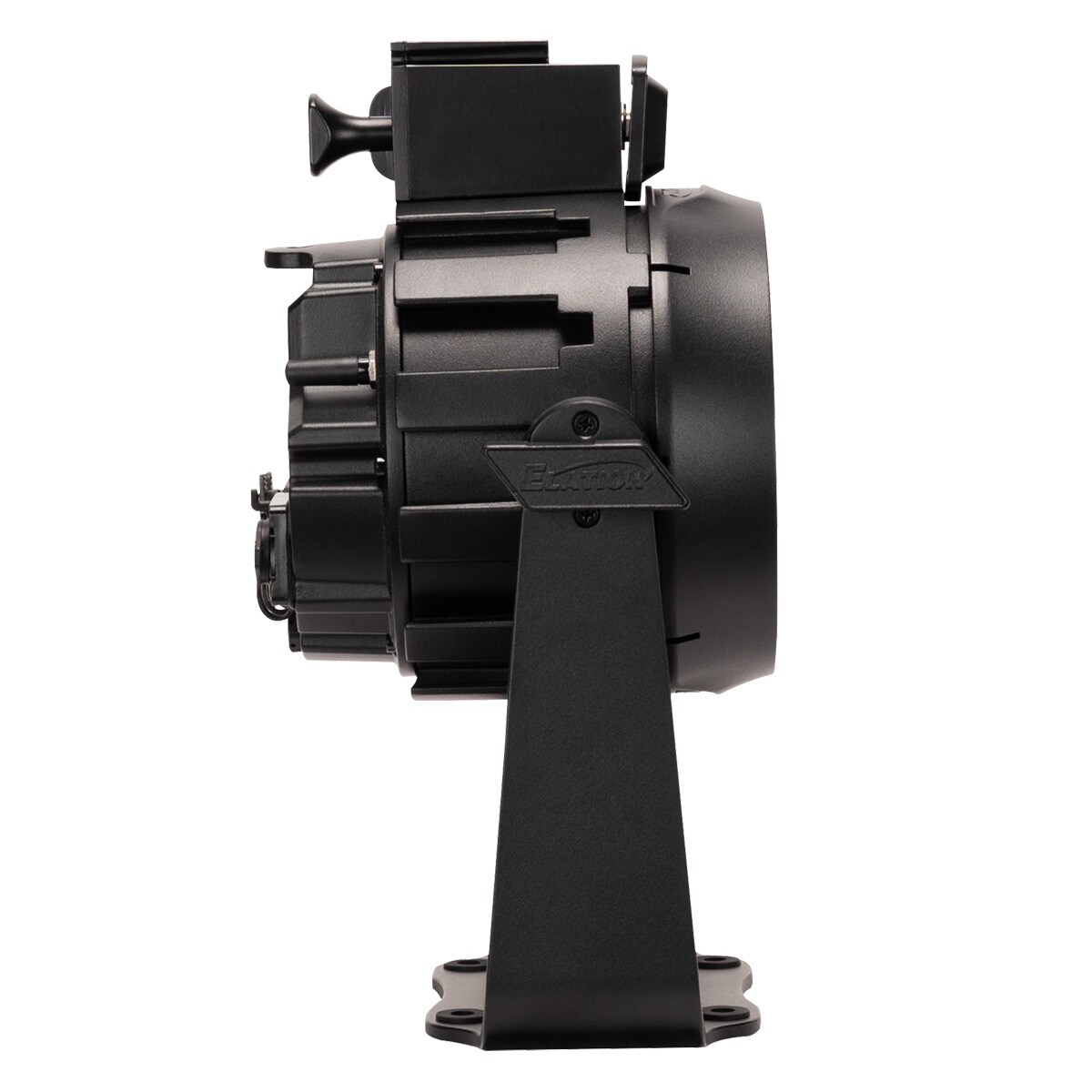

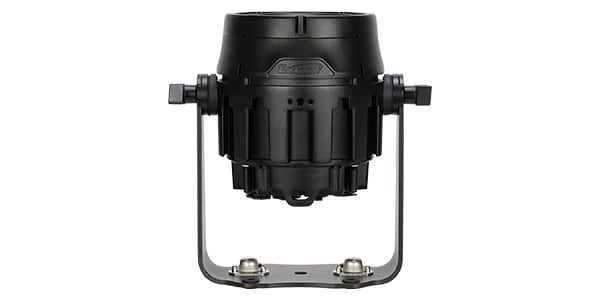

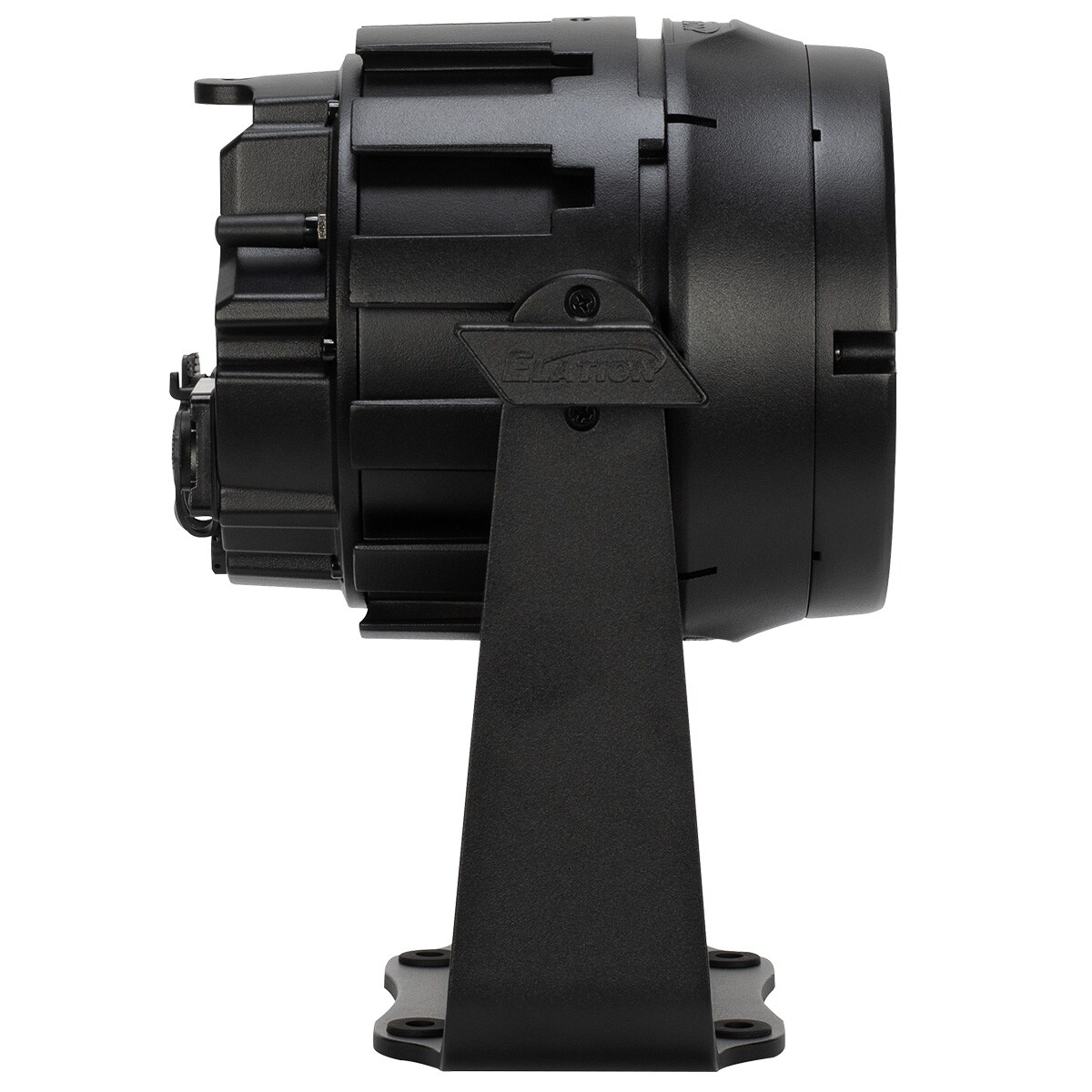

- Fixture yoke / floor stand

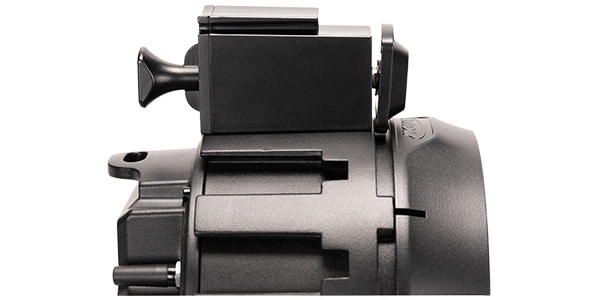

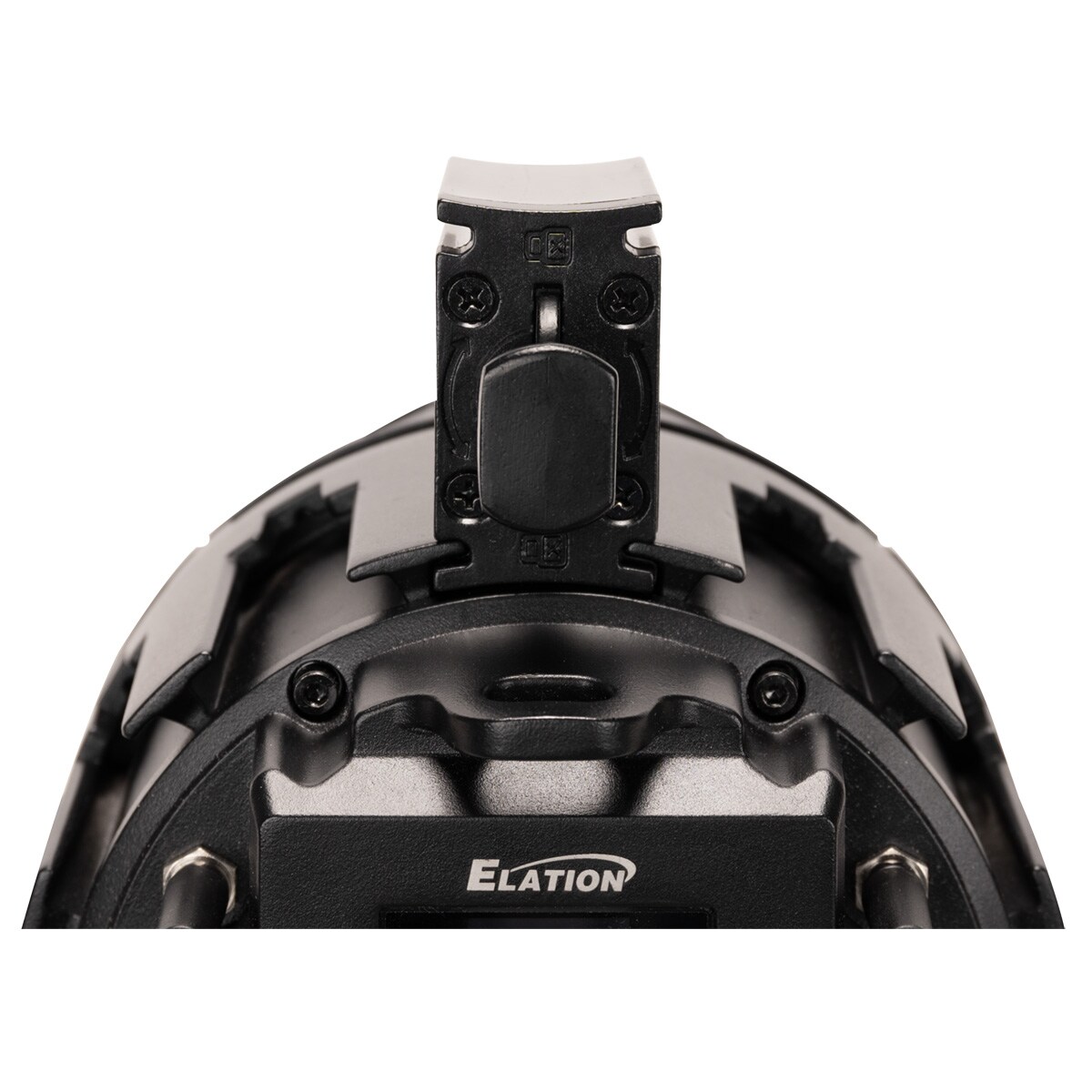

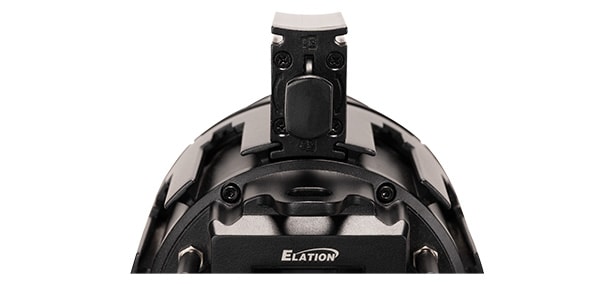

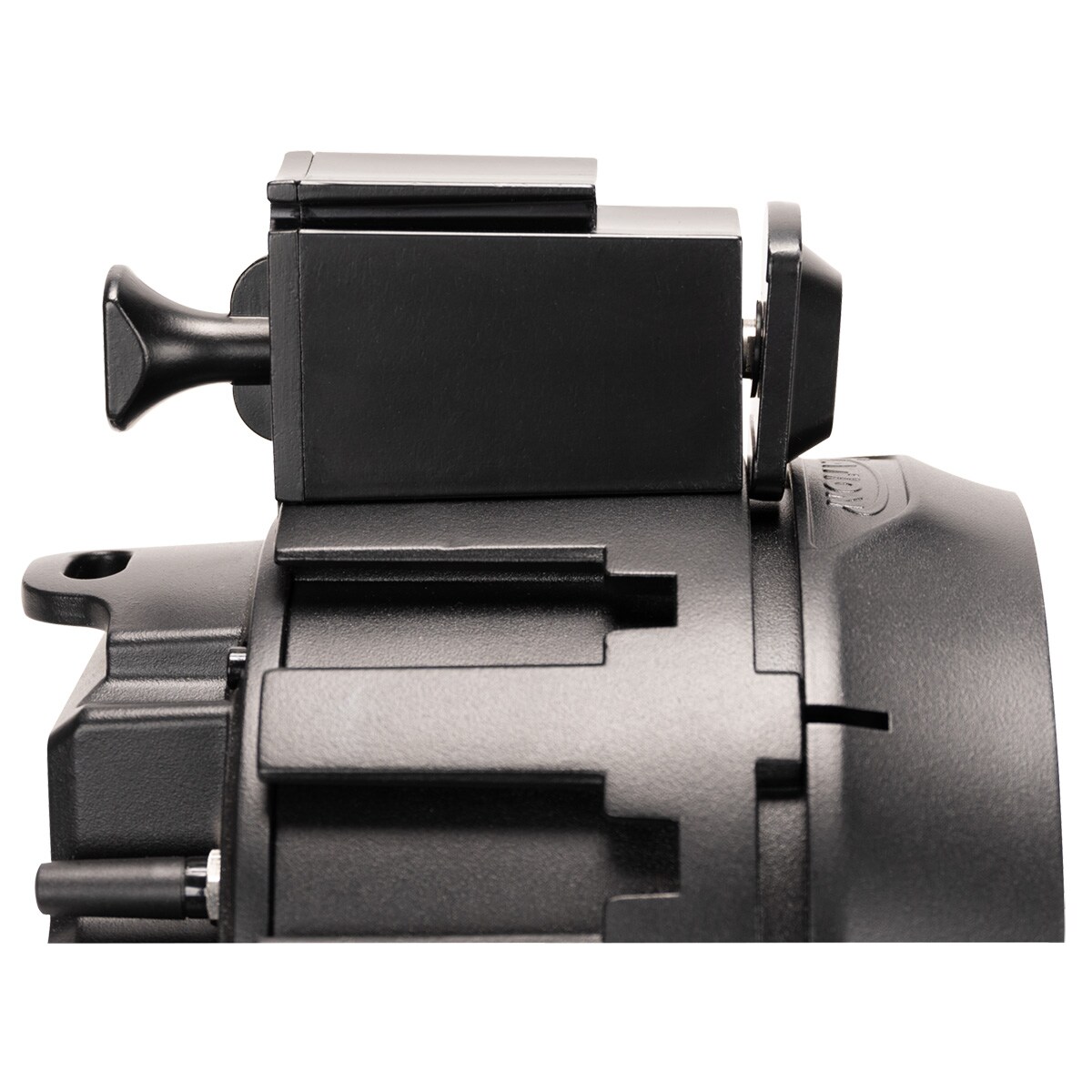

- Fixture interconnect adapter
- Safety cable
- IP65 locking power cable
