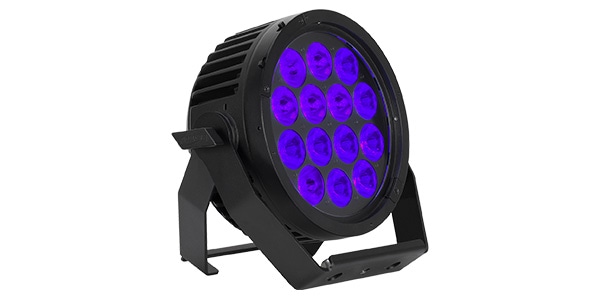

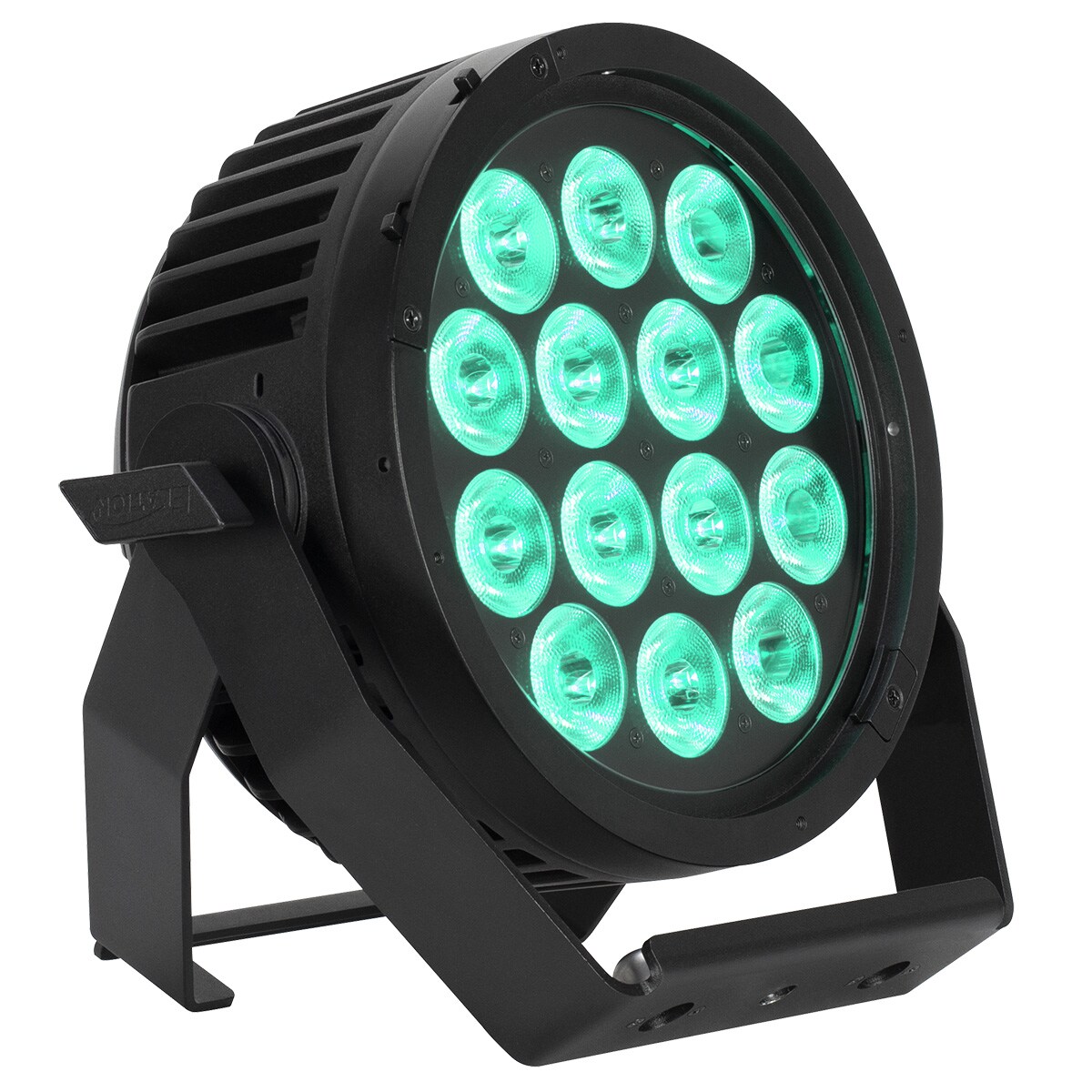

ELATION / SIX+ PAR L

ELATION IP65-compliant LED par light with 14 20W RGBLA+UV LEDs. Fanless design allows for quiet operation and installation in noise-sensitive environments. Ideal for use in a variety of settings including theaters, live events, theme parks, hotels, and indoor/outdoor permanent lighting.

SOURCE
・(14) x 20W RGBLA+ UV LEDs
・30,000 Hour Average LED Life*
　*May vary depending on several factors including but not limited to:
　Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA
・7300 Total Lumen Output
・CRI - 91.7

EFFECTS
・Electronic Dimmer and Strobe
・Variable 16-bit Dimming Modes and Curves

COLOR
・RGBLA+ UV Color Array
・CMY Emulation
・Variable CCT 2400K - 8500K
・Virtual Gel Swatch Book

CONTROL / CONNECTIONS
・9 DMX Channel Modes (1ch, 3ch, 9ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)
・4 SixPar Emulation DMX Channel Modes (6ch, 7ch, 8ch, 12ch)
・Manual and DMX Controlled Dimmer and Color
・4 Button Control Panel, LED Display
・Aria x2 Wireless Device Management
・RDM (Remote Device Management)
・5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT
・Length: 10.2" (260mm)
・Width: 13.5” (342mm)
・Vertical Height: 9.7” (246.5mm)
・Weight: 15.7lbs. (7.1kg)

ELECTRICAL / THERMAL
・AC 100-240V - 50/60Hz
・165W Max Power Consumption
・Power Thru Capacity: 7 Units @ 110V, 16 units @ 240V
・5°F to 113°F (-15°C to 45°C)
・BTU/hr (+/- 10%) 562.65

INCLUDED ITEMS
・MFL (20°) Lens
・Safety Cable
・IP65 Locking Power Cable

OPTIONAL ITEMS
・60° Lens (SIX+L WFL)
・100° Lens (SIX+L XFL)
・1°x 40° Lens (SIX+L L140)
・10°x 60° Lens (SIX+L L1060)
・Gel Frame & Holder Kit (SIX+L GFK)
・10" Black Barndoor
・4 Wire Hardwire Installation Plate (HWP404)
・2 Wire Hardwire Installation Plate (HWP202)
・# 8050000053 - Omega Bracket

APPROVALS / RATINGS
・CE | cETLus | UL | IP65c| FCC | UKCA

FIRMWARE UPDATE
・Current Update: V1.0.3
・Click HERE for software update

Specifications and documentation subject to change without notice.
