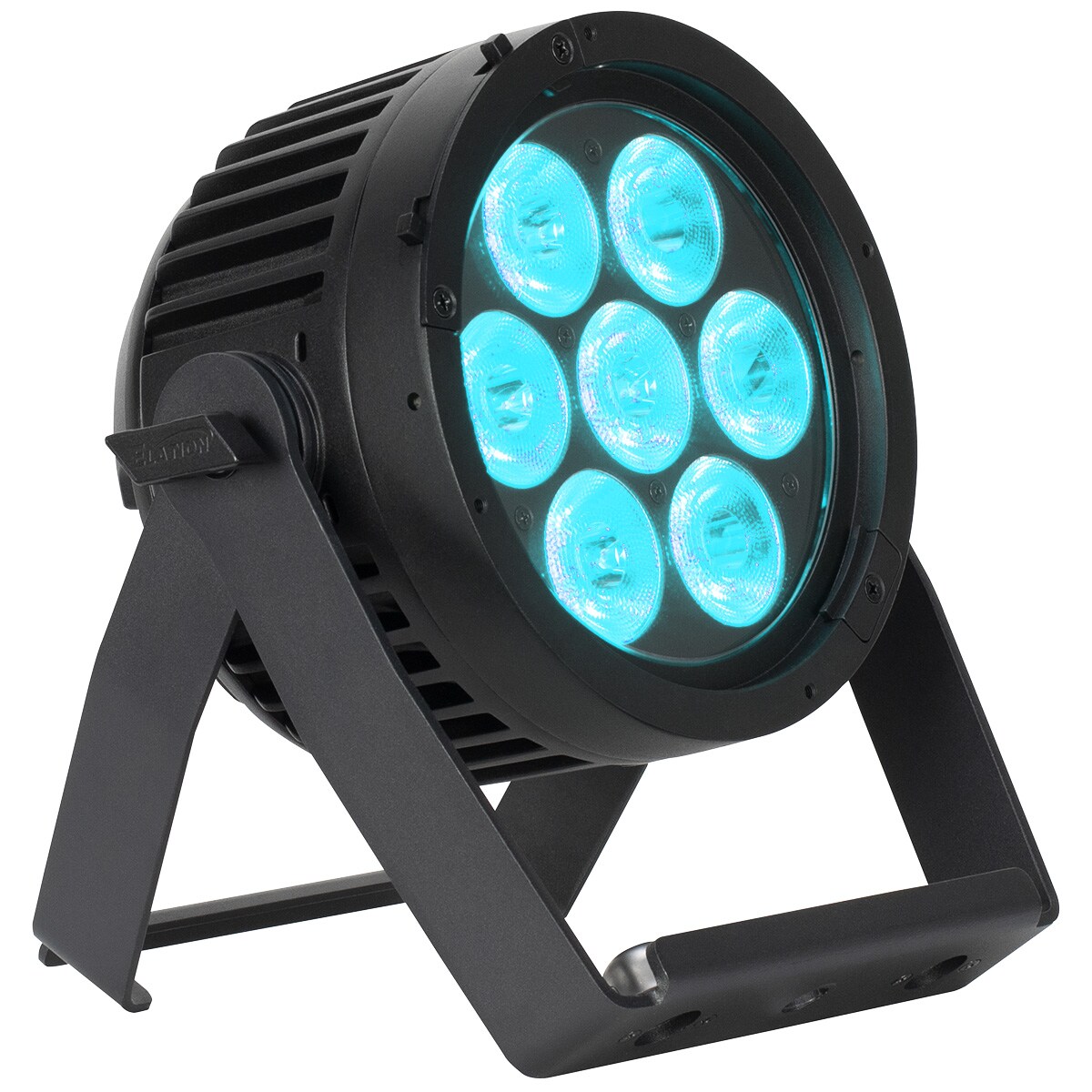

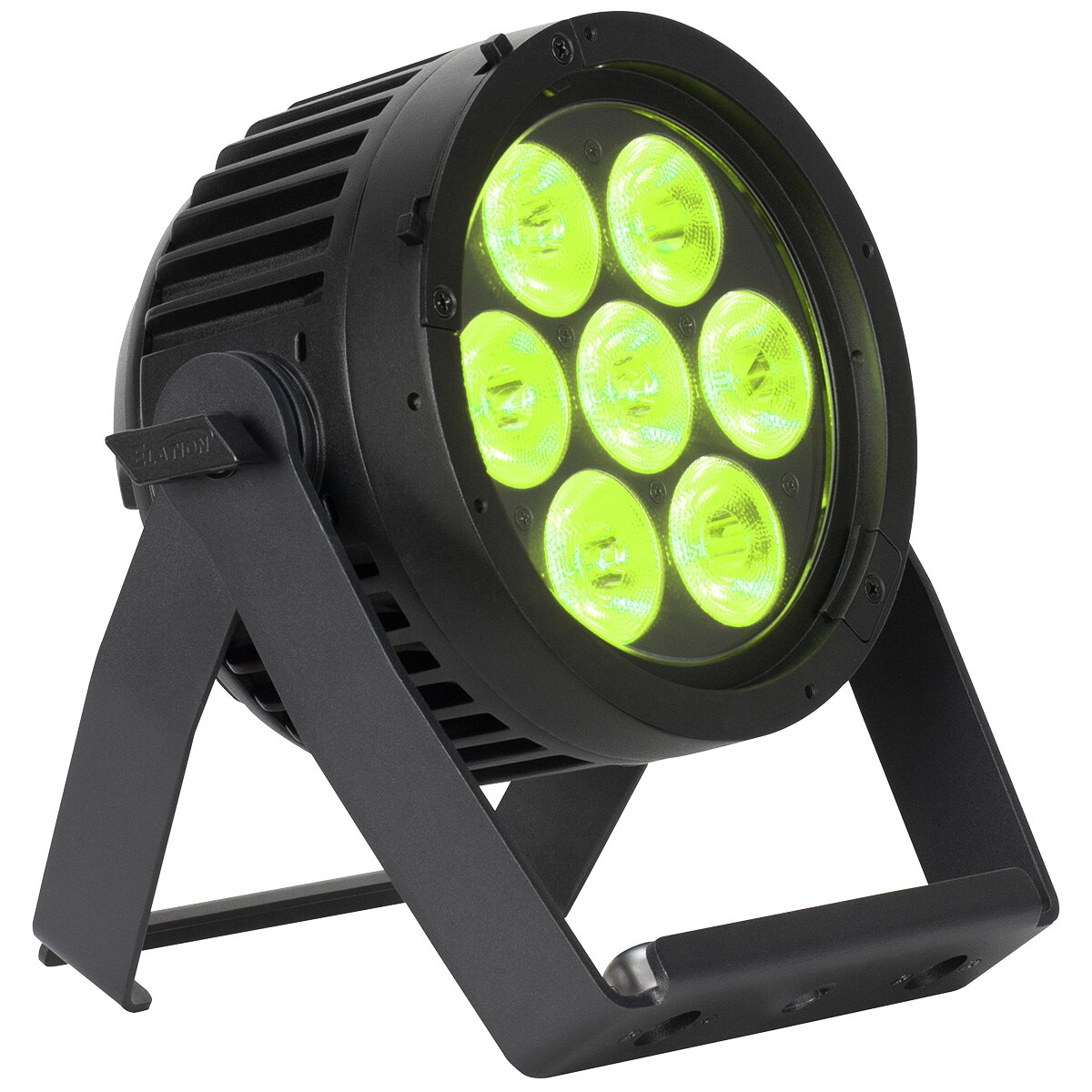

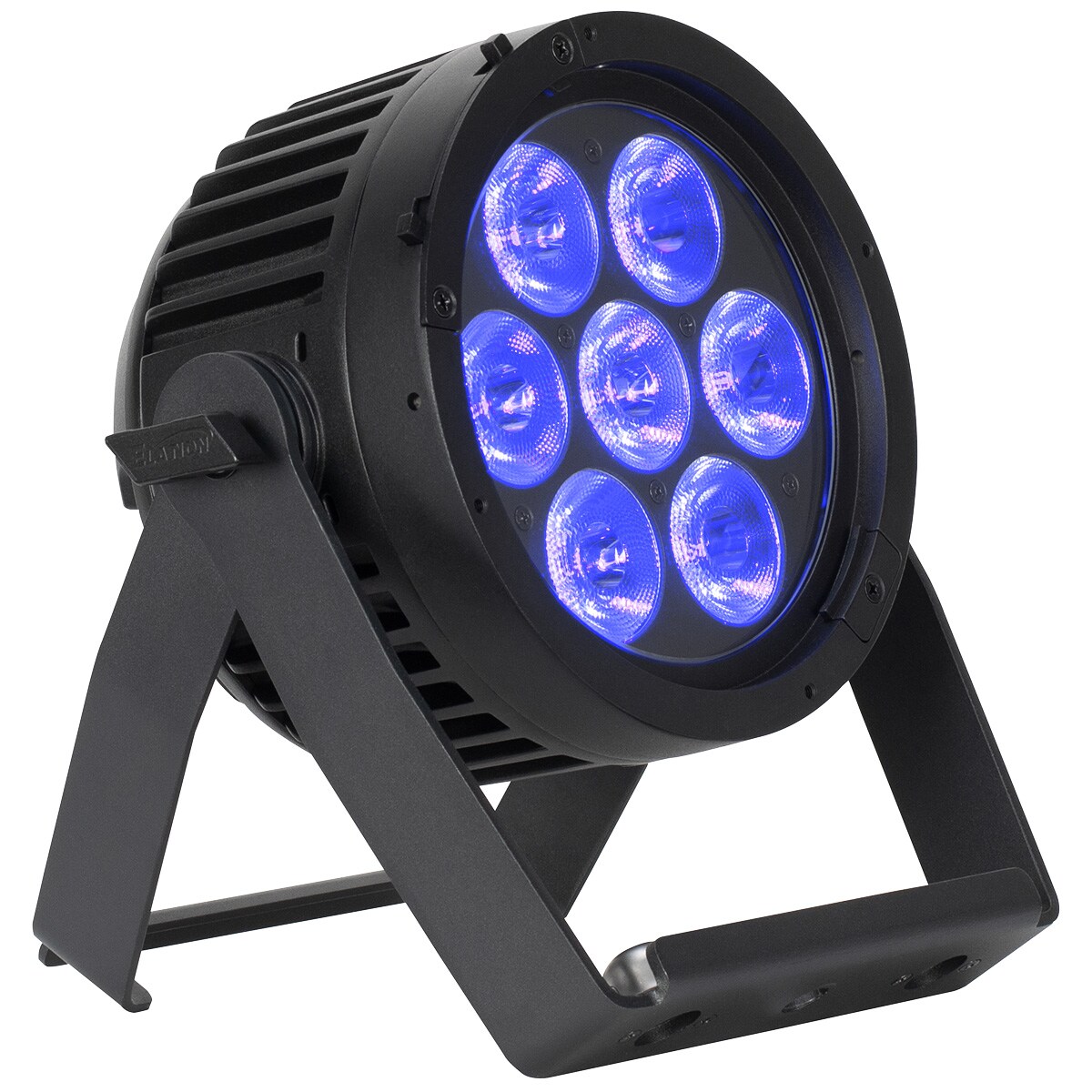

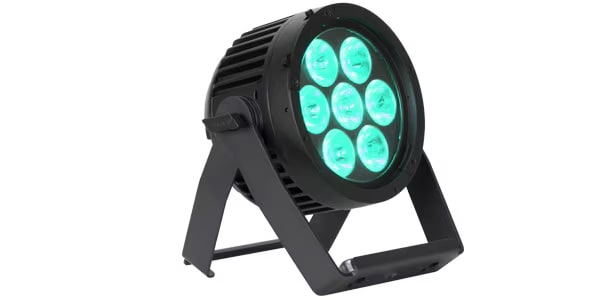

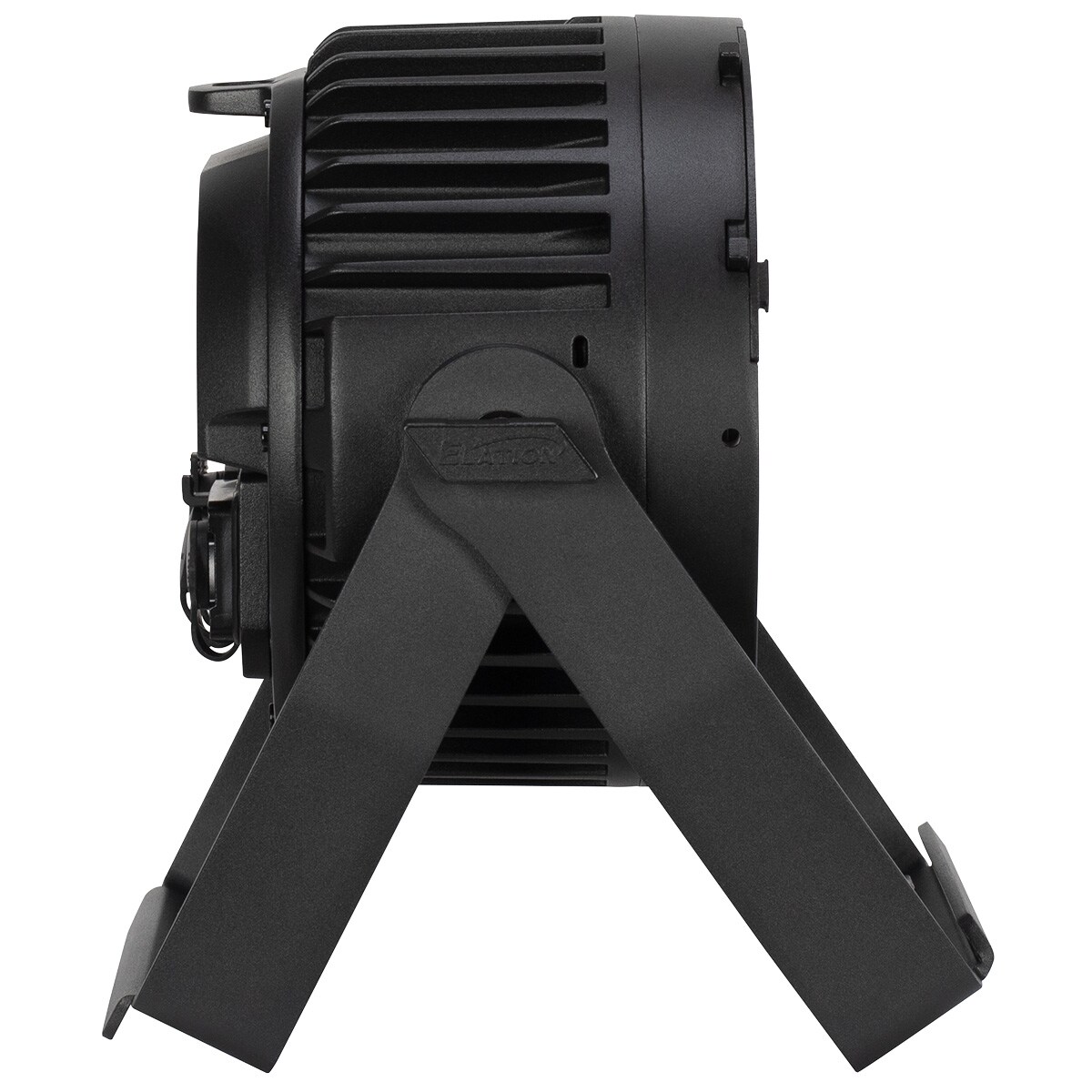

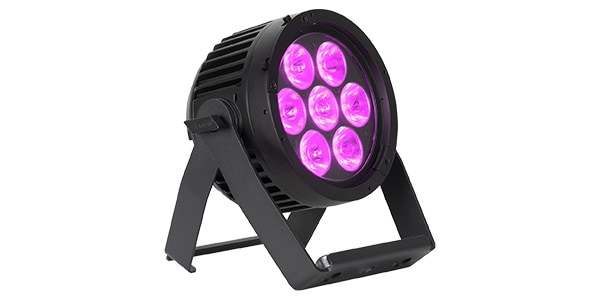

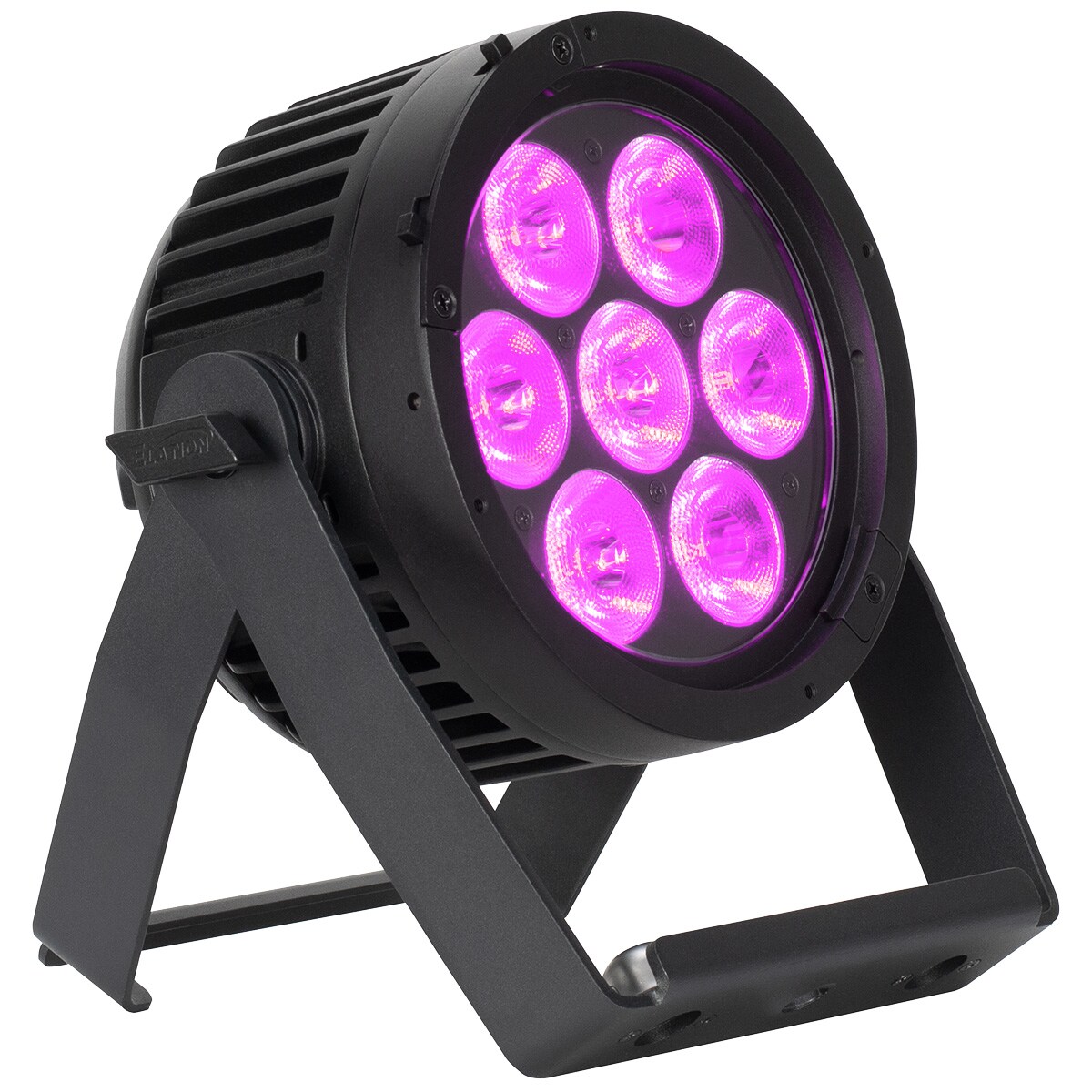

ELATION / SIX+ PAR S

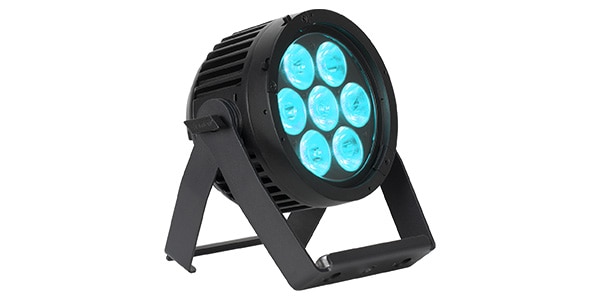

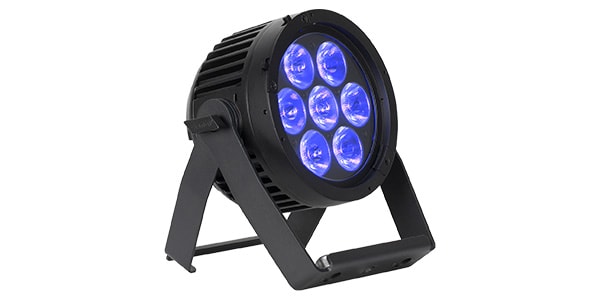

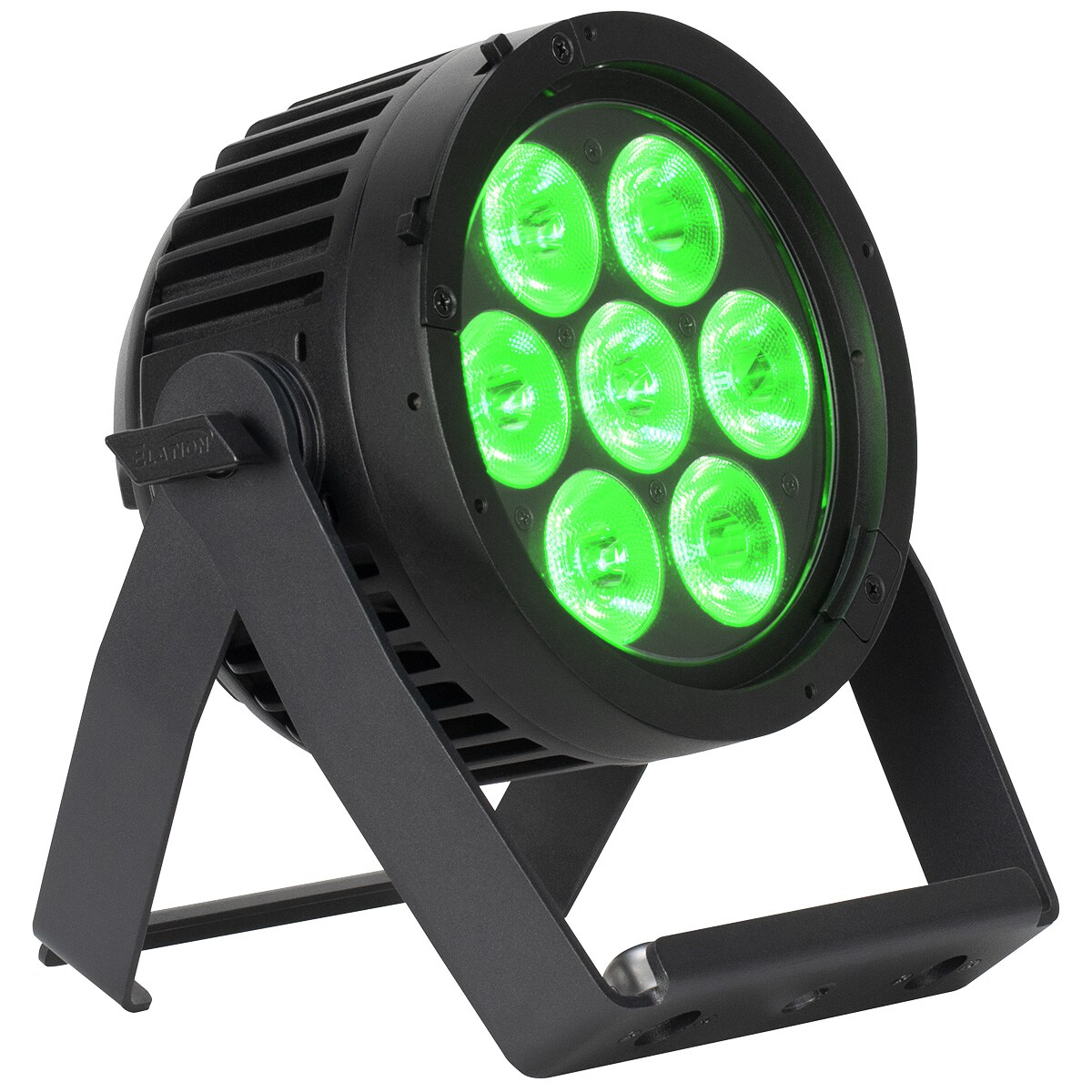

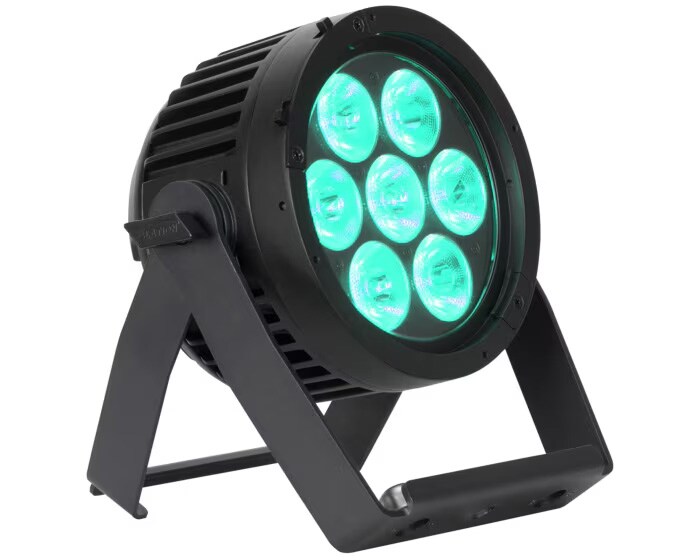

ELATION's IP65 compliant LED par light. Equipped with 7 20W RGBLA+UV LEDs. The fanless design allows quiet operation and can be installed in noise-sensitive environments. It is useful in a variety of situations such as theaters, live events, theme parks, hotels, and indoor and outdoor permanent lighting.

■ SOURCE
- 20W RGBLA+UV LEDs x 7
- Average LED Lifetime: 30,000 hours*
*Lifetime may vary depending on environmental conditions, power/voltage, usage patterns (on/off cycling), and control or dimming methods.

■ PHOTOMETRIC DATA
- Total Luminous Output
4570 lumens (Integrating Sphere)
4329 lumens (Goniometer)
- CRI: 91.7
- TLCI: 81

■ EFFECTS
- Electronic dimmer and strobe
- Variable 16-bit dimming modes and curves

■ COLOR
- RGBLA+UV color array
- CMY emulation
- Variable CCT: 2400K - 8500K
- Virtual gel swatch book

■ CONTROL / CONNECTIONS
- 9 DMX channel modes (1ch, 3ch, 9ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)
- 4 SixPar emulation DMX channel modes (6ch, 7ch, 8ch, 12ch)
- Manual and DMX-controlled dimming and color

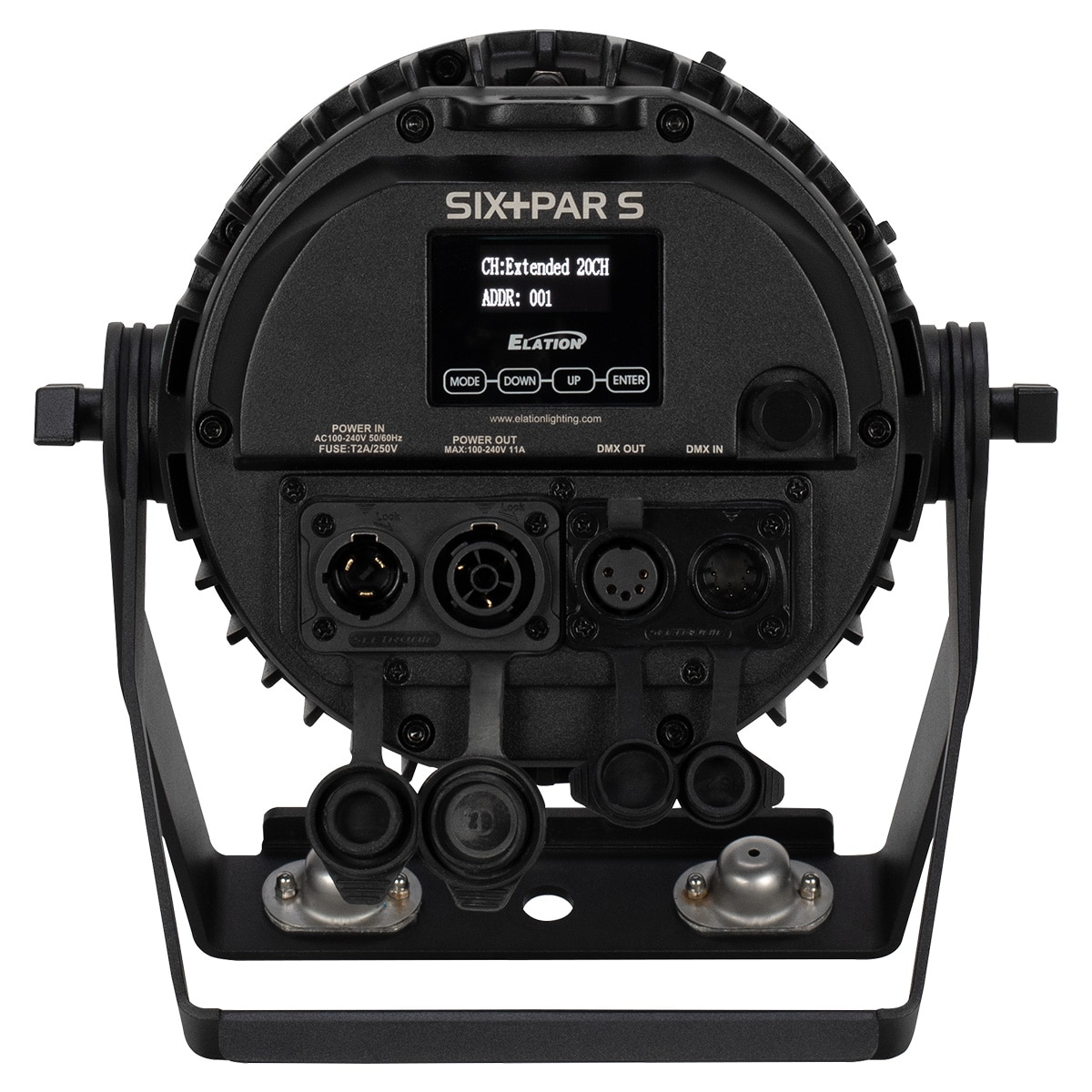

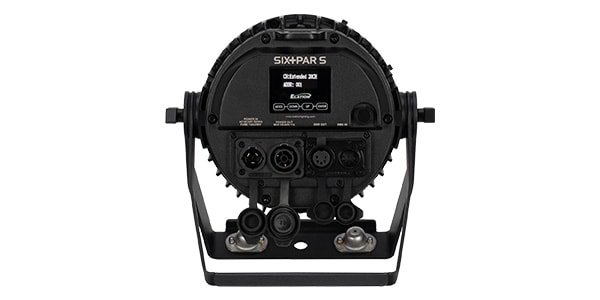

- 4-button control panel, LED display
- RDM (Remote Device Management)
- 5-pin DMX and IP65 locking power cable In/Out

■ SIZE / WEIGHT
- Length: 7.4 in (188 mm)
- Width: 9.7 in (247.1 mm)
- Height: 9.1 in (230 mm)
- Weight: 9.48 lbs (4.30 kg)

■ ELECTRICAL / THERMAL
- AC 100-240V 50/60Hz
- Maximum Power Consumption: 100W
- Power Thru Capacity: 11A (12 units @110V, 26 units @240V)
- Operating Temperature: 5F - 113F (-15C - 45C)
- Heat Output: 341 BTU/hr (+/- 10%)

■ INCLUDED ITEMS

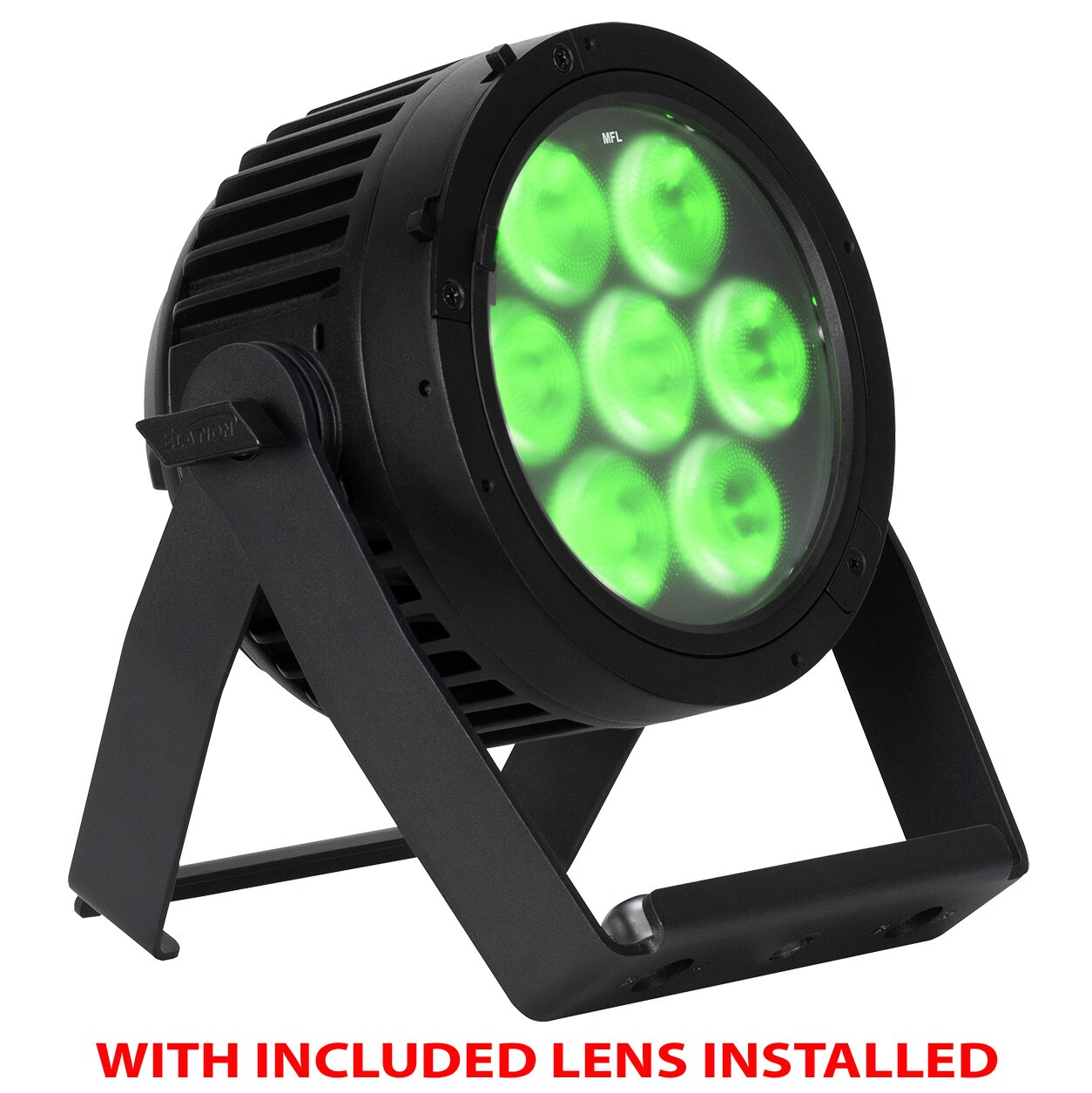

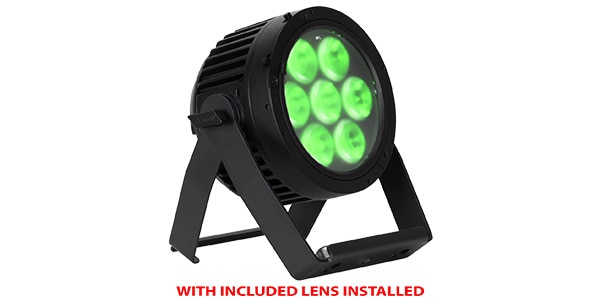

- MFL (20 degrees) lens
- Safety cable
- IP65 locking power cable

■ OPTIONAL ITEMS
- 60 degrees lens (SIX+S WFL)
- 100 degrees lens (SIX+S XFL)
- 1 x 40 degrees lens (SIX+S L140)
- 10 x 60 degrees lens (SIX+S L1060)
- Gel frame holder kit (SIX+S GFK)
- 7.5 in barndoor (KLP959) *Requires SIX+S GFK*
- 4-wire hardwire installation plate (HWP404)
- 2-wire hardwire installation plate (HWP202)
- Omega bracket (#8050000053)
- 10 ft Tour Link 5-pin DMX cable (TOU027)
- 10 ft IP65 locking power extension cable (SIP139)

■ APPROVALS / RATINGS
CE / cETLus / IP65 / FCC / UKCA
