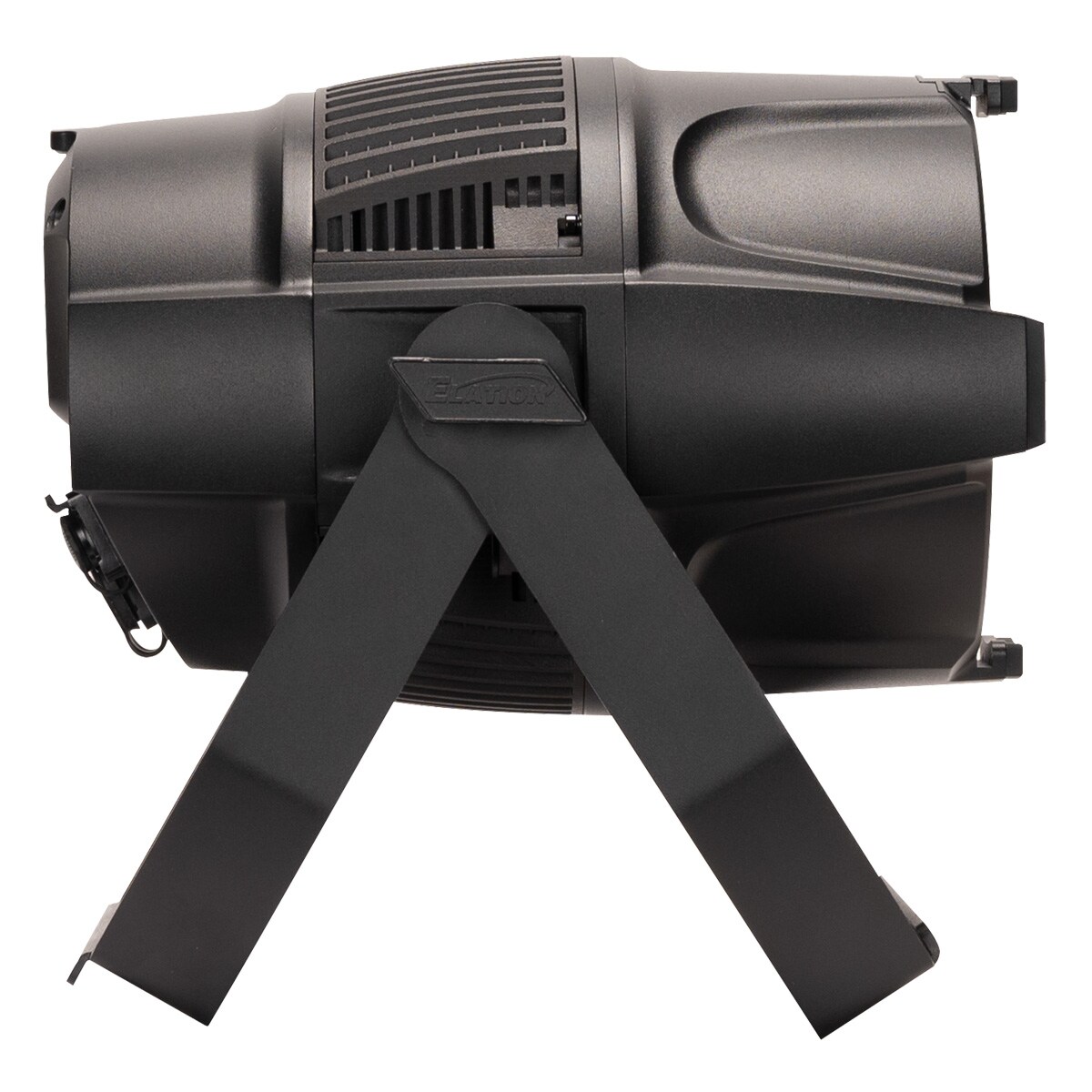

ELATION / LIMELIGHT PARS

ELATION's IP65 compliant LED par light. Equipped with a wide range zoom function from 5 degrees to 42 degrees. Equipped with 7 60W RGBL LEDs, it has vivid color toning, wide color gamut, and high color rendering rate. It is also possible to control the LEDs in two independent zones. Creates a variety of visual effects.

■ SOURCE
- 60W RGBL LEDs x 7
- Average LED Lifetime: 30,000 hours*
*Lifetime may vary depending on environmental conditions, power/voltage, usage patterns (on/off cycling), and control or dimming methods.

■ PHOTOMETRIC DATA
- Total Luminous Output
5345 lumens (Integrating Sphere)
4844 lumens (Goniometer)
- CRI: 82.8
- TLCI: 74
- Zoom Range: 5 - 42 degrees
- Beam Angle: 5 - 42 degrees
- Field Angle: 8 - 60 degrees

■ EFFECTS
- Dual-zone LED control
- Electronic dimmer and strobe
- Variable 16-bit dimming modes and curves

■ COLOR
- RGBL color array
- CMY emulation
- Variable CCT: 2400K - 8500K
- Virtual gel swatch book

■ CONTROL / CONNECTIONS
- 7 DMX channel modes (4ch / 12ch / 15ch / 13ch / 17ch / 17ch / 25ch)
- Manual and DMX-controlled dimming and color
- 4-button control panel with LED display
- RDM (Remote Device Management)
- 5-pin DMX and IP65 locking power cable In/Out

■ SIZE / WEIGHT
- Length: 12.5 in (317 mm)
- Width: 8.8 in (224 mm)
- Height: 16.7 in (423 mm)
- Weight: 20.1 lbs (9.1 kg)

■ ELECTRICAL / THERMAL
- AC 100-240V 50/60Hz
- Maximum Power Consumption: 332W
- Power Thru Capacity: 11A (3 units @110V, 7 units @240V)
- Operating Temperature Range: 5F - 113F (-15C - 45C)
- Heat Output: 1132.8 BTU/hr (+/- 10%)

■ INCLUDED ITEMS
- IP65 locking power cable
- Safety cable

■ OPTIONAL ITEMS
- 7.5 in gel frame
- 7.5 in barndoor (KLP959)
- Omega bracket (#8050000053)

■ APPROVALS / RATINGS
CE / cETLus / IP65 / FCC / UKCA
