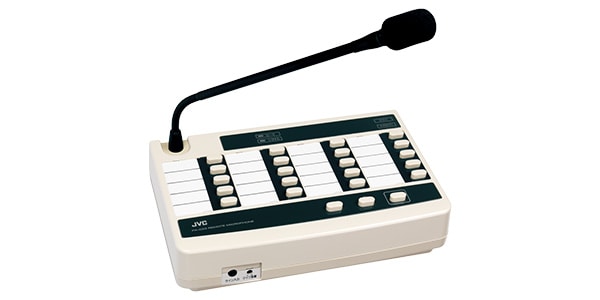

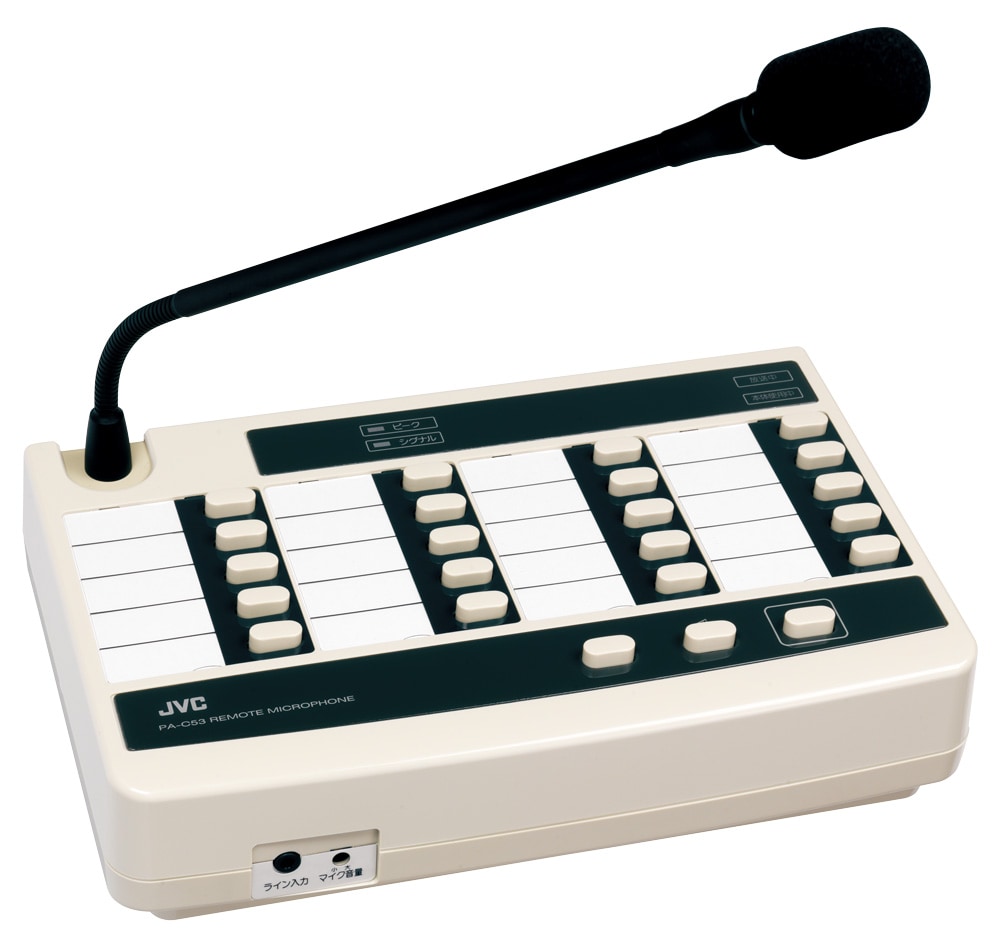

JVC / PA-C53

JVC's 20-line remote microphone.

■Remote microphone
■Number of broadcast locations: 20+ all at once
■Microphone: Condenser microphone (electric type), flexible shaft
■Line input: Dual mini jack, input level -10dBs (variable, -4dBs at shipping: unbalanced) Input impedance 2KΩ
■Audio output: Output level 0dBs (balanced), output impedance 100Ω
■Output level indicator (red), broadcasting indicator (green)
■Other indicators: Main unit in use indicator (red), broadcasting indicator (green)
■Chime: Activate the chime of the broadcasting equipment by operating a switch.
■Power supply: DC24V, 55Ma (supplied from the broadcasting equipment itself)
■SIZE: 250(W)x60(H)x160(D)mm (excluding microphone)
■Mass: 2.1Kg
■Finish: Ivory (Munsell 4Y8/0.9 approximation, Nikko K25-80C (2019) approximation
