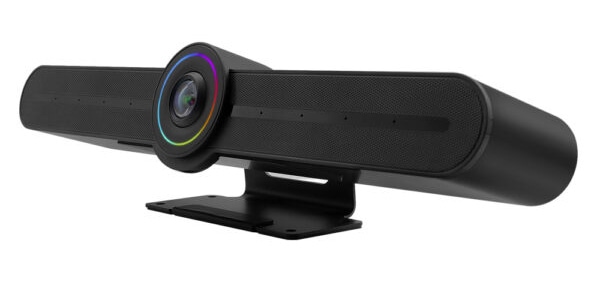

HDKATOV / KT-A31V

A USB auto-framing camera equipped with a SONY 1/2.8"" progressive COMS sensor.

■USB auto-framing camera

【camera】
■Resolution:
3840*2160, 1920*1080, 1280*720, 960*540, 800*600, 720*480, 640*480, 640*360, 352*288, 320*240
■Image sensor:
SONY 1/2.8"" Progressive COMS 8.5 Megapixel
■Video output: USB3.0
■Lens: 4K fixed focus
■Aperture: 2.1mm
■Horizontal viewing angle: 105°
■PTZ:
Horizontal: 18°±9° Vertical: 18°±9°
■Digital noise cancellation:
3D digital noise cancellation
■Auto framing: supported
■Sound tracking: supported
■Image flip: 180°
■Image mirror: compatible
■White balance: Auto/Manual
■Intelligent application:
Auto view, audio tracking, digital zoom
■Anti-flicker:
50HZ/60HZ
■Video adjustment: brightness, gain, contrast, gamma
■S/N ratio: >55dB
■Language: English/Chinese
■Remote control: IR operation

【audio】
■Pickup: Built-in 4 microphones
■Speaker: Built-in speaker
■Microphone array: Linear array microphone up to 8M
■USB: Protocol
■UVC1.1: Operation system
Windows7 or higher, MacOS, Linux, Android
■UVC video encoding:
YUV2, MJPEG, H.264, H.265
■UVC video resolution:
320*240, 640*480, 720*576, 800*600, 1280*720, 1920*1080, etc
■UVC video FPS: up to 30fps
■Interface: USB port
■1 line, USB3.0, type B socket
■Microphone: 3.5mm microphone in
■Audio expansion: Line in: 3.5mm passive microphone input expansion

[Common functions]
■Input voltage: DC12V
■Input current: max. 1A
■Power consumption: maximum 12W
■SIZE: 70(W)x 45(H)x400(L)mm
■Weight: 950g
■Accessories: Power adapter, IR remote control, USB3.0 cable, manual
