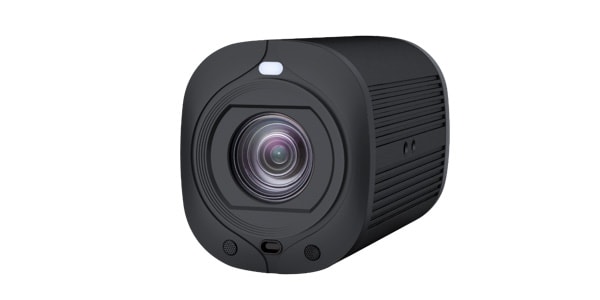

HDKATOV / KT-S10DHN

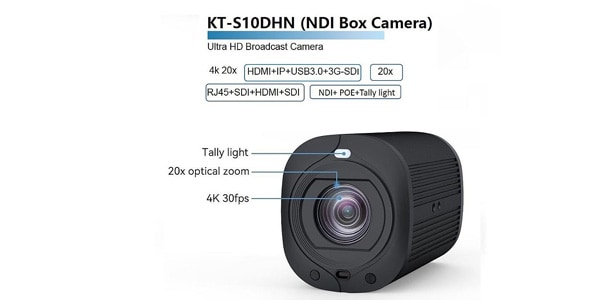

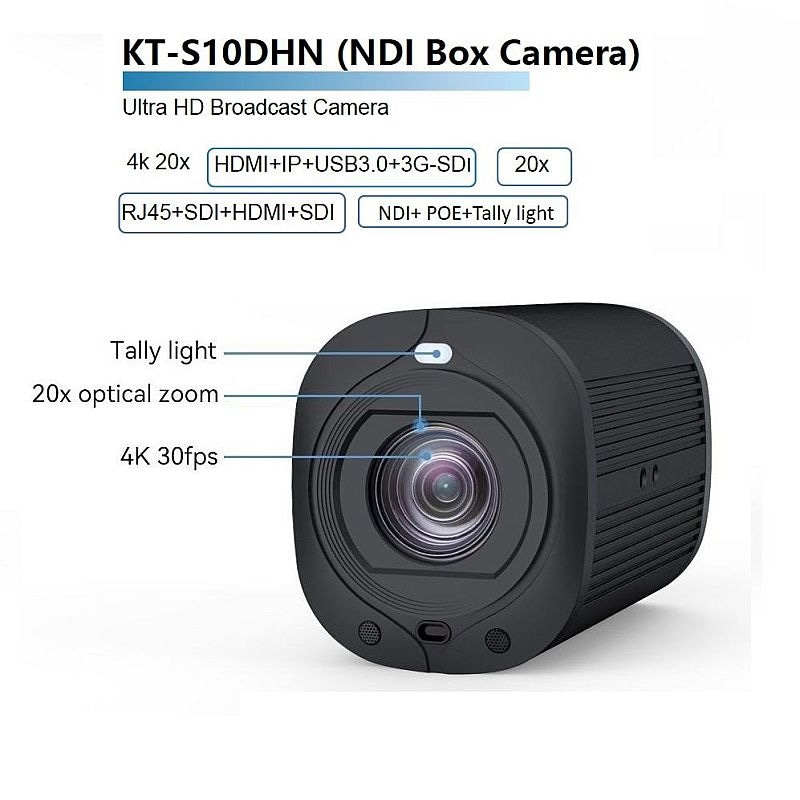

20x zoom 4K UHD BOX camera. Equipped with tally lamps on the front/rear.

■20x zoom 4K UHD BOX camera

【camera】
■Resolution:
HDMI & SDI: 4K/30, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/50
■Sensor:
SONY 1/2.8 STARVIS CMOS
■Lens:
20x zoom,
f=5.2mm(w)~104mm(f)
■Focus: Auto/Manual
■Minimum illuminance:
0.1 Lux @ (F1.5, AGC ON)
■White balance:
Auto/Manual/ATW/Indoor/Outdoor
■Backlight correction: Supported
■Digital noise reduction:
2D&3D digital noise reduction
■S/N ratio: -50dB
■Horizontal viewing angle: 58.7°(W) ~3.2°(T)
■Vertical viewing angle: 32.2°~ 1.8°
■POE：802.3af
■Number of preset positions:
9 positions: IR remote control, 200 positions: joystick controller or PC
■Preset position accuracy: 0.1°±10%

【USB】
■USB protocol: UVC1.1
■USB video encoding: YUY2, MJPEG
■USB video resolution
320x240,352x288,640x360,640x480,720x480,720x576,800x600,960x540,1280x720,1920x1080,2560x1440,3840x2160
■USB video frame rate: up to 30

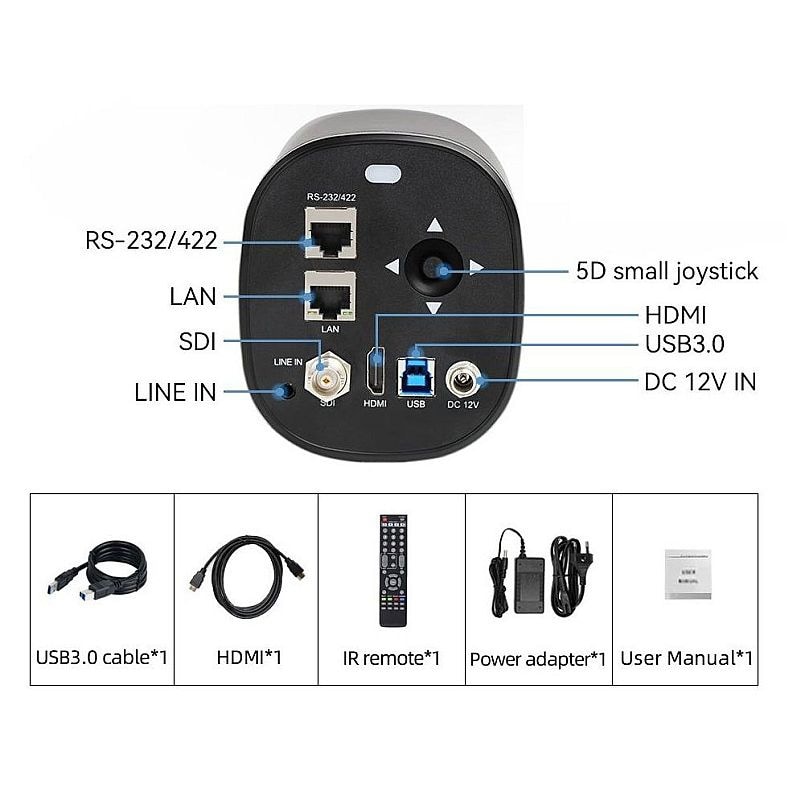

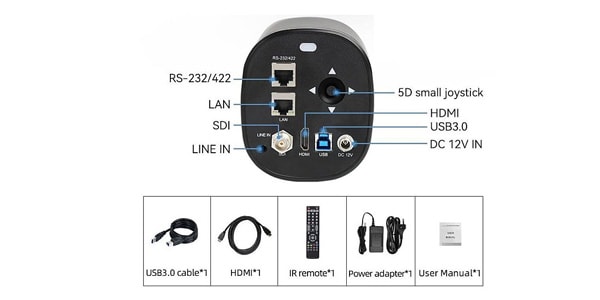

[Input/output]
■HDMI output:
1CH, HDMI: Version 1.4
■SDI output:
1CH, 3G-SDI
■Network interface:
1 CH, RJ45: 10M/100M Ethernet port
■USB:
1 CH, USB 3.0, Type-B socket
■Audio:
1CH, Line In, 3.5mm audio port
■Protocol:
1CH: RJ45, RS232 IN: Maximum distance: 30 meters, VISCA/Pelco-D/Pelco-P protocol, RS422&RS485 IN: Maximum distance: 1200 meters, VISCA/Pelco-D/Pelco-P protocol
■Power interface:
DC 12V IEC60130-10 (JEITA standard RC-5320A) TYPE4

[General specifications]
■Input voltage: DC 12V
■Input current: max. 3A
■Power consumption: Maximum 36W
■Operating environment: 0~40℃
■SIZE: 88.1(W)x102.2(H)x152(L) mm
■Weight: 1500g
■Color: Black
■Accessories:
DC12 power adapter, IR remote control, manual, RJ45 cable, USB cable
