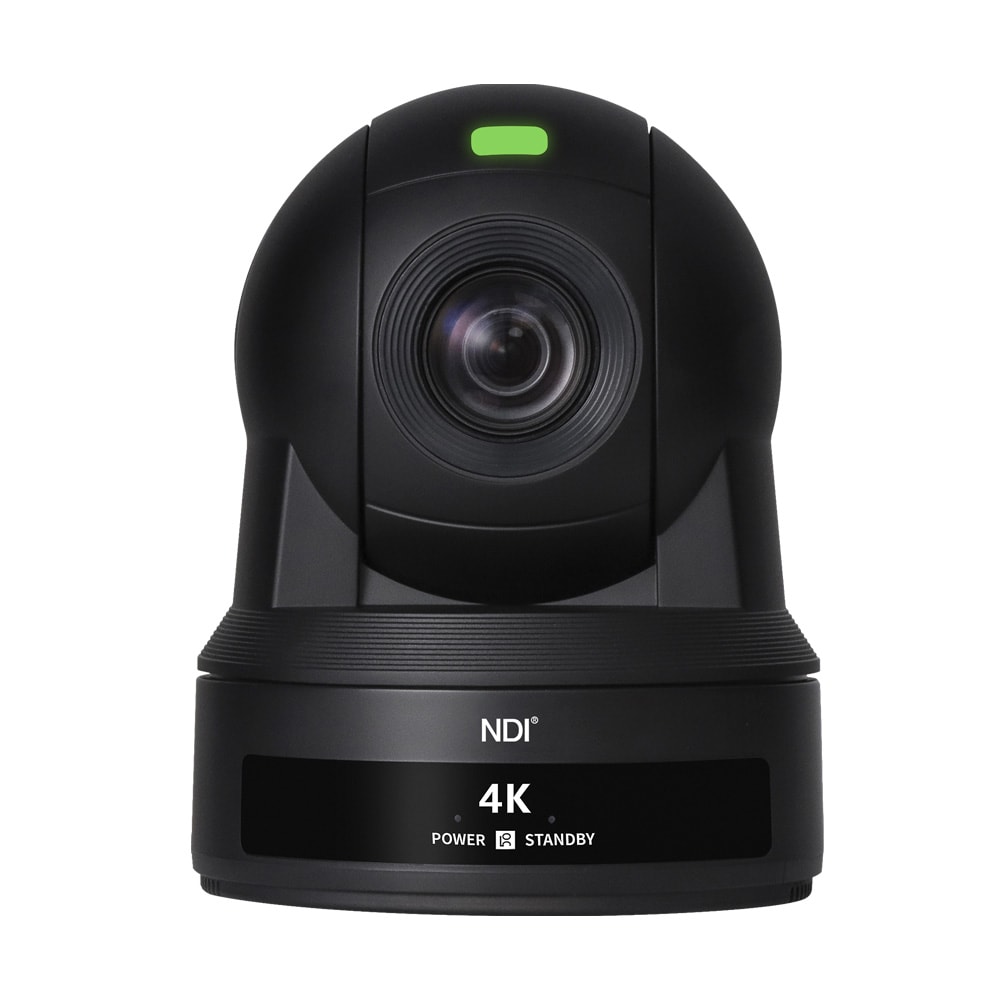

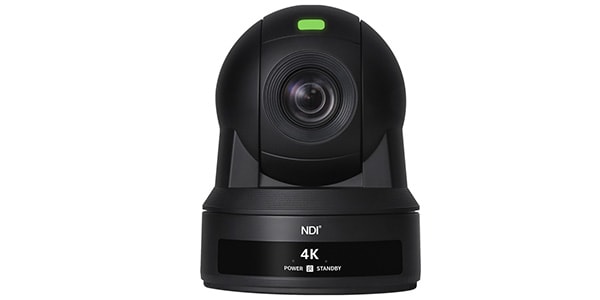

HDKATOV / KT-UH62FQN

4K UHD FULL NDI PTZ camera with 20x zoom and 70.2° wide angle.

■4K UHD FULL NDI PTZ camera

【camera】
■Resolution:
HDMI: 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30
1080p/29.97, 1080p/25, 1080i/50, 1080i/59.94, 1080i/60, 720p/60, 720p/50
6G-SDI: 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30
1080p/29.97, 1080p/25, 1080i/50, 1080i/59.94, 1080i/60, 720p/60, 720p/50
■Image sensor:
SONY STARVIS 4K CMOS
■Lens:
20x zoom, f=4.4mm(W)~88,4mm(F)
■Focus: Auto/Manual
■Minimum illuminance: 0.4 Lux @ (F2.0, AGC ON)
■White balance: Auto, Indoor, Outdoor, Keyboard Control, Auto Tracking
■Backlight correction: Supported
■Digital noise reduction:
2D&3D digital noise reduction
■S/N ratio: -55dB
■Horizontal viewing angle:
70.2°(W) ~4.1°(T)
■Vertical viewing angle: 33° to 1.8°

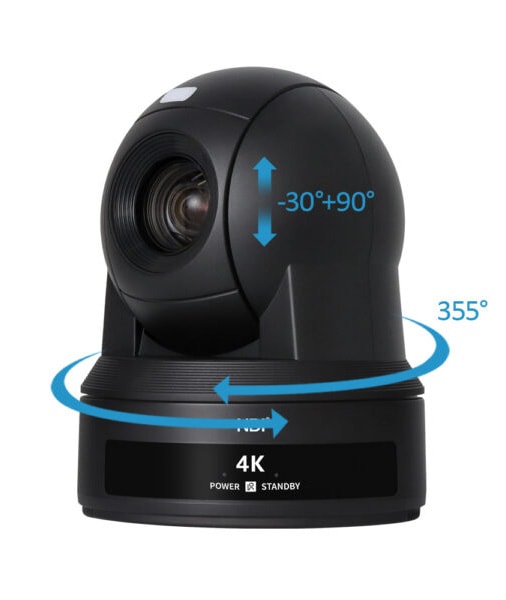

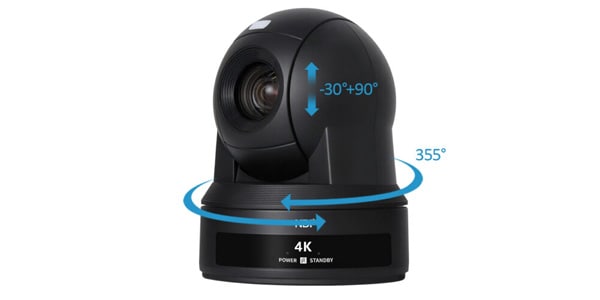

■Pan: 355°
■Tilt: -30°~ +90°
■Pan speed: 1°~ 180°/s
■Tilt speed: 1°~ 90°/s
■POE：802.3at
■Number of preset positions:
9 positions: IR remote control, 200 positions: joystick controller or PC
■Preset position accuracy: 0.1°±10%

【USB】
■USB protocol: UVC 1.1
■USB video encoding: YUY2, MJPEG
■USB video format:
320x180, 320x240, 352x288, 480x272, 640x480, 720x576, 800x600, 1280x720, 1920x1080, 2560x1440, 3840x2160
■USB PTZ operation: supported
■USB video frame rate: up to 30FPS

【network】
■Code stream:
Main code stream*1, Auxiliary code stream*1
■Coding format: H.264, H.265
■Streaming protocol:
RTMP, RTSP, RTMPS, ONVIF, Full NDIR, NDIRHX2
■Main Code Stream resolution: 1920×1080
■Auxiliary Code Stream resolution:
640×480, 640×360, 480×360, 352×288, 320×240, 176×144
■Audio compression: AAC
■Supported protocols:
TCP/IP, RTSP, RTMP, RTMPS, Onvif, DHCP, NDIR, etc.

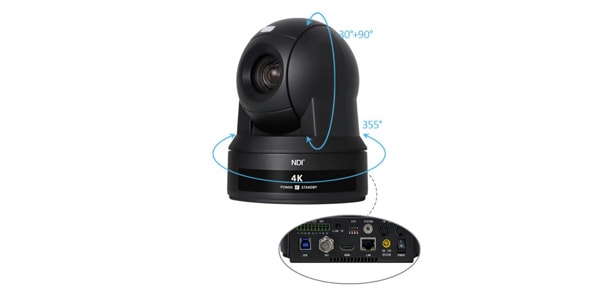

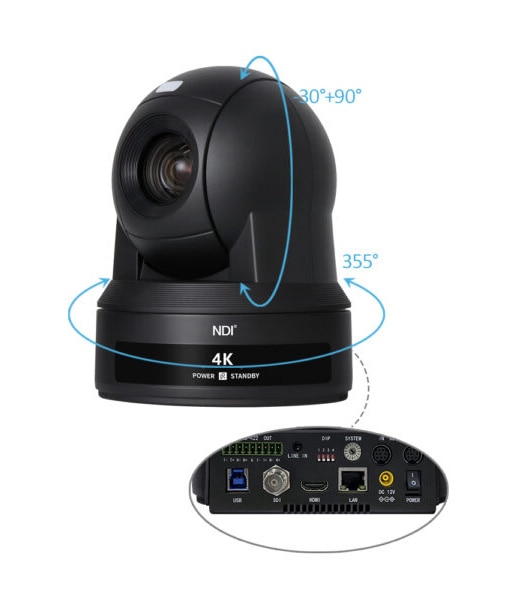

[Input/output]
■Video output: 1 Line: HDMI: Version1.4
■SDI output: 1 Line: 6G-SDI (ST 2081-1)
■USB3.0 output: 1 USB 3.0
■Network interface:
1 Line: RJ45:10M/100M Ethernet port
■Audio interface: 1 Line: Line In, 3.5mm audio interface
■Connection interface:
1 Line: RS232 IN/OUT: Maximum distance: 30 meters, VISCA/Pelco-D/Pelco-P protocol
1 Line: RS485/422: Maximum distance: 1200m, VISCA/Pelco-D/Pelco-P protocol
■Power interface:
DC 12V IEC60130-10(JEITA Standard RC-5320A) TYPE4

[General specifications]
■Input voltage: DC 12V
■Input current: max. 1.7A
■Power consumption: 20W
■Operating environment: 0~40℃
■SIZE: 150.8(W)x193.3(H)x170.2(L)mm
■Weight: 1.5kg
■Color: black
■Accessories:
DC12 power adapter, IR remote control, manual, RS-232C cable, 4K HDMI cable, ceiling mount bracket
