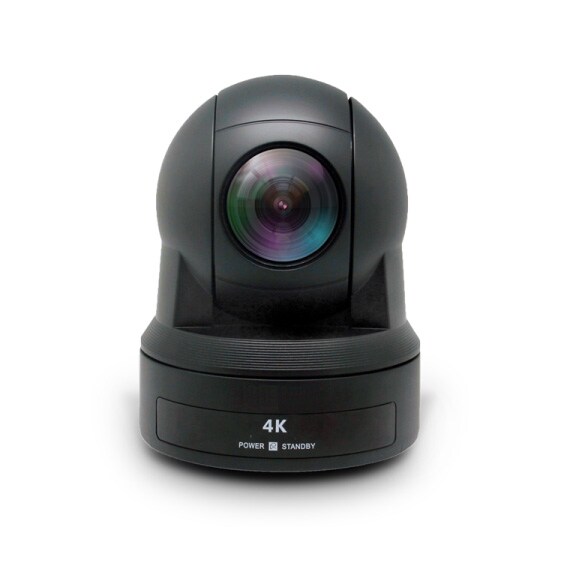

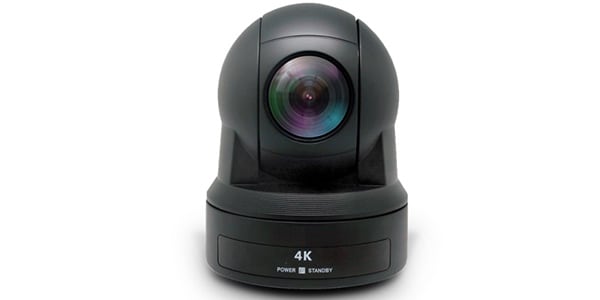

HDKATOV / KT-UH61RK

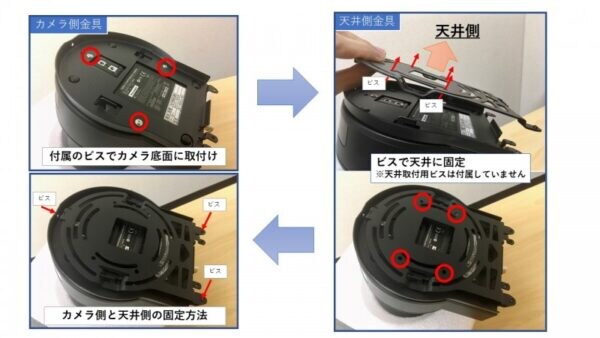

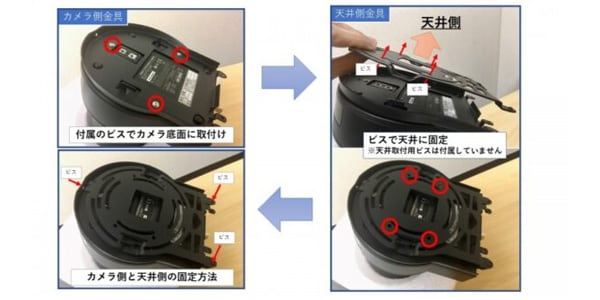

4K compatible remote PTZ camera. Achieves low cost and high specifications. It can be mounted to the ceiling using the included hardware.

■4K compatible remote PTZ camera
■Image sensor:
1/2.5 inch 8.50 megapixel sensor
■Resolution:
2160p 30/29.97/25 *4K resolution only for RJ 45/HDMI
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/50
■Lens
Zoom: Optical 12x
Focal length: 3.9mm (wide angle) - 46.8mm (telephoto)
■Angle of view:
Horizontal angle approximately 72.5° to 7.4°
■Bread:
355° (maximum speed 80°/sec)
■Tilt:
-30°?+90° (maximum speed 60°/sec)
■Focus:
Auto, Manual
■MOD (the shortest distance that can focus on the subject at maximum zoom): Approx. 1.5m
■S/N ratio: 50dB
■Minimum subject illuminance: 0.1Lux
■Gain: Auto / Manual
■White balance:
Auto/Manual/ATW/Indoor/Outdoor
■LINE IN (2ch):
3.5mm stereo mini jack *Superimposed on RJ-45 output only

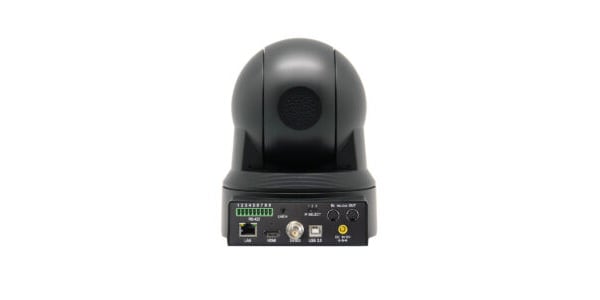

■Output:
RJ-45 / HDMI / SDI *4K compatible only RJ-45 / HDMI
■Protocol:
SONY VISCA, PELCO P/D
■Control:
RS-232C, RS-422/485
■Power supply:
DC12V (10.8-13.0V)
■Power consumption: 18W
■Operating temperature: 0~40℃
■SIZE: 151(W)x190(H)x170(L)mm
■Weight: 1320g
■Color: Black
■Accessories: Instruction manual, AC adapter, remote control, mounting hardware
