HDKATOV / KT-HD86AN

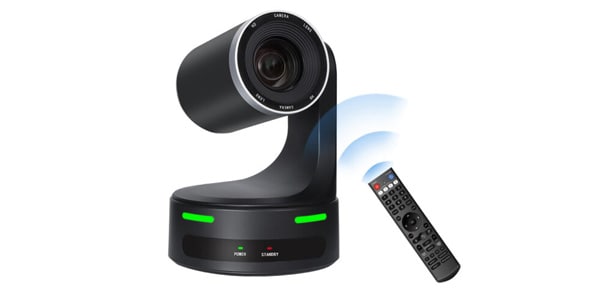

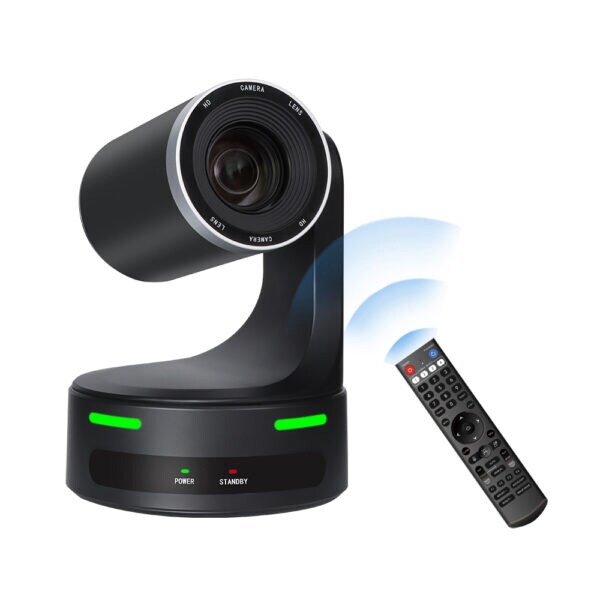

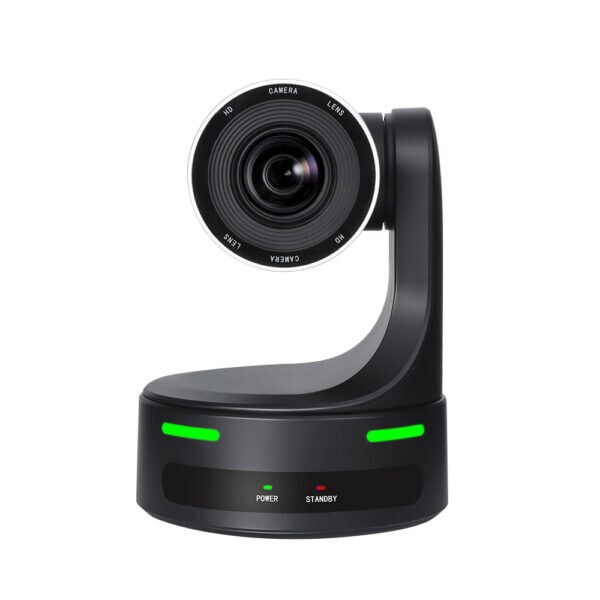

HD remote PTZ camera with 1080P HD output and 20x zoom and tally lamp.

■HD remote PTZ camera

【camera】
■Resolution:
1080p60/50, 1080p59.94/29.97, 1080p30/25, 1080i60/50, 1080i59.94, 720p60/50
■Image sensor;
SONY 1/2.8” Progressive CMOS
■Lens:
20x zoom, f=5.2mm(w)~104mm(f)
■Focus: Auto/Manual
■Minimum illuminance: 0.5 Lux @ (F1.8, AGC ON)
■Shutter speed: 1/25s~1/10000s
■White balance: Auto/Manual/One click/Indoor/Outdoor
■Backlight correction: Supported
■Digital noise reduction:
2&3D digital noise reduction
■S/N ratio: -55dB
■Horizontal viewing angle: 58.7° (W) ~ 3.2° (T)
■Vertical viewing angle: 33°~1.8°
■Pan: 355°
■Tilt: -30°~+90°
■Pan speed: 1°~90°/s
■Tilt speed: 1°~90°/s
■POE: 802.3af (optional)
■Number of preset positions:
9 positions: IR remote control, 200 positions: joystick controller or PC
■Preset position accuracy: 0.1°±10%

【USB】
■USB protocol: UVC1.1, UAC1.0
■Operation system: Window7 and above, MacOS, Linux, Android
■USB video encoding: YUY2, MJPEG, H.264, H.265
■USB video resolution: 320×240, 640×480, 720×576, 800×600, 1280×720, 1920×1080, 3840×2160
■USB video frame rate: up to 60

【network】
■Code stream:
Main code stream*1, Auxiliary code stream*1
■Coding format: H.264, H.265, MJPEG
■Streaming protocol:
RTMP, RTSP, RTMPS, ONVIF, SRT, NDI|HX
■Main Code Stream resolution:
576P30, 720P25, 720P30, 720P50, 702P60, 1080P25, 1080P30, 1080P50, 1080P60
■Auxiliary Code Stream resolution: 576P30, 720P25, 720P30

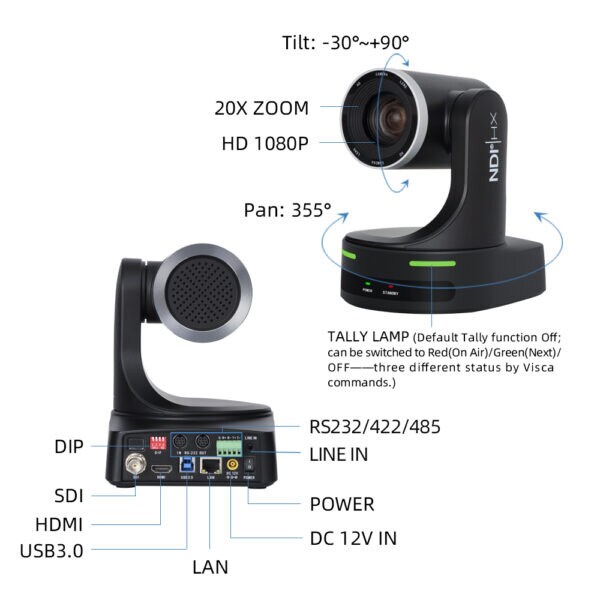

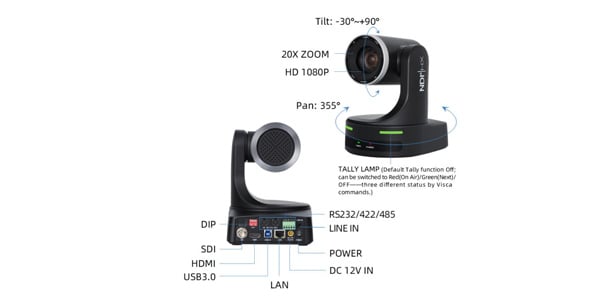

[Interface]
■Video output:
1 Line, HDMI: Version1.4
1 Line, 3G-SDI: SMPTE-274M(Level A), SMPTE-296M
■USB interface:
1 Line, USB 3.0, Type-B socket
■Network interface:
1 Line, RJ45: 10M/100M Ethernet port
■Audio interface:
1 Line, Line In, 3.5mm AUDIO-IN
■Operation mode:
1 Line, RS232 IN: 8 Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol
1 Line, RS232 OUT: 8 Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol
1 Line, RS422/485 IN/OUT: Nine-core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol
■Power interface:
DC 12V IEC60130-10(JEITA Standard RC-5320A) TYPE4

[General specifications]
■Input voltage: DC 12V
■Input current: max. 1.0A
■Power consumption: Maximum 12W (DC12V)
■Operating environment: 0~40℃
■SIZE: 133(W)×181(H)x161(L)mm
■Weight: 1200g
■Color: Black
■Accessories:
DC12V power adapter, IR remote control, manual, RS-232C cable, HDMI cable, USB3.0 cable, ceiling mount bracket
